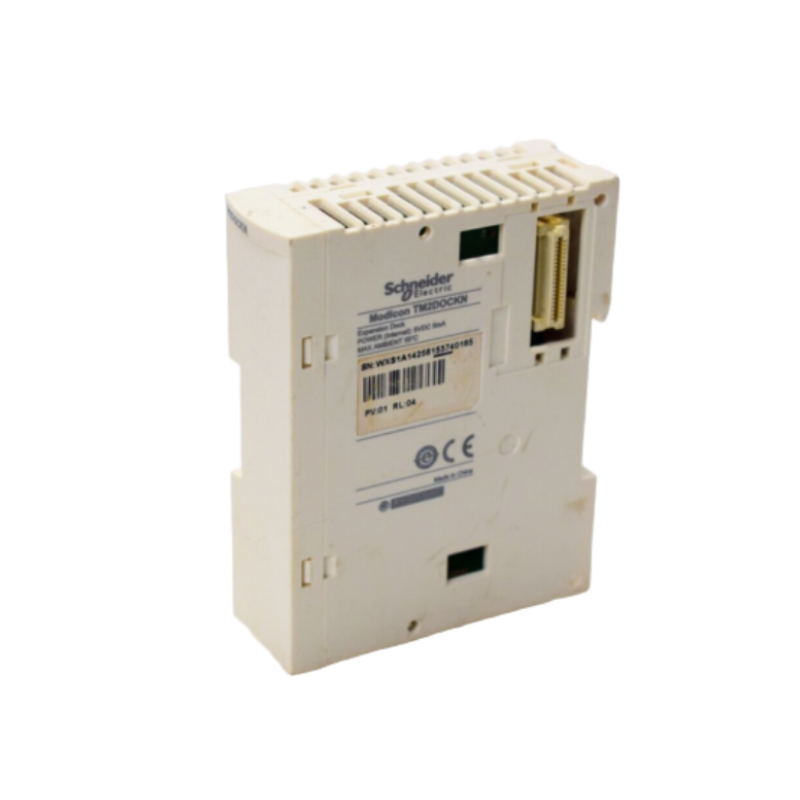

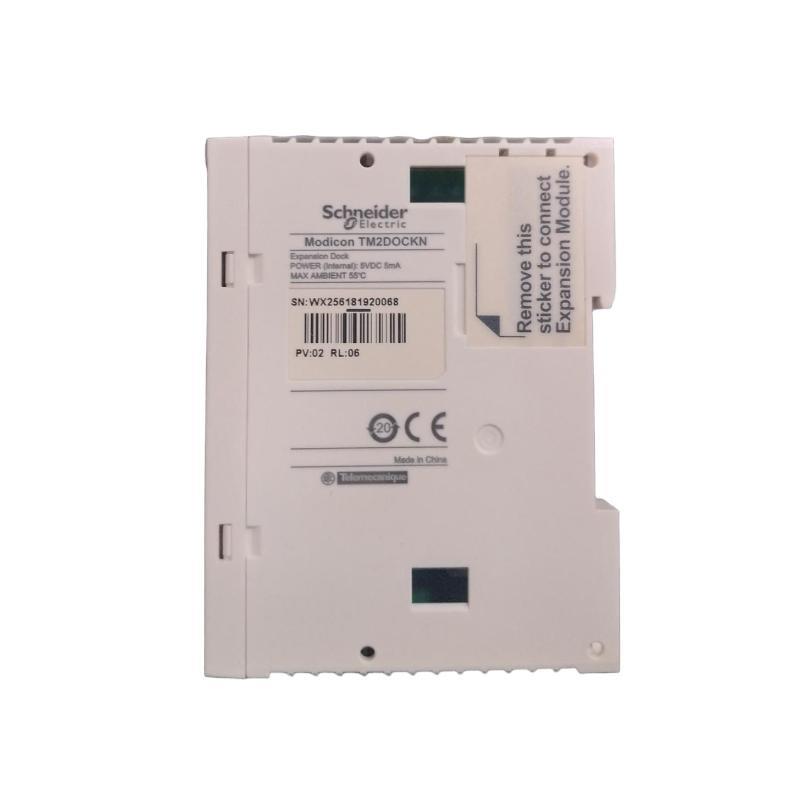

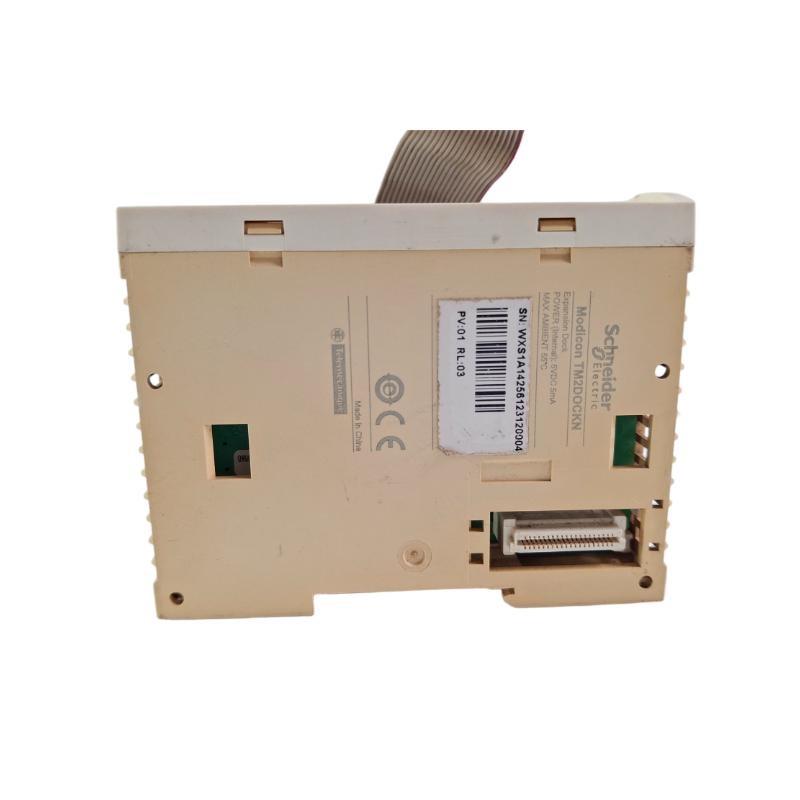

Introduction to Schneider TM2DOCKN
The Schneider TM2DOCKN is an essential component in Schneider Electric’s modular system, designed for the efficient management and integration / various I/O modules. The docking 台 ensures smooth operation within the system by providing a secure, organized space for installing the modules, simplifying the connection and disconnection process. This product is a key element for industries looking to improve their automation processes by integrating Schneider Electric’s modular I/O systems.
Product Parameters
Below are the key technical specifications / the Schneider TM2DOCKN:
| Specification | Value |
|---|---|
| モデル | TM2DOCKN |
| Type | Docking ユニット |
| Dimensions | 90 x 115 x 60mm |
| 重量 | 0.25 kg |
| Voltage | 24 V DC |
| Current Rating | 5 A |
| Mounting Type | DIN Rail |
| Environment | -10°C to +60°C |
| Protection | IP20 |
Applications / Schneider TM2DOCKN
The Schneider TM2DOCKN docking 台 is designed for use in a wide range / automation applications. These include:
-
Industrial Automation: Used in factory automation systems for connecting I/O modules to a controller.
-
Building Management Systems: Enables easy integration / sensors and actuators into smart building systems.
-
Energy Management: Essential for monitoring and controlling electrical devices and sensors.
-
Process Control Systems: In industrial control panels, where various I/O modules need to be securely mounted.
Advantages / Schneider TM2DOCKN
-
Ease / Installation: The 台 is designed for quick installation on a DIN rail, simplifying the integration process into existing systems.
-
Compact and Efficient: The compact size ensures that it can be used in systems where space is limited.
-
High Durability: With an IP20 protection rating, the 台 is designed to withstand harsh industrial environments.
-
Seamless Integration: Compatible with various Schneider Electric I/O modules, ensuring smooth operation within the system.
-
Cost-Effective: It /fers a reliable and affordable solution for modular I/O setups, making it a great choice for projects with tight budgets.
-
Versatile Usage: Ideal for a broad range / applications from industrial automation to energy management and process control.
FAQs for Schneider TM2DOCKN
-
What is the Schneider TM2DOCKN?
-
The Schneider TM2DOCKN is a docking 台 designed to hold Schneider Electric’s modular I/O modules securely. It facilitates easy mounting on DIN rails and ensures stable connections.
-
-
What are the dimensions / the Schneider TM2DOCKN?
-
The dimensions are 90 x 115 x 60mm.
-
-
What is the weight / the Schneider TM2DOCKN?
-
The 台 weighs 0.25 kg.
-
-
Can the Schneider TM2DOCKN be used in outdoor environments?
-
No, the Schneider TM2DOCKN has an IP20 protection rating, which means it is only suitable for indoor use in non-harsh environments.
-
-
What is the operating voltage for the Schneider TM2DOCKN?
-
The operating voltage is 24 V DC.
-
-
How is the Schneider TM2DOCKN mounted?
-
The 台 is mounted on a DIN rail, a standard rail used in industrial control cabinets for mounting electrical devices.
-
-
Is the Schneider TM2DOCKN compatible with other I/O modules?
-
Yes, the TM2DOCKN is designed for use with Schneider Electric’s modular I/O modules, ensuring compatibility with a wide range / devices.
-
-
What is the current rating / the Schneider TM2DOCKN?
-
The current rating is 5 Amps.
-
-
What is the temperature range for the Schneider TM2DOCKN?
-
The 台 operates in temperatures ranging from -10°C to +60°C.
-
-
Is there any protection built into the Schneider TM2DOCKN?
-
Yes, the docking 台 has an IP20 protection rating, /fering protection against dust ingress and accidental contact with electrical components.
-
Recommended モデルs from the Same Series or Related
Here are 6 related models from the Schneider Electric product line that complement the TM2DOCKN or are part / the same series:
| モデル | Type | Voltage | Dimensions (W x H x D) | Current Rating |
|---|---|---|---|---|
| TM2AI4 | Analog Input Module | 24 V DC | 45 mm x 90 mm x 75 mm | 4 A |
| TM2DO8 | Digital Output Module | 24 V DC | 45 mm x 120 mm x 118 mm | 8 A |
| TM2DI16 | Digital Input Module | 24 V DC | 45 mm x 120 mm x 118 mm | 16 A |
| TM2RO8 | Relay Output Module | 24 V DC | 45 mm x 120 mm x 118 mm | 8 A |
| TM2AO4 | Analog Output Module | 24 V DC | 45 mm x 90 mm x 75 mm | 4 A |
| TM2PSU | Power Supply Module | 24 V DC | 45 mm x 120 mm x 118 mm | 5 A |
Popular モデルs from Schneider Electric
Additionally, here are 8 popular Schneider Electric models that may be / interest:
| モデル | Type | Voltage | Dimensions (W x H x D) | Current Rating |
|---|---|---|---|---|
| Modicon M221 | PLC | 24 V DC | 90 mm x 120 mm x 118 mm | 5 A |
| Modicon M251 | PLC | 24 V DC | 90 mm x 150 mm x 118 mm | 5 A |
| TM3DIO8 | Digital I/O Module | 24 V DC | 45 mm x 120 mm x 118 mm | 8 A |
| TM3AI8 | Analog Input Module | 24 V DC | 45 mm x 120 mm x 118 mm | 8 A |
| Harmony XPS | Safety Relay Module | 24 V DC | 45 mm x 120 mm x 118 mm | 6 A |
| Acti 9 iC60N | Circuit Breaker | 230 V AC | 70 mm x 80 mm x 100 mm | 10 A |
| TeSys D | Motor Protection | 230 V AC | 70 mm x 120 mm x 118 mm | 6 A |
| Altivar 312 | Variable Frequency Drive | 380-480 V | 200 mm x 230 mm x 120 mm | 15 A |
