製品紹介

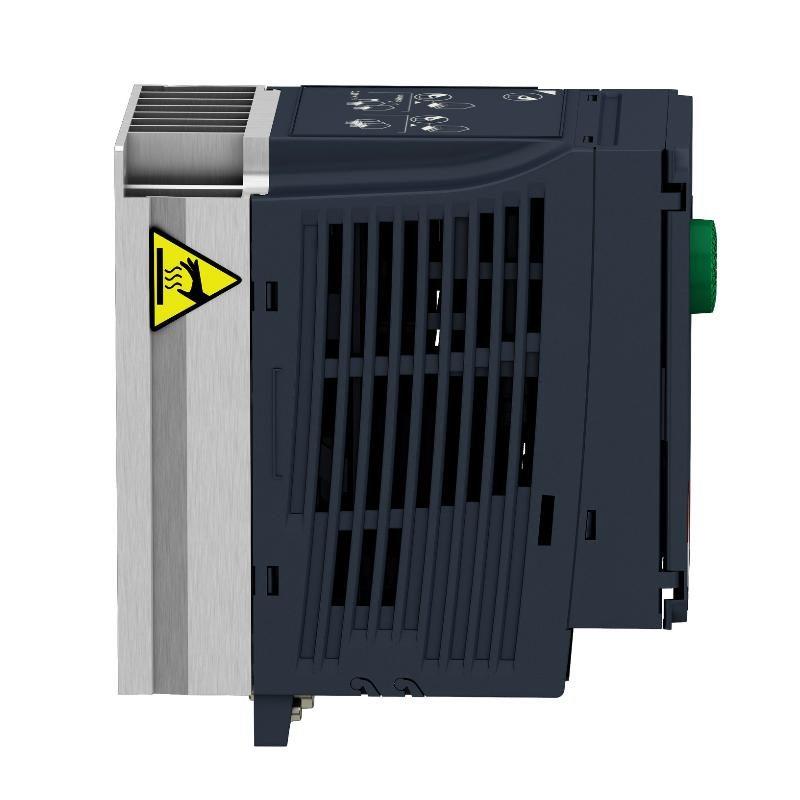

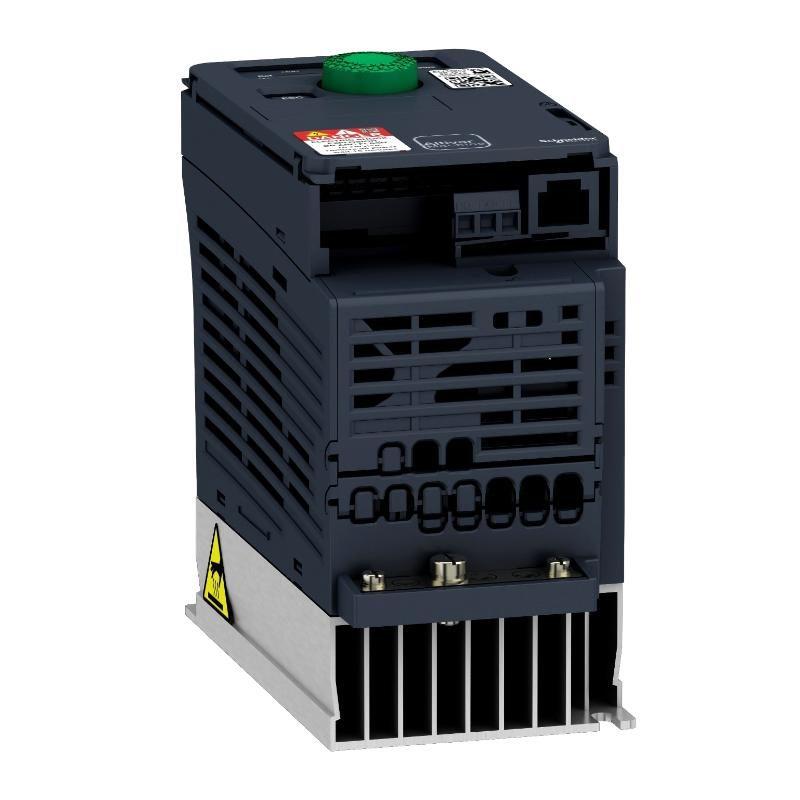

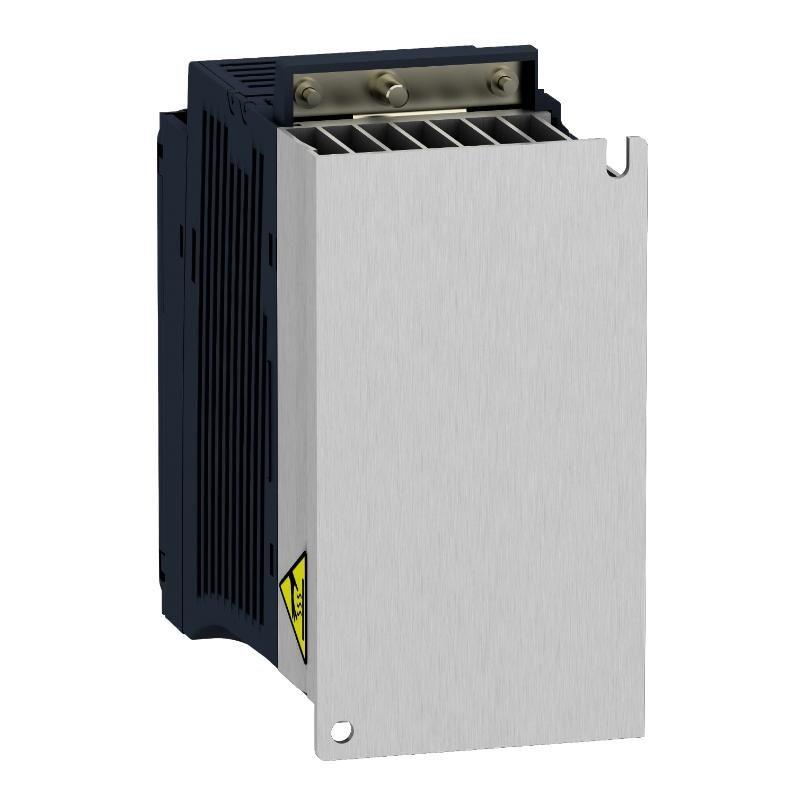

The Schneider ATV320U06M2C Variable Speed Drive belongs to the Altivar Machine ATV320 series, designed for compact and efficient control / three-phase synchronous and asynchronous motors. It is intended for OEM machinery where space-saving installation and reliable motor performance are critical.
This model supports motor power up to 0.55 kW (0.75 hp) and operates on a 200V–240V AC three-phase supply. Its compact housing allows vertical stacking in machine frames, making it suitable for tight cabinet layouts and modular machine designs.
The ATV320U06M2C is engineered for industrial environments using coated printed circuit boards compliant with IEC 60721-3-3 class 3C3. This improves resistance to dust, humidity, and chemical exposure, and allows stable operation up to 60°C in many installations without additional cooling.
It provides sensorless flux vector control for precise torque and speed regulation, extended frequency capability for high-speed motors, and energy-saving functions for open-loop synchronous motor operation. Five integrated safety functions configurable via SoMove s/tware support machine safety compliance.
製品仕様
| Parameter | 説明 |
|---|---|
| モデル | Schneider ATV320U06M2C |
| Product Type | Variable Speed Drive |
| Series | Altivar Machine ATV320 |
| Motor Type | Three-phase synchronous / asynchronous motor |
| Rated Power | 0.55 kW / 0.75 hp |
| Rated Voltage | 200–240 V AC |
| Control Method | Sensorless flux vector control |
| Frequency Range | Extended frequency operation |
| Safety Functions | 5 integrated safety functions |
| Configuration Tool | SoMove s/tware |
| Energy Saving Mode | Open-loop synchronous motor optimization |
| Parallel Motor Operation | サポートed (application dependent) |
| PCB Protection Class | IEC 60721-3-3 Class 3C3 coated boards |
| Protection Rating | IP20 |
| Standards | IEC/EN 61800-5-1, IEC/EN 61800-3 |
| Certifications | CE, UL, CSA, NOM, EAC, RCM |
| Dimensions | 143 × 72 × 138 mm |
| 重量 | 1.1 kg |
Applications
• Packaging Machines – Stable speed control for sealing, labeling, and filling equipment
• Conveyor Systems – Smooth and continuous material transport in automated production lines
• Textile Machinery – Precise control for spinning, weaving, and fabric processing systems
• Material Handling Systems – サポートs lifting, transfer, and automated logistics equipment
• Small Pumps and Fans – Improves efficiency and stable operation in HVAC systems
• OEM Machine Design – Ideal for compact automation equipment with limited cabinet space
• Mechanical Actuators – Enables accurate motion control in automated mechanical systems
• Food Processing Machines – サポートs controlled and stable production processes
• Light Industrial Automation – Suitable for general machine control applications
• General Manufacturing Systems – Used in compact industrial automation environments
Advantages
• Ultra-Compact Design – Optimized for vertical stacking in dense machine layouts
• Stable Low-Speed Torque Control – Ensures smooth operation under variable load conditions
• Sensorless Vector Control Technology – Delivers precise motor control without encoder feedback
• Enhanced Environmental Protection – Coated PCB improves reliability in harsh environments
• Energy Efficiency Optimization – Reduces energy consumption during partial load operation
• Flexible Motor Compatibility – サポートs both synchronous and asynchronous motors
• Integrated Safety Functions – Helps meet machine safety compliance requirements
• Easy Commissioning with SoMove – Simplifies setup and reduces engineering time
• Reliable High-Temperature Operation – サポートs operation up to 60°C in suitable conditions
• Wide OEM Application Range – Suitable for many compact industrial automation systems
