製品紹介

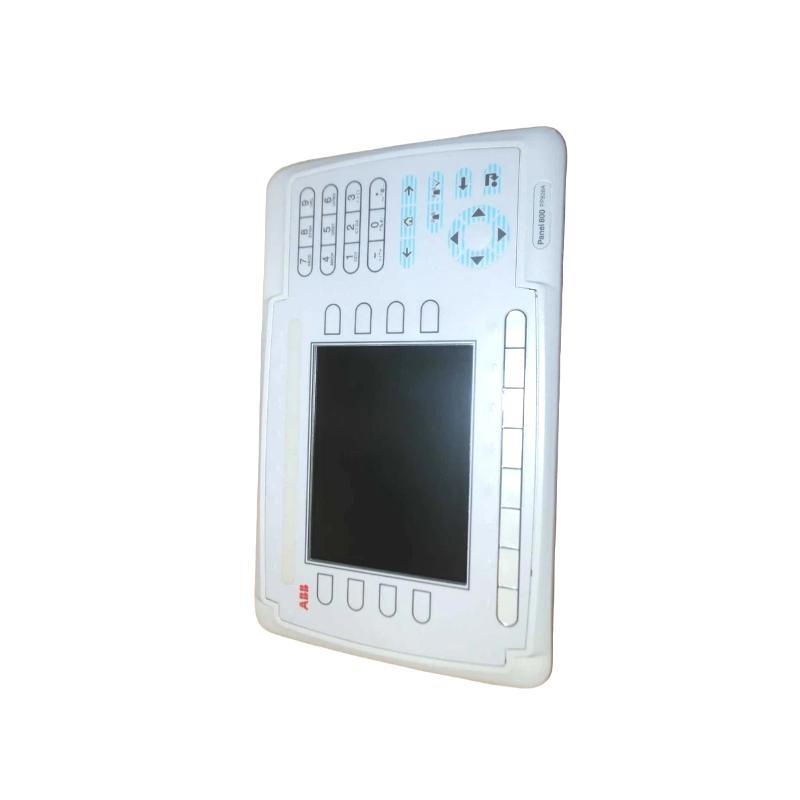

The ABB PP826A 3BSE042244R3 is a robust and high-performance operation panel designed for industrial automation environments. As part / ABB’s extensive operator interface range, this 台 provides operators with a reliable and intuitive platform to monitor and control various industrial processes. The PP826A is engineered for durability, ease / integration, and efficient HMI (Human-Machine Interface) communication with control systems, especially within ABB’s AC 800M/800xA environment.
The PP826A is commonly used in combination with control systems in harsh industrial conditions, where reliability, fast response times, and a clear interface are paramount. The panel’s design accommodates various mounting configurations and /fers high visual clarity, complemented by a user-friendly front interface with pushbuttons and graphical displays.
製品仕様
| Parameter | 説明 |
|---|---|
| モデル Number | PP826A |
| Product Code | 3BSE042244R3 |
| メーカー | ABB |
| Display Type | TFT-LCD |
| Display Size | 10.4 inches |
| Resolution | 800 x 600 pixels |
| Touchscreen | No (Button operation) |
| Backlight | LED, long-life |
| Interface Options | RS232, RS485, Ethernet |
| サポートed Protocols | MODBUS, PROFIBUS, ABB-specific protocols |
| Power Supply | 24 VDC |
| Power Consumption | Approx. 20 W |
| Mounting Type | Panel mount |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Protection Class | IP65 (front), IP20 (rear) |
| Material (Casing) | Industrial-grade aluminum alloy |
| Dimensions (W x H x D) | 275 x 168 x 6 mm |
| 重量 | 1.2 kg |
| Certifications | CE, RoHS, UL, cUL |
| Compatible Systems | ABB AC800M, Freelance, 800xA |
Product Applications
The ABB PP826A 3BSE042244R3 operation panel is widely utilized in various industries including:
-
Power Generation Plants: Real-time control and visualization / turbine and generator systems.
-
Oil & Gas: Local control interface for remote compressor stations or refineries.
-
Chemical and Pharmaceutical Plants: Used for batch control and process parameter monitoring.
-
Water and Wastewater Treatment: Monitoring pump operations and filtration processes.
-
Pulp and Paper Industry: Operator interface for paper machines and drying sections.
-
Manufacturing and Factory Automation: Machine-level control and diagnostics.
Its flexibility and compatibility with ABB control systems make it a reliable choice for mission-critical process applications.
Product Advantages
-
High Compatibility: Seamless integration with ABB’s control platforms (800xA, AC800M).
-
Industrial-Grade Durability: Built to withstand harsh environments with an IP65-rated front.
-
Reliable Operation: Offers consistent performance with low power consumption.
-
User-Friendly Interface: Pushbutton operation with a high-contrast graphical display.
-
Long Lifecycle サポート: ABB ensures long-term availability and spares management.
-
Maintenance-Friendly Design: Simplified mounting and easy service access to connectors.
よくある質問 (FAQ)
-
Q: Is the PP826A compatible with ABB 800xA systems?
A: Yes, the panel is fully compatible with ABB 800xA and AC 800M systems. -
Q: Can the panel be used in outdoor installations?
A: It is not rated for direct sunlight exposure but can be used outdoors if placed inside an appropriate enclosure. -
Q: What kind / display does the PP826A have?
A: It features a 10.4″ TFT-LCD display with a resolution / 800×600 pixels. -
Q: Does it support touchscreen input?
A: No, the PP826A operates using physical pushbuttons. -
Q: What is the input power supply range?
A: The panel operates at 24 VDC. -
Q: How is the panel mounted?
A: It is designed for panel mounting with secure rear fastenings. -
Q: What is the IP rating / the panel?
A: The front / the panel is rated IP65, /fering strong protection against dust and water jets. -
Q: Does ABB provide firmware or s/tware updates for this panel?
A: Yes, firmware updates are available through ABB’s Automation Builder platform. -
Q: Can the panel connect to third-party PLCs?
A: While optimized for ABB systems, it supports standard protocols like MODBUS for limited third-party integration. -
Q: What is the expected service life / the panel?
A: With proper maintenance, the panel can operate reliably for over 10 years in industrial environments.
Recommended Related モデルs (Same Series/Function)
| モデル | 説明 | Display Size | Touchscreen | Compatible Systems |
|---|---|---|---|---|
| PP835A 3BSE042245R1 | Advanced operation panel with enhanced I/O | 12.1″ | Yes | AC800M, 800xA |
| PP877K 3BSE092275R1 | Compact industrial HMI | 7″ | Yes | Freelance, AC500 |
| PP865A 3BSE042237R1 | High-contrast HMI with USB support | 10.4″ | Yes | AC800M, MOD 300 |
| PP820A 3BSE041735R1 | Standard operation panel | 8.4″ | No | 800xA, Advant Controller |
| CP635 1SAP500600R0001 | Touch panel for AC500 PLCs | 5.7″ | Yes | AC500, Freelance |
| CP657 1SAP500900R0001 | Compact panel with Ethernet | 7″ | Yes | AC500, MODBUS |
Popular ABB モデルs (Same ブランド, Widely Used in Industry)
| モデル | Function | Application | Key Feature |
|---|---|---|---|
| AC800M PM861K01 | Controller CPU | DCS/800xA system | Dual redundancy support |
| AC500 PM582-ETH | PLC CPU | Machine and process control | Integrated Ethernet and web server |
| CP600-ECO-70 | Touch HMI | Operator terminals | Energy-efficient design |
| CI854AK01 3BSE030220R1 | Communication interface | PROFIBUS connection | Redundant fieldbus support |
| TU830V1 | I/O terminal 台 | Field wiring interface | Compact size, 8 channels |
| 07KT98 GJR5253100R3260 | I/O controller module | Advant Controller 31 series | Fieldbus communication and I/O |
