製品紹介

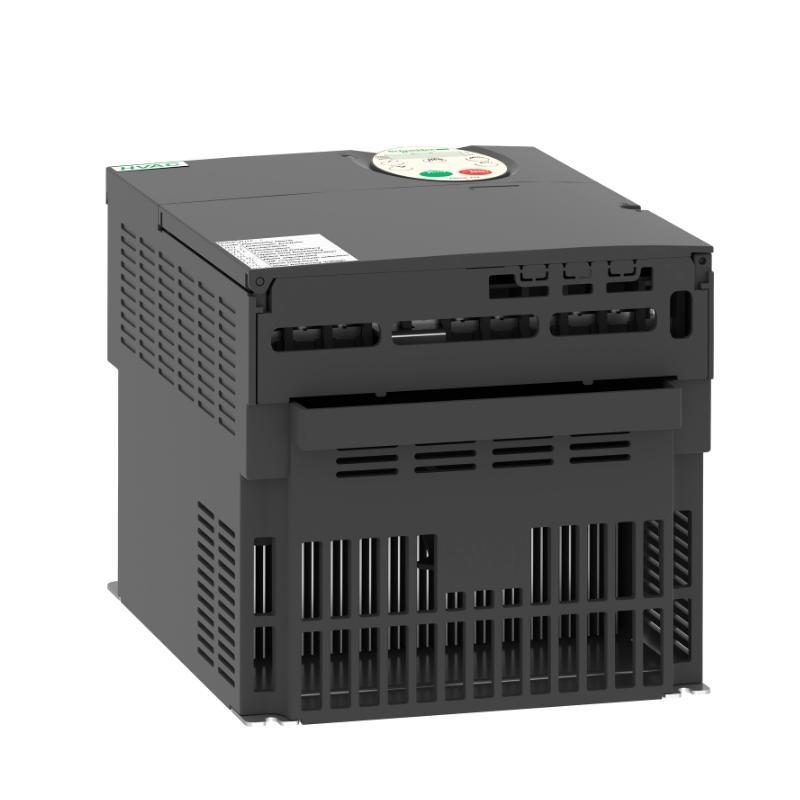

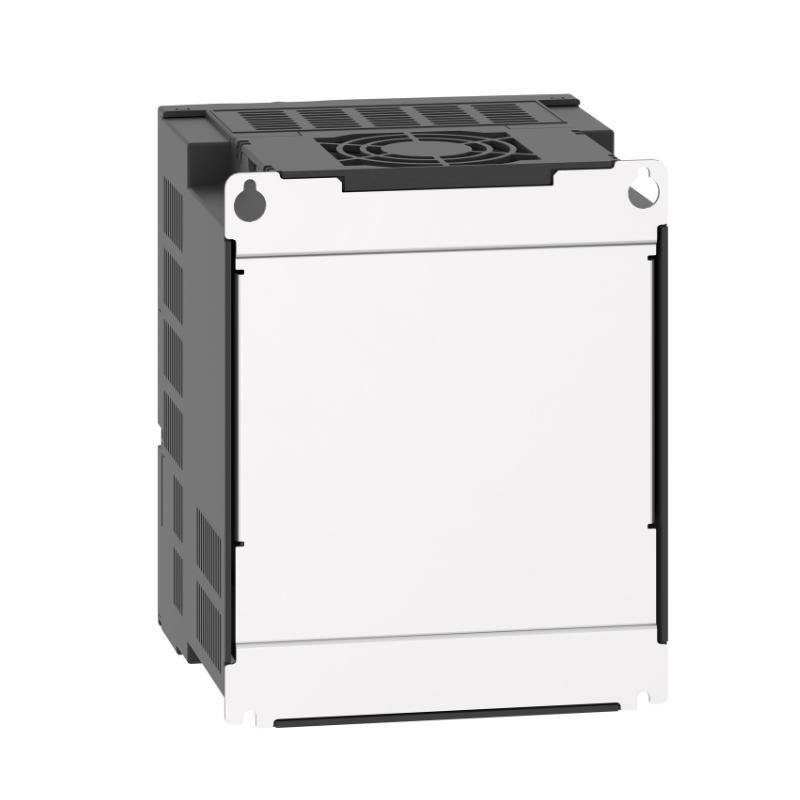

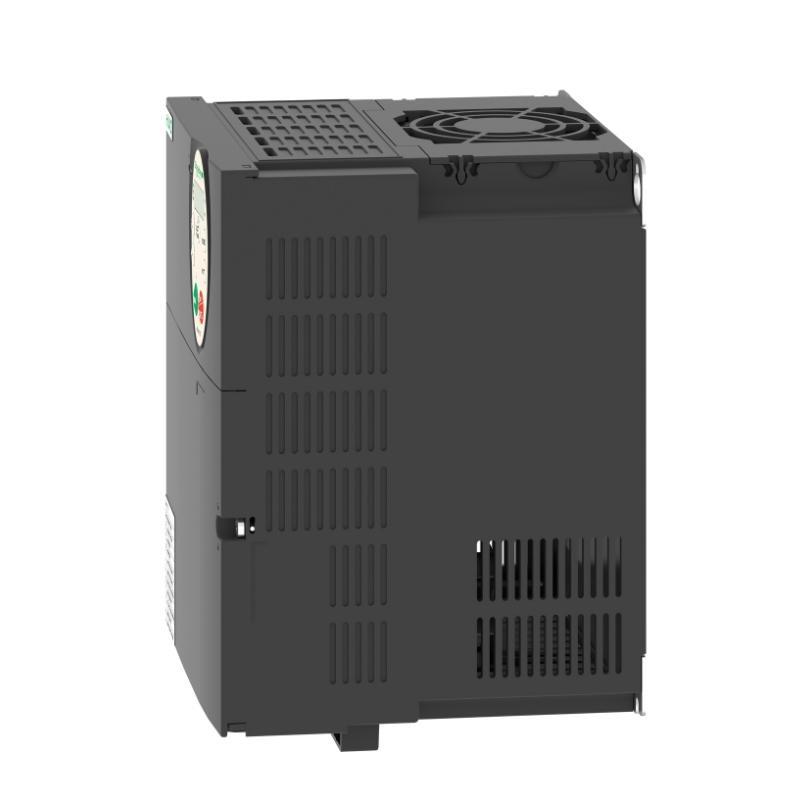

The Schneider ATV212HU75N4 Variable Speed Drive is a high-performance member / the Altivar 212 series, designed to feed three-phase asynchronous motors with robust efficiency and reliability. Featuring a built-in EMC filter and IP21 protection rating, this drive provides disturbance-free operation in industrial and commercial environments.
Rated up to 7.5 kW (10 HP) and operating at 380–480 V AC, the ATV212HU75N4 is designed for eco-energy operation, achieving up to 70% energy savings compared to conventional motor control systems.
Cable temperature rise reduction technology ensures immediate, stable operation without the need for additional line chokes or DC chokes to manage current harmonics. This model is specifically tailored for fluid management applications in tertiary sector buildings (HVAC), including heating, ventilation, air conditioning, and pumping.
It complies with international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 for drive safety and EMC performance, and carries certifications including CE, UL, CSA, C-Tick, and NOM.
製品仕様
| Parameter カテゴリー | Specification Detail |
|---|---|
| モデル Name | Schneider ATV212HU75N4 |
| Series | Altivar 212 |
| Function | Variable Frequency Drive (VFD) |
| Input Power | Three-phase AC |
| Rated Input Voltage | 380–480 V AC |
| Rated Output Power | 7.5 kW / 10 HP |
| Control Type | V/Hz control, Sensorless Vector Control |
| Protections Included | Overcurrent, overload, overvoltage, undervoltage, short-circuit protection |
| Environmental Protection | IP21 |
| Operating Temperature | -10 °C to +50 °C |
| Cooling Method | Forced air cooling with integrated fan |
| Communication Interfaces | Optional Modbus RTU, CANopen, EtherNet/IP |
| User Interface | Integrated keypad with LCD display |
| Compliance | CE, UL, CSA, C-Tick, NOM |
| Standards | IEC/EN 61800-5-1, IEC/EN 61800-3 |
| Dimensions | 232 × 170 × 180 mm |
| 重量 | 6.45 kg |
Applications
The ATV212HU75N4 is ideal for fluid management in tertiary sector buildings, including:
-
HVAC Systems: Heating, ventilation, and air conditioning
-
Pumping Systems: Water circulation, booster pumps, and chillers
-
Commercial Buildings: Offices, hospitals, shopping centers
-
Energy-Efficient Motor Control: Optimized for variable torque loads
The drive provides precise speed and torque regulation while reducing energy consumption, ensuring smooth and reliable operation.
Advantages
-
Eco-Energy Operation — Reduces energy consumption by up to 70%
-
Built-In EMC Filter — Minimizes electrical disturbances without extra components
-
Cable Temperature Rise Reduction — No line chokes or DC chokes required
-
Immediate, Disturbance-Free Operation — Smooth motor start-up and operation
-
Robust Power Handling — Capable / controlling 7.5 kW motors efficiently
-
Flexible Control Modes — V/Hz and sensorless vector control
-
Standards Compliant — IEC/EN 61800-5-1 and IEC/EN 61800-3
-
Certified — CE, UL, CSA, C-Tick, NOM for global deployment
