製品紹介

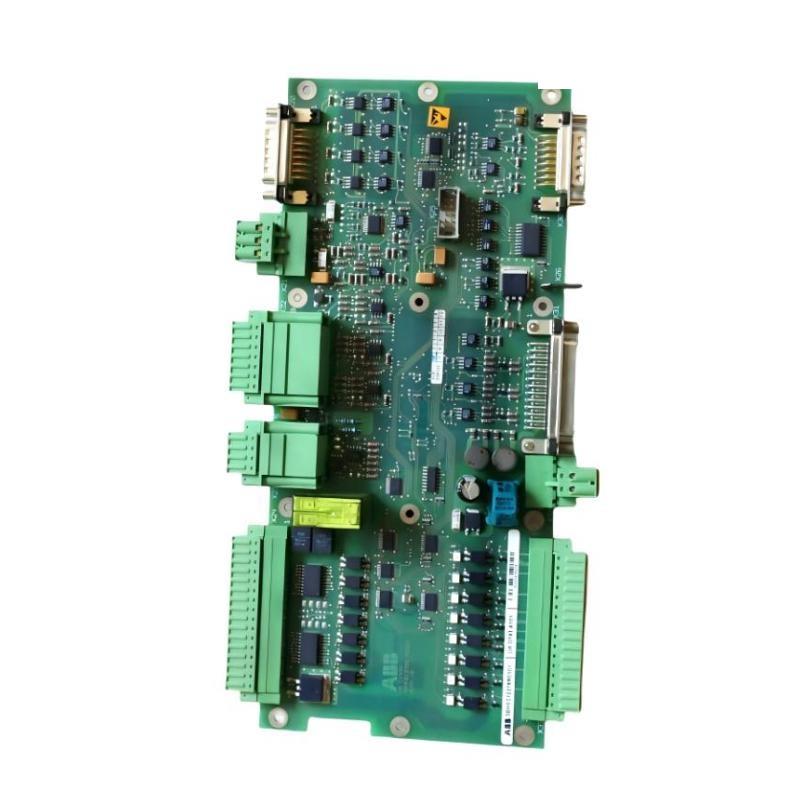

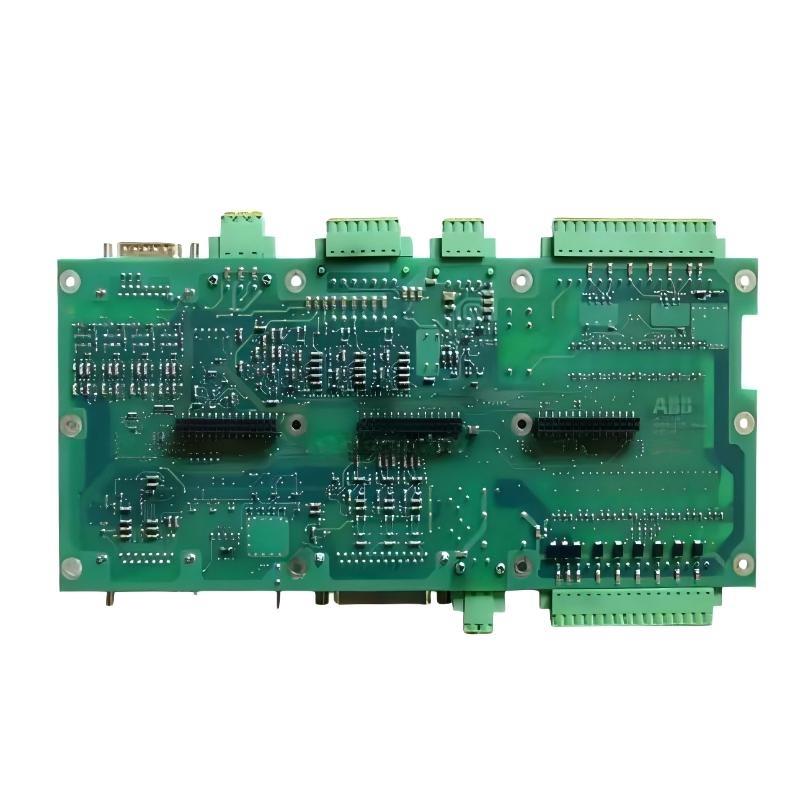

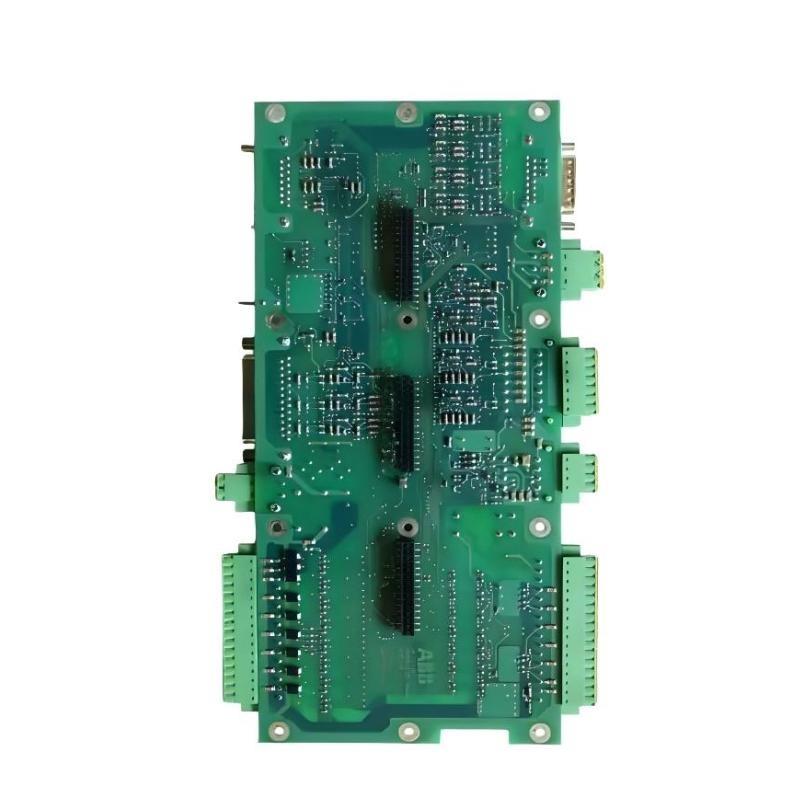

The ABB UA D143 A101 3BHE012276R0101 PCB Board is a high-performance printed circuit board designed for ABB’s industrial automation and control systems. Serving as a key interface between system components, it ensures precise signal processing, reliable data transmission, and stable operation under demanding industrial conditions.
This PCB board is engineered to support communication, control, and monitoring functions for ABB UA series systems. With high-quality electronic components and conformal coating, it provides excellent resistance to dust, moisture, and electromagnetic interference (EMI), ensuring long-term stability and minimal maintenance requirements.
The UA D143 A101 board is compatible with distributed control systems (DCS), programmable logic controllers (PLCs), and other ABB modules. Its modular design allows easy replacement or upgrade without affecting the overall system performance, making it an ideal choice for industrial automation, power generation, and critical process control applications.
Technical Specifications
| Parameter | 説明 |
|---|---|
| Product モデル | UA D143 A101 |
| 型番 | 3BHE012276R0101 |
| System Platform | ABB UA Series Control Systems |
| PCB Type | Multi-layer with conformal coating |
| Processor サポート | サポートs system CPU interfaces and I/O communication |
| Signal Processing | Digital and analog signal handling |
| Communication Interfaces | RS-485, RS-232, Ethernet for data exchange with system modules |
| I/O Capacity | サポートs up to 512 signal channels through expansion |
| Power Supply Requirement | 24 VDC regulated input |
| Protection Features | Overvoltage, short-circuit, EMI protection |
| Diagnostic Features | LED indicators for communication and signal status |
| Mounting Type | Rack-mounted or PCB slot installation |
| Cooling Method | Passive convection cooling |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| Material | FR4 PCB with conformal coating |
| Dimensions | 200 × 120 × 35 mm |
| 重量 | 0.78 kg |
| Certifications | CE, UL, RoHS compliant |
Product Applications
The ABB UA D143 A101 PCB Board is used in a wide range / industrial applications, particularly where reliable signal processing and control are critical:
-
Power Generation Systems — Interfaces with CPU modules for turbine control, generator monitoring, and protection systems.
-
Oil & Gas Automation — Facilitates communication and control between field devices, controllers, and safety modules.
-
Chemical and Petrochemical Plants — Processes analog and digital signals for automated process management and safety interlocks.
-
Mining and Metals Industry — Controls and monitors machinery, conveyors, and process lines.
-
Marine and Offshore Systems — サポートs navigation, propulsion, and power distribution control applications.
-
Water and Wastewater Treatment — Integrates sensors, pumps, and treatment process control for efficient operation.
Its modular design allows easy integration and replacement, ensuring continuous operation with minimal downtime.
Product Advantages
-
High Signal Integrity
Ensures accurate transmission / analog and digital signals across connected system modules. -
Robust Industrial Design
Conformal coating and multi-layer PCB construction protect against dust, moisture, and EMI. -
Flexible Communication
サポートs multiple interfaces including RS-485, RS-232, and Ethernet for seamless integration. -
Diagnostics and Monitoring
Built-in LED indicators provide real-time feedback on communication and signal status. -
Efficient Cooling
Passive convection design reduces thermal stress and maintenance needs. -
Easy Replacement and Upgrade
Modular design allows rapid swapping or upgrading without affecting overall system operation. -
Power Protection
Safeguards connected modules from overvoltage and short-circuit conditions. -
Wide Industrial Compatibility
Compatible with ABB UA series controllers and distributed control systems.
FAQ
-
What is the main function / the UA D143 A101 PCB board?
It processes and transmits digital and analog signals between system modules, ensuring reliable communication and control. -
Which communication interfaces are supported?
RS-485, RS-232, and Ethernet are supported for connection with CPU modules and peripheral devices. -
Can the PCB board operate in harsh industrial environments?
Yes, it features conformal coating and EMI protection to withstand dust, humidity, and electrical interference. -
What is the power supply requirement?
The board operates on a regulated 24 VDC input. -
How many I/O signals can it support?
It can handle up to 512 signals via direct and expansion modules. -
Does the PCB provide diagnostic feedback?
Yes, it has LED indicators for communication and signal status monitoring. -
Is the board compatible with ABB UA series systems?
Yes, it is designed for seamless integration with UA series controllers and modules. -
What types / signals does the board process?
Both digital and analog signals are processed for system control and monitoring. -
Can it be mounted in standard racks?
Yes, it can be installed in rack slots or dedicated PCB mounting frames. -
How does it protect connected modules?
It includes overvoltage, short-circuit, and EMI protection to ensure safe operation / all connected devices.
Recommended Related モデルs (Same Series)
| モデル | 説明 | System | 重量 |
|---|---|---|---|
| UA D141 A02 3BHE012095R0002 | Motherboard for UA Series | ABB UA | 0.85 kg |
| UA D142 A01 3BHE012551R0001 | Power Board | ABB UA | 0.82 kg |
| UA D143 B101 3BHE012277R0101 | Advanced PCB Board | ABB UA | 0.80 kg |
| UA D144 A101 3BHE012278R0101 | Communication PCB | ABB UA | 0.83 kg |
| UA D145 B102 3BHE012279R0102 | CPU Interface PCB | ABB UA | 0.88 kg |
| UA D146 C101 3BHE012280R0101 | Control Expansion Board | ABB UA | 0.90 kg |
Popular ABB モデルs (Same ブランド)
| モデル | 説明 | Product Type | 重量 |
|---|---|---|---|
| PM864AK01 3BSE018161R1 | Advanced CPU Controller | DCS Processor | 1.05 kg |
| PM866AK02 3BSE050198R1 | Redundant Processor ユニット | DCS Controller | 1.10 kg |
| CI854AK01 3BSE025961R1 | PROFIBUS Communication Adapter | Communication Module | 0.75 kg |
| AI810 3BSE008516R1 | Analog Input Module | I/O Module | 0.65 kg |
| DI810 3BSE008508R1 | Digital Input Module | I/O Module | 0.60 kg |
| DO810 3BSE008510R1 | Digital Output Module | I/O Module | 0.62 kg |
