製品紹介

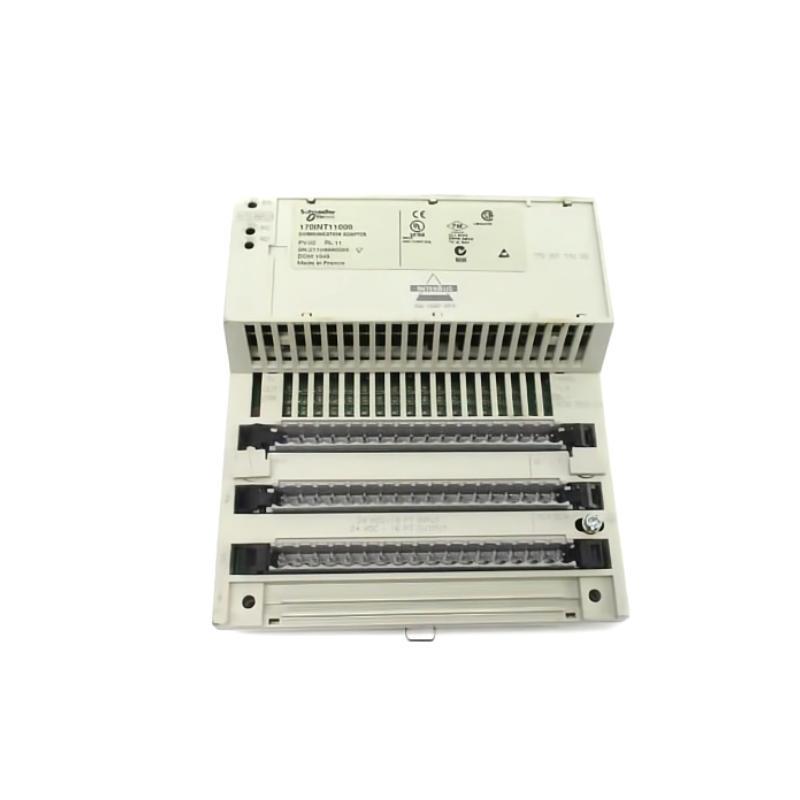

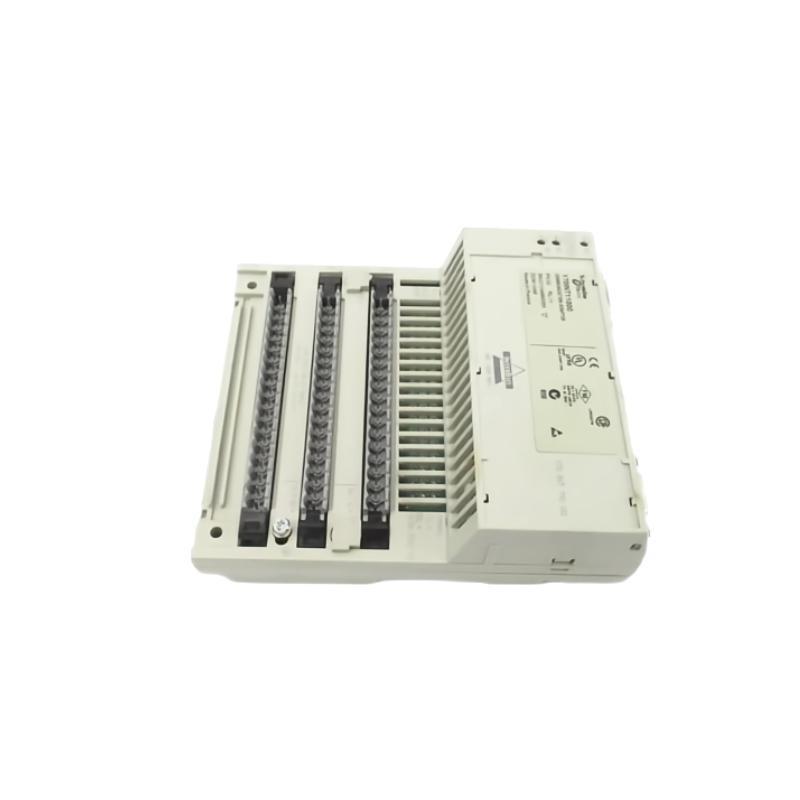

The Schneider 170INT11000 Interbus Communication Adaptor is a high-performance industrial communication module designed to enable communication between Modicon Momentum I/O bases and Interbus networks. As part / Schneider Electric’s Momentum series, this adaptor ensures reliable data exchange in real-time, supporting decentralized control architecture within industrial automation systems.
Interbus is a well-established fieldbus system widely used in discrete and process automation. The 170INT11000 facilitates seamless integration / Momentum I/O systems into an Interbus network, allowing centralized monitoring and distributed control. It supports various diagnostics and has a rugged, compact form factor suitable for harsh industrial environments. It is a critical component in many industrial automation architectures, where interoperability, reliability, and speed are essential.
製品仕様
| Parameter | Details |
|---|---|
| モデル Number | 170INT11000 |
| Product Type | Communication Adaptor |
| Network Protocol | Interbus |
| Interface Type | Fiber optic or twisted pair (Interbus) |
| Power Supply | 5 VDC (from base) |
| Mounting Type | DIN rail or Momentum I/O base mount |
| Status Indicators | Module Status, Network Status LEDs |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Shock Resistance | 15 g for 11 ms |
| Vibration Resistance | 3.5 mm (5…8.4 Hz), 1 g (8.4…150 Hz) |
| Dimensions (L x W x H) | 56 ×178 × 260 mm |
| 重量 | 0.07 kg |
| Material | Flame-retardant plastic |
| Certifications | CE, UL, CSA, C-Tick |
Product Applications
The 170INT11000 Interbus Communication Adaptor plays an essential role in connecting Modicon Momentum systems to Interbus fieldbus networks. It is used extensively in:
-
Manufacturing Lines: For connecting decentralized input/output modules to centralized PLCs in automotive, food processing, and packaging lines.
-
Process Control Systems: Facilitates communication in complex process automation systems such as chemical plants, oil refineries, and water treatment facilities.
-
Building Automation: Integrates HVAC systems, lighting control, and fire alarms into centralized monitoring and control 台s.
-
Energy Monitoring and Control: Enables data collection and control from remote sensors and energy meters for real-time energy management.
-
Material Handling Systems: Used in conveyor systems and warehouse automation for monitoring and control over Interbus networks.
-
Transport and Infrastructure: Plays a role in railway automation, tunnel systems, and airport baggage handling systems.
Product Advantages
-
Seamless Interbus Integration
Provides smooth integration / Momentum I/O systems with Interbus master controllers for high-speed, reliable communication. -
Compact and Space-Saving Design
Designed to snap directly onto Momentum I/O bases, minimizing the need for additional space or complicated wiring. -
Plug-and-Play Installation
Easy to configure with auto-recognition features, simplifying deployment in industrial environments. -
Robust Construction
Engineered for tough industrial settings with resistance to shock, vibration, and high humidity. -
Diagnostic Capabilities
Integrated status LEDs allow for quick diagnosis / network and module status, reducing downtime. -
Reliable Communication
サポートs fiber optic or twisted-pair connections depending on system requirements, ensuring flexibility in industrial layouts. -
Wide Operating Range
Withstands a broad range / temperatures, making it suitable for various indoor and outdoor applications. -
Compliance with Global Standards
CE, UL, and CSA certifications guarantee international compliance and system compatibility. -
Long Lifecycle
Designed for long-term operation with minimal maintenance, ideal for mission-critical systems. -
Part / a Modular System
Works seamlessly with other Schneider Momentum products, /fering scalable automation solutions.
よくある質問 (FAQ)
-
What is the purpose / the 170INT11000 adaptor?
It connects Modicon Momentum I/O bases to Interbus fieldbus networks for seamless communication. -
Can the 170INT11000 be used in high-vibration environments?
Yes, it is designed to withstand vibration up to 1g and complies with industrial vibration standards. -
Is fiber optic supported in this module?
Yes, depending on the Interbus system setup, both fiber optic and twisted pair media may be used. -
Does the module require external power supply?
No, it receives 5V DC power directly from the Momentum base it is mounted on. -
What is the operating temperature range / this device?
It operates reliably in environments from 0°C to +60°C. -
Can this adaptor be mounted independently?
No, it must be installed on a Momentum I/O base or DIN rail with a base. -
Is the device hot-swappable?
It is recommended to power down the system before replacing or installing the module. -
What kind / diagnostics does it /fer?
It features LED indicators for network and module status, aiding quick troubleshooting. -
Is configuration s/tware required?
Basic integration into Interbus networks does not require s/tware, but for advanced settings, tools may be used. -
What certifications does this product have?
It is CE-marked and certified by UL, CSA, and C-Tick for industrial use worldwide.
Related モデルs from the Same Series
| モデル | Network Type | Function | 重量 | Dimensions (L x W x H) |
|---|---|---|---|---|
| 170ENT11000 | Ethernet | Ethernet Communication Adaptor | 200 g | 114 x 34 x 110 mm |
| 170MNT11000 | Modbus | Modbus Plus Communication Adaptor | 210 g | 114 x 34 x 110 mm |
| 170ADI35000 | Digital Input | 32-channel discrete input module | 180 g | 114 x 34 x 110 mm |
| 170DNT11001 | DeviceNet | DeviceNet Communication Adaptor | 220 g | 114 x 34 x 110 mm |
| 170ANR12091 | Analog Input/Output | 8AI/4AO module with integrated power | 250 g | 114 x 34 x 110 mm |
| 170PSM71100 | Power Supply Module | 3.3V/5V power module for Momentum | 300 g | 114 x 34 x 110 mm |
Popular Schneider モデルs
| モデル | Type | Protocol | 重量 | Application |
|---|---|---|---|---|
| 140CPU65160 | PLC CPU | Modbus TCP, Ethernet | 800 g | Large automation systems |
| 140NOE77101 | Ethernet Network Module | Ethernet/IP | 400 g | High-speed networking |
| TM241CEC24T | Logic Controller | CANopen, Modbus | 600 g | Compact automation systems |
| 140CRP93100 | RIO Drop Adapter | Remote I/O | 350 g | Distributed control systems |
| BMXPRA0100 | Pr/ibus DP Adaptor | Pr/ibus | 450 g | Fieldbus integration |
| TSXDEY16D2 | Digital Input Module | – | 300 g | Discrete input acquisition |
