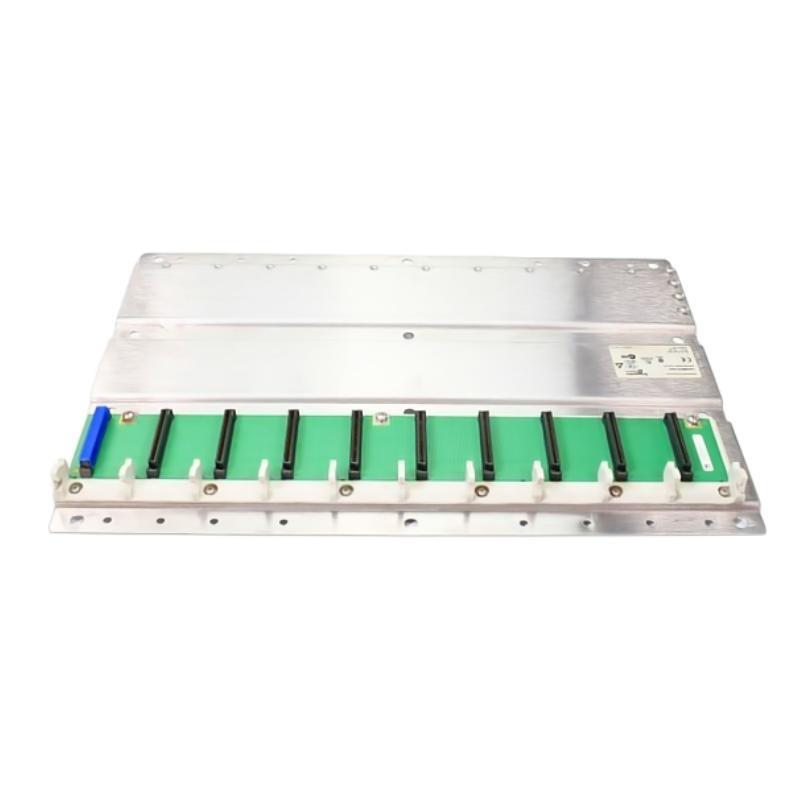

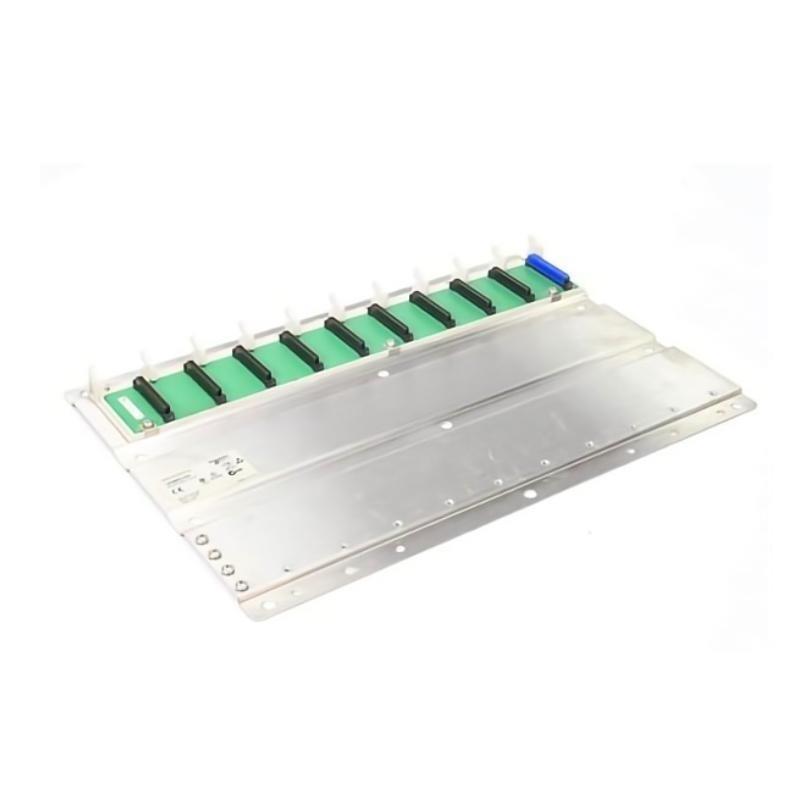

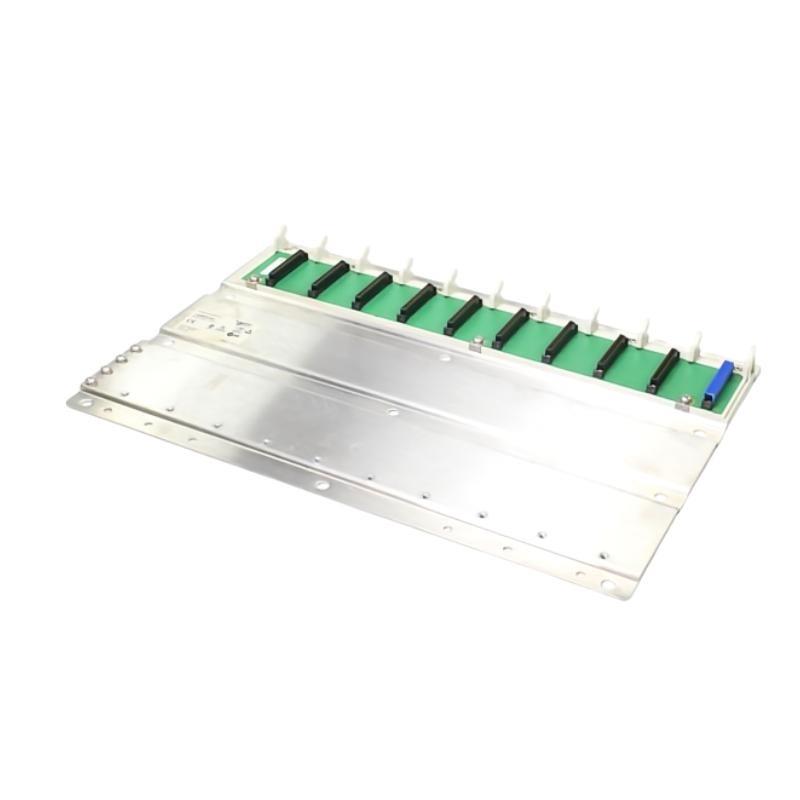

The Schneider Electric 140XBP01000 is a 10-slot backplane rack built for the Modicon Quantum automation platform, one / the most trusted architectures in industrial control. As a critical component / the Quantum system, this backplane provides mechanical structure and high-speed data interconnect between various Quantum modules, including CPUs, power supplies, I/O modules, and communication interfaces.
Engineered for robust industrial applications, the 140XBP01000 supports centralized and distributed control strategies in industries that demand high availability, scalability, and ruggedness. Its 10-slot capacity /fers flexibility and expandability, making it ideal for medium to large-scale PLC configurations.
With its durable aluminum construction, tool-free module installation, and compliance with international certifications, the 140XBP01000 ensures a long operational life and high system reliability even in challenging industrial environments.
製品仕様
| Parameter | 説明 |
|---|---|
| モデル Number | 140XBP01000 |
| Product Type | Modular Backplane Rack |
| Series Compatibility | Modicon Quantum |
| Slot Capacity | 10 slots |
| Bus Type | Internal Quantum high-speed backplane bus |
| サポートed Modules | CPU, Power Supply, Digital/Analog I/O, Comms |
| Mounting Method | Panel or cabinet mount |
| Power Supply Slot | Left-most slot dedicated for power module |
| Material | Industrial-grade aluminum chassis |
| Cooling Method | Passive (natural convection, no fan needed) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA, ATEX |
| Dimensions (HxWxD) | 428 x 29.1 x 290 mm |
| 重量 | 1 kg |
| Installation Type | Horizontal mounting (standard); vertical allowed with ventilation |
Product Applications
The 140XBP01000 backplane is designed for use in complex automation environments where system modularity and scalability are key requirements. Common applications include:
-
Manufacturing process control – supporting batch, discrete, and continuous production lines
-
Energy and power management – including generation, transmission, and substation control
-
Oil and gas platforms – both onshore and /fshore for drilling and refining
-
Water and wastewater treatment – pump and filtration system control
-
Pharmaceutical and food processing – with demands for hygienic automation
-
Transport and logistics systems – automated material handling and conveyor management
Product Advantages
-
High Slot Capacity
10 slots provide a generous layout for control, I/O, and communication expansion. -
Future-Pro/ Design
Easily scalable and compatible with the full range / Modicon Quantum modules, including legacy and modern models. -
Rugged Industrial Build
Strong aluminum frame ensures reliability in harsh environments with high vibration and temperature extremes. -
Ease / Maintenance
Passive backplane with no moving parts reduces failure points and maintenance costs. -
Standardized Slot Design
All module slots are clearly marked and designed for easy installation without tools. -
Enhanced System Integration
サポートs various configurations including redundant systems and remote I/O nodes. -
Certification Ready
CE, UL, CSA, and ATEX certifications make it suitable for use in regulated industries globally.
よくある質問 (FAQs)
-
How many modules can the 140XBP01000 backplane support?
The backplane is designed to accommodate up to 10 modules, including power supply, CPU, I/O, and communication modules. -
Is it possible to mix I/O and communication modules on the same backplane?
Yes, all Modicon Quantum-compatible modules can be arranged in any sequence, aside from the reserved power supply slot. -
Can the backplane operate without active cooling?
Absolutely. It is passively cooled by natural air convection, ideal for environments where fan-based systems are impractical. -
Does the 140XBP01000 include a power supply module?
No, the power supply must be purchased separately and installed in the left-most designated slot. -
Can this backplane be installed vertically in an enclosure?
Yes, it can be mounted vertically if there is sufficient airflow to prevent overheating / the modules. -
Is the backplane hot-swappable for module replacement?
No, the system must be powered down before installing or removing modules to ensure system integrity and safety. -
What is the material used for the backplane chassis?
The chassis is made from anodized industrial-grade aluminum to ensure durability and resistance to corrosion. -
What kind / mounting hardware is required for installation?
Standard panel mounting hardware can be used, and Schneider Electric /fers optional chassis kits like the 140CHS32000. -
How do I identify faulty slots or connection issues on the backplane?
Fault diagnostics are typically handled by the installed CPU or diagnostic modules, which can indicate slot-level failures via the system s/tware or LED indicators. -
Can this backplane be used in a redundant controller setup?
Yes, the 140XBP01000 is compatible with Quantum Hot-Standby (HSBY) redundancy systems when configured with appropriate CPU and communication modules.
Related モデルs from the Same Series
| モデル Number | 説明 | Slot Count | Key Use |
|---|---|---|---|
| 140XBP00100 | 1-Slot Backplane | 1 | Single-module diagnostics or CPUs |
| 140XBP00200 | 2-Slot Backplane | 2 | Small systems or test environments |
| 140XBP00600 | 6-Slot Backplane | 6 | Compact PLC control applications |
| 140XBP01600 | 16-Slot Backplane | 16 | Full-scale automation system |
| 140CHS32000 | Chassis Mounting Kit | N/A | Used for securing backplanes |
| 140CRA31200 | Remote I/O Adapter Module | N/A | Enables multi-backplane connections |
Popular Schneider Electric モデルs
| モデル Number | 説明 | Function |
|---|---|---|
| 140CPU65160 | Quantum CPU Module | High-speed PLC processor |
| BMXP342020 | M340 PLC CPU Module | Compact mid-range controller |
| BMENOC0311 | Ethernet/IP & Modbus TCP Communication Module | Multi-protocol networking |
| TSXPSY2600 | Quantum Power Supply Module | Rack-mounted power supply |
| TM251MESE | Modicon M251 Logic Controller | Compact motion controller |
| ATV930U75N4 | Altivar Process Drive | 7.5 kW motor control with Ethernet |
