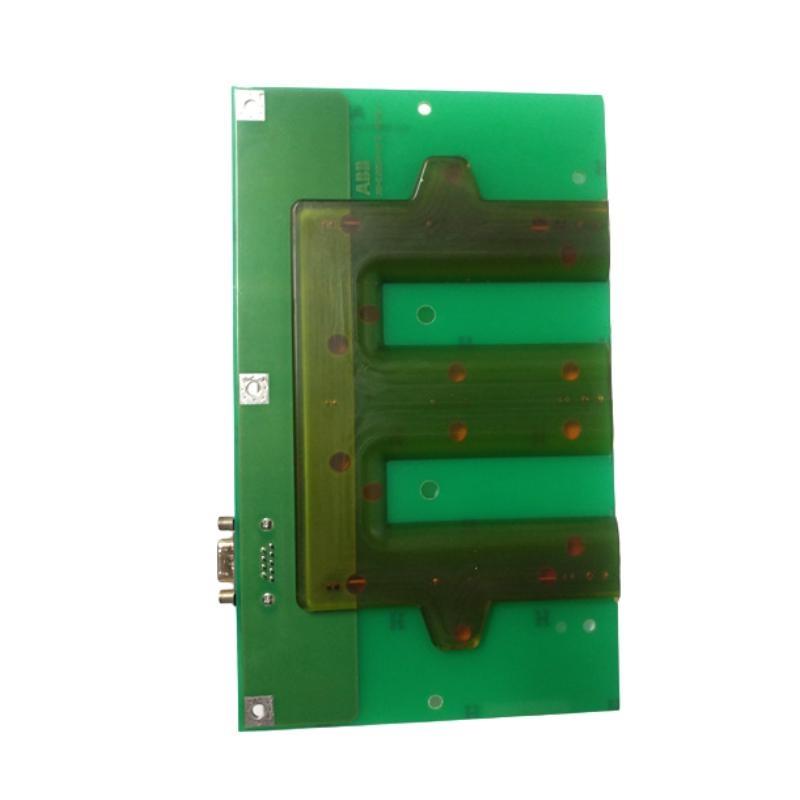

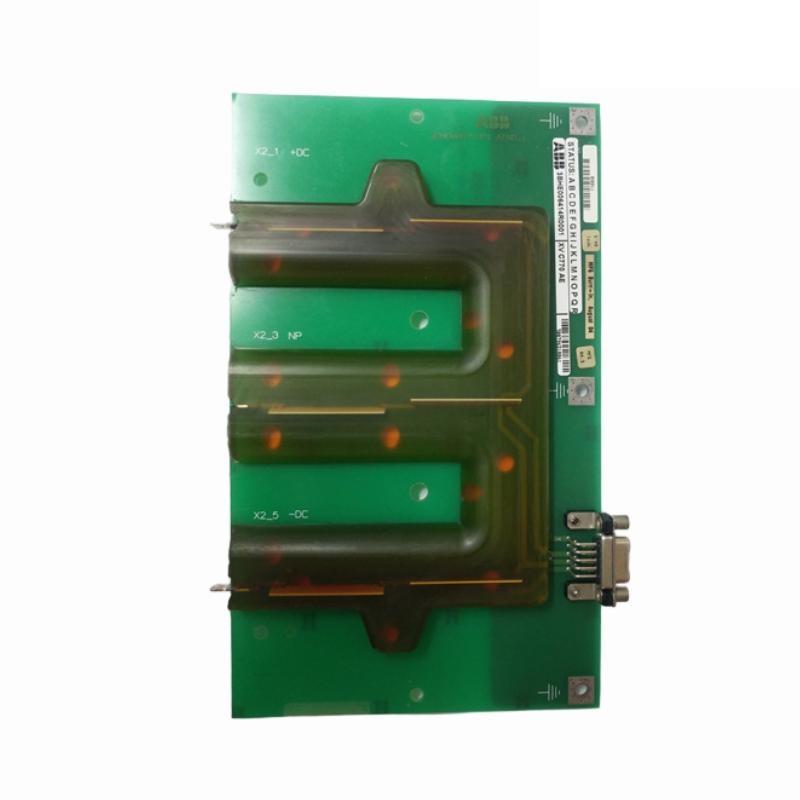

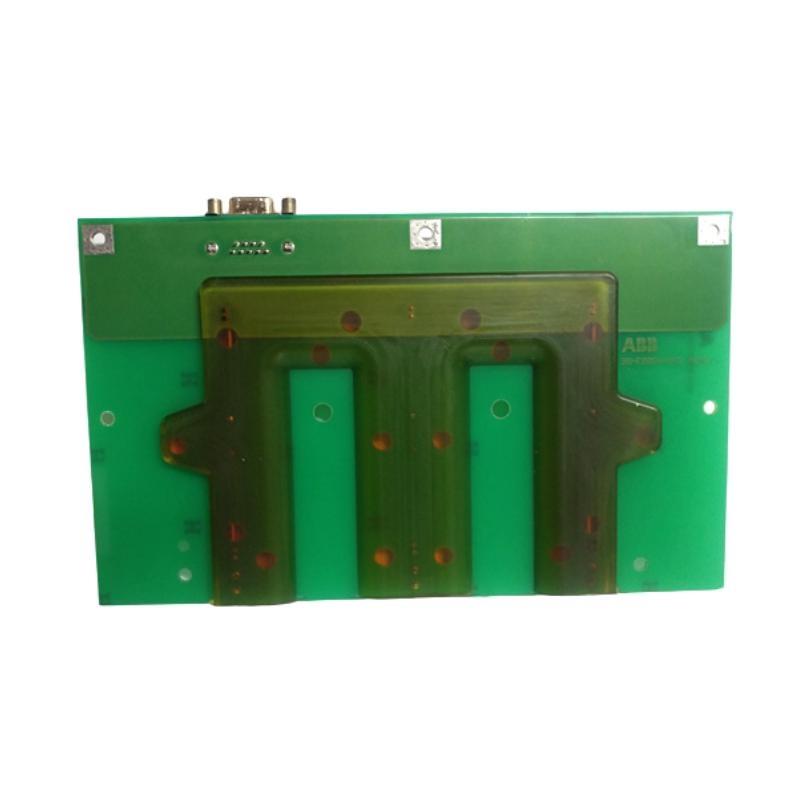

The ABB XV C770 AE 3BHB006414R0001 HVD Coated Circuit Board is a high-performance electronic module designed for use in ABB’s advanced automation and drive control systems. As part / ABB’s HVD (High Voltage Drive) product family, this circuit board serves as a crucial component for managing control, monitoring, and feedback operations within high-voltage power conversion environments. The coating process provides exceptional protection against moisture, dust, and corrosive contaminants, ensuring long-term reliability even in challenging industrial settings.
This model integrates advanced signal processing, precise current and voltage measurement capabilities, and strong electromagnetic shielding, making it suitable for critical applications in drives, converters, and control cabinets. ABB’s strict design and quality assurance processes guarantee consistent performance, durability, and system compatibility with a range / industrial automation products.
Technical Specifications
| Parameter | 説明 |
|---|---|
| Product モデル | ABB XV C770 AE 3BHB006414R0001 |
| Product Type | HVD Coated Circuit Board |
| Function | High-voltage drive control and signal processing |
| Input Voltage | 24 V DC (nominal) |
| Operating Voltage Range | 18–30 V DC |
| Power Consumption | Approx. 15 W |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% (non-condensing) |
| Coating Type | High dielectric conformal coating (protective varnish) |
| Insulation Resistance | >100 MΩ @ 500 V DC |
| Signal Interfaces | Analog, digital, and communication bus |
| Communication Protocol | ABB proprietary interface / fieldbus compatible |
| PCB Material | Multi-layer FR4 glass epoxy |
| EMC Compliance | EN 61000-6-2 / EN 61000-6-4 |
| Cooling Method | Passive (natural convection) |
| Mounting Type | Modular rack or control cabinet installation |
| Protection Level | IP20 (with coating protection) |
| Dimensions | 200 × 180 × 25 mm |
| 重量 | 0.36 kg |
Product Applications
The ABB XV C770 AE 3BHB006414R0001 is widely applied in various industrial sectors where precision control and signal reliability are crucial. It plays a vital role in:
-
High-Voltage Drive Systems – Core control component within ABB’s ACS and DCS drive families for large motors.
-
Power Conversion Systems – Used in converters for stable DC-AC and AC-DC signal regulation.
-
Process Automation – Provides accurate feedback and control signals for manufacturing automation.
-
Renewable Energy Installations – サポートs power monitoring in wind turbines and solar inverters.
-
Heavy Industrial Machinery – Used in steel mills, pulp and paper plants, and chemical processing lines.
-
Marine and Offshore Applications – Offers robust performance in environments exposed to vibration and humidity.
Product Advantages
The ABB XV C770 AE circuit board /fers several distinct advantages that ensure its high performance and reliability:
-
Superior Environmental Protection – The conformal coating prevents corrosion and electrical leakage, ensuring long-term stability.
-
High Signal Integrity – Shielded design minimizes noise and interference in high-voltage environments.
-
Precision Control – Provides accurate analog and digital data handling for efficient process regulation.
-
Robust Build Quality – Designed to operate under high thermal and mechanical stress.
-
Easy Integration – Seamless compatibility with ABB drive and control modules for plug-and-play installation.
-
Low Maintenance Requirement – Reduced downtime due to high reliability and minimal failure rates.
-
Enhanced Safety Features – Electrical insulation and protection ensure operator and equipment safety.
-
Long-Term Stability – Maintains consistent performance under fluctuating load and temperature conditions.
FAQ
-
What is the primary control function / the ABB XV C770 AE 3BHB006414R0001 circuit board?
The ABB XV C770 AE circuit board is primarily responsible for control and signal processing within high-voltage drive systems, ensuring stable power regulation and precise system monitoring. -
How does the conformal coating improve electrical performance?
The protective coating prevents moisture, dust, and chemical infiltration, significantly reducing the risk / short circuits, corrosion, and electrical noise interference. -
Which ABB systems is this board compatible with?
It is designed for integration with ABB’s ACS and DCS high-voltage drive systems, /fering seamless communication and hardware compatibility. -
What are the typical input voltage requirements for the circuit board?
The board operates at a nominal 24 V DC input, with an allowable range between 18 and 30 V DC for stable functionality. -
How does the board maintain EMC compliance in high-voltage environments?
It features advanced shielding, grounding, and filtering mechanisms that meet EN 61000-6-2 and EN 61000-6-4 electromagnetic compatibility standards. -
What type / signals can the board process?
The circuit board is capable / handling both analog and digital signals for control, feedback, and diagnostic communication functions. -
Does the ABB XV C770 AE require active cooling?
No, the 台 is designed for passive cooling through natural convection, eliminating the need for fans or external cooling systems. -
How does the board ensure signal stability under electrical stress?
By utilizing multi-layer PCB design and integrated protection circuits, it maintains high signal integrity and minimizes electrical noise distortion. -
What is the insulation resistance level / the circuit board?
The insulation resistance is rated above 100 MΩ at 500 V DC, ensuring high safety and electrical separation between components. -
Can the board withstand vibration or mechanical stress?
Yes, the board structure and mounting are reinforced to ensure reliable operation under vibration and dynamic industrial conditions.
Related モデルs (Same Series or Function)
| モデル | 説明 | Application |
|---|---|---|
| XV C770 BE 3BHB006415R0001 | Coated circuit board for HVD systems | Drive control |
| XV C770 CE 3BHB006416R0001 | High-voltage circuit control board | Converter management |
| XV C770 DE 3BHB006417R0001 | Enhanced HVD logic board | Process automation |
| XV C770 AE105 3BHB007211R0105 | Current measuring and control board | Drive feedback |
| XV C760 AE 3BHB004721R0001 | Power interface circuit module | Power supply regulation |
| XV C775 AE 3BHB007890R0001 | Signal conditioning module | Feedback signal management |
