Product Overview

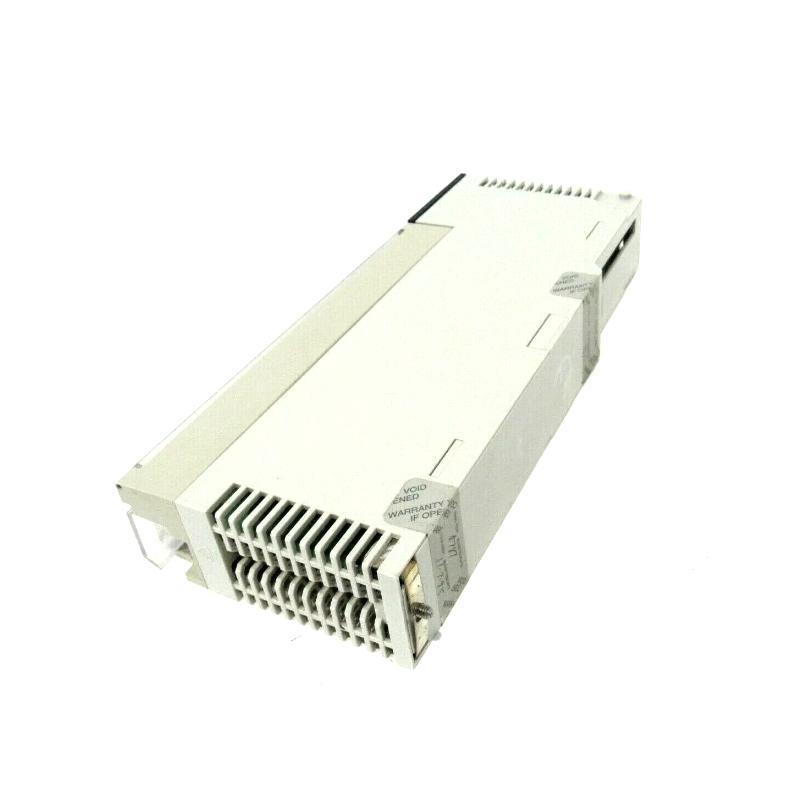

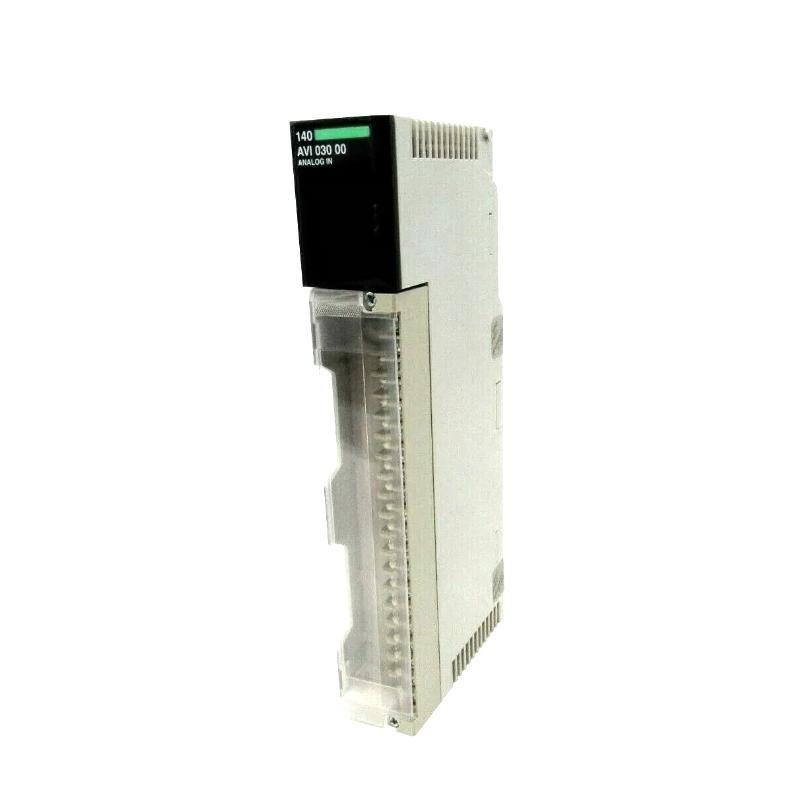

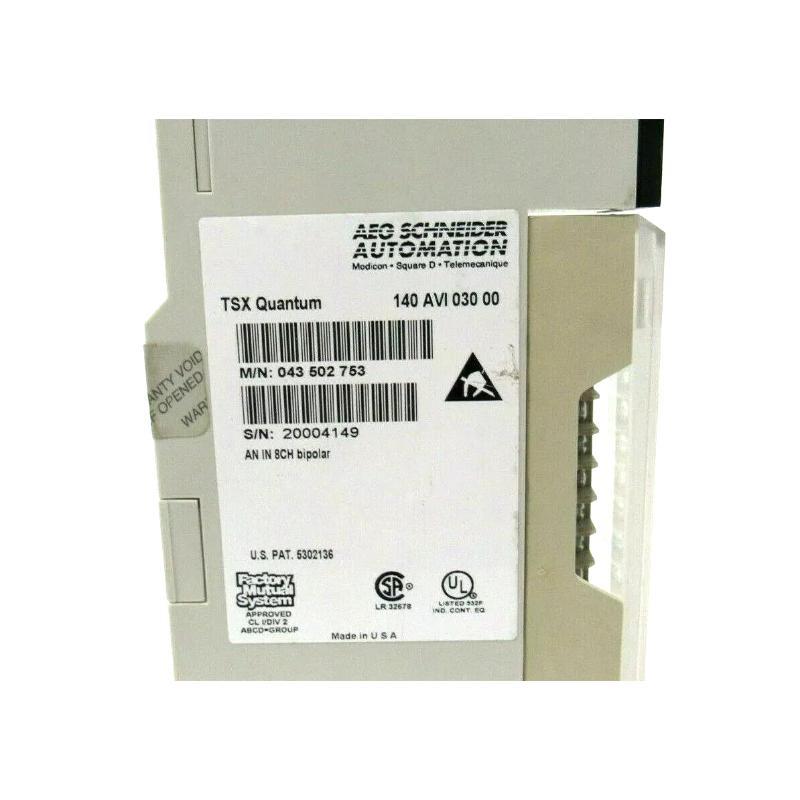

The Schneider Electric 140AVI03000 is an analog input module from the Modicon Quantum series, designed to convert various industrial analog signals into digital data for processing by Programmable Logic Controllers (PLCs) or Distributed Control Systems (DCS).The 140AVI03000 module is engineered to interface with multiple analog sensors, capturing signals such as voltage and current, and translating them into standardized digital outputs. This functionality is crucial for monitoring and controlling industrial processes.
製品仕様
Below is a detailed table outlining the key specifications / the 140AVI03000 module:
| Parameter | Details |
|---|---|
| Number / Input Channels | 8 |
| Input Types | Differential |
| サポートed Input Ranges | – Bipolar Current: ±20 mA – Bipolar Voltage: ±10 V, ±5 V – Unipolar Current: 0–20 mA – Unipolar Voltage: 0–10 V, 0–5 V |
| Resolution | 16 bits |
| Absolute Accuracy Error | ±0.03% to ±0.05% / full scale maximum |
| Linearity Error | ±0.008% |
| Common Mode Rejection | > -80 dB at 60 Hz |
| Isolation | – Between channels and bus: 500 Vrms AC for 60 s, 750 V DC – Between channels: 135 Vrms AC, 200 V DC |
| Update Time | 10 ms |
| Fault Detection | – Broken wire (4–20 mA) – Overtracking scale (1–5 V) |
| Bus Current Requirement | 280 mA |
| Power Dissipation | 2.2 W |
| Dimensions (H x W x D) | 103.9 × 40.3 × 250 mm |
| 重量 | 0.3 kg |
| Operating Temperature Range | 0 to 60 °C |
| Storage Temperature Range | -40 to 85 °C |
| Relative Humidity | Up to 95% without condensation |
| Certifications | UL 508, CSA C22.2 No 142, FM Class 1 Division 2, cUL |
Product Applications
The 140AVI03000 module is versatile and can be employed across various industries:
-
Process Control: Capturing variables like pressure, flow, and temperature to facilitate closed-loop control systems.
-
Motion Control: Interfacing with encoders and transmitters to monitor and control movement in machinery.
-
Data Acquisition: Collecting analog data for analysis and storage in manufacturing and production environments.
-
Industrial Automation: Utilized in sectors such as chemical processing, metallurgy, and power generation for process monitoring and control.
-
Robotics: Gathering positional and speed data from robotic joints and actuators.
-
Testing and Measurement: Incorporated into systems that require precise analog signal measurement for quality control and research purposes.
Product Advantages
The 140AVI03000 module /fers several benefits:
-
High Precision: With a 16-bit resolution, it ensures accurate data conversion, essential for maintaining process integrity.
-
Multiple Input Ranges: サポートs various voltage and current ranges, providing flexibility to accommodate different sensor types.
-
Channel Isolation: Each channel is isolated, enhancing system reliability by preventing interference between signals.
-
Rapid Update Time: A 10 ms update rate allows for real-time monitoring and swift response to changing conditions.
-
Robust Design: Built to withstand industrial environments, it operates effectively across a wide temperature range and high humidity levels.
Recent News and Updates
Recent developments related to the 140AVI03000 module include:
-
Schneider Electric Announces Firmware Update for 140AVI03000 Module: Enhancements improve compatibility with newer PLC systems.
-
Integration / 140AVI03000 in Smart Factory Initiatives: The module plays a pivotal role in advancing industrial automation.
-
Case Study: 140AVI03000 Enhances Efficiency in Chemical Processing Plant: Implementation leads to significant improvements in process monitoring.
-
Schneider Electric Releases White Paper on Optimizing Analog Input Modules: Features the 140AVI03000 as a benchmark for best practices.
-
Training Workshops Announced for 140AVI03000 Module Users: Aimed at maximizing the module’s potential in various applications.
FAQs for Schneider 140AVI03000
-
What is the function / the 140AVI03000 analog input module?
The 140AVI03000 is an analog input module from Schneider Electric’s Modicon Quantum series. It is designed to interface with various analog sensors, converting signals such as voltage and current into digital data for processing by Programmable Logic Controllers (PLCs) or Distributed Control Systems (DCS).
-
What types / analog signals does the 140AVI03000 support?
This module supports multiple input ranges, including:
-
Bipolar Current: ±20 mA
-
Bipolar Voltage: ±10 V, ±5 V
-
Unipolar Current: 0–20 mA
-
Unipolar Voltage: 0–10 V, 0–5 V
This flexibility allows it to accommodate a wide variety / analog sensors and transducers.
-
-
How many input channels are available on the 140AVI03000 module?
The module /fers 8 differential input channels, enabling simultaneous monitoring / multiple analog signals.
-
What is the resolution / the analog inputs?
Each input channel provides a 16-bit resolution, ensuring high-precision data acquisition for accurate monitoring and control.
-
How should unused channels be configured to prevent fault indications?
For each unused analog input channel, it is recommended to jumper the INPUT(+) terminal to the INPUT(-) terminal and configure those channels to one / the bipolar voltage input ranges (±5V or ±10V). This setup helps eliminate unnecessary fault indications.
-
What is the update time for the 140AVI03000 module?
The module has an update time / 10 milliseconds, allowing for real-time monitoring and swift response to changing conditions.
-
Does the 140AVI03000 provide fault detection capabilities?
Yes, the module can detect faults such as broken wires in 4–20 mA loops and signals that exceed the configured range, indicated by dedicated LEDs.
-
What are the dimensions and weight / the 140AVI03000 module?
The module Dimensions is 103.9 × 40.3 × 250 mm and weight 0.3 kg.
-
Is the 140AVI03000 module hot-swappable?
Yes, the module supports hot-swapping, enabling replacement without shutting down the entire system, thus minimizing downtime during maintenance.
-
What certifications does the 140AVI03000 hold?
The module complies with several standards and certifications, including:
-
Standards: UL 508, CSA C22.2 No 142
-
Certifications: FM Class 1 Division 2, cUL
These certifications ensure the module meets safety and performance requirements for industrial applications.
-
