製品紹介

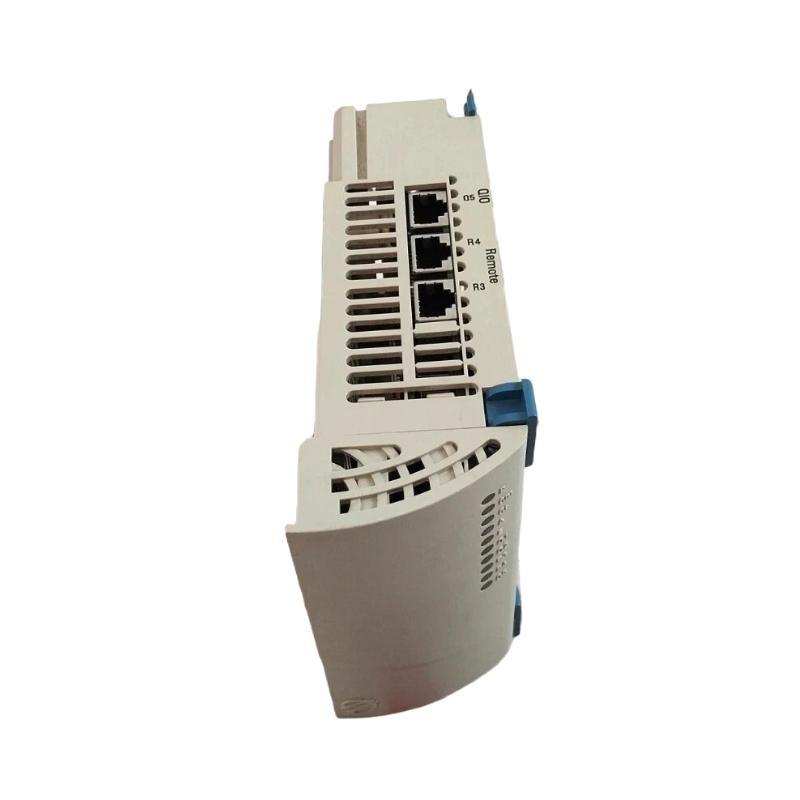

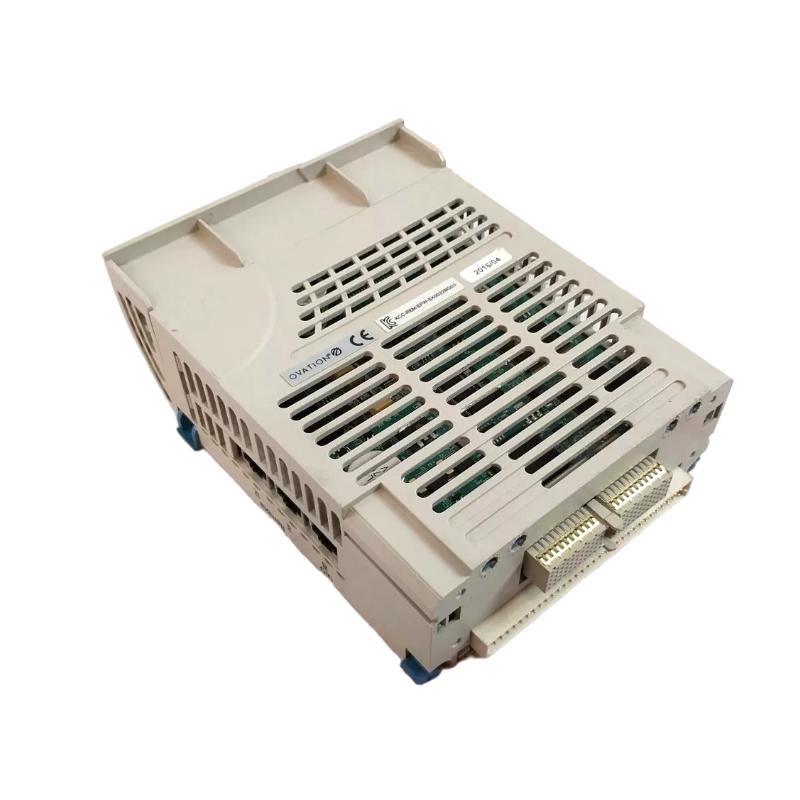

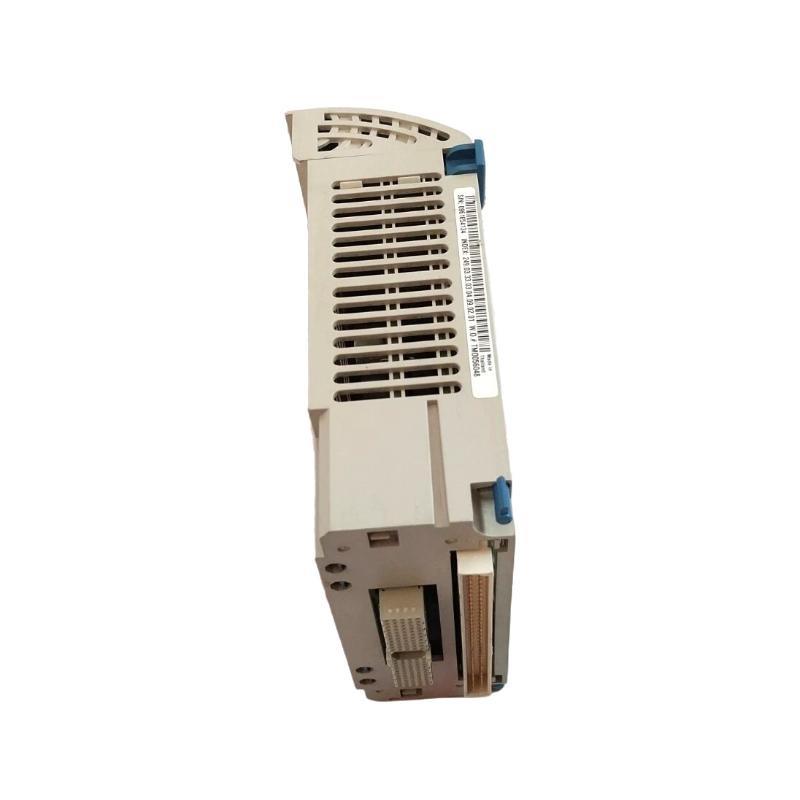

The Ovation 5X00701G02 Analog Output Module is a high-precision output interface designed for Emerson’s Ovation Distributed Control System (DCS). It delivers accurate, stable analog signals to field devices such as control valves, actuators, and instrumentation requiring precise set-point control. Engineered for critical industrial operations, the 5X00701G02 provides exceptional reliability, low noise, and superior long-term stability. Its rugged design supports demanding environments, making it suitable for power generation, petrochemical plants, water treatment facilities, and other process industries where consistent analog output is essential.
製品仕様
| Parameter | 説明 |
|---|---|
| モデル Number | 5X00701G02 |
| Module Type | Analog Output Module |
| Number / Output Channels | 8 isolated channels |
| Output Signal Range | 4–20 mA or 0–20 mA (jumper selectable) |
| Output Accuracy | ±0.05% / full scale |
| Resolution | 16-bit digital-to-analog conversion |
| Load Resistance | 0–750 Ω |
| Channel Isolation | 1500 V RMS channel-to-channel and channel-to-ground |
| Update Rate | ≤10 ms per channel |
| Linearity Error | < ±0.02% / full scale |
| Operating Voltage | Supplied from Ovation I/O backplane (nominal 24 VDC) |
| Power Consumption | Approx. 6 W |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5%–95% non-condensing |
| Mounting | Standard Ovation I/O card cage |
| Diagnostic Features | Channel-status LEDs, self-test routines, fault reporting |
| Dimensions (L × W × H) | 280 × 30 × 170 mm |
| 重量 | 0.8 kg |
Applications
-
Power Generation: Provides precise analog outputs to turbine governor systems, boiler controls, and emission control equipment.
-
Oil & Gas: Drives actuators and control valves for pressure, flow, and temperature regulation in upstream and downstream processes.
-
Water & Wastewater Treatment: Controls dosing pumps, chemical feed systems, and flow valves with fine accuracy.
-
Chemical & Petrochemical Plants: Sends accurate set-point signals to process controllers for consistent product quality.
-
Manufacturing & Industrial Automation: Interfaces with variable-speed drives, PID loops, and analog instrumentation requiring dependable current outputs.
-
HVAC & Building Systems: Regulates chilled water valves, fan speed controllers, and dampers for energy-efficient operation.
Advantages
-
High Accuracy and Resolution: 16-bit digital-to-analog conversion ensures smooth and precise signal control.
-
Fast Update Rate: ≤10 ms per channel guarantees quick response to process changes.
-
優良 Isolation: 1500 V RMS isolation prevents ground loops and protects equipment from electrical interference.
-
Low Noise and Drift: Maintains signal integrity even in electrically noisy industrial environments.
-
Integrated Diagnostics: Built-in self-tests and channel-status LEDs simplify maintenance and troubleshooting.
-
Flexible Signal Range: サポートs 4–20 mA or 0–20 mA output for compatibility with a wide range / field devices.
-
Rugged Design: Withstands harsh operating conditions, providing long-term reliability.
-
Seamless Ovation Integration: Plug-and-play installation within the Ovation DCS architecture.
FAQ
-
What is the output signal range / the 5X00701G02?
The module supports 4–20 mA or 0–20 mA, selectable via jumpers. -
How many output channels are available on this module?
It provides eight isolated analog output channels. -
What is the digital-to-analog conversion resolution?
The module features a 16-bit resolution for precise output control. -
What is the update rate per channel?
The module updates each channel within 10 milliseconds or less. -
What isolation rating is provided?
Each channel is isolated to 1500 V RMS from other channels and ground. -
What is the maximum permissible load resistance?
The module can drive loads from 0 to 750 ohms. -
How accurate are the analog outputs?
Output accuracy is ±0.05% / full scale, with linearity error under ±0.02%. -
What diagnostic features are included?
Integrated self-test routines and channel-status LEDs provide continuous monitoring. -
What power source does the module require?
It draws power from the Ovation backplane at a nominal 24 VDC supply. -
Is it compatible with all Ovation controllers?
Yes, the 5X00701G02 is fully compatible with Ovation DCS hardware and s/tware.
Recommended Related モデルs (Same Series or Similar)
| モデル | 説明 |
|---|---|
| 5X00701G01 | 8-Channel Analog Output Module, standard accuracy |
| 5X00702G01 | High-Resolution Analog Output Module with enhanced signal filtering |
| 5X00703G01 | 16-Channel Analog Output Module for larger output capacity |
| 5X00704G01 | Redundant Analog Output Module for fault-tolerant applications |
| 5X00705G01 | High-Speed Analog Output Module with ultra-fast update rates |
| 5X00706G01 | Multi-Range Analog Output Module supporting voltage and current outputs |
Popular Ovation モデルs
| モデル | 説明 |
|---|---|
| 1X00024H03 | Ovation 24 VDC Redundant Power Supply Module |
| 1D54582G01 | High-efficiency Ovation Power Supply |
| 1X00188H01 | P MOD Cavity Insert for secure module alignment |
| 1X00093G04 | Ovation Ethernet Network Switch |
| 1X00046H02 | Copper-to-Fiber Media Converter for extended network distances |
| 5X00357G02 | 16-Channel Enhanced Events Input Module |
