Product Overview

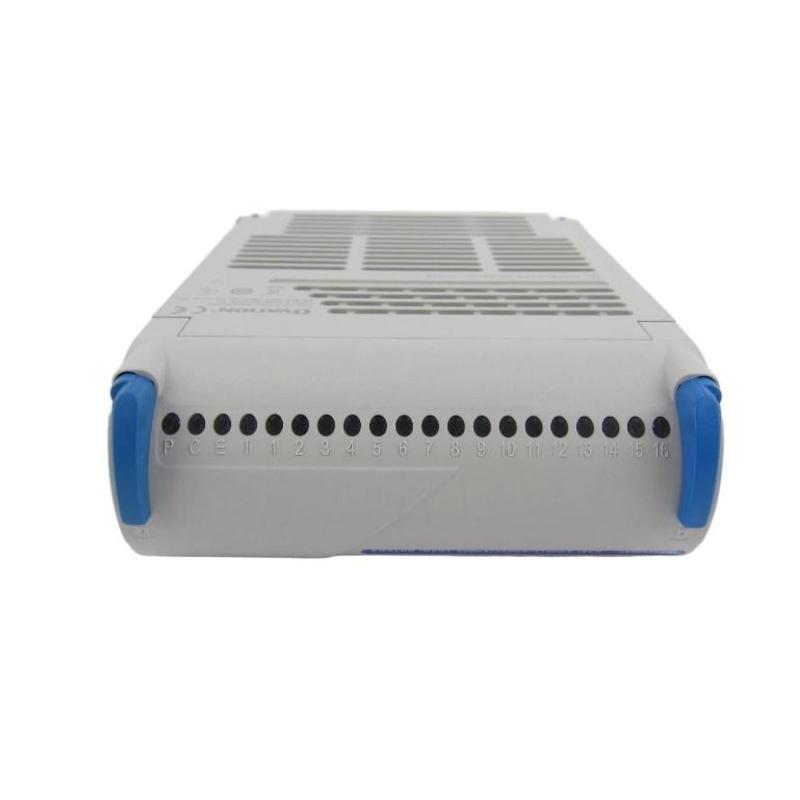

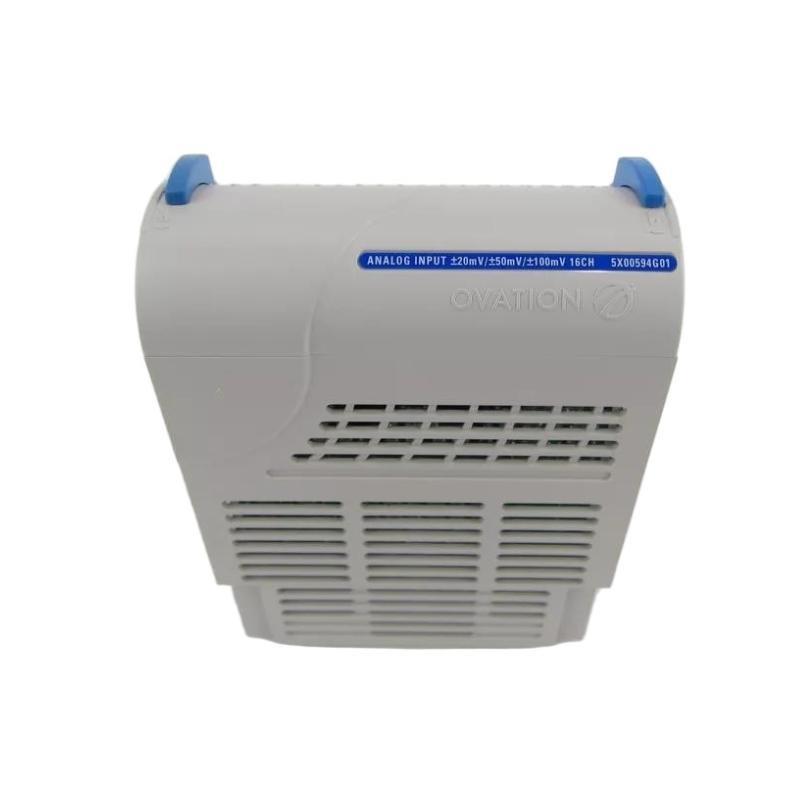

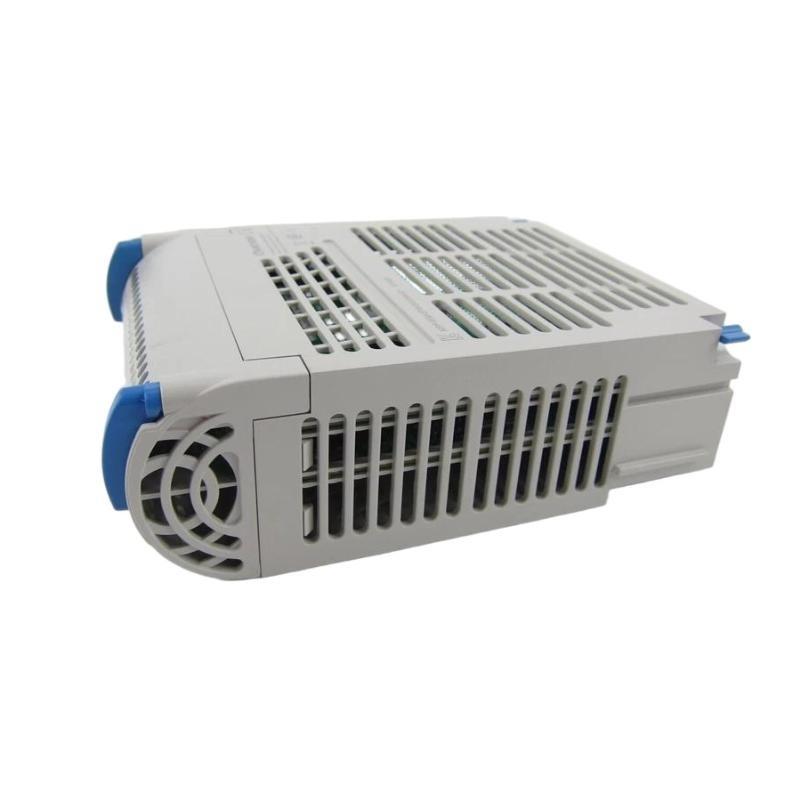

The Ovation 5X00594G01 Analog Input Module is a high-performance module designed for Emerson’s Ovation distributed control system (DCS). It provides accurate and reliable acquisition / analog signals from field instruments, such as transmitters and sensors, ensuring precise monitoring and control in critical industrial processes.
Key Features
-
High-resolution analog signal acquisition
-
Compatible with Emerson Ovation DCS systems
-
サポートs multiple input ranges and signal types
-
Designed for stable and accurate measurement
-
Built-in protection against electrical noise and surges
-
Modular and compact design for ease / installation
-
Reliable performance in industrial environments
Technical Specifications
| Item | Specification |
|---|---|
| モデル Number | 5X00594G01 |
| Type | Analog Input Module |
| System Compatibility | Emerson Ovation DCS |
| Input Channels | Multiple (typically 8–16, depending on configuration) |
| Input Signal Types | Current (mA), Voltage (V), and other standard analog signals |
| Resolution | High-resolution A/D conversion (typically 12–16 bit) |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Protection | Input overvoltage and surge protection |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% non-condensing |
| Dimensions | 180 × 120 × 40 mm |
| 重量 | 0.6 kg |
| Compliance | CE, UL, RoHS |
Industry Applications
-
Power Generation – monitoring turbine, boiler, and auxiliary analog signals
-
Oil & Gas – acquisition / analog signals from sensors in refineries and /fshore platforms
-
Chemical & Petrochemical – monitoring process variables like flow, level, and temperature
-
Manufacturing – supports automation processes requiring accurate measurement
-
Water & Wastewater – monitoring pumps, valves, and treatment processes
Advantages
-
Provides precise and reliable analog input data for control systems
-
サポートs a wide range / field signal types
-
Improves process accuracy and reliability
-
Designed for seamless integration with Ovation DCS
-
Robust protection enhances long-term module durability
-
Modular design allows easy installation and replacement
よくある質問 (FAQ)
Q1: What is the function / the 5X00594G01?
It acquires analog input signals from field devices and transmits them to the Ovation DCS.
Q2: Which control system is it compatible with?
It is specifically designed for Emerson Ovation DCS systems.
Q3: How many input channels does it support?
It typically supports multiple channels (commonly 8–16 depending on configuration).
Q4: What types / signals are supported?
Standard analog signals, including current (mA) and voltage (V).
Q5: What is the resolution / the module?
High-resolution conversion, typically 12–16 bits.
Q6: Does it provide channel isolation?
Yes, it supports channel-to-channel and channel-to-system isolation.
Q7: What protection features are included?
It includes surge and overvoltage protection.
Q8: What is the operating temperature range?
0 °C to +60 °C.
Q9: What are the dimensions?
Approx. 180 mm × 120 mm × 40 mm.
Q10: How much does it weigh?
Approx. 0.6 kg.
