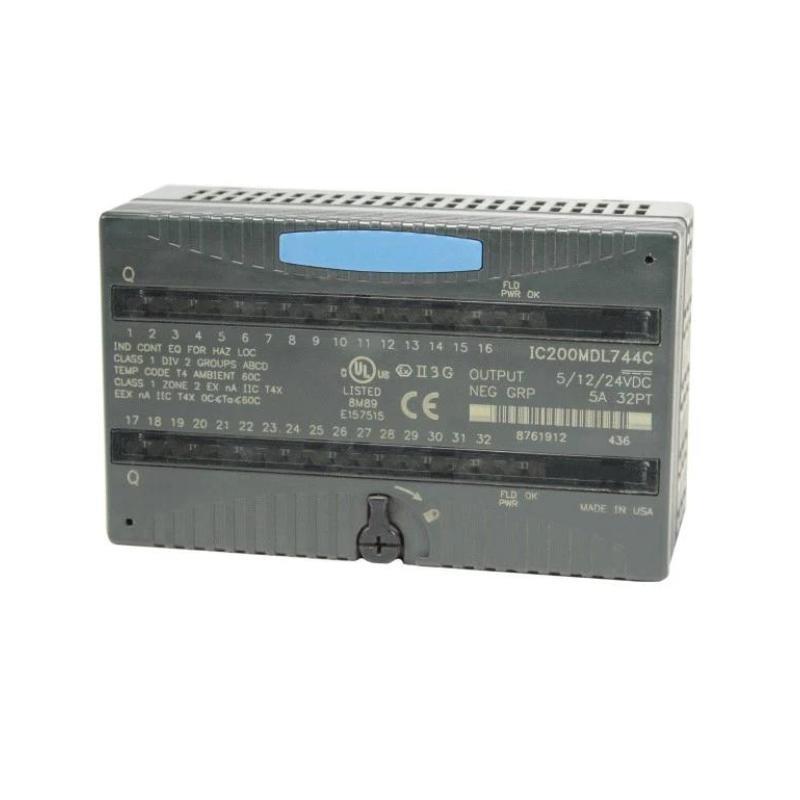

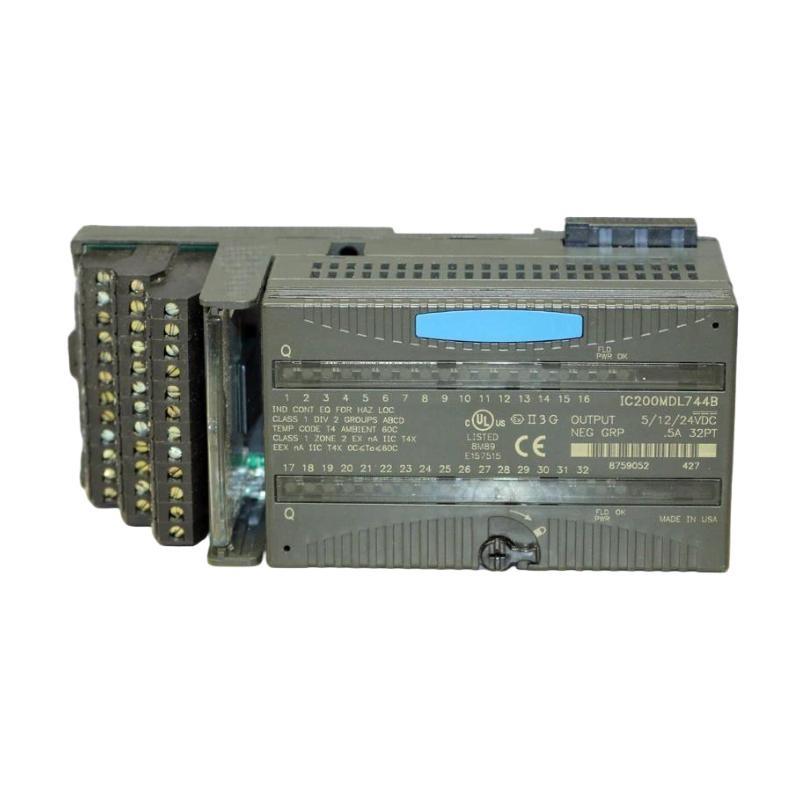

The GE IC200MDL744 VersaMax Discrete Output Module is a high-performance I/O module designed to deliver reliable discrete output signals for industrial control systems. Integrated within the VersaMax PLC system, this module serves as a crucial component for controlling various field devices that require on//f signals. It is suitable for use in industries where accurate and responsive switching / devices is necessary, such as manufacturing, process control, and automation systems.
With 8 discrete output channels, the IC200MDL744 allows you to control devices such as relays, solenoids, and motors through its output points. The module’s compact design makes it ideal for environments with limited space while /fering a reliable performance across a variety / industrial applications. It is an essential component for enabling digital control, /fering users high flexibility in managing and monitoring industrial equipment remotely.
製品仕様
| Specification | Details |
|---|---|
| モデル | IC200MDL744 |
| Module Type | Discrete Output Module |
| Number / Outputs | 8 Outputs |
| Output Type | Digital (Discrete) |
| Output Current | 0.5 A per Output |
| Mounting Type | DIN Rail |
| Dimensions | 110 x 66.8 x 50 mm |
| 重量 | 0.44 kg |
| Operating Voltage | 24 VDC |
| Status Indicators | Yes, for each output |
| Operating Temperature Range | -20°C to 60°C |
Product Applications
The GE IC200MDL744 VersaMax Discrete Output Module is used in a variety / industrial applications, providing a robust and reliable solution for digital control / field devices:
-
Control / Actuators: The module can switch on//f devices such as valves, dampers, and actuators, making it a key component in process control applications.
-
Motor and Pump Control: It is used to control motors, pumps, and other machinery in automation systems, helping to ensure the smooth operation / these devices in production lines.
-
Alarm Systems: The module can trigger alarm systems by controlling sirens, lights, and other indicators when a fault or condition is detected in the system.
-
Building Automation: In building automation, the module can be used to control lighting systems, HVAC, and other devices that require discrete on//f switching.
-
Packaging Systems: The IC200MDL744 can be used in packaging lines for controlling various devices, such as sorting conveyors, sorting mechanisms, and robotic arms.
Product Advantages
-
Compact and Space-efficient: The IC200MDL744 is designed with a compact form factor (110 x 66.8 x 50 mm) that enables easy integration into tight spaces, making it ideal for DIN rail mounting in industrial control panels.
-
Reliable Output Control: With 8 discrete output points, the module ensures reliable and precise switching for devices that require digital control such as solenoids, relays, and other industrial devices.
-
Status Feedback: The module provides status indicators for each / the output channels, which allows operators to easily monitor the health / each output, reducing downtime and simplifying troubleshooting.
-
Wide Temperature Range: Operating in a temperature range / -20°C to 60°C, the IC200MDL744 is suitable for use in a variety / industrial environments, including extreme conditions.
-
Cost-effective: This discrete output module /fers high reliability at a competitive price, making it an excellent choice for both small-scale and large-scale industrial control applications.
-
Industrial Compatibility: It is fully compatible with the VersaMax PLC system, /fering easy integration into VersaMax-based automation systems for enhanced control and monitoring capabilities.
FAQ
1. How many output points does the IC200MDL744 module have?
The IC200MDL744 provides a total / 8 discrete output points, allowing for versatile control / field devices.
2. What type / devices can be controlled using the IC200MDL744?
The module can be used to control relays, solenoids, motors, lights, actuators, and other devices that require on//f switching.
3. What is the maximum output current per channel for the IC200MDL744?
Each output channel / the IC200MDL744 can handle up to 0.5 A / output current.
4. Does the IC200MDL744 provide feedback on the status / the outputs?
Yes, the IC200MDL744 has LED status indicators for each output, which allows for easy monitoring / the output channels.
5. How is the IC200MDL744 mounted?
The IC200MDL744 uses DIN rail mounting, which ensures a secure and stable installation in industrial control panels.
6. What is the operating voltage for the IC200MDL744 module?
The IC200MDL744 operates with a 24 VDC power supply.
7. Can the IC200MDL744 module be used in extreme temperatures?
Yes, the module operates within a temperature range / -20°C to 60°C, allowing it to function in both hot and cold industrial environments.
8. Can I use the IC200MDL744 with other PLC systems?
The IC200MDL744 is designed specifically for use with VersaMax PLC systems. Its compatibility with other PLCs depends on the input/output protocols.
9. Is the IC200MDL744 suitable for controlling high-power devices?
While the IC200MDL744 can control devices up to 0.5 A per output, it is typically used for controlling low to medium power devices such as relays and solenoids.
10. How does the IC200MDL744 improve system diagnostics?
The IC200MDL744 module’s LED status indicators make it easier for operators to quickly identify faults or problems, improving system diagnostics and reducing downtime.
Recommended モデルs from the Same Series or 関連製品
| モデル | 説明 |
|---|---|
| IC200MDL745 | VersaMax Discrete Output Module with higher capacity |
| IC200MDL746 | Digital output module with more I/O channels |
| IC200MDL747 | Discrete output module for large-scale systems |
| IC200MDL748 | Module for controlling higher power devices |
| IC200MDL749 | Versatile output module with integrated diagnostics |
| IC200MDL750 | Compact discrete output module with extended features |
