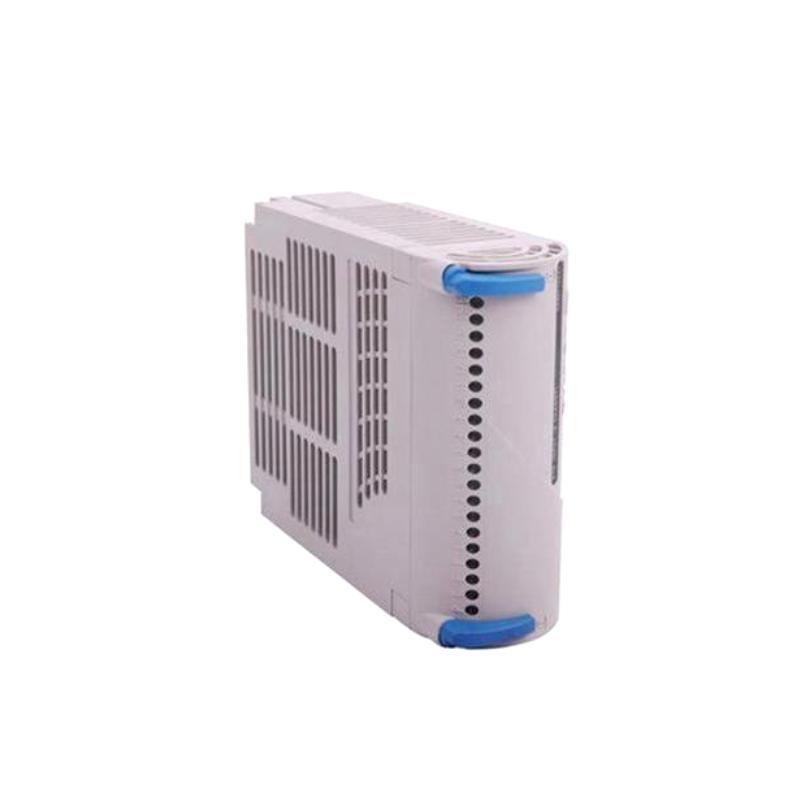

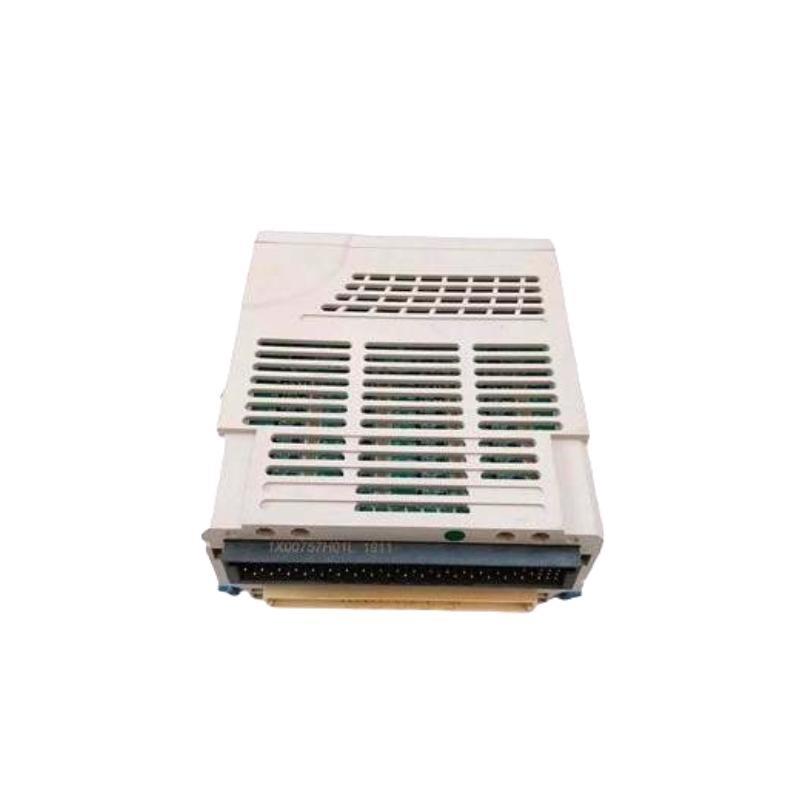

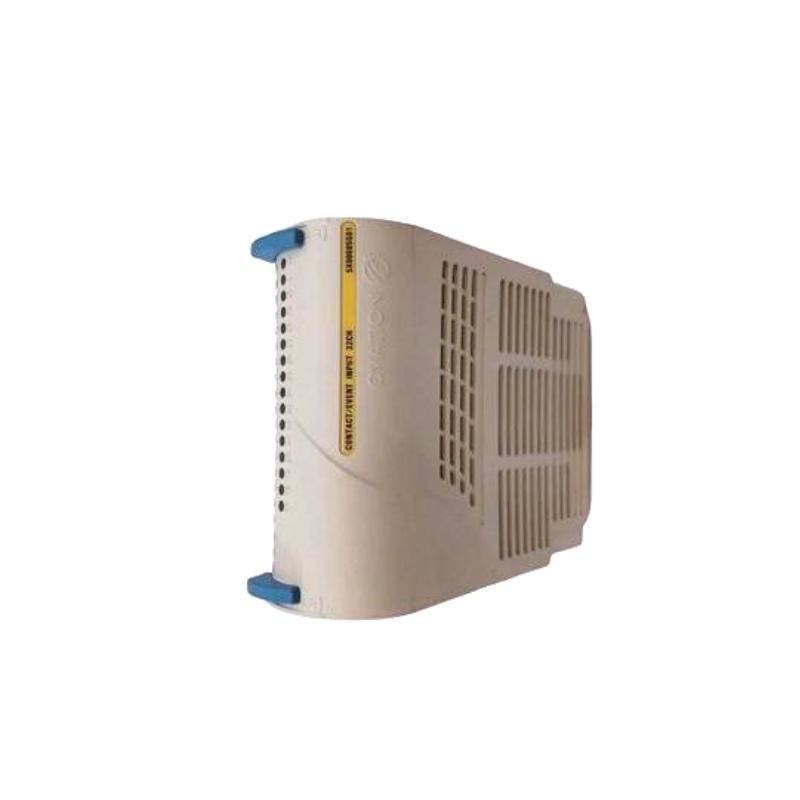

The Ovation 5X00357G05 16-Channel Enhanced Events Input Module is a high-performance digital input module designed for use in Emerson Ovation Distributed Control Systems (DCS). Specifically engineered to detect and capture high-speed event-driven changes in plant processes, this module is crucial in applications where real-time, time-sensitive status monitoring is required. The module supports 16 optically isolated input channels, which are capable / recording transient signals with millisecond accuracy, making it essential in alarm/event recording systems and safety-critical logic.
Equipped with high-speed scanning and enhanced diagnostic capability, the 5X00357G05 ensures reliable performance in power plants, petrochemical plants, and other critical infrastructure environments. Its rugged construction and precise logic capture make it a vital tool for system engineers aiming to ensure process continuity and traceability.
製品仕様
| Parameter | Specification |
|---|---|
| モデル | 5X00357G05 |
| Type | Enhanced Events Input Module |
| Number / Channels | 16 individually isolated digital input channels |
| Input Type | Dry お問い合わせ (potential-free) or voltage-type configurable |
| Input Voltage Range | 0 to 60 VDC |
| Input Threshold | Configurable (typically 24 VDC) |
| Input Isolation | Optical Isolation per channel |
| Event Capture Resolution | ≤1 millisecond |
| Scan Rate | High-speed scan cycle (deterministic) |
| Status Indication | LED indicators per input channel |
| Fault Detection | Open/short detection, channel health status |
| Redundancy サポート | Yes, when configured in redundant racks |
| Mounting Style | Plug-in module, compatible with Ovation I/O backplanes |
| Power Consumption | Approx. 4 Watts |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| EMI/RFI Protection | Meets industrial EMC standards |
| Dimensions (H × W × D) | 210 × 25 × 185 mm |
| 重量 | 0.45 kg |
| Compliance | CE, UL, RoHS |
Applications
The Ovation 5X00357G05 module is widely deployed across multiple industries requiring precise event detection and logic capture:
-
Power Generation Plants – Alarm recording, trip detection, and sequence / events logging
-
Substation Automation – Real-time monitoring / circuit breakers, relays, and switches
-
Oil & Gas Industry – Safety logic input for blowout preventers, ESD systems
-
Water Treatment Facilities – Event capture for pumps, valves, and control gates
-
Industrial Automation – Monitoring machine start/stop commands and interlock inputs
-
Chemical and Petrochemical Plants – Process safety system integration and monitoring
Its fast input recognition and isolation make it ideal for environments where signal integrity and precise event logs are critical.
Advantages
-
High-Speed Event Logging – Detects input changes in ≤1 millisecond, crucial for diagnostics and event sequencing.
-
Channel Isolation – Each input is optically isolated, preventing noise and cross-channel interference.
-
Enhanced Diagnostics – Built-in health checks for open/short detection and individual channel fault reporting.
-
Simple Integration – Fully compatible with Ovation I/O racks and easy to configure within Ovation s/tware tools.
-
LED Indicators – Front-panel LED indicators provide real-time channel status for fast troubleshooting.
-
Industrial Ruggedness – Designed to operate reliably in harsh industrial conditions with temperature and EMC compliance.
-
Scalable Architecture – Can be deployed in redundant configurations for mission-critical applications.
-
Low Power Consumption – Efficient design contributes to lower system power requirements.
-
Versatile Signal Handling – サポートs both dry contact and voltage signals, enhancing application flexibility.
-
Maintenance Friendly – Hot-swappable design and robust diagnostics reduce downtime and simplify maintenance.
よくある質問 (FAQ)
-
What is the main function / the 5X00357G05 module?
It is used to detect and record high-speed digital events or input state changes with millisecond-level resolution. -
How many input channels does it support?
The module supports 16 optically isolated digital input channels. -
Can I use it with dry contact signals?
Yes, the module supports both dry contact and voltage-type inputs. -
Is it suitable for safety-critical applications?
Absolutely. It’s used in applications requiring fast and reliable signal acquisition, such as turbine trips and ESD systems. -
Does the module provide channel diagnostics?
Yes, it includes health monitoring for open or short circuits and provides per-channel status. -
Can I use this module in redundant configurations?
Yes, it supports redundancy when configured in Ovation redundant racks. -
How fast can it detect changes in input?
It can capture input changes within 1 millisecond. -
What environments is it certified for?
It complies with industrial EMC standards and can operate in typical plant conditions (0°C to 60°C). -
Are LED indicators provided for status monitoring?
Yes, each channel has a corresponding LED on the module’s front panel. -
Is this module hot-swappable?
Yes, it can be removed and replaced without shutting down the entire system if supported by the rack configuration.
