Product Overview

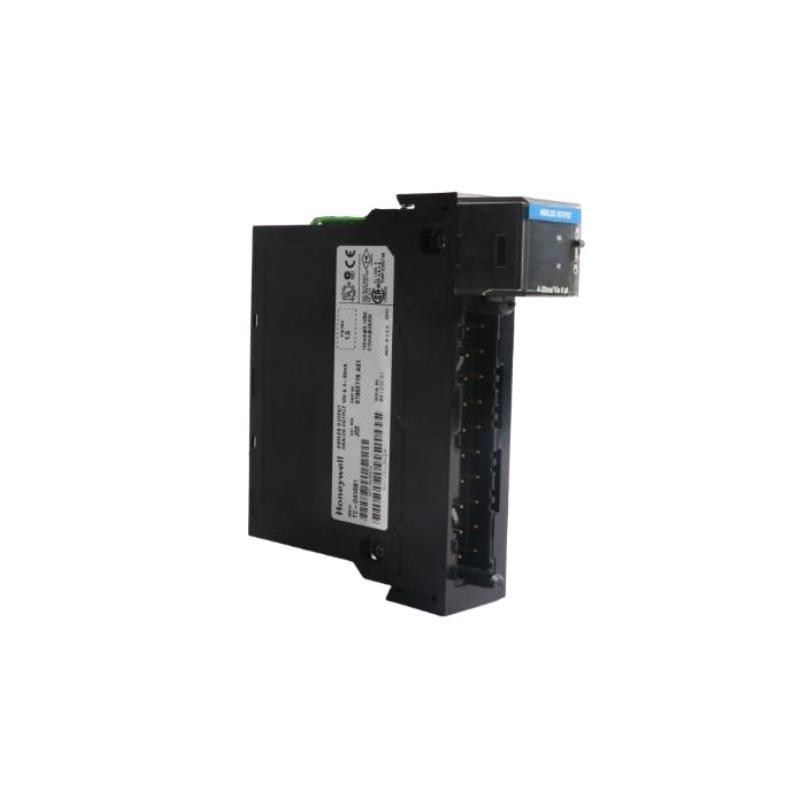

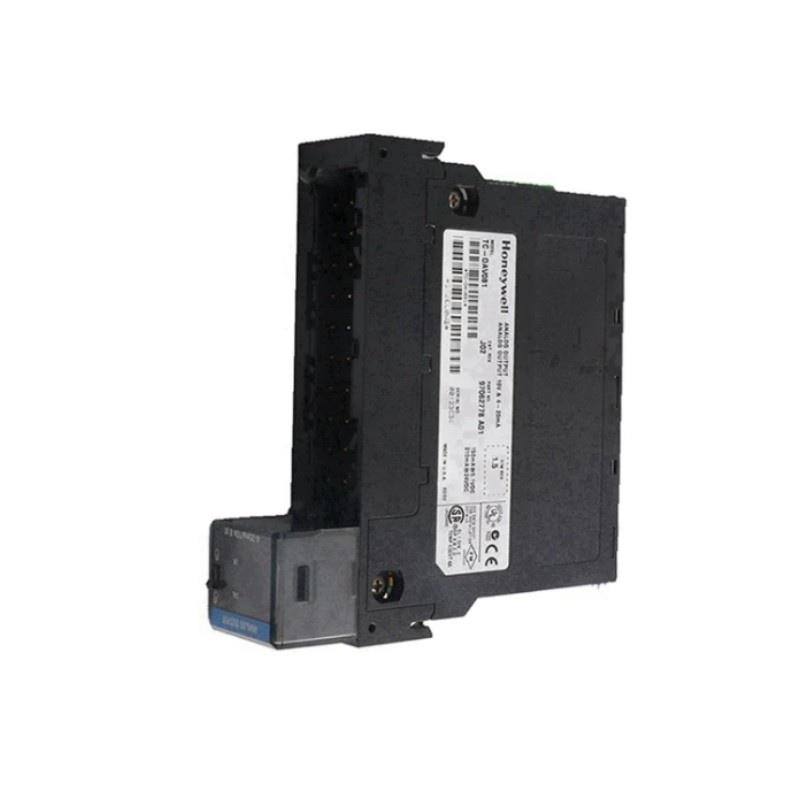

The Honeywell TK-OAV061 is a high-performance analog output module designed for precise and stable analog signal control. It belongs to the TDC 3000 system family and is primarily used in process automation environments.
Technical Specifications
| Parameter | 説明 |
|---|---|
| モデル | TK-OAV061 |
| Function | Analog Output Module |
| Output Channels | 8 analog output channels |
| Signal Type | 4–20 mA current output |
| Resolution | 12-bit digital-to-analog conversion |
| Accuracy | ±0.1% / span |
| Power Supply | 24 VDC |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 114 × 50 × 120 mm |
| 重量 | 0.4 kg |
Applications
-
Distributed control systems (DCS)
-
Industrial process automation
-
Oil and gas control systems
-
Power plant instrumentation
-
Chemical and pharmaceutical industries
-
Batch control and monitoring systems
Product Advantages
-
High-precision 12-bit analog output
-
Robust and durable design
-
Compatible with Honeywell TDC 3000 series
-
Stable performance across industrial environments
-
Easy integration into existing Honeywell systems
-
Compact size for space-saving installations
よくある質問 (FAQ)
Q1: What is the function / the TK-OAV061 module?
A1: It provides 8 channels / 4–20 mA analog current output for process control systems.
Q2: Is it compatible with Honeywell TDC 3000 systems?
A2: Yes, it is designed specifically for the TDC 3000 control architecture.
Q3: What kind / signals does it output?
A3: It outputs analog current signals ranging from 4 to 20 mA.
Q4: Can it be used in harsh industrial environments?
A4: Yes, it operates reliably within a temperature range / 0°C to 60°C.
Q5: What is the resolution / the output?
A5: The module features 12-bit resolution for fine signal control.
Q6: What is the accuracy / the output signals?
A6: The output accuracy is ±0.1% / the signal span.
Q7: How is the module powered?
A7: It is powered by a 24 VDC external power source.
Q8: What is the weight and size / the 台?
A8: It measures 114 × 50 × 120 mm and weighs 0.4 kg.
Q9: Is it easy to integrate into existing systems?
A9: Yes, its design allows easy integration with Honeywell control systems.
Q10: What industries commonly use this module?
A10: It’s widely used in oil & gas, power, chemical, and manufacturing industries.
Related モデルs (Same Series or Type)
| モデル | 説明 | Channels | Signal Type | Dimensions (mm) | 重量 |
|---|---|---|---|---|---|
| TK-OAV062 | Analog Output, Extended Range | 8 | 0–20 mA | 114 × 50 × 120 | 0.4 kg |
| TK-OVF061 | Analog Output, Voltage Type | 8 | 0–10 V | 114 × 50 × 120 | 0.4 kg |
| TK-OAI061 | Analog Input Module | 8 | 4–20 mA | 114 × 50 × 120 | 0.4 kg |
| TK-IAI061 | Isolated Analog Input | 8 | 4–20 mA | 114 × 50 × 120 | 0.4 kg |
| TK-DAC061 | Digital-to-Analog Controller | 4 | 4–20 mA | 114 × 50 × 120 | 0.45 kg |
| TK-OAV051 | Analog Output, Low Voltage | 8 | 0–10 V | 114 × 50 × 120 | 0.4 kg |
Popular Honeywell モデルs
| モデル | 説明 | Function | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| 8C-PAOHA1 | Analog Output with HART | AO with HART | 114 × 50 × 120 | 0.45 kg |
| 8C-PCNT02 | C300 Controller | Controller Module | 132 × 50 × 150 | 0.5 kg |
| 8C-TAIXA1 | Analog Input IOTA | AI Terminal Block | 114 × 50 × 120 | 0.4 kg |
| 900SP1-0200 | HC900 Expansion Processor | CPU Module | 114 × 50 × 120 | 0.45 kg |
| 8C-PDILA1 | Digital Input Module | DI Module | 114 × 50 × 120 | 0.4 kg |
| FC-IO-0001 | I/O Extended Module | I/O Module | 114 × 50 × 120 | 0.4 kg |
