Product Overview

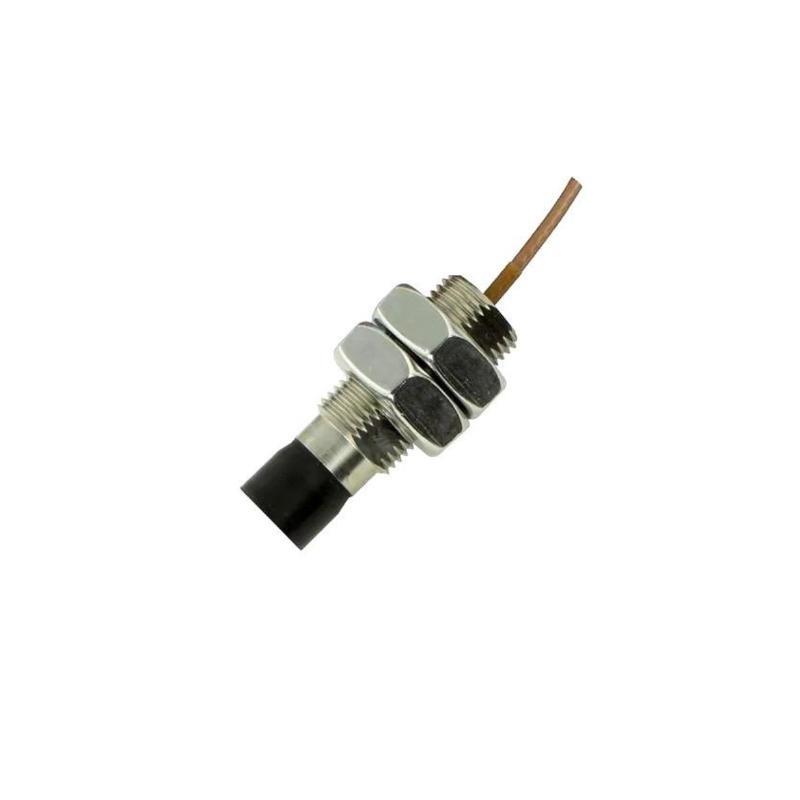

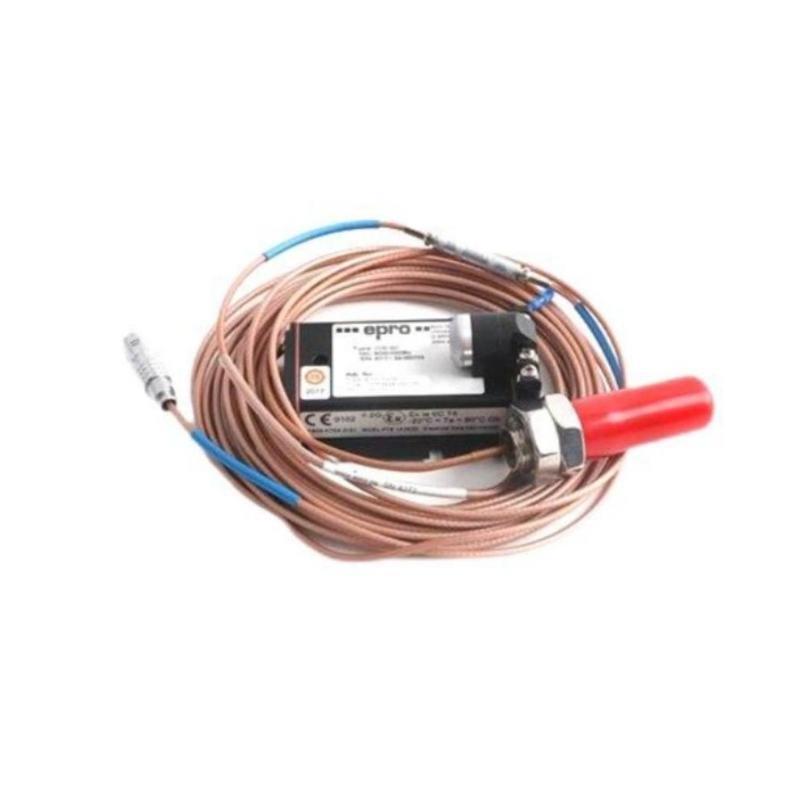

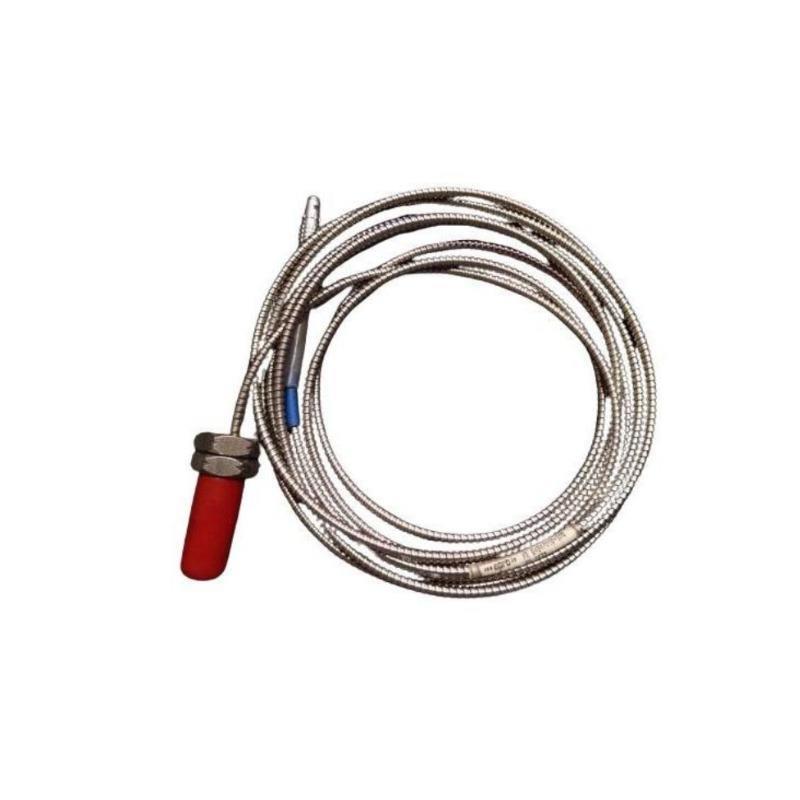

The Epro PR6423/010-010 8mm Eddy-Current Sensor is a high-performance, non-contact displacement sensor designed for precise shaft vibration and position monitoring in rotating machinery. As part / the trusted PR6423 series, this sensor ensures high measurement accuracy and stability even in demanding industrial environments. With its compact 8 mm probe diameter, it integrates seamlessly into machinery protection systems and condition monitoring applications.
Key Features
-
Non-contact measurement / shaft vibration and displacement
-
8 mm probe diameter for versatile industrial applications
-
High accuracy and linearity across the measurement range
-
Designed for harsh environments with oil and dust resistance
-
Wide operating temperature range for industrial reliability
-
Compatible with CON series connectors and Epro monitoring systems
-
Stable long-term performance with low drift characteristics
-
Ideal for predictive maintenance and critical machinery protection
Technical Specifications
| Item | Specification |
|---|---|
| メーカー | Epro |
| 型番 | PR6423/010-010 |
| Product Type | Eddy-Current Sensor |
| Probe Diameter | 8 mm |
| Probe Length | 71 mm (typical) |
| Measurement Range | ±2 mm (model dependent) |
| Sensitivity | 7.87 mV/µm (typical with matching driver) |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +180 °C |
| Storage Temperature | –40 °C to +200 °C |
| Housing Material | Stainless steel |
| Connector Type | Compatible with CON021 / CON031 |
| Dimensions | Sensor head diameter 8 mm |
| 重量 | 0.1 kg |
| Applications | Shaft vibration, displacement monitoring, machinery protection |
Industry Applications
-
Steam and gas turbines
-
Compressors and blowers
-
Electric motors and generators
-
Pumps and fans
-
Gearboxes and industrial rotating equipment
-
Oil, gas, and petrochemical industries
-
Power generation and heavy industry condition monitoring
よくある質問 (FAQ)
Q1: What is the probe diameter / the PR6423/010-010?
It has a diameter / 8 mm.
Q2: What type / measurement does it perform?
It performs non-contact measurement / shaft vibration and displacement.
Q3: Which connector types are compatible with this sensor?
It is compatible with CON021 and CON031 connectors.
Q4: What is the operating temperature range?
It operates between –35 °C and +180 °C.
Q5: Can it be used in harsh environments?
Yes, it is resistant to oil, dust, and industrial contaminants.
Q6: What is the typical sensitivity / this model?
The typical sensitivity is 7.87 mV/µm when used with a matching driver.
Q7: Is this sensor part / a larger monitoring system?
Yes, it integrates with Epro monitoring systems for machinery protection.
Q8: Which industries commonly use this sensor?
It is widely used in oil, gas, power generation, and heavy machinery industries.
Related Epro モデルs
| モデル | 説明 |
|---|---|
| PR6423/002-031-CN | 8mm Eddy-Current Sensor |
| PR6423/005-030 | 8mm Eddy-Current Sensor |
| PR6423/010-020-CN+CON021 | 8mm Eddy-Current Sensor |
| PR6423/014-030 | 8mm Eddy-Current Sensor |
| PR6423/017-030-CN+CON021 | 8mm Eddy-Current Sensor |
| PR6423/00R-111 | 8mm Eddy-Current Sensor |
Popular Epro モデルs
| モデル | 説明 |
|---|---|
| PR6423/010-010 | 8mm Eddy-Current Sensor |
| PR6423/010-020-CN+CON021 | 8mm Eddy-Current Sensor |
| PR6423/014-030 | 8mm Eddy-Current Sensor |
| PR6423/017-030-CN+CON021 | 8mm Eddy-Current Sensor |
| PR6423/002-031-CN | 8mm Eddy-Current Sensor |
| PR6423/005-030 | 8mm Eddy-Current Sensor |
