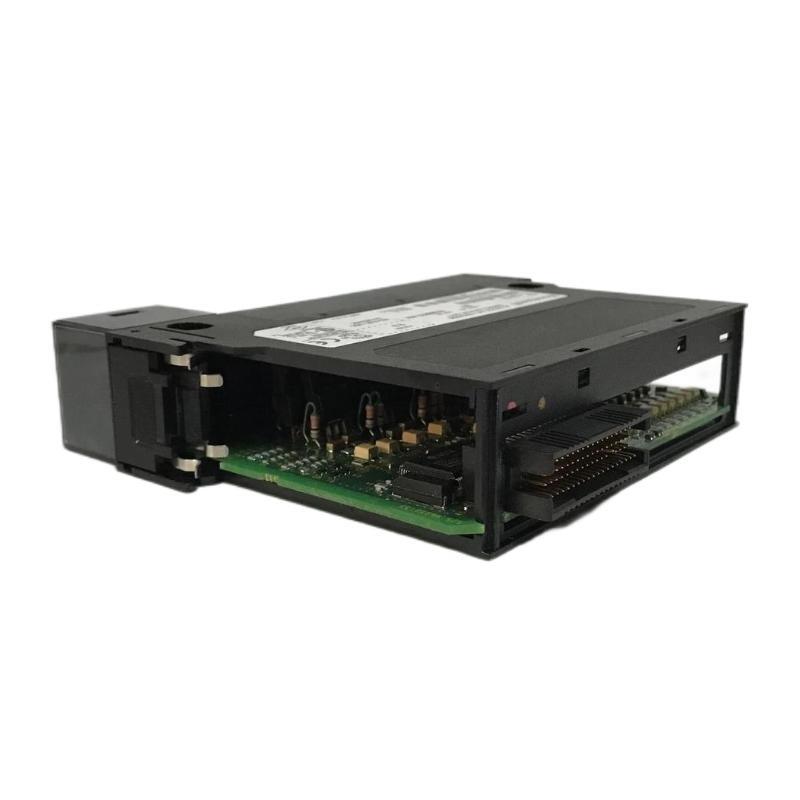

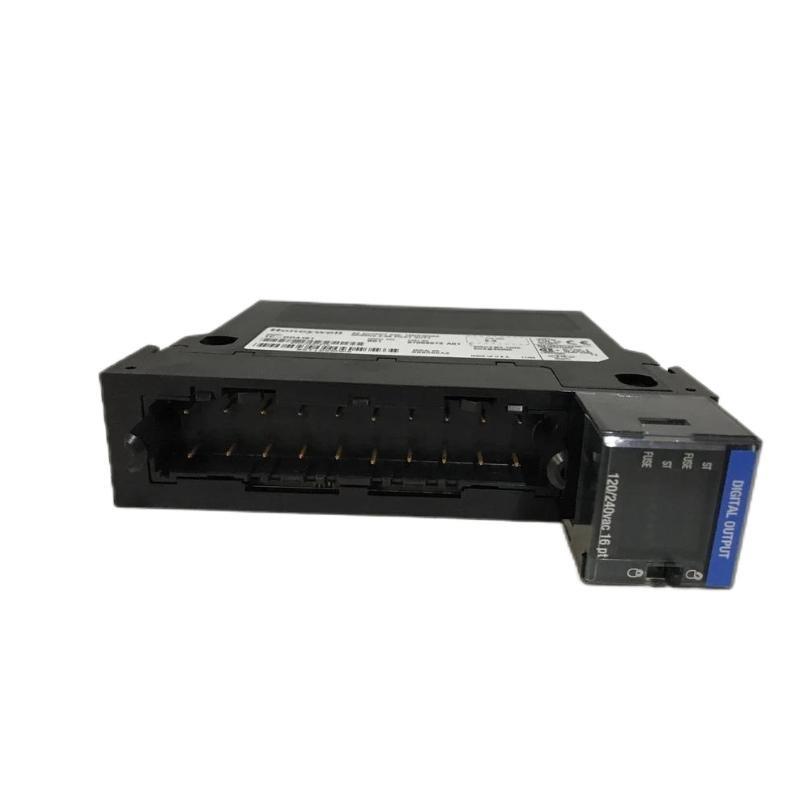

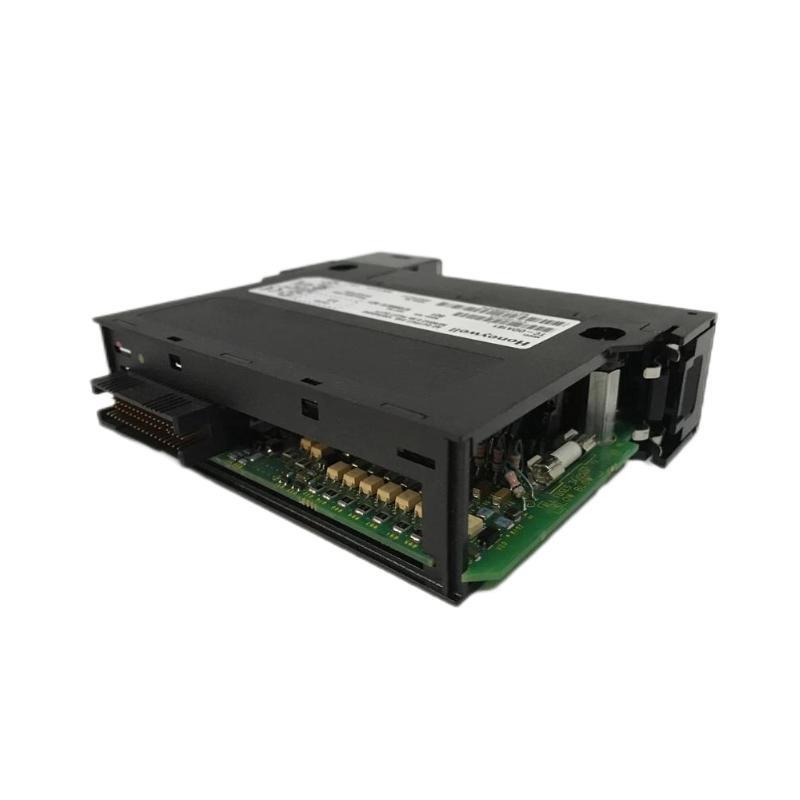

Product Overview
The Honeywell TC-ODA161 is a 16-point AC digital output module designed for the Experion LS control platform. It provides reliable switching / 120/220 VAC loads, making it ideal for interfacing field devices such as relays, indicators, and contactors. Built for industrial environments, it ensures dependable operation in a wide range / automation applications.
Technical Specifications
| Parameter | 説明 |
|---|---|
| モデル Number | TC-ODA161 |
| Output Type | AC Digital Output |
| Output Voltage | 120/220 VAC |
| Number / Channels | 16 |
| Output Type | Triac |
| Isolation | Channel-to-bus and channel-to-channel |
| Operating Temperature | 0°C to 60°C |
| Mounting | DIN rail or panel mount |
| Dimensions | 35 x 140 x 145 mm |
| 重量 | 0.23 kg |
Applications
-
Factory automation systems
-
Process control I/O systems
-
Power distribution panels
-
Machine control systems
-
Building management systems
-
OEM equipment integration
Product Advantages
-
High-density 16-point AC output in a compact form
-
Compatible with the Experion LS platform
-
Electrical isolation enhances system safety
-
Fast switching for real-time control
-
Designed for long operational life
-
Easy integration with other Honeywell modules
よくある質問 (FAQ)
Q1: What type / loads can the TC-ODA161 control?
A1: It can switch AC-powered loads like relays, indicators, contactors, and solenoids.
Q2: Is the module compatible with other Honeywell controllers?
A2: Yes, it is part / the Experion LS I/O system and works seamlessly with compatible Honeywell controllers.
Q3: Can I mix different voltage levels on the same module?
A3: No, all outputs should be operated within the specified AC voltage range uniformly.
Q4: How is the module protected against electrical surges?
A4: It includes built-in electrical isolation and robust circuitry for noise and surge imm台y.
Q5: Does the TC-ODA161 support diagnostic feedback?
A5: No, it does not have onboard diagnostics for output status or fault detection.
Q6: What is the wiring method for this module?
A6: It uses screw-terminal connections suitable for industrial-grade cabling.
Q7: Can this module be used in hazardous areas?
A7: Not directly. It requires external barriers or certified enclosures for hazardous environments.
Q8: Is hot-swapping supported on the TC-ODA161?
A8: No, the module should be powered down before insertion or removal.
Q9: What certifications does this module carry?
A9: It complies with industrial standards such as CE and UL, depending on the region.
Q10: How does the module handle overcurrent situations?
A10: It relies on external circuit protection like fuses or breakers; it does not include internal fusing.
Related Honeywell モデルs (Same Series)
| モデル | 説明 | Channels | Voltage | Dimensions (mm) | 重量 |
|---|---|---|---|---|---|
| TC-ODK161 | AC Output Module (Isolated) | 16 | 120/220 VAC | 35 x 140 x 145 | 0.23 kg |
| TC-ODA321 | AC Output Module | 32 | 120 VAC | 35 x 140 x 145 | 0.25 kg |
| TC-ODC081 | AC Output Module | 8 | 120/220 VAC | 35 x 140 x 145 | 0.22 kg |
| TC-ODD161 | DC Output Module (e-fused) | 16 | 24 VDC | 35 x 140 x 145 | 0.23 kg |
| TC-ODF081 | DC Output Module (Isolated) | 8 | 125 VDC | 35 x 140 x 145 | 0.22 kg |
| TC-ODX081 | AC Output Module (Diagnostics) | 8 | 120 VAC | 35 x 140 x 145 | 0.22 kg |
Popular Honeywell モデルs
| モデル | 説明 | Application Area | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| 8C-PCNT02 | C300 Controller | Process control | 40 x 150 x 145 | 0.28 kg |
| 8C-PAONA1 | Analog Output Module | Field signal output | 35 x 140 x 145 | 0.23 kg |
| 8C-TAIX51 | Analog Input IOTA | Signal acquisition | 35 x 140 x 145 | 0.23 kg |
| 900SP1-0200 | HC900 Expansion Processor | Hybrid control | 35 x 140 x 145 | 0.24 kg |
| FC-IO-0001 | I/O Extension Module | Modular expansion | 35 x 140 x 145 | 0.22 kg |
| TK-OAV081 | Analog Output Module (non-isolated) | Continuous output | 35 x 140 x 145 | 0.23 kg |
