Product Overview

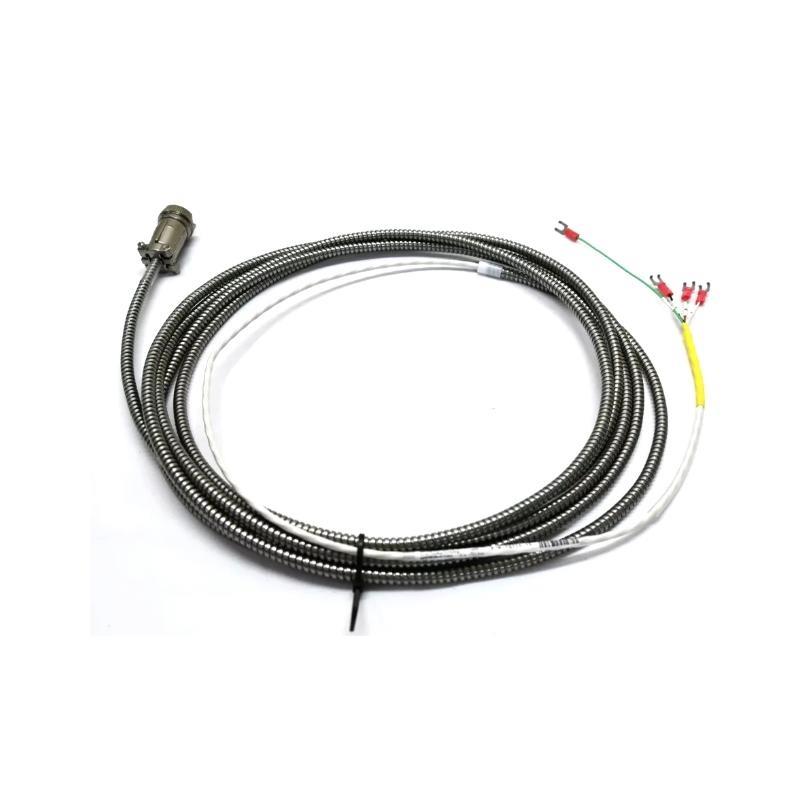

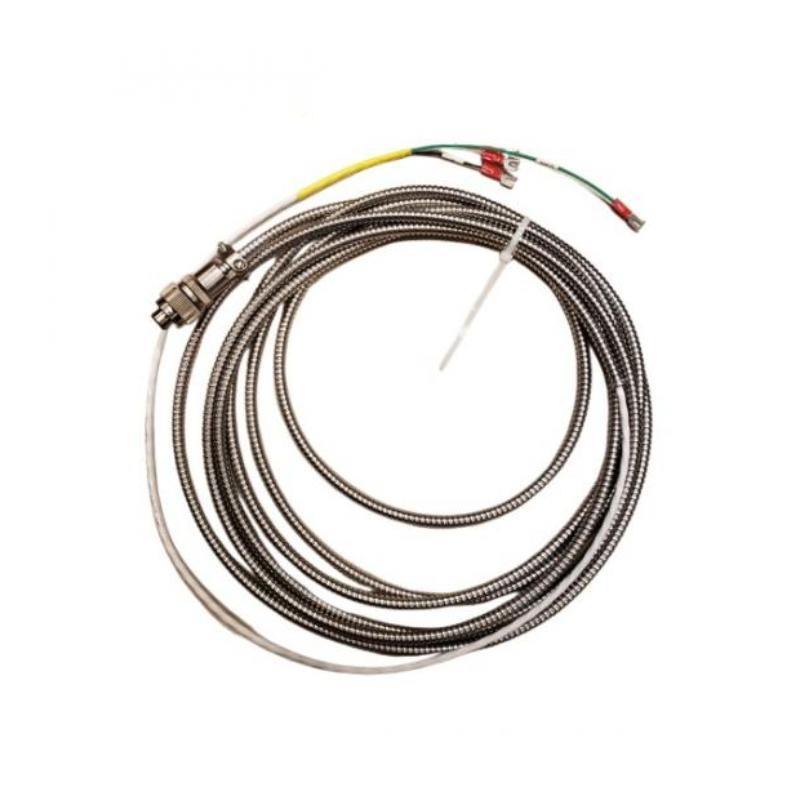

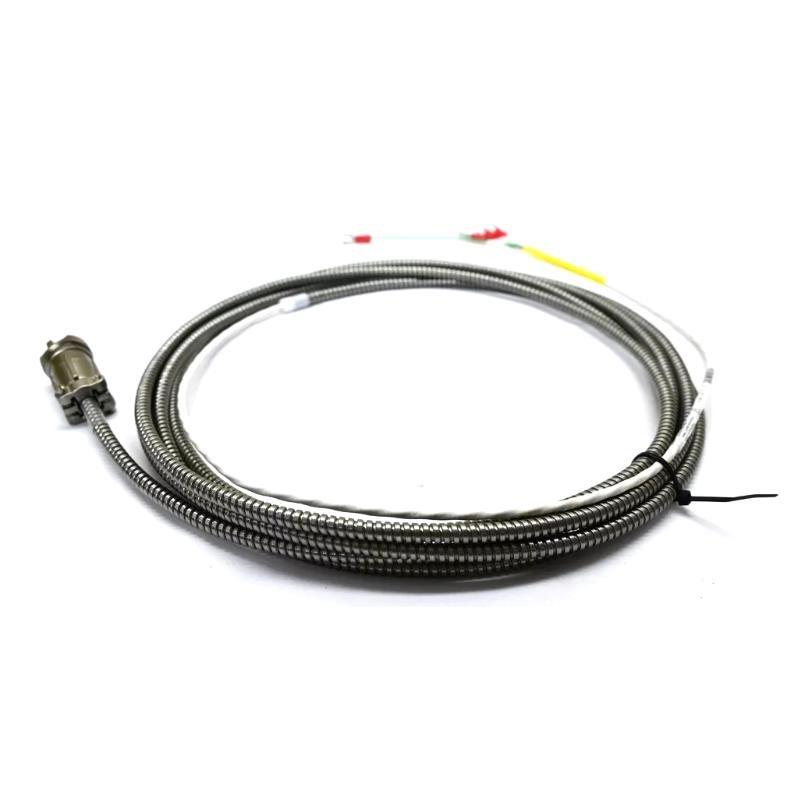

The Bently Nevada 16710-45 Interconnect Cable is an integral component / the 16710 series condition monitoring system, designed for use in high-performance industrial applications such as turbine, compressor, and motor protection systems. This 45-foot pre-assembled cable ensures secure and noise-resistant signal transmission between Bently Nevada transducers, monitoring modules, and interface components.
Constructed to endure the harsh environments commonly found in power plants, refineries, and manufacturing sites, the 16710-45 cable provides excellent EMI shielding, rugged insulation, and precision connector compatibility with Bently Nevada’s field-proven monitoring equipment. Its 45-foot length makes it ideal for extended cabinet runs and medium-distance installations.
Key Features
-
Specifically engineered for Bently Nevada 16710-series systems
-
Factory-terminated with system-specific keyed connectors
-
45-foot (13.7-meter) length for flexible routing in industrial environments
-
Durable outer insulation to withstand mechanical and chemical stress
-
High-performance shielding for EMI/RFI suppression
-
Color-coded or labeled ends for simplified and error-free installation
-
Plug-and-play design, reducing installation time and ensuring system reliability
-
Ideal for signal integrity in vibration and machinery monitoring setups
Technical Specifications
| Parameter | Specification |
|---|---|
| Cable Type | Multi-conductor shielded cable for signal and low-voltage power |
| Cable Length | 45 feet (13.7 meters) |
| System Compatibility | Bently Nevada 16710 Series |
| Connector Type | Pre-installed keyed connectors (Bently-specific) |
| Conductor Material | Tinned copper |
| Shielding | Foil and/or braided shield with drain wire |
| Jacket Material | Industrial-grade PVC or LSZH |
| Operating Temperature | -20°C to +80°C |
| Voltage Rating | Up to 300V (signal grade) |
| Outer Diameter | Approx. 6.5 mm to 8 mm |
| Dimensions | Cable Length：45 ft |
| 重量 | 配送 weight 3kg |
| Flame Resistance | UL 1581 / IEC 60332 compliant (varies by version) |
| RoHS / CE Compliance | Yes |
| Application | Signal and power routing in condition monitoring systems |
Product Advantages
-
Longer Cable Reach: The 45-foot configuration is ideal for extending connections across large panels or remote racks.
-
High Signal Fidelity: Maintains signal accuracy over longer distances with effective EMI shielding.
-
Reduced Downtime: Pre-terminated connectors ensure quick, error-free integration.
-
Durable Construction: Resistant to physical wear, vibration, and common industrial chemicals.
-
Versatile Use: Suitable for various monitoring system topologies including buffered output and transducer input lines.
-
Installation Efficiency: Simplified layout with clear identification and flexible jacket design.
Industry Applications
-
Power Generation (Gas/Steam/Hydro Turbines)
-
Oil and Gas (Refinery and Pipeline Monitoring)
-
Pulp and Paper (Rotating Machine Surveillance)
-
Steel Mills (Roller and Motor Monitoring)
-
Chemical Plants (Compressor and Reactor Protection)
-
Aerospace (Test Stands and Engine Diagnostics)
The 16710-45 interconnect cable is used to route signals from sensors such as proximity probes or accelerometers to monitoring systems, or connect Bently Nevada rack modules, allowing continuous condition data acquisition in mission-critical assets.
よくある質問 (FAQ)
-
Q: What does the “45” in 16710-45 represent?
A: It indicates the cable length / 45 feet (13.7 meters). -
Q: Is the cable compatible with other Bently Nevada series?
A: It is designed for the 16710 series, but may work with others if the connector type and wiring standard are matched. -
Q: Can I install the cable outdoors?
A: The cable is intended for indoor use. For outdoor installations, conduit or protective sleeves are recommended. -
Q: Are the connectors already installed?
A: Yes, they are factory-installed for guaranteed reliability and performance. -
Q: Does the cable support both signal and power wiring?
A: Yes, for low-voltage systems within specified current limits. -
Q: What is the main benefit / using pre-terminated cables like this?
A: Faster installation, fewer wiring errors, and enhanced signal reliability. -
Q: Is shielding provided for each conductor pair?
A: Yes, the cable includes overall shielding, and some variants may include individually shielded pairs. -
Q: Is this cable flame-retardant?
A: Yes, it complies with common industrial flame resistance standards such as UL 1581. -
Q: What equipment does it connect to?
A: Typically connects transducers, proximitor modules, or buffered output modules to Bently Nevada monitoring racks. -
Q: Can I cut the cable to a shorter length?
A: It is not recommended, as cutting may compromise shielding and void the warranty or factory termination.
Related or Compatible モデルs (Same Series or Application)
| モデル | 説明 |
|---|---|
| 16710-10 | 10 ft Interconnect Cable for short-distance cabinet runs |
| 16710-25 | 25 ft version for mid-range connections |
| 16710-40 | 40 ft version, slightly shorter than 16710-45 |
| 16710-50 | 50 ft version for extended system spans |
| 330130-085-00-05 | 3300 XL Extension Cable, compatible with transducer systems |
| 330180-91-00 | Signal Cable for 3300 XL Proximitor Sensors |
Popular Bently Nevada モデルs (Same ブランド)
| モデル | 説明 |
|---|---|
| 3500/22M | Transient Data Interface Module for the 3500 System |
| 330104-00-05-10-02 | 3300 XL 8 mm Proximity Probe |
| 330180-91-05 | 3300 XL Proximitor Sensor for machinery condition monitoring |
| 3500/42M | Advanced Vibration Monitor Module |
| 330130-040-00-00 | Standard Extension Cable for 3300 XL Proximity Transducer System |
| 3500/15-05-05-00 | Universal AC Power Supply for 3500 Series Racks |
