製品紹介

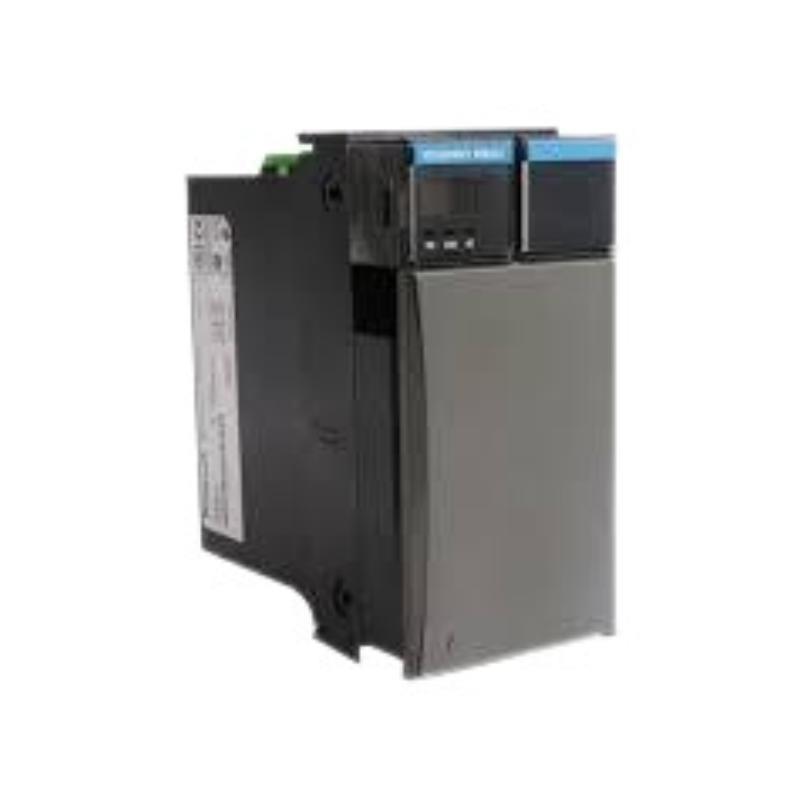

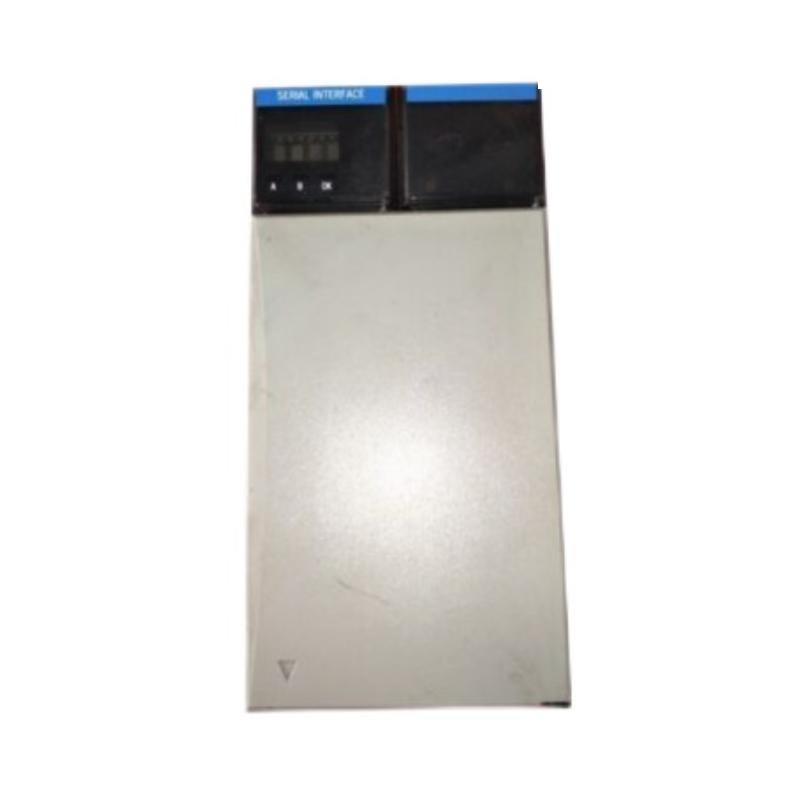

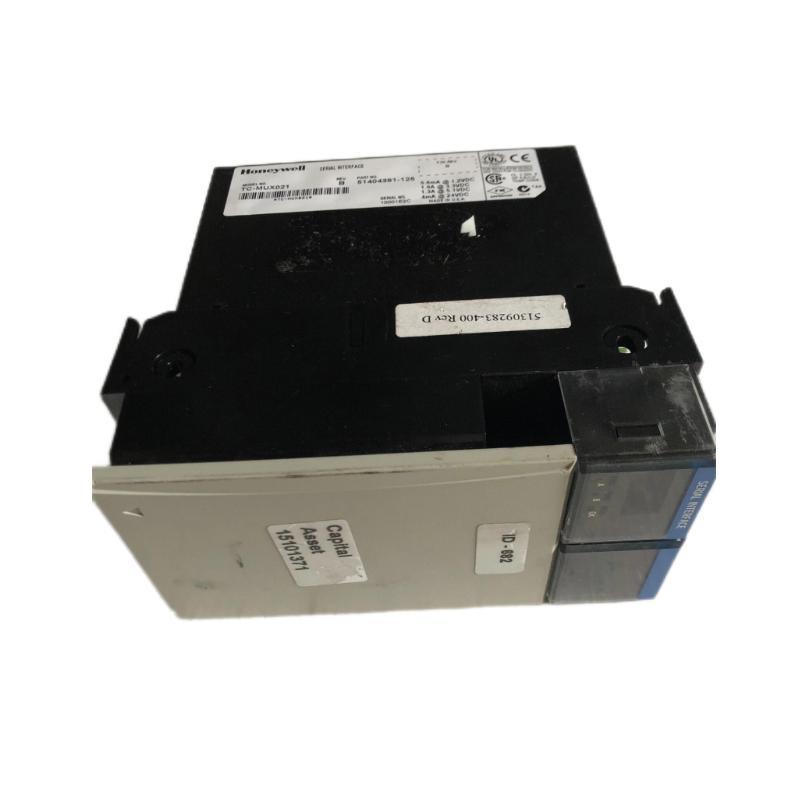

The Honeywell TC-MUX021 is a multiplexer module used within the Honeywell TDC 3000 system architecture, primarily designed for distributed control and data acquisition applications. The module functions as a crucial part / the communication infrastructure by enabling the connection / multiple input/output channels to a centralized controller. Known for its robust performance, reliability, and integration capability, the TC-MUX021 supports a high-speed data exchange between field devices and the control system.
This module is engineered to provide streamlined control for industrial environments where stable data transmission and long-term operation are paramount. It fits seamlessly into Honeywell’s Universal Control Network (UCN) and is typically found in industries such as oil & gas, chemical processing, and power generation.
Product Features and Advantages
-
High-Speed Data Transmission: Efficiently multiplexes data for communication between I/O subsystems and the control system.
-
Compact and Modular Design: Allows for flexible installation in space-limited control cabinets.
-
Seamless Integration: Fully compatible with Honeywell TDC 3000 and UCN systems.
-
Robust Industrial Performance: Operates reliably under demanding environmental conditions.
-
Diagnostic Capabilities: Includes built-in diagnostics to monitor operational health and detect faults.
-
Long Product Lifecycle: Built for extended use with minimal maintenance requirements.
-
Improved System Availability: Reduces wiring complexity and improves data throughput, increasing overall system uptime.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | TC-MUX021 |
| Function | Multiplexer module for UCN/TDC 3000 |
| Communication Interface | Universal Control Network (UCN) |
| Power Supply | 24 VDC (Nominal) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Mounting Type | DIN Rail or Panel Mount |
| Dimensions | 108 × 87 × 78 mm |
| 重量 | 0.59kg |
| Certifications | CE, UL, CSA |
| Compatibility | Honeywell TDC 3000, UCN devices |
Applications
The TC-MUX021 is extensively deployed across critical industrial sectors requiring secure, efficient data multiplexing, including:
-
Petrochemical Plants: For collecting and transmitting I/O signals to DCS systems.
-
Oil and Gas Facilities: Ensures continuous data monitoring in hazardous areas.
-
Power Generation Stations: サポートs monitoring and control / turbine systems.
-
Water Treatment Plants: Used to manage diverse sensor inputs within SCADA systems.
-
Pharmaceutical Manufacturing: Helps integrate cleanroom sensors with centralized control systems.
-
Paper and Pulp Mills: Handles analog/digital I/O multiplexing in large production lines.
Installation Guide
-
Ensure the system power is turned /f before installation.
-
Mount the TC-MUX021 securely on a DIN rail or panel.
-
Connect UCN cables according to system topology.
-
Connect the 24 VDC power supply.
-
Verify grounding to reduce electrical noise.
-
Power up the system and run a diagnostic check via the host DCS.
-
Configure and test the communication interface for connectivity.
よくある質問 (FAQ)
Q1: What does the TC-MUX021 do?
A1: It functions as a multiplexer to transmit I/O data to Honeywell’s control system over UCN.
Q2: Is the TC-MUX021 hot-swappable?
A2: No, the module should only be installed or removed with the power /f to avoid damage.
Q3: What systems is it compatible with?
A3: It’s fully compatible with Honeywell’s TDC 3000 and UCN-based architectures.
Q4: What type / data can it handle?
A4: It supports both analog and digital signals through the I/O submodules it connects to.
Q5: Does it require programming?
A5: Minimal configuration is required; most setup is handled through system integration s/tware.
Q6: Can it be used in hazardous environments?
A6: Yes, with appropriate enclosure and certification, it is suitable for Class I Division 2 areas.
Q7: How do I troubleshoot the module?
A7: Use the diagnostic LEDs and monitor communication via the system’s configuration tools.
Q8: What is the power consumption / the module?
A8: It consumes minimal power, typically under 5W at 24 VDC.
Q9: How /ten does it require maintenance?
A9: It’s designed for long-term use with only occasional inspection for dust or corrosion.
Q10: Where can I get replacement or spare parts?
A10: Authorized Honeywell distributors or system integrators can supply genuine modules and spares.
Related モデルs (Same Series or Functionality)
| モデル Number | 説明 |
|---|---|
| TC-MUX002 | Legacy multiplexer module |
| TC-CCR014 | Controller communication router |
| TC-ACS091 | Advanced communication subsystem |
| TC-PRR021 | Power redundancy module for UCN |
| TC-IDJ161 | Digital Input Module |
| TC-ODJ161 | Digital Output Module |
Popular Honeywell モデルs (Same ブランド)
| モデル Number | 説明 |
|---|---|
| FC-SDI-1624 | 16-channel digital input module |
| FC-SAO-0220 | 2-channel analog output module |
| CC-TDIL01 | Digital input module for C300 |
| CC-PAOH01 | Analog output module for Experion |
| CC-TCF901 | Foundation Fieldbus interface module |
| 900H02-0102 | Redundant power supply module |
