製品紹介

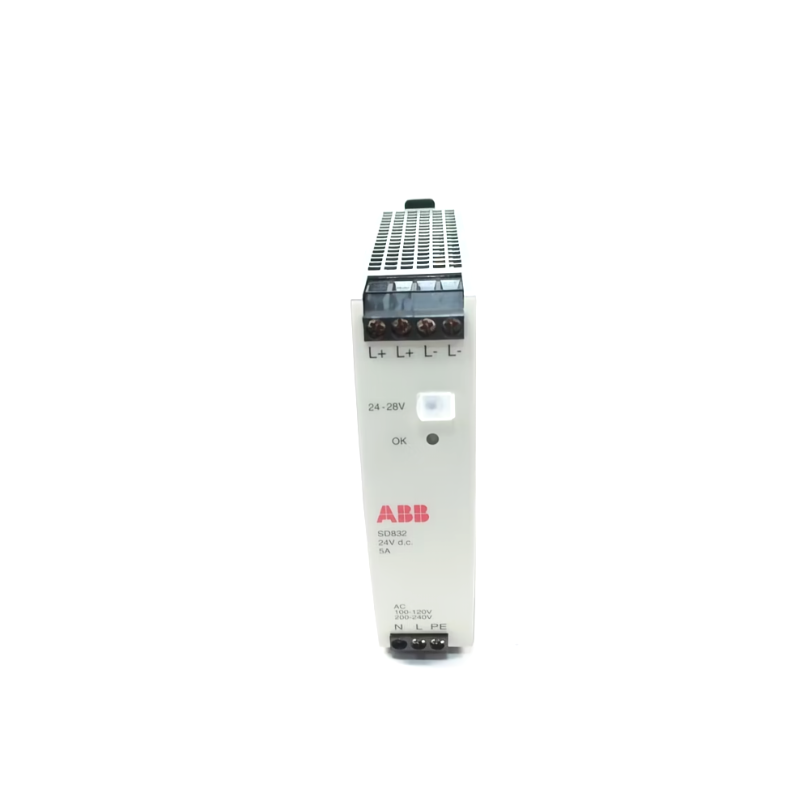

The ABB SD832 3BSC610065R1 is a high-efficiency, compact power supply module designed for industrial automation systems. As part / ABB’s System 800xA, the SD832 provides a reliable 24 VDC output with a rated current / 5 A, ensuring stable power delivery for various control and I/O modules.
This module features an auto-select input voltage range, accommodating both 100–120 VAC and 200–240 VAC inputs, and /fers high efficiency to minimize energy loss. Its robust design and compliance with international standards make it suitable for a wide range / industrial applications.
製品仕様
| Parameter | Details |
|---|---|
| モデル Number | SD832 |
| メーカー | ABB |
| Product Type | Power Supply Module |
| System Compatibility | ABB System 800xA |
| Rated Output Voltage | 24 VDC |
| Rated Output Current | 5 A |
| Rated Output Power | 120 W |
| Input Voltage Range | 100–120 VAC / 200–240 VAC (Auto-select) |
| Input Frequency | 50–60 Hz |
| Efficiency | 89.4% / 90.2% |
| Power Factor | 0.61 / 0.56 at rated output power |
| Ripple (Peak to Peak) | <50 mV |
| Output Overvoltage Protection | <39 V |
| Heat Dissipation | 10 W / 8 W |
| Secondary Voltage Hold-up Time | 29 ms / 120 ms |
| Inrush Current at Power On | <28 A / <54 A |
| Recommended External Fuse | 10–20 A |
| Short Circuit Protection | 4–8 A |
| Operating Temperature | Up to 55°C |
| Dimensions (W x D x H) | 117 x 124 x 32 mm |
| 重量 | 0.56 kg |
| Mounting Type | DIN Rail |
| Protection Rating | IP20 according to IEC 60529 |
| Certifications | CE, UL 508, EN 50178, RoHS, WEEE |
| Marine Certifications | ABS, BV, DNV-GL, LR |
| 環境コンプライアンス | ISA-S71.04 G2, Pollution Degree 2 (IEC 60664-1) |
| Overvoltage カテゴリー | カテゴリー III (IEC/EN 60664-1) |
Applications
The ABB SD832 Power Supply Module is suitable for various industrial applications, including:
-
Process Automation: Providing stable power to control systems in chemical, pharmaceutical, and food processing industries.
-
Manufacturing Systems: Supplying power to automation equipment on production lines.
-
Energy Sector: Powering control and monitoring systems in power generation and distribution.
-
Water Treatment Facilities: Ensuring reliable operation / control systems in water and wastewater treatment plants.
-
Building Automation: サポートing HVAC, lighting, and security systems in commercial buildings.
-
Transportation Systems: Powering control and signaling equipment in railways and other transportation infrastructures.
Advantages
-
High Efficiency: Reduces energy consumption and minimizes heat generation.
-
Auto-Select Input Voltage: Compatible with various power sources, enhancing flexibility.
-
Compact Design: 保存s space in control panels and facilitates easy integration.
-
Robust Protection Features: Includes overvoltage and short-circuit protection for enhanced safety.
-
Compliance with International Standards: Meets CE, UL, and RoHS requirements, ensuring global applicability.
-
Marine Certifications: Suitable for use in marine environments with certifications from ABS, BV, DNV-GL, and LR.
-
Easy Installation: Designed for DIN rail mounting, simplifying setup and maintenance.
-
Reliable Performance: Ensures consistent operation in demanding industrial environments.
FAQ – よくある質問
-
What is the primary function / the ABB SD832 module?
The SD832 is a power supply module that provides a stable 24 VDC output for industrial control systems. -
What is the rated output current / the SD832?
The module delivers a rated output current / 5 A. -
What input voltage ranges are supported by the SD832?
It supports 100–120 VAC and 200–240 VAC input voltage ranges with auto-select functionality. -
What is the efficiency / the SD832?
The module /fers an efficiency / 89.4% / 90.2%, reducing energy loss. -
Does the SD832 have overvoltage protection?
Yes, it includes overvoltage protection with a threshold / less than 39 V. -
What are the dimensions and weight / the SD832?
The module measures 117 x 124 x 32 mm, with a weight 0.56 kg. -
Is the SD832 suitable for marine applications?
Yes, it has marine certifications from ABS, BV, DNV-GL, and LR, making it suitable for marine environments. -
What is the operating temperature range / the SD832?
The module operates reliably in temperatures up to 55°C. -
How is the SD832 mounted?
It is designed for DIN rail mounting, facilitating easy installation. -
What certifications does the SD832 have?
The module is certified to CE, UL 508, EN 50178 standards and complies with RoHS and WEEE directives.
Related モデルs (Same Series or Functional Group)
| モデル | 説明 | Key Features | System Compatibility |
|---|---|---|---|
| SD831 | Power Supply Module | 3 A output current, 72 W output power | System 800xA |
| SD833 | Power Supply Module | 10 A output current, 240 W output power | System 800xA |
| SD834 | Power Supply Module | 20 A output current, 480 W output power | System 800xA |
| SD853 | Power Supply Module | 10 A output current, enhanced efficiency | System 800xA |
| SD854 | Power Supply Module | 20 A output current, high efficiency | System 800xA |
| SS832 | Voter Module | For redundant power configurations | System 800xA |
Popular ABB モデルs (Same ブランド)
| モデル | 説明 | Application | System Compatibility |
|---|---|---|---|
| AI810 | 8-channel Analog Input Module | Precise analog signal acquisition | System 800xA |
| AO810 | 8-channel Analog Output Module | Accurate analog signal output | System 800xA |
| DI810 | 16-channel Digital Input Module | Reliable digital input processing | System 800xA |
| DO810 | 16-channel Digital Output Module | Efficient digital output control | System 800xA |
| PM864 | AC 800M Controller | High-performance control applications | System 800xA |
| CI854A | PROFIBUS DP Communication Interface | Seamless communication with field devices | System 800xA |
