製品紹介

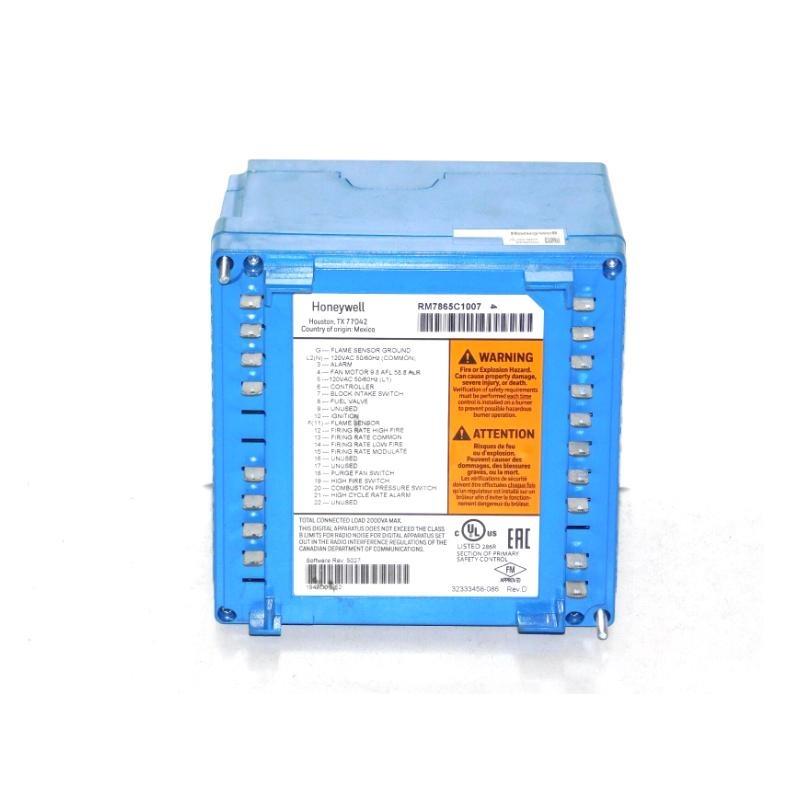

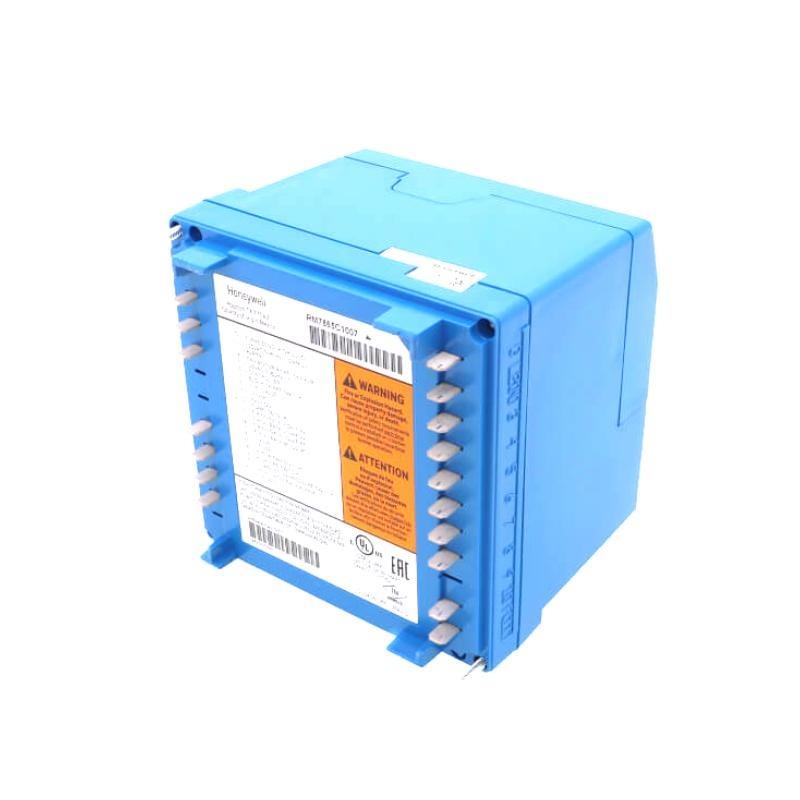

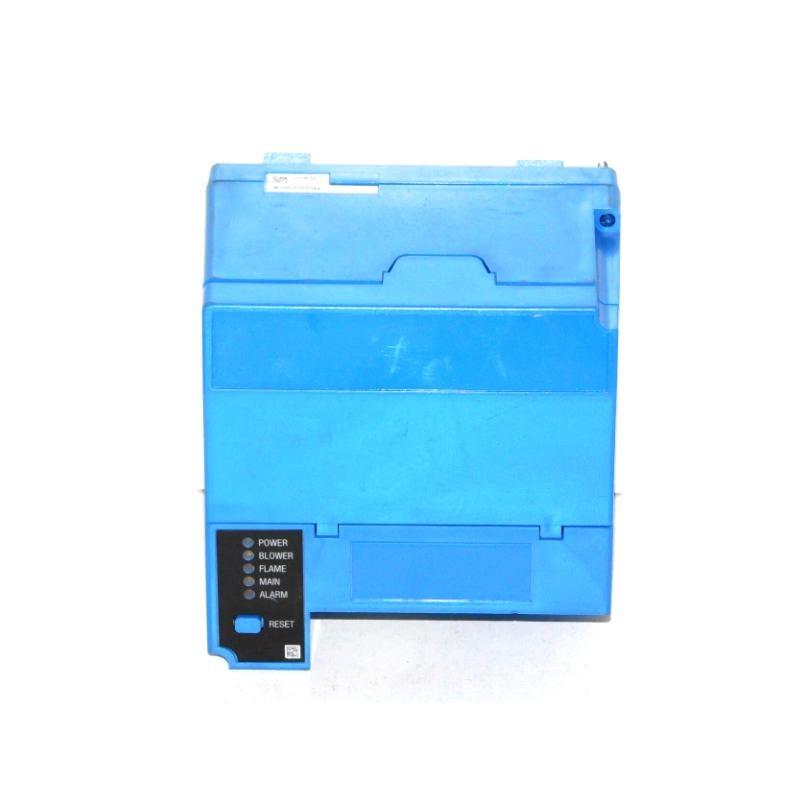

The Honeywell RM7865C1007 is a microprocessor-based relay module designed to control and monitor Fulton Pulse boilers. It /fers enhanced safety, reliability, and diagnostics compared to conventional burner controls. It provides automatic sequencing, flame supervision, system diagnostics, and optional communication interfaces.
Technical Specifications
| Parameter | Value |
|---|---|
| モデル | RM7865C1007 |
| Power Supply | 120 VAC (+10%/-15%), 50/60 Hz |
| Power Consumption | 10 W maximum |
| Maximum Connected Load | 2000 VA |
| Ambient Operating Temperature | -40°C to +60°C |
| Storage Temperature | -40°C to +66°C |
| Humidity | 85% RH, non-condensing |
| Dimensions | 127 × 127 × 133 mm |
| 重量 | 0.822 kg |
| Mounting | On Q7800A1013 subbase (required) |
| Safety Standard Compliance | SIL 3 capable, UL listed, FM approved |
Applications
-
Fulton Pulse boilers
-
Industrial steam and hot water boilers
-
Burner safety and sequencing control systems
-
Applications requiring high diagnostic and annunciation capabilities
-
Retr/it and upgrade / older boiler control systems
Advantages
-
Advanced safety monitoring including dynamic self-check and safe-start checks
-
SIL 3 capable for high-integrity safety applications
-
Optional remote annunciation and diagnostics
-
Modular design with plug-in flame amplifiers and display modules
-
Non-volatile memory retains history and status after power loss
-
Multiple optional communication and monitoring interfaces
-
Field-configurable with selectable retry options for ignition
FAQ
Q1: What is the power supply requirement for RM7865C1007?
A1: It requires 120 VAC (+10%/-15%), 50/60 Hz.
Q2: What is the size and weight / this module?
A2: Dimensions are 127 × 127 × 133 mm, and it weighs 0.822 kg.
Q3: Which boiler type is it designed for?
A3: It is specifically designed for Fulton Pulse boilers.
Q4: Can it operate in low-temperature environments?
A4: Yes, operating temperature range is from -40°C to +60°C.
Q5: Does it support remote diagnostics?
A5: Yes, with optional modules like the Keyboard Display Module and ControlBus™.
Q6: What safety standards does it comply with?
A6: SIL 3 capable, UL listed, and Factory Mutual approved.
Q7: How does it handle power loss?
A7: It has non-volatile memory to retain operation history and status.
Q8: Is the flame amplifier included?
A8: No, compatible plug-in flame amplifiers are ordered separately.
Q9: What is the maximum connected load supported?
A9: It can support up to 2000 VA.
Q10: Is it suitable for high-humidity environments?
A10: Yes, up to 85% RH, non-condensing.
Recommended Related モデルs (Same Series or Related)
| モデル | 説明 | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|
| RM7800L1012 | Advanced burner control relay | 127×127×133 | 0.82 |
| RM7800G1001 | Relay Module with advanced features | 127×127×133 | 0.82 |
| RM7838A1014 | Programmer Module, oil burner | 127×127×133 | 0.82 |
| RM7840L1018 | Relay Module, standard control | 127×127×133 | 0.82 |
| RM7850A1001 | Combustion system manager | 127×127×133 | 0.82 |
| RM7865A1003 | Relay Module, earlier version | 127×127×133 | 0.82 |
