製品紹介

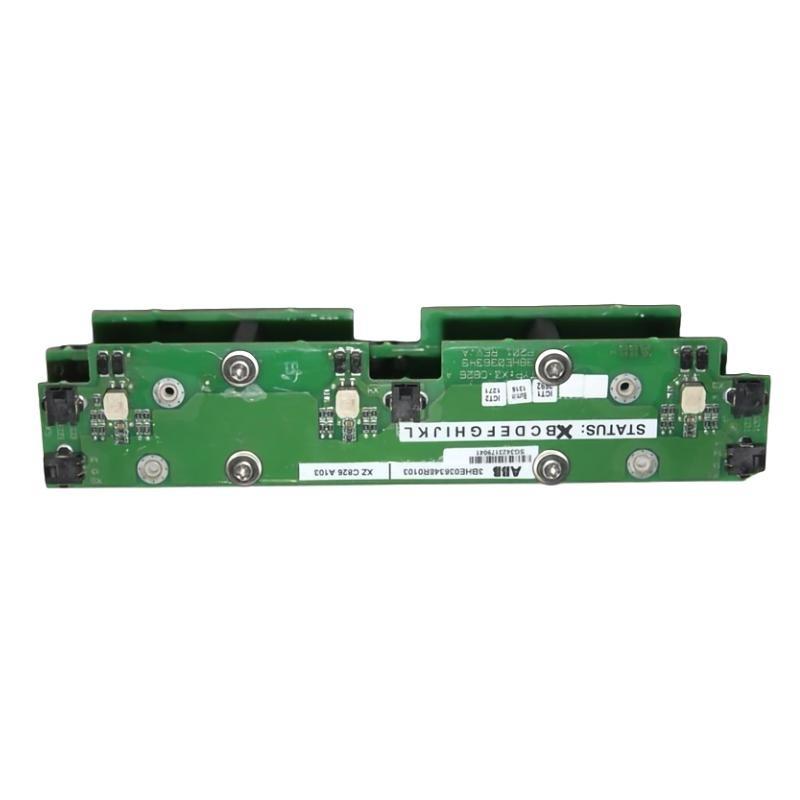

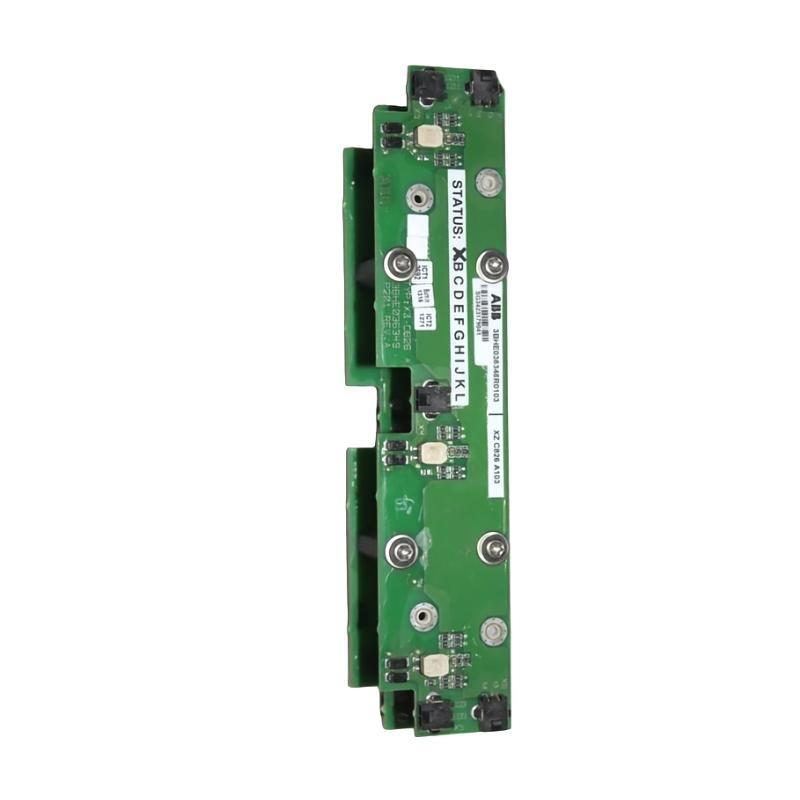

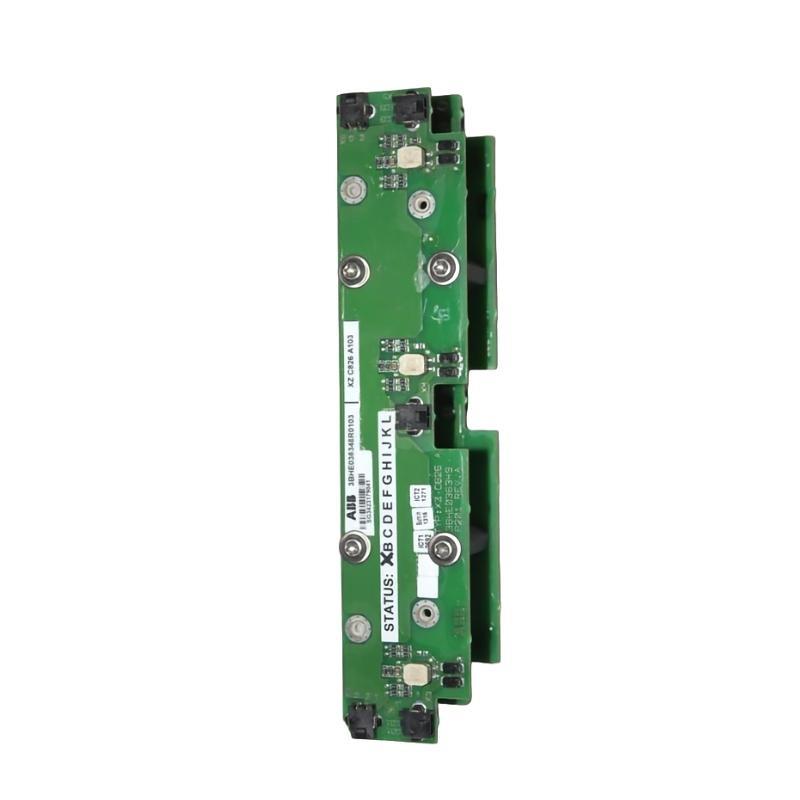

The ABB XZ C826 A103 3BHE036348R0103 Drive Board is a high-performance electronic module designed for use within ABB’s range / industrial drive systems. It is engineered to provide precise motor control, ensuring smooth operation, improved energy efficiency, and robust performance in demanding industrial environments. This drive board serves as a critical component in power conversion and motor drive applications, contributing to reliable automation processes in manufacturing, processing plants, and other industrial sectors.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | XZ C826 A103 3BHE036348R0103 |
| Function | Drive Control Board |
| Compatibility | ABB Drive Systems |
| Input Voltage | 24 V DC (typical for control boards) |
| Communication Interface | Digital I/O, Analog I/O, Fieldbus Compatible (varies by configuration) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (L x W x H) | 170 × 100 × 20 mm |
| 重量 | 0.2 kg |
| Cooling | Forced air or conduction cooling |
| Compliance | CE, UL certified (depending on version) |
Applications
The ABB XZ C826 A103 Drive Board is widely employed in:
-
Industrial Automation: Precise motor control in conveyor systems, robotics, and automated assembly lines.
-
Pumps and Fans: Managing speed and torque for efficient fluid and air handling.
-
Material Handling: Ensures smooth acceleration and deceleration in cranes, hoists, and elevators.
-
Energy Sector: Used in renewable energy systems and power distribution for dynamic load control.
-
Process Industries: Controls in mixers, compressors, and extruders where variable speed is essential.
-
HVAC Systems: Optimizes fan and compressor motor operations for energy savings and system reliability.
Product Advantages
-
High Reliability: Designed with robust components for extended operational life under harsh conditions.
-
Precision Control: サポートs advanced PWM and vector control techniques for optimal motor performance.
-
Flexible Integration: Compatible with various ABB drive platforms and communication protocols.
-
Energy Efficiency: Enhances system energy use through precise speed and torque control.
-
Easy Maintenance: Modular design allows for quick replacement and diagnostics.
-
Enhanced Protection: Built-in safeguards against overvoltage, undervoltage, short circuit, and overheating.
-
Compact Design: Space-saving board dimensions facilitate integration in existing control cabinets.
よくある質問 (FAQ)
-
What type / motor control does the XZ C826 A103 Drive Board support?
It supports both scalar (V/Hz) control and vector control methods, allowing for flexible motor operation. -
Is the drive board compatible with all ABB drives?
It is compatible with specific ABB drive models in the ACS800 and ACS880 series; compatibility depends on firmware and drive version. -
What communication protocols does the board support?
The board supports various protocols such as Modbus, Pr/ibus, and Ethernet/IP, depending on the connected drive system. -
Can the board handle regenerative braking energy?
Yes, when integrated with the proper ABB drive setup, it can manage regenerative energy to improve efficiency. -
How does the board protect against electrical faults?
It features overcurrent, overvoltage, undervoltage, and thermal protection circuits to ensure safe operation. -
What diagnostics features are available?
The board provides real-time monitoring / voltage, current, temperature, and fault codes via the drive interface. -
Is firmware upgrade possible on this drive board?
Firmware updates can be performed through ABB’s proprietary s/tware tools when connected to the drive controller. -
How does the board respond to sudden power loss?
It includes a safe shutdown mechanism to protect the motor and drive electronics from damage during power interruptions. -
What is the typical maintenance required for the drive board?
Regular visual inspection and cleaning from dust are recommended; no routine component replacements are necessary under normal operation. -
Can the board operate in environments with high electromagnetic interference (EMI)?
The board design incorporates EMI shielding and filtering to maintain stable operation in industrial environments with moderate EMI levels.
Related and Similar モデルs
| モデル Number | 説明 | Compatibility | Notes |
|---|---|---|---|
| 3BHE036348R0203 | Drive Board for ABB ACS800 series | ACS800 Series | Updated firmware version |
| 3BHE036348R0303 | High-power drive board | ACS880 Series | サポートs higher voltage |
| 3BHE036348R0403 | Communication interface board | ACS580 Series | Enhanced protocol support |
| 3BHE036348R0503 | Compact drive board | ACS150 Series | Smaller size for limited space |
| 3BHE036348R0603 | Modular expansion board | ACS800 Series | Adds I/O capacity |
| 3BHE036348R0703 | Safety-integrated drive board | ACS880 Series | サポートs safety functions |
Popular ABB Drive Boards (Same ブランド)
| モデル Number | Application | Features |
|---|---|---|
| 3BHE036348R1001 | General purpose drive board | Wide voltage range |
| 3BHE036348R1101 | Heavy-duty industrial board | Enhanced cooling |
| 3BHE036348R1201 | High precision control board | Vector control optimized |
| 3BHE036348R1301 | Energy-saving drive board | Integrated energy recovery |
| 3BHE036348R1401 | Modular expansion board | Plug-and-play I/O expansion |
| 3BHE036348R1501 | Network communication board | Multiple protocol support |
