製品紹介

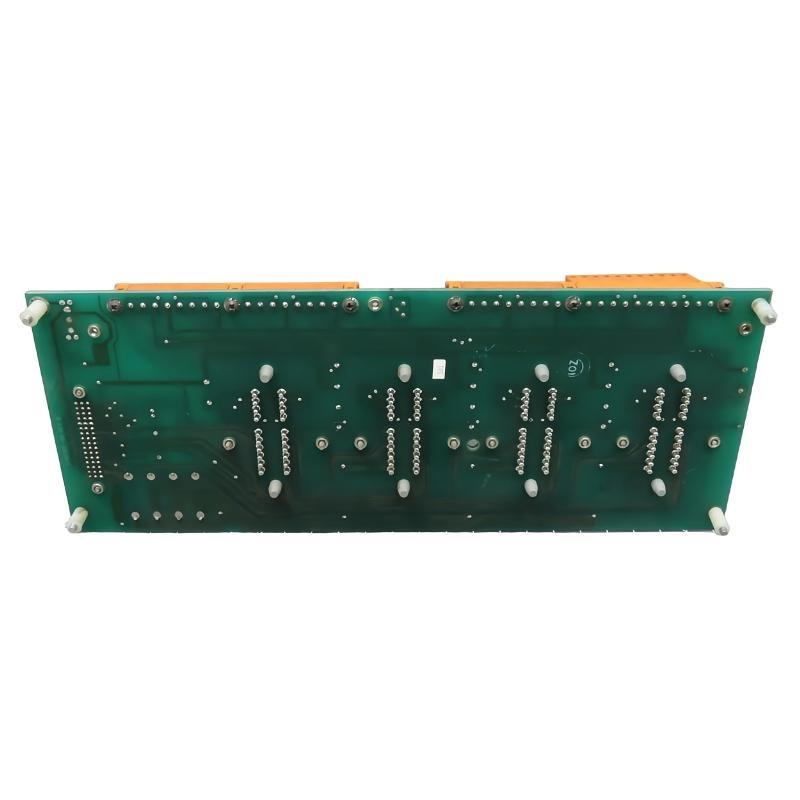

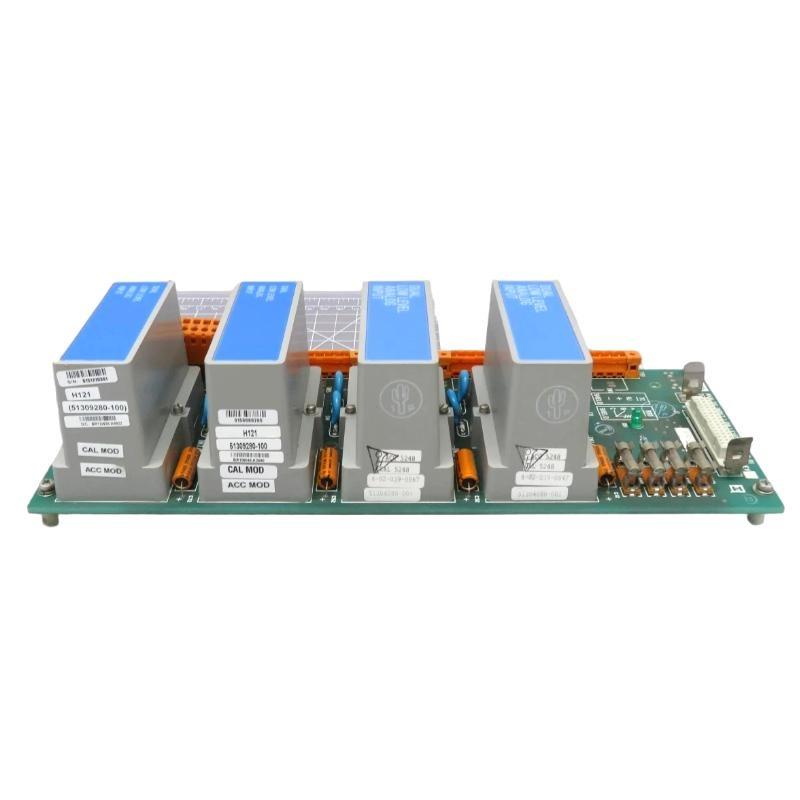

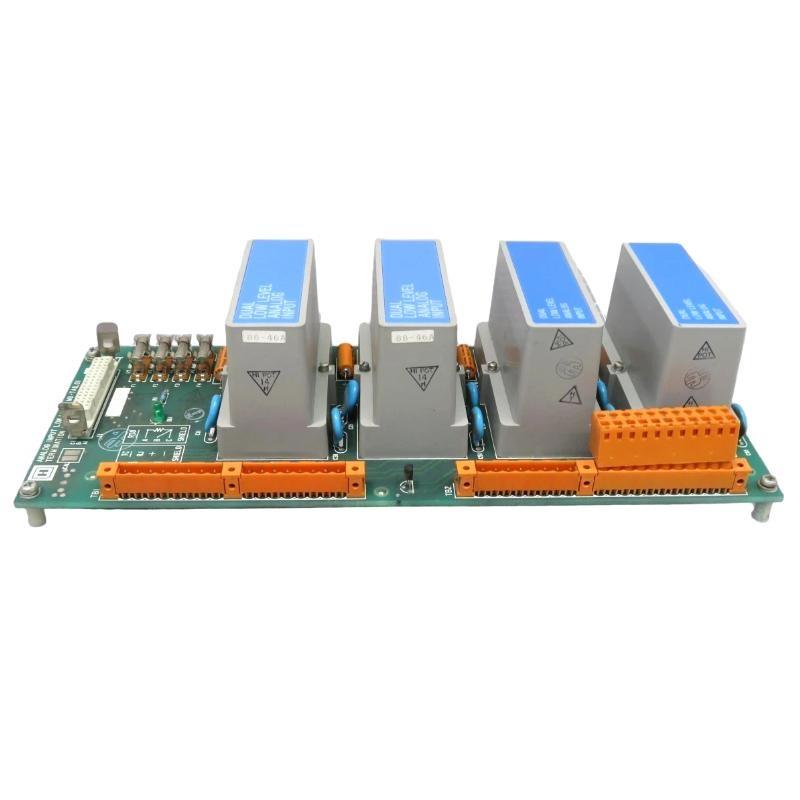

The Honeywell MU-TAIL01 51401183-100 is a Low Level Analog Input Module specifically designed for process automation systems within the Honeywell TDC 3000 and Experion PKS platforms. Engineered for high sensitivity and precision, this module is adept at handling low-level analog signals from various field instruments such as thermocouples, RTDs, and other transducers.
This module ensures accurate analog signal acquisition, conversion, and transmission to the control system with minimal noise and distortion. It integrates seamlessly into Honeywell’s robust I/O infrastructure and supports critical applications requiring real-time and highly reliable data.
製品仕様
| Parameter | 説明 |
|---|---|
| Product モデル | MU-TAIL01 |
| 型番 | 51401183-100 |
| Signal Type | Low Level Analog Input |
| Input Channels | 16 channels |
| Input Range | ±10 mV, ±50 mV, ±100 mV, and thermocouple input |
| Resolution | 16-bit A/D conversion |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Accuracy | ±0.05% / full scale |
| Signal Filtering | Configurable digital filtering |
| Update Rate | Configurable; typically 100 ms/channel |
| Input Impedance | >10 MΩ |
| Power Supply | Supplied via I/O chassis backplane |
| Diagnostics | Built-in diagnostics and self-testing |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Compatibility | Honeywell TDC 3000, Experion PKS |
| Mounting Type | Rack-mounted |
| Dimensions (W x H x D) | 40 x 260 x 220 mm |
| 重量 | 1.2 kg |
| Certification | CE, UL, CSA |
| Redundancy サポート | Yes, with paired modules |
Product Applications
-
Power Generation: Monitoring turbine temperatures and low-voltage thermocouple signals.
-
Petrochemical & Refining: Collecting precise temperature and pressure readings from remote locations.
-
Pharmaceuticals: Accurate analog signal acquisition for critical process control.
-
Food & Beverage Industry: Ensuring consistency in processing through sensitive signal measurements.
-
Water Treatment Plants: Monitoring sensor outputs from chemical dosing and purification 台s.
-
OEM & System Integrators: For use in customized control cabinets and field installations.
Product Advantages
-
High Precision: With 16-bit resolution, the MU-TAIL01 provides exceptional accuracy even at very low signal levels.
-
Flexible Input Ranges: Accommodates multiple millivolt input ranges, ideal for various sensor types.
-
Robust Isolation: Minimizes interference and enhances safety with channel-to-channel isolation.
-
Built-in Diagnostics: Real-time fault detection enhances system reliability and ease / maintenance.
-
Redundancy Ready: サポートs redundant configuration to maximize system availability.
-
Seamless Integration: Easily integrates with Honeywell DCS platforms for streamlined engineering.
-
Reduced Noise: Advanced filtering techniques reduce signal noise and improve data fidelity.
-
Long-Term Stability: Designed for high-reliability industrial environments with minimal drift.
よくある質問 (FAQ)
-
What signal types can the MU-TAIL01 module handle?
The MU-TAIL01 supports low-level analog signals such as ±10 mV, ±50 mV, ±100 mV, and thermocouple inputs. -
Does the module /fer input channel isolation?
Yes, it /fers complete channel-to-channel and channel-to-ground electrical isolation. -
What is the resolution / the A/D converter used in MU-TAIL01?
It utilizes a 16-bit analog-to-digital converter for high precision. -
Can this module be used in redundant configurations?
Yes, it supports redundancy when used in paired configurations for fault tolerance. -
Is there digital filtering available on this module?
Yes, it includes configurable digital filtering to reduce noise and enhance signal accuracy. -
How does the module communicate with the main controller?
Communication is handled via the I/O chassis backplane using the proprietary Honeywell I/O bus. -
Is the MU-TAIL01 compatible with Experion PKS?
Yes, it is fully compatible with both Honeywell TDC 3000 and Experion PKS systems. -
What kind / diagnostics are available?
Built-in diagnostics include input loop health checks, signal integrity monitoring, and self-test functions. -
What is the typical update rate for input scanning?
It typically updates each channel every 100 milliseconds but is configurable. -
Can the module be hot-swapped during operation?
Yes, under appropriate system configuration, the MU-TAIL01 supports hot-swapping to minimize downtime.
Related モデルs (Same Series or Functionality)
| モデル | 型番 | Function | Input Channels | Compatibility |
|---|---|---|---|---|
| MU-TAOX02 | 51304453-100 | Analog Output Module | 16 outputs | Experion PKS, TDC 3000 |
| MU-TDOD02 | 51304441-100 | Digital Output Module | 32 outputs | Experion PKS |
| MU-TDID02 | 51304469-100 | Digital Input Module | 32 inputs | Experion PKS |
| MU-PAIH03 | 51304493-100 | High-Level Analog Input Module | 16 inputs | Experion PKS, TDC 3000 |
| MU-AIH03 | 51401491-100 | Standard Analog Input Module | 16 inputs | Experion Series |
| MU-AOH03 | 51401495-100 | Standard Analog Output Module | 16 outputs | Honeywell Process I/O |
Popular Honeywell Modules
| モデル | 型番 | Function | Input/Output Type | Compatibility |
|---|---|---|---|---|
| CC-PDIL01 | 51405039-175 | Digital Input Module | 32 DI | C300 Controller |
| CC-TAIX01 | 51405038-175 | Analog Input Module | 16 AI | C300 Controller |
| CC-PAOH01 | 51405039-175 | Analog Output Module | 16 AO | C300 Controller |
| CC-PCNT01 | 51405046-100 | Pulse Counter Module | 8 Channels | Experion PKS |
| FC-TPSU01 | 51309512-175 | Power Supply ユニット | – | Field Control Station |
| CC-TDIL01 | 51405040-175 | Digital Input/Output Module | 32 DI/DO | C300 & Experion PKS |
