Product 説明

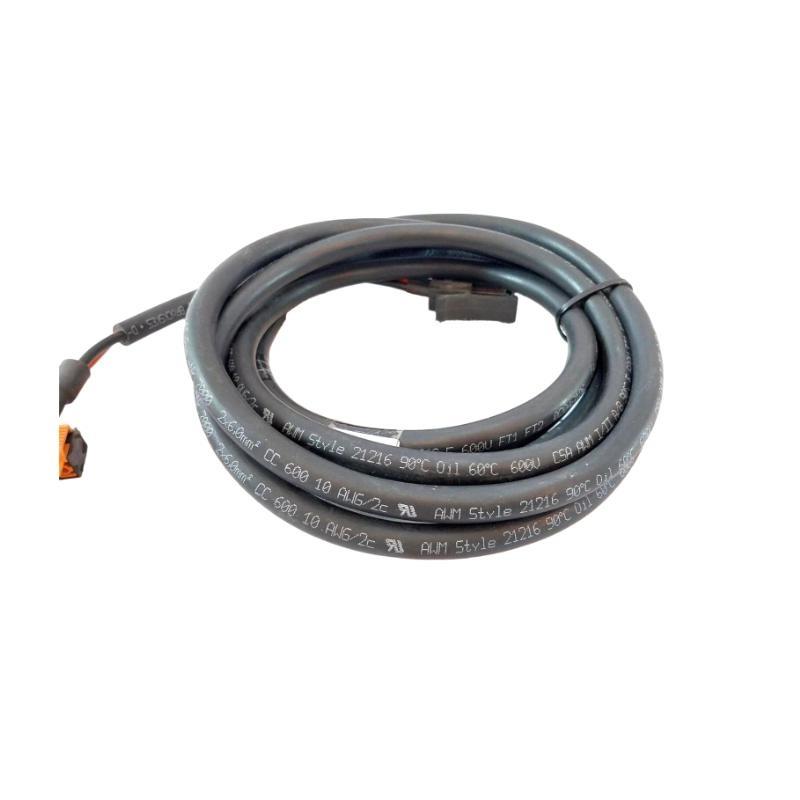

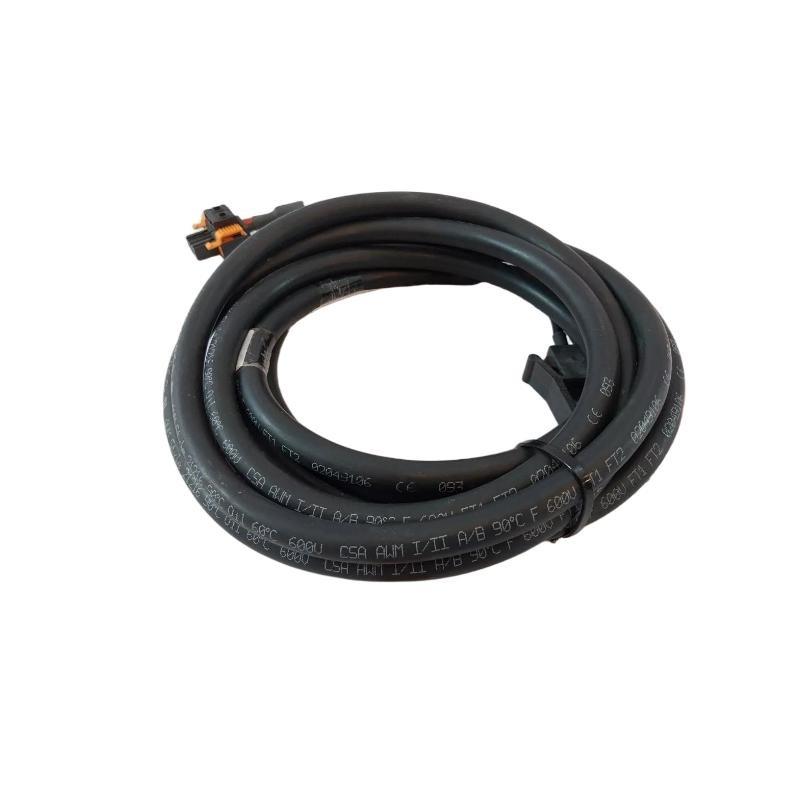

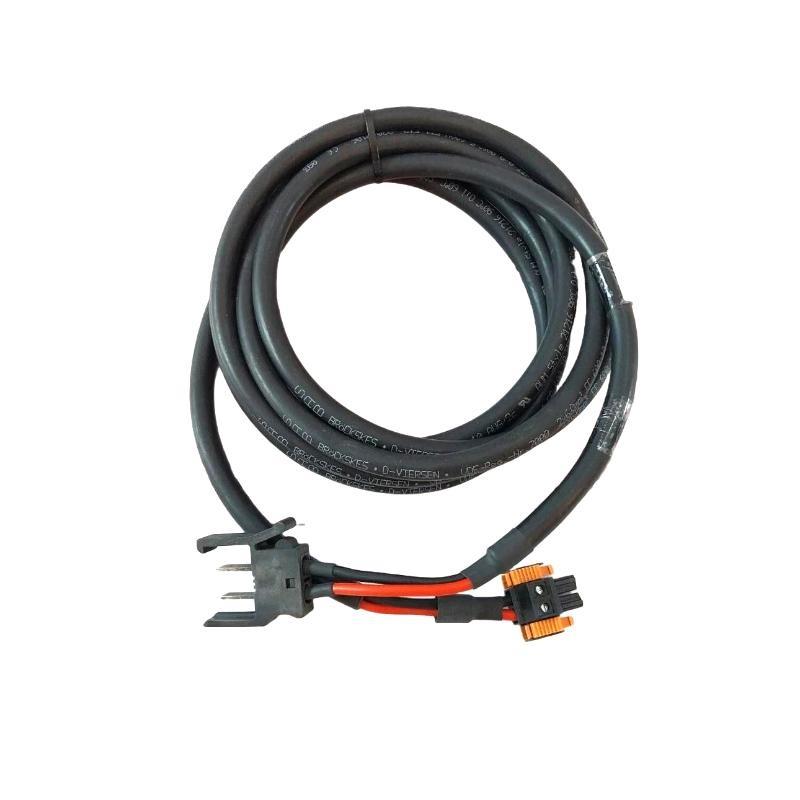

The Honeywell FS-PDC-MB24-3P Power Distribution Cable delivers 24Vdc power from the main power rail (FS-MB-0001) to distribution boards like FC-PDB-0824P or field termination assemblies (FTAs). It features keyed Weidmuller connectors for secure and error-free connections, with a standard length / 3.25 meters to accommodate cabinet layouts.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | FS-PDC-MB24-3P |
| Cable Type | CC600 2 × 6 mm² |
| Voltage Rating | 24Vdc |
| Cable Length | 3.25 m (128.0 in) |
| 重量 | 0.7 kg |
| Connectors (Power Bar) | 2-pole Squeeze To Release (D-TAB-200-STR) |
| Connectors (Board/FTA) | Weidmuller BVZ 7.62HP/02F SN with 24Vdc keying |
| Approvals | UL, CSA, FM (pending) |
Applications
-
Powering Honeywell FC-PDB-0824P distribution boards
-
Connecting 24Vdc FTAs in control cabinets
-
Industrial control systems with 24Vdc infrastructure
-
Safety-critical environments requiring secure 24Vdc supply
Advantages
-
Keyed connectors reduce connection errors
-
Optimized length for flexible routing
-
Durable construction with large cross-section conductors
-
Compliance-ready with UL, CSA, FM certifications (pending)
-
Tailored for Honeywell Safety Manager systems
FAQ
Q1: What voltage is FS-PDC-MB24-3P rated for?
A1: It is rated for 24Vdc systems.
Q2: What is the length / FS-PDC-MB24-3P?
A2: The cable is 3.25 meters (128 inches) long.
Q3: What is the weight / the cable?
A3: Approximately 0.7 kg.
Q4: What type / connector is used on the power rail side?
A4: It uses a 2-pole D-TAB-200-STR Squeeze To Release connector.
Q5: What connector is used on the board/FTA side?
A5: A Weidmuller BVZ 7.62HP/02F SN keyed connector.
Q6: Is the cable approved for safety-critical environments?
A6: Yes, UL, CSA, and FM approvals are pending.
Q7: Can it be used for other voltages?
A7: No, it is specifically designed for 24Vdc systems.
Q8: Is it compatible with the FC-PDB-0824 (non-P) board?
A8: No, FS-PDC-MB24-3P is meant for FC-PDB-0824P; use FS-PDC-MB24-3 for FC-PDB-0824.
Q9: How many conductors are in the cable?
A9: Two conductors / 6 mm² each.
Q10: Are any tools required for installation?
A10: No special tools are required; it is designed for quick, secure connection.
Related モデルs (Same Series)
| モデル | Length | 重量 |
|---|---|---|
| FS-PDC-MB24-1P | 1.45 m | ~0.4 kg |
| FS-PDC-MB24-2P | 2.45 m | ~0.6 kg |
| FS-PDC-MB24-3P | 3.25 m | 0.7 kg |
| FS-PDC-MB24-1 | 1.45 m | ~0.4 kg |
| FS-PDC-MB24-2 | 2.45 m | ~0.6 kg |
| FS-PDC-MB24-3 | 3.25 m | 0.7 kg |
Popular Honeywell モデルs
| モデル | 説明 | Key Parameters |
|---|---|---|
| FC-PDB-0824P | Power Distribution Board 24Vdc | 8 outputs, 2A each, DIN rail mount |
| FS-PDC-MB24-1P | Power Cable 24Vdc, keyed | 1.45 m, 0.4 kg |
| FS-PDC-CPSET | Power Cable Set for CP | 2 cables: 0.54m and 0.77m |
| FS-PDC-IOSET | Power Cable Set for IO chassis | 4 cables, 24/48/110Vdc |
| FS-PDC-MBMB-1 | Main Bus to Bus Cable | 3m, 55A rated |
| FS-PDC-FTA24 | Board-to-device Power Cable | Cut-to-length, no device connector |
