製品紹介

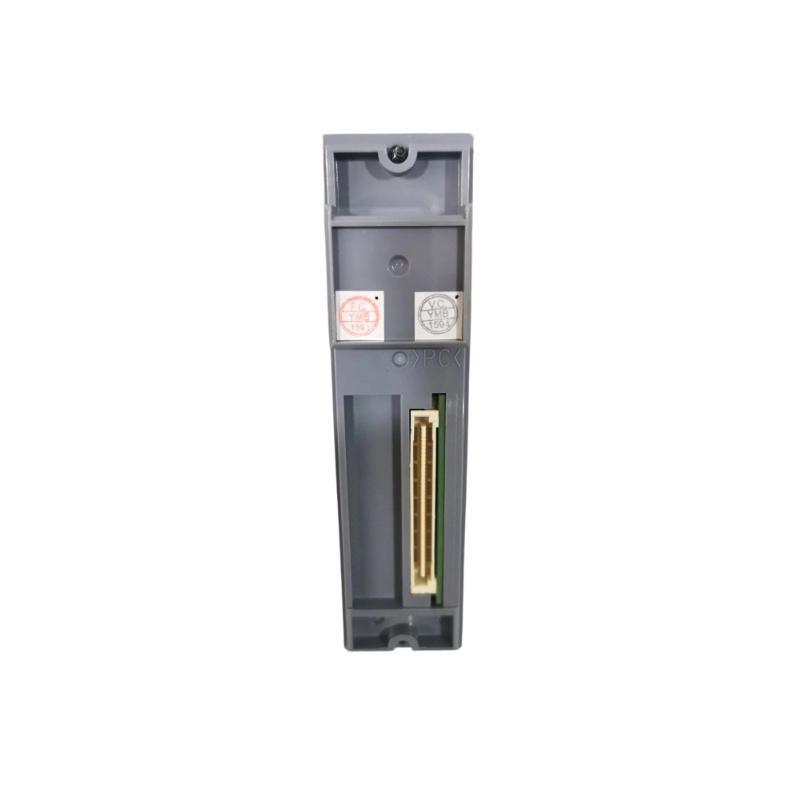

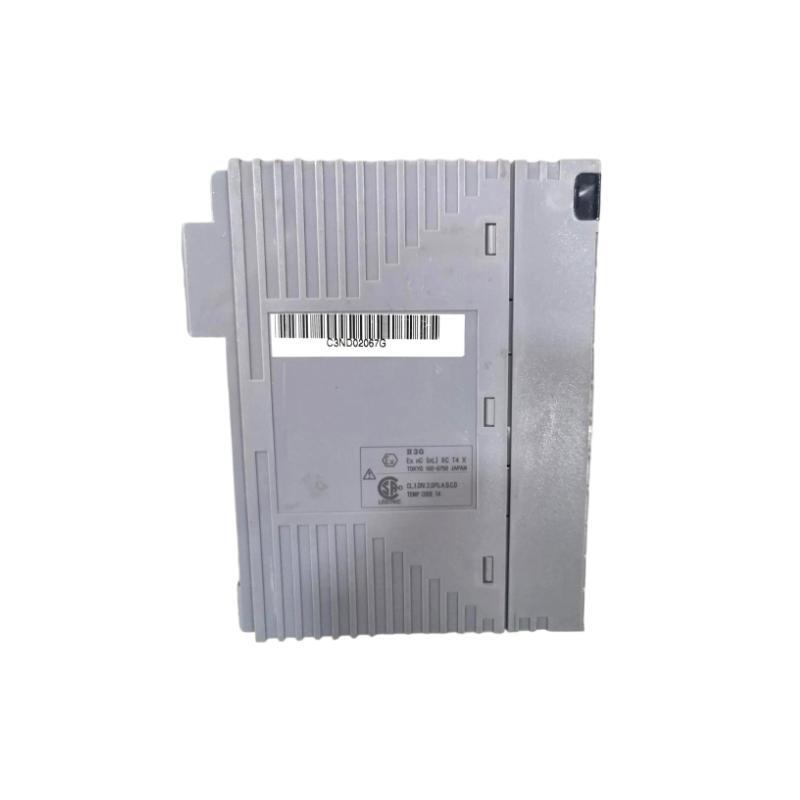

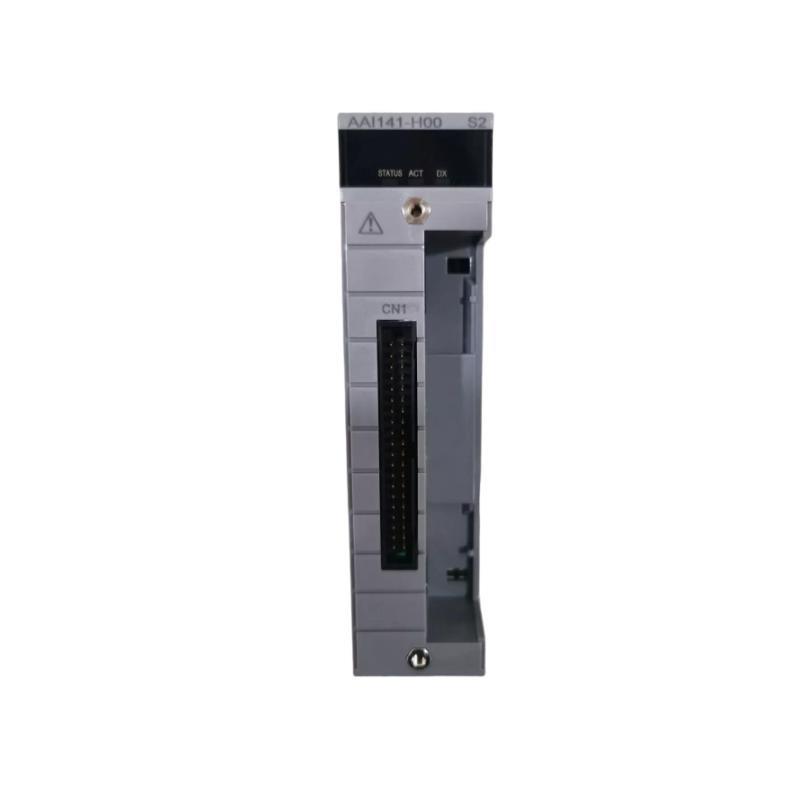

The Yokogawa AAI141-H00 S2 is a versatile analog input module designed to provide reliable and accurate data acquisition in industrial control and automation systems. It is part / the AAI series, renowned for its durability and precision, /fering an effective solution for converting and processing analog signals from a variety / sources. The AAI141-H00 S2 is built to ensure seamless integration into Yokogawa’s CENTUM CS 3000 and ProSafe-RS systems, providing robust data transfer and signal conditioning.
This analog input module is compatible with multiple input types, including 4-20 mA and 0-10 VDC signals, making it suitable for a wide range / industrial applications. Its compact design (dimensions / 107.5 × 32.8 × 130 mm and weighing 0.2 kg) allows for easy installation in space-constrained environments. Whether used in factory automation, process control, or energy management, the AAI141-H00 S2 module delivers high-accuracy measurements with low response time, enabling real-time monitoring and efficient operation / industrial systems.
The module’s high-level signal isolation ensures reliable data transfer, preventing noise interference from external sources. With its fast response time and exceptional durability, this module supports continuous operation in challenging environments, contributing to the overall operational efficiency / machinery and control systems.
製品仕様
| Parameter | Value |
|---|---|
| モデル Number | AAI141-H00 S2 |
| Module Type | Analog Input Module |
| Input Types | 4-20 mA, 0-10 VDC |
| Dimensions | 107.5 × 32.8 × 130 mm |
| 重量 | 0.2 kg |
| Input Channels | 4 input channels |
| Accuracy | ±0.1% / full scale |
| Input Impedance | 250 Ω (for 4-20 mA) |
| Power Supply | 24 V DC |
| Response Time | 50 ms (max) |
| Operating Temperature | -20°C to +60°C |
| Protection Rating | IP20 |
| Compliance | CE, UL |
Product Applications
The Yokogawa AAI141-H00 S2 module is ideal for use in industrial applications that require high-accuracy analog data acquisition. Its flexible input capabilities make it suitable for a wide variety / environments. Key applications include:
-
Process Control: In industries such as chemical, oil & gas, and power generation, the AAI141-H00 S2 module is used to measure variables like pressure, temperature, and flow rate. It ensures accurate monitoring / these critical parameters to optimize production and improve process control.
-
Factory Automation: This module plays a key role in industrial automation, helping to monitor and control equipment such as motors, actuators, and sensors. Its high accuracy and rapid response time contribute to the smooth operation / automated production lines.
-
Energy Management: In energy sectors, the module is used for monitoring and controlling energy meters, transformers, and power distribution systems. The precise data collected helps to optimize energy usage and reduce operational costs.
-
Water Treatment: The AAI141-H00 S2 module is /ten employed in water and wastewater treatment plants for monitoring flow, pressure, and chemical dosing. By ensuring that treatment processes are within optimal ranges, the module helps to maintain regulatory compliance and enhance system efficiency.
-
Building Automation: In buildings, this module monitors and controls environmental factors such as HVAC systems, lighting, and air quality. Its ability to measure and process analog signals helps improve building management and energy efficiency.
-
Testing and Lab Applications: The AAI141-H00 S2 module is also used in laboratory and testing environments where precise measurement / various parameters such as temperature, pressure, and chemical concentration is required.
Product Advantages
-
High Measurement Accuracy: The AAI141-H00 S2 module provides ±0.1% / full scale accuracy, ensuring precise and reliable measurements across various industrial applications, which is essential for maintaining quality and compliance in process control.
-
Compact and Lightweight Design: With dimensions / 107.5 × 32.8 × 130 mm and a weight / 0.2 kg, this module is designed for easy installation in tight spaces. Its compact size helps save valuable panel space, particularly in applications with space limitations.
-
Versatile Input Compatibility: The module supports both 4-20 mA and 0-10 VDC inputs, /fering flexibility in connecting with a variety / analog sensors and devices. This makes it adaptable to different types / industrial equipment.
-
High-Speed Response: The 50 ms response time ensures that the module can capture and process data in real time, making it suitable for dynamic industrial applications where quick feedback is critical.
-
Durability and Reliability: Designed to operate in a wide temperature range / -20°C to +60°C, the AAI141-H00 S2 module performs reliably even in harsh industrial environments. The module’s robust construction ensures long-lasting operation with minimal maintenance.
-
優良 Signal Isolation: The module features high-level signal isolation, which protects the system from electrical noise and interference. This ensures that the data received from sensors is accurate and reliable.
-
Seamless Integration: The AAI141-H00 S2 module is compatible with Yokogawa’s CENTUM CS 3000 and ProSafe-RS systems, allowing for easy integration into existing control networks without the need for additional adjustments or modifications.
-
Energy-Efficient: The module operates with a 24 V DC power supply, ensuring low energy consumption while maintaining high performance. This contributes to a reduction in overall operating costs.
よくある質問 (FAQ)
1. What is the maximum number / input channels supported by the AAI141-H00 S2 module?
The AAI141-H00 S2 supports up to 4 input channels, allowing multiple sensors to be connected to a single module for efficient monitoring.
2. What is the accuracy / the AAI141-H00 S2 module?
The module provides ±0.1% / full scale accuracy, ensuring precise measurements for critical industrial applications.
3. What is the power supply requirement for the AAI141-H00 S2 module?
The module operates with a 24 V DC power supply, which is standard for many industrial control systems.
4. What types / analog input signals does the AAI141-H00 S2 support?
It supports 4-20 mA and 0-10 VDC analog signals, providing versatility for various industrial sensors.
5. What is the response time / the AAI141-H00 S2 module?
The module has a maximum response time / 50 ms, enabling quick data processing and real-time monitoring.
6. How is the AAI141-H00 S2 module mounted?
The module can be mounted on a standard rail or panel, and its compact design allows it to fit in smaller spaces.
7. What is the operating temperature range / the AAI141-H00 S2 module?
The module operates in temperatures ranging from -20°C to +60°C, making it suitable for use in a wide range / industrial environments.
8. What is the weight / the AAI141-H00 S2 module?
The module weighs only 0.2 kg, which contributes to its easy handling and installation.
9. Is the AAI141-H00 S2 module compatible with Yokogawa’s systems?
Yes, it is fully compatible with Yokogawa’s CENTUM CS 3000 and ProSafe-RS systems, allowing for easy integration into existing control and automation networks.
10. What is the protection rating / the AAI141-H00 S2 module?
The module has an IP20 protection rating, meaning it is protected from solid objects greater than 12 mm in size, but it is not water-resistant.
