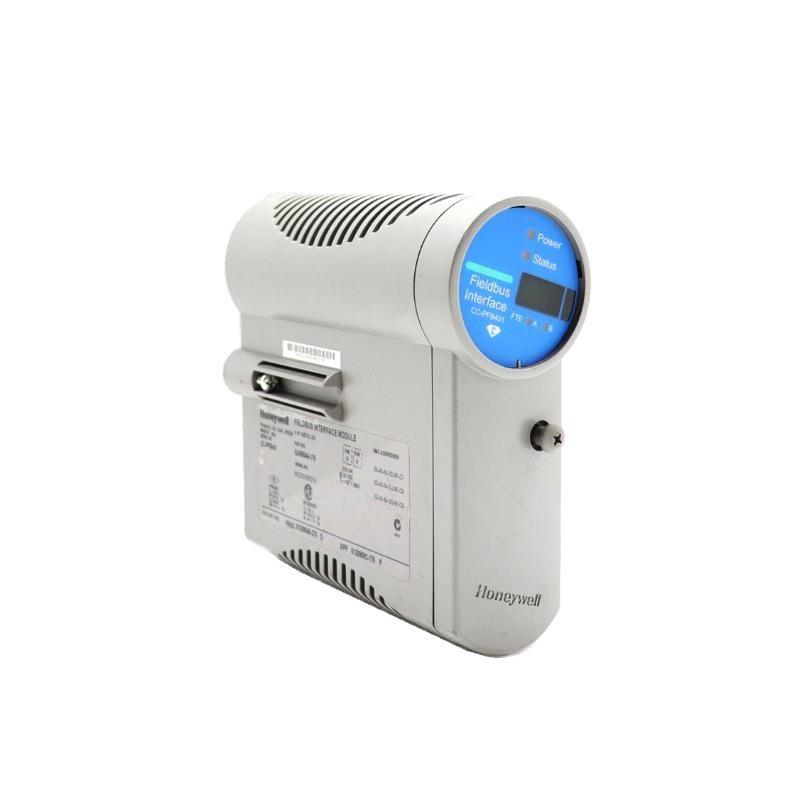

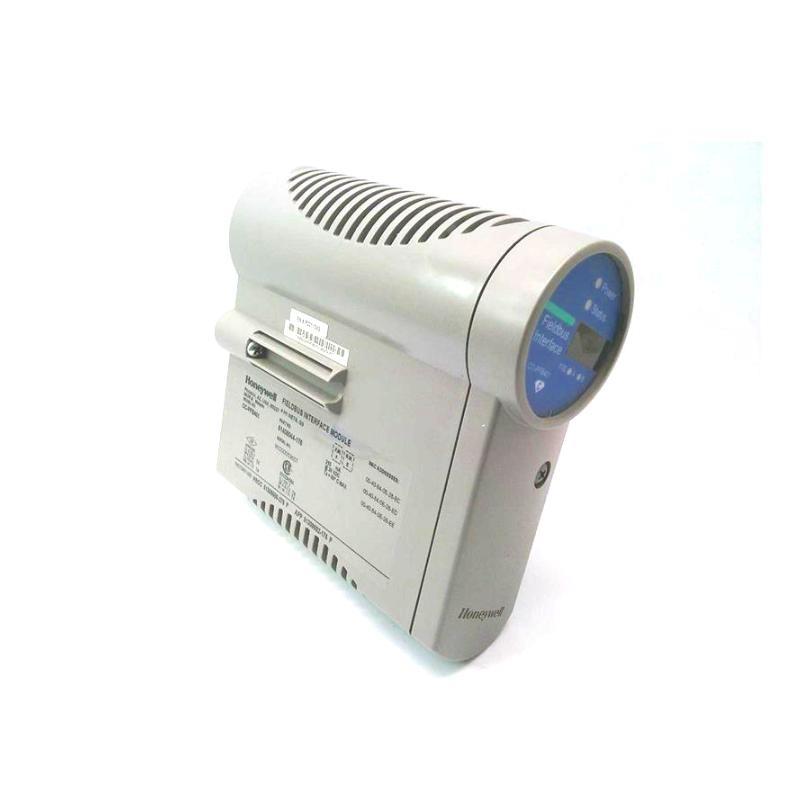

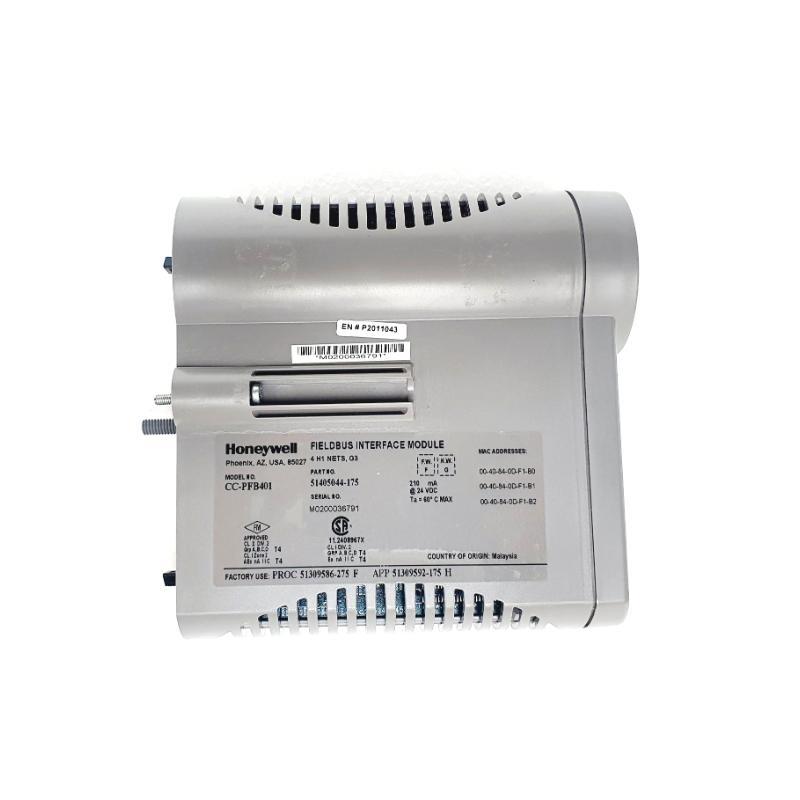

Honeywell CC-PFB401 51405044-175 Fieldbus Interface Module

製品紹介

The Honeywell CC-PFB401, also known by its part number 51405044-175, is a Fieldbus Interface Module (FIM) from Honeywell’s Series C family. It facilitates seamless communication between control systems and field devices using the H1 FOUNDATION Fieldbus protocol, supporting both redundant and non-redundant configurations.​

The CC-PFB401 module acts as a bridge connecting the control system to up to four H1 FOUNDATION Fieldbus networks. Each network can support communication with up to 16 fieldbus devices, making it a versatile solution for various industrial applications. Its configurable nature allows for both non-redundant and redundant setups, providing flexibility based on system requirements.​

Technical Specifications

Below are the detailed technical specifications / the Honeywell CC-PFB401 Fieldbus Interface Module:​

Applications

The CC-PFB401 module is ideal for industrial environments requiring reliable and flexible communication between control systems and field devices. Its support for multiple H1 FOUNDATION Fieldbus networks and devices makes it suitable for various applications, including:​

• Process Automation: Connecting sensors, actuators, and other field devices to control systems in industries such as oil and gas, chemical processing, and power generation.​

• Manufacturing: Integrating field devices in manufacturing processes to ensure efficient and accurate control.​

• Building Management Systems: Linking field devices like HVAC sensors and controllers to central management systems.​

Advantages

• High Integration: サポートs up to four H1 FOUNDATION Fieldbus networks per module, reducing the need for multiple modules and simplifying system architecture.​

• Flexible Configuration: Offers both non-redundant and redundant configurations to meet varying reliability requirements.​

• Scalability: Communicates with up to 16 fieldbus devices per H1 network, allowing for scalable system design.​

• Multiple Timing Options: Provides various macrocycle periods (250 ms to 32 s) to accommodate different application needs.​

• Compact Design: Its small form factor (63.5 x 124.46 x 307.34 mm) and lightweight build (0.408 kg) facilitate easy installation and integration into existing systems.​

• Hazardous Location Ratings: Certified for use in hazardous environments (Class I, Division 2, Groups A, B, C, D, T4), ensuring safe operation in demanding conditions.​

Recent News

As / December 2024, the Honeywell CC-PFB401 Fieldbus Interface Module 51405044-175 was highlighted for its advanced features and robust performance in industrial applications. The module’s ability to operate across a wide temperature range / -40°C to 75°C and its compliance with international standards make it a reliable choice for various industries.

FAQ

1. What is the Honeywell CC-PFB401 Fieldbus Interface Module used for?

   • The Honeywell CC-PFB401 is used to enable communication between control systems and field devices through the H1 FOUNDATION Fieldbus protocol. It allows connection / multiple fieldbus devices to a control system for seamless industrial automation.

2. How many devices can be connected to a single H1 network using the CC-PFB401?

   • The module supports up to 16 fieldbus devices per H1 FOUNDATION Fieldbus network, and it can manage up to 4 H1 networks.

3. Is the CC-PFB401 module suitable for hazardous environments?

   • Yes, the Honeywell CC-PFB401 is certified for hazardous locations with Class I, Division 2, Groups A, B, C, D, and T4 ratings. This makes it suitable for use in industrial environments where safety is critical.

4. What are the operating voltage and current requirements for the CC-PFB401?

   • The module operates at 24 VDC with a typical current consumption / 210 mA.

5. Can the CC-PFB401 be configured for redundancy?

   • Yes, the CC-PFB401 can be configured in both non-redundant and redundant setups, /fering flexibility to meet the reliability needs / different industrial applications.

6. What is the maximum operating temperature for the CC-PFB401 module?

   • The CC-PFB401 is designed to operate in a temperature range up to 60°C (140°F), making it suitable for most industrial settings.

7. How do I install the CC-PFB401 module?

   • The CC-PFB401 module is compact in design (63.5 x 124.46 x 307.34 mm), allowing easy installation into standard panel mounts. It integrates seamlessly into existing control systems and field device setups.

8. What types / industrial applications is the CC-PFB401 most commonly used in?

   • The module is ideal for applications in process automation, building management systems, and manufacturing industries where communication between control systems and field devices is required.

9. What certifications does the CC-PFB401 module have?

   • The module is certified for ATEX Zone 2, AEx Na IIC T4, and Ex Na IIC T4, ensuring safe operation in potentially explosive environments.

10. What are the key benefits / using the Honeywell CC-PFB401 Fieldbus Interface Module?

    • The key benefits include easy integration with multiple H1 FOUNDATION Fieldbus networks, flexible configuration options, and support for a wide range / industrial applications. It also /fers high scalability, reliable operation, and safety in hazardous locations.
