Product 説明

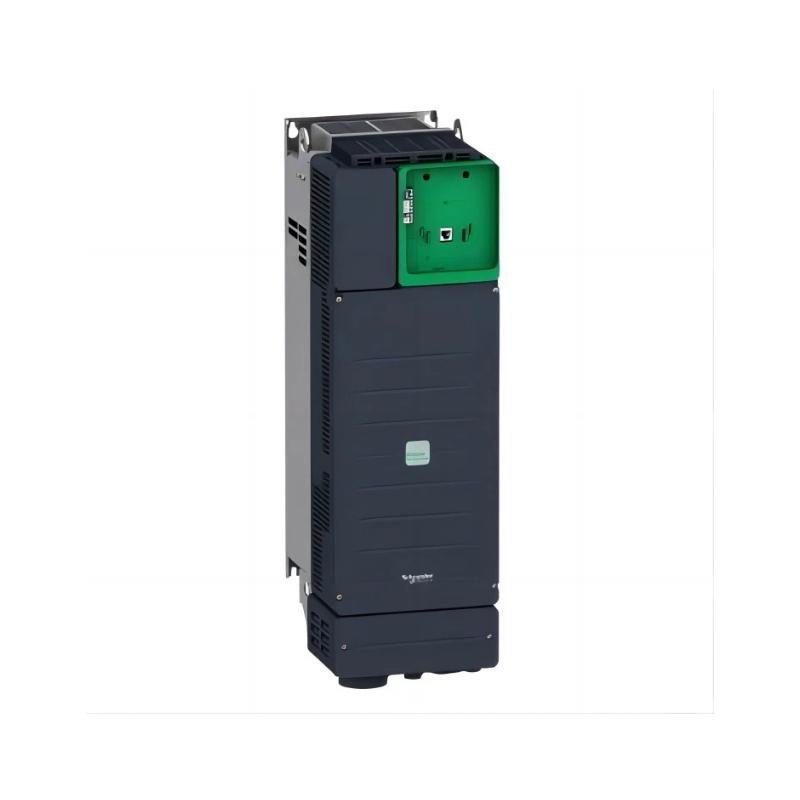

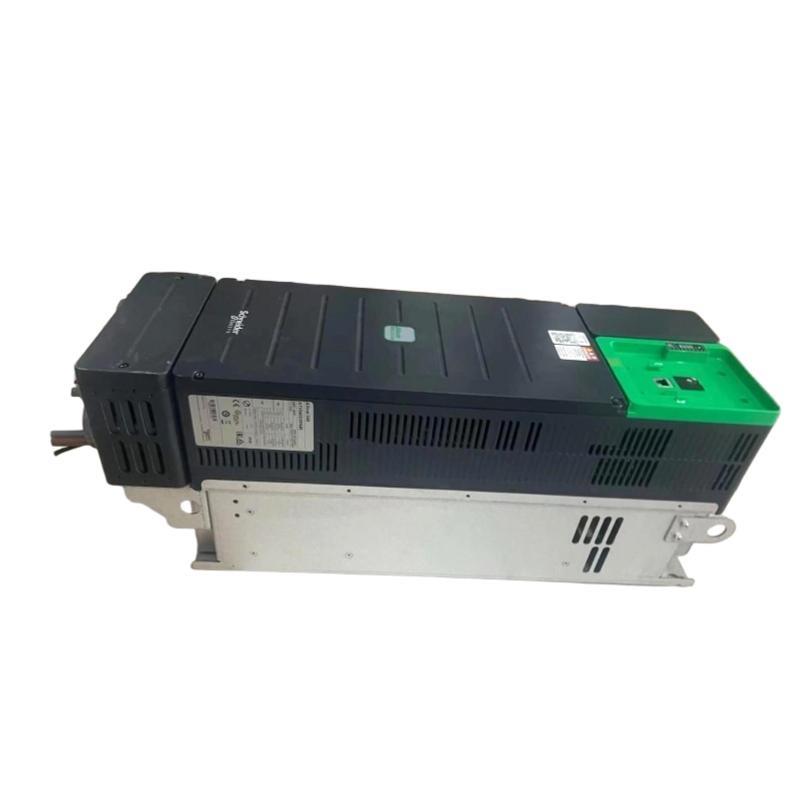

The Schneider ATV340D30N4E is a robust and high-performance variable speed drive designed for demanding industrial applications. It /fers precise motor control, high torque at low speeds, and seamless integration into automation systems, ensuring optimal performance and reliability.
Technical Specifications
| Parameter | Value |
|---|---|
| モデル | ATV340D30N4E |
| Rated Power | 30 kW |
| Rated Voltage | 380…480 V AC, 3-phase |
| Frequency Range | 0.1 to 599 Hz |
| Control Method | Sensorless vector, full vector |
| Overload Capacity | 150% for 60s, 170% for 2s |
| Protection Degree | IP21 |
| Communication | Modbus, Ethernet, CANopen, etc. |
| Dimensions (W × H × D) | 213 × 660 × 262 mm |
| 重量 | 27.9 kg |
Applications
The ATV340D30N4E is widely used in industrial sectors requiring dynamic motor control and high starting torque, including:
-
Packaging machinery
-
Conveyor systems
-
Metal processing
-
Material handling equipment
-
Textile machinery
Advantages
-
High overload capability for heavy-duty applications
-
Advanced motor control algorithms for energy efficiency
-
Easy integration with automation networks
-
User-friendly interface and configuration tools
-
Rugged design for harsh environments
-
Extended service life with low maintenance
FAQ
Q1: What is the power rating / the ATV340D30N4E?
A1: The rated power is 30 kW.
Q2: What is the input voltage range?
A2: It supports 380…480 V AC, 3-phase.
Q3: Which communication protocols are supported?
A3: It supports Modbus, CANopen, and Ethernet-based protocols.
Q4: Is it suitable for heavy-duty applications?
A4: Yes, it has high overload capacity for demanding loads.
Q5: What is the degree / protection?
A5: The drive is rated IP21.
Q6: Can it be used with different motor types?
A6: Yes, it supports both asynchronous and permanent magnet motors.
Q7: What are the dimensions and weight?
A7: Dimensions are 213 × 660 × 262 mm, weight is 27.9 kg.
Q8: How easy is it to integrate into automation systems?
A8: It /fers seamless integration through standard industrial protocols.
Q9: Does it have energy-saving features?
A9: Yes, it optimizes motor efficiency to save energy.
Q10: Is it suitable for harsh environments?
A10: Yes, it is designed to perform reliably in tough industrial conditions.
Recommended Related or Same Series モデルs
| モデル | Power Rating | Voltage | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| ATV340D11N4E | 11 kW | 380–480 V | 213 × 502 × 262 | 19.4 kg |
| ATV340D15N4E | 15 kW | 380–480 V | 213 × 502 × 262 | 19.4 kg |
| ATV340D18N4E | 18.5 kW | 380–480 V | 213 × 502 × 262 | 19.4 kg |
| ATV340D22N4E | 22 kW | 380–480 V | 213 × 502 × 262 | 19.4 kg |
| ATV340D37N4E | 37 kW | 380–480 V | 213 × 660 × 262 | 29.1 kg |
| ATV340D45N4E | 45 kW | 380–480 V | 213 × 810 × 262 | 36.4 kg |
Recommended Popular Schneider モデルs
| モデル | Power Rating | Voltage | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| ATV630D30N4 | 30 kW | 380–480 V | 275 × 660 × 320 | 40.5 kg |
| ATV930D30N4 | 30 kW | 380–480 V | 275 × 660 × 320 | 41.0 kg |
| Altivar 71 ATV71HU30N4 | 3 kW | 380–480 V | 150 × 300 × 232 | 7.5 kg |
| ATV12H075M2 | 0.75 kW | 200–240 V | 72 × 143 × 130 | 1.1 kg |
| ATV212HU30N4 | 3 kW | 380–480 V | 142 × 196 × 184 | 4.5 kg |
| ATV61HU55N4 | 5.5 kW | 380–480 V | 200 × 405 × 232 | 12.5 kg |
