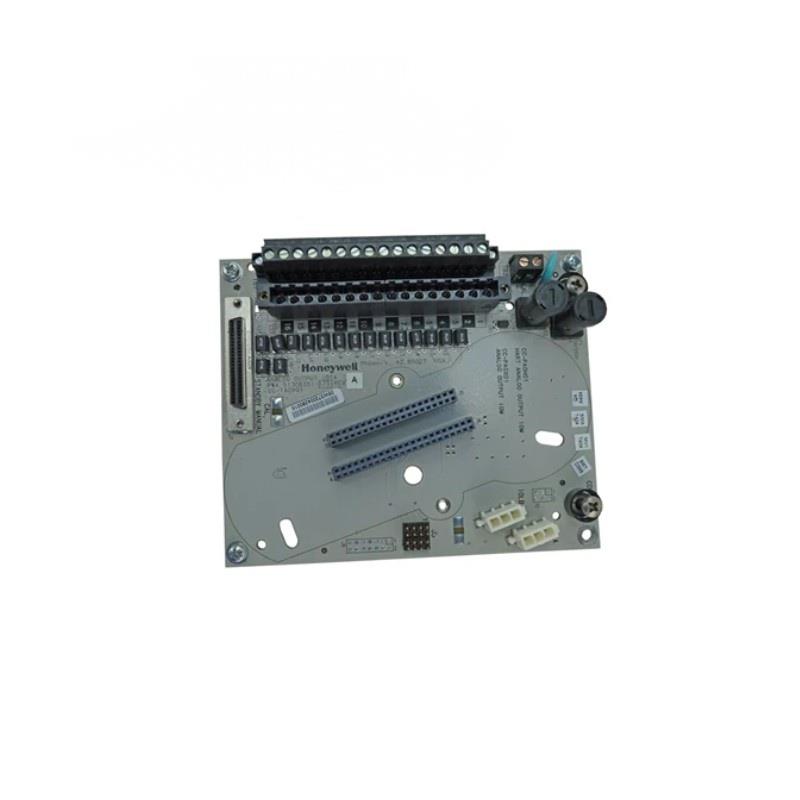

Honeywell CC-GAIC21 Analog Input Module

Product Overview

The Honeywell CC-GAIC21 is a high-performance analog input module designed for integration within the Experion Process Knowledge System (PKS). Engineered to handle multiple isolated analog input channels, this module is ideal for acquiring data from a wide range / field devices such as transmitters and sensors in industrial automation environments.

Manufactured by Honeywell, a global leader in industrial automation, the CC-GAIC21 ensures reliable operation, high accuracy, and seamless integration into existing control systems. Its compact design and robust features make it suitable for applications where space is limited, and performance is critical.

Technical Specifications

Applications

The CC-GAIC21 module is versatile and can be employed in various industrial sectors. Its primary applications include:

• Factory Automation: Acquires data from sensors for monitoring and control.

• Process Control: Measures parameters like temperature, pressure, and flow within industrial processes.

• Building Automation: Monitors environmental conditions for HVAC systems.

• Water and Wastewater Treatment: Measures levels, flow rates, and quality parameters.

• Oil and Gas Industry: Monitors drilling parameters and safety systems.

• Power Generation: Acquires data from turbines, generators, and related systems.

Advantages

• High Accuracy: Provides precise measurements with ±0.1% full-scale accuracy.

• Robust Isolation: Ensures reliable operation and protection with 500 VDC channel-to-channel isolation.

• High Resolution: 16-bit resolution for detailed signal acquisition.

• Versatile Input: サポートs standard 4-20 mA signals from various field devices.

• Seamless Integration: Fully compatible with Honeywell’s Experion PKS, facilitating easy system integration.

• Durable Design: Built to withstand harsh industrial environments with wide temperature and humidity ranges.

• Compact Size: Space-saving design suitable for installations with limited space.

• Certified Quality: Meets international safety and quality standards (CE, UL, CSA).

よくある質問 (FAQ)

1. What is the primary function / the CC-GAIC21 module?
   It serves as an analog input module, acquiring 4-20 mA signals from various field devices for processing and control.

2. How many input channels does the CC-GAIC21 support?
   It supports 8 isolated analog input channels.

3. What is the resolution / the module?
   The module /fers a 16-bit resolution for precise signal acquisition.

4. Is the module compatible with HART protocol?
   Yes, it is compatible with Honeywell’s fieldbus protocols, including HART.

5. What are the environmental operating conditions?
   Operating temperature ranges from 0°C to 60°C, with humidity between 5% and 95% RH (non-condensing).

6. How is the module mounted?
   It can be mounted on a DIN rail or panel, /fering flexibility in installation.

7. What type / input signals does it accept?
   It accepts standard 4-20 mA analog signals from various field devices.

8. Is the module certified for international use?
   Yes, it carries CE, UL, and CSA certifications.

9. What is the weight and size / the module?
   It weighs 0.32 kg and measures 63.5 x 124.46 x 307.34 mmz.

10. Can the module be used in hazardous environments?
    The module is designed for industrial environments; however, specific hazardous area certifications should be verified based on application requirements.
