製品紹介

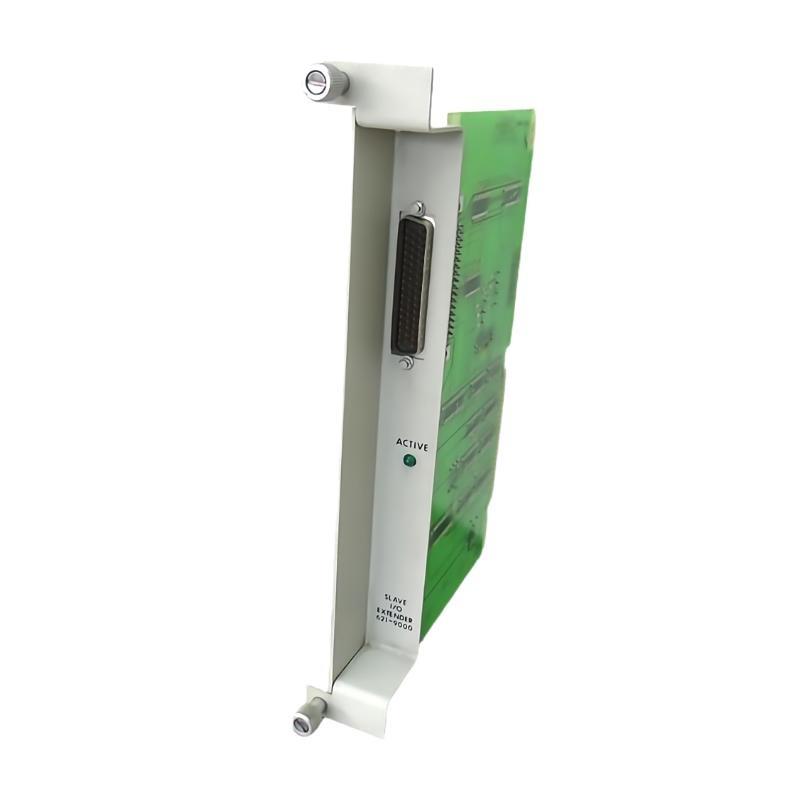

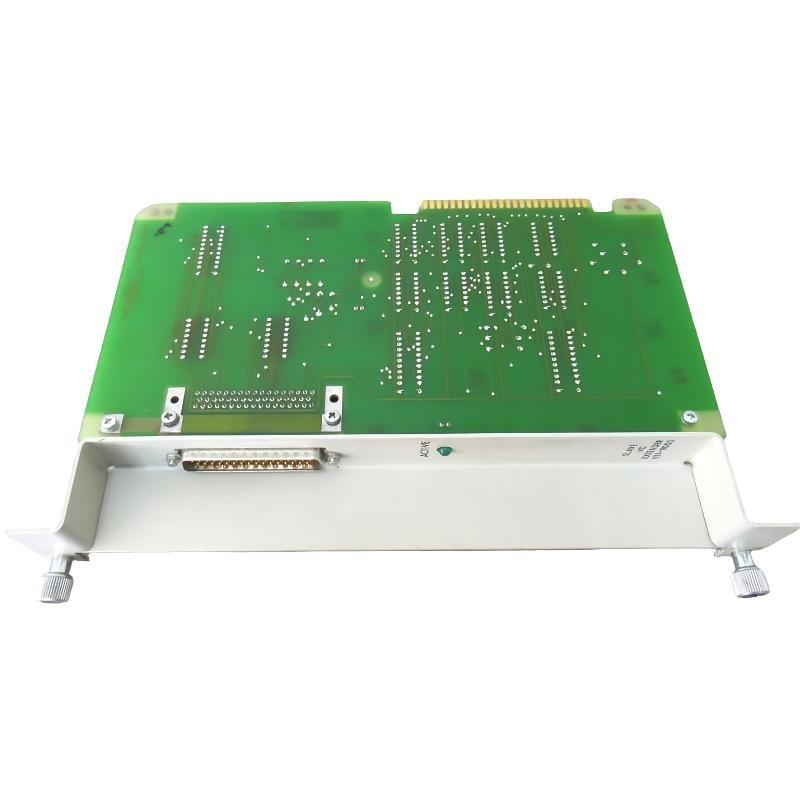

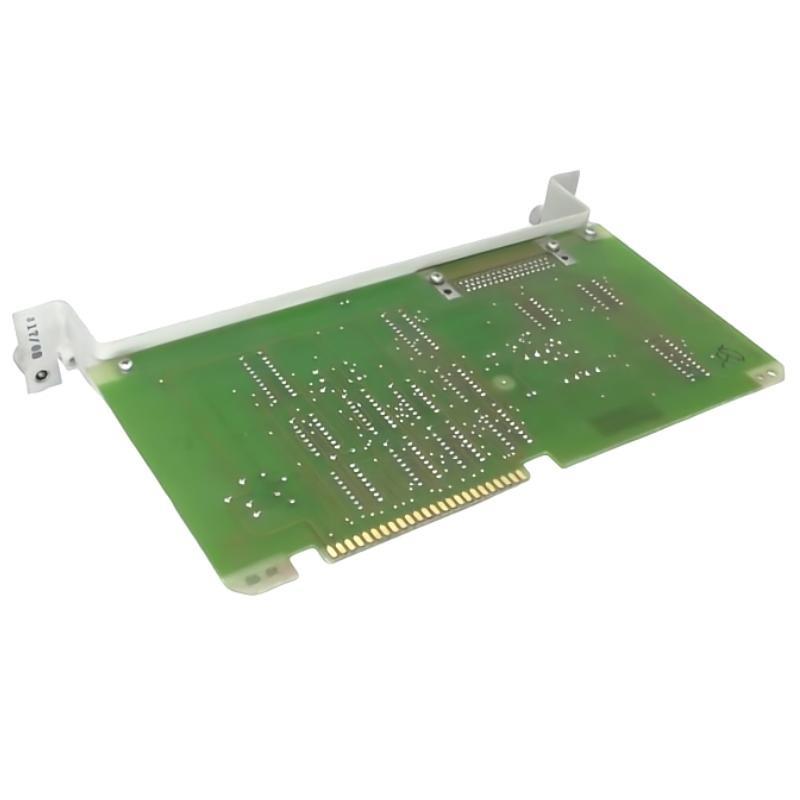

The Honeywell 621-9000 Slave I/O Extender Module is a critical part / Honeywell’s PlantScape and TPS (TotalPlant Solution) control architecture. This module enables the extension / local and remote I/O capabilities by acting as a communication and expansion interface between the controller and the connected I/O modules. It allows seamless integration / distributed I/O systems over long distances, supporting complex control strategies without sacrificing performance, reliability, or flexibility.
Designed to operate in demanding industrial environments, the 621-9000 module ensures high-speed data transfer, minimal latency, and robust fault isolation. It is particularly useful in large-scale process automation systems where control elements are dispersed over wide physical areas.
製品仕様
| Parameter | Details |
|---|---|
| モデル | 621-9000 |
| メーカー | Honeywell |
| Module Type | Slave I/O Extender Module |
| Function | Slave communication interface for I/O extension |
| Communication Type | Redundant I/O LAN (RS-485-based proprietary protocol) |
| Data Transfer Rate | 1 Mbps (typical) |
| Max Distance (LAN) | Up to 1,500 meters with proper termination |
| Connection Type | Terminal block or fiber-optic depending on system |
| Compatibility | Honeywell 620 and 621 I/O systems |
| Power Supply | 5 VDC (from base 台) |
| Isolation | Optical/electrical isolation on communication lines |
| LED Indicators | Status, communication, fault |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting | DIN rail or chassis rack |
| Certifications | CE, UL, CSA |
| Dimensions (H x W x D) | 120 x 35 x 110 mm |
| 重量 | 0.23 kg |
Product Applications
The Honeywell 621-9000 module is widely used in industrial automation environments where extended I/O networks are required. It is particularly suitable for:
-
Refineries & Petrochemical Plants – Enables long-distance signal integration across distributed plant 台s.
-
Power Generation Facilities – Connects control modules across different control rooms or turbine floors.
-
Chemical Processing Plants – Expands digital and analog I/O for complex control sequences.
-
Pharmaceutical Manufacturing – Links remote instrumentation without introducing noise or latency.
-
Water Treatment Plants – Connects sensor clusters and actuators spread over large facilities.
-
Pulp & Paper Industry – Facilitates remote monitoring / process equipment in multi-level buildings.
Product Advantages
-
Extended I/O Capabilities: Seamlessly expands I/O beyond local limitations without signal degradation.
-
Robust Communication: Uses a fault-tolerant proprietary RS-485 protocol optimized for industrial use.
-
System Scalability: サポートs large system configurations with multiple I/O racks.
-
Hot Diagnostics: Real-time diagnostics through LEDs and integrated system alerts.
-
High Compatibility: Fully integrates with Honeywell 620/621 series, and legacy TPS environments.
-
Noise Imm台y: Optical and electrical isolation ensures clean data transmission in harsh environments.
-
Minimal Latency: Maintains control responsiveness even with extended communication paths.
FAQ
-
What communication protocol does the 621-9000 module use?
It uses a proprietary RS-485-based protocol over a redundant I/O LAN for high-integrity communication. -
Is the 621-9000 module hot-swappable?
No, power must be turned /f before installing or replacing the module to avoid system errors. -
Can the module operate in redundant configurations?
Yes, it supports redundant I/O LAN paths for high-availability applications. -
Does it require termination resistors?
Yes, proper termination is necessary at the ends / the RS-485 LAN to prevent signal reflection. -
Is the module compatible with fiber optic LANs?
Yes, with additional Honeywell transceivers or converters, it can work over fiber-optic media. -
What is the maximum number / I/O modules supported through one 621-9000?
This depends on system configuration, but typically supports 31 nodes per segment. -
How does the module indicate communication loss?
Through dedicated status and fault LEDs and system diagnostic messages. -
Does the module buffer data if LAN communication is interrupted?
No, it does not buffer; real-time communication is required for control updates. -
Can multiple 621-9000 modules be used in the same I/O network?
Yes, they are designed to work in multi-module distributed architectures. -
What type / electrical isolation is implemented?
Optical isolation is provided on communication interfaces to protect against ground loops and transients.
Related モデルs (Same Series or Function)
| モデル | 説明 | Function | I/O サポート |
|---|---|---|---|
| 621-9930 | Local I/O Bus Interface | Primary I/O link driver | Up to 8 I/O modules |
| 621-1100 | Analog Input Module (8-channel) | AI module | 4–20 mA / RTD |
| 621-2200 | Digital Input Module (16-channel) | DI module | 24 VDC inputs |
| 621-2210 | Digital Output Module (16-channel) | DO module | 24 VDC outputs |
| 621-3400 | RTD Input Module | Temperature sensing | RTD (Pt100) inputs |
| 621-2100 | Relay Output Module | High-power switching | SPDT relay outputs |
Popular Honeywell モデルs
| モデル | 説明 | Type | Application |
|---|---|---|---|
| C300 Controller | Core controller for Experion PKS | Distributed Controller | Process Automation |
| HC900 Controller | Modular hybrid control system | Process/Logic Controller | Batch/Hybrid Systems |
| STT750 | Smart Temperature Transmitter | Field Transmitter | Temperature Measurement |
| SMV3000 | Multivariable Pressure Transmitter | Flow/Pressure Measurement | Flow Control |
| UDC3500 | Universal Digital Controller | Single-loop PID Controller | Temperature/Process Control |
| FSC (TMR) | Fault Tolerant Safety Controller | Safety PLC | SIL 3 Safety Applications |
