Product Overview

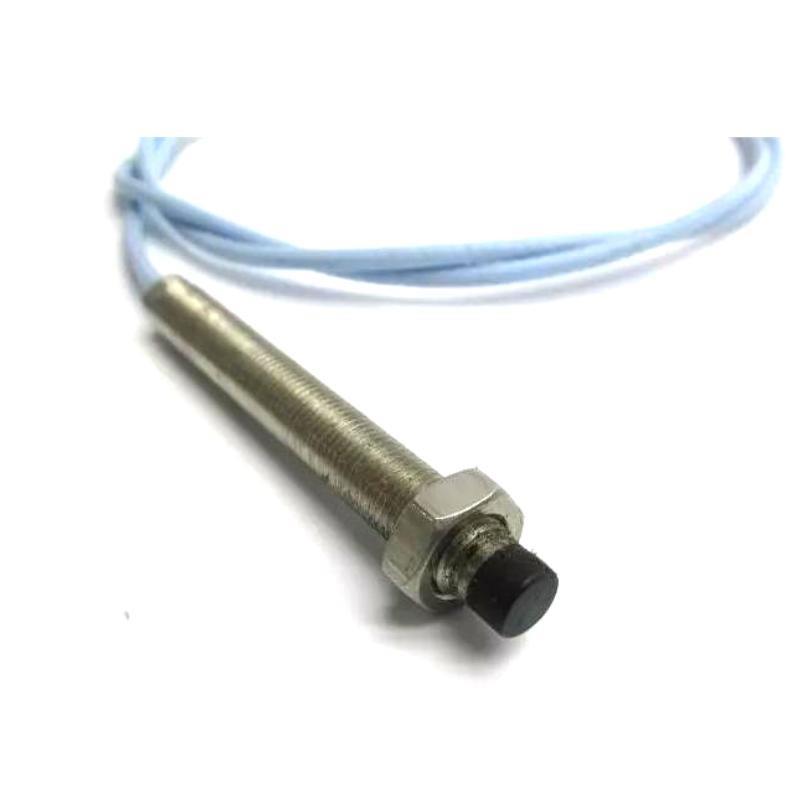

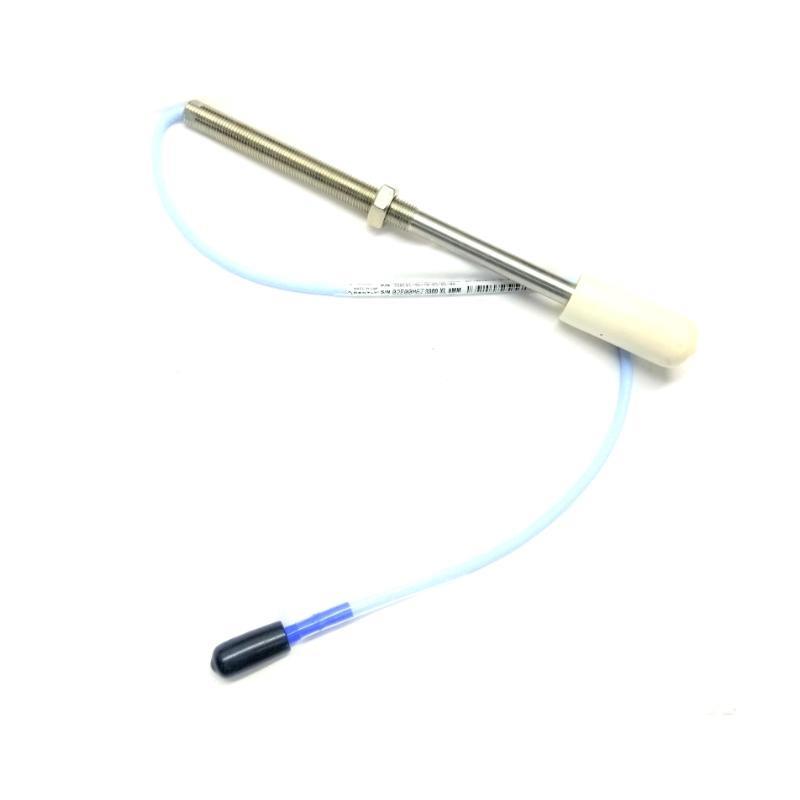

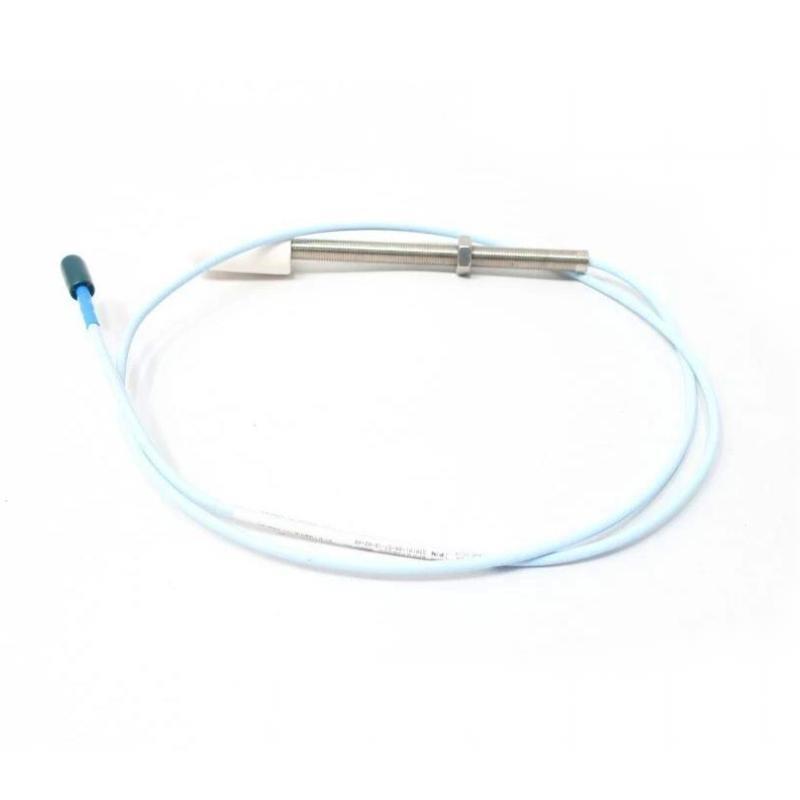

The Bently Nevada 330101-00-65-10-11-00 is a 3300 XL 8 mm Proximity Probe, part / a complete eddy current transducer system used for measuring vibration and position in fluid-film bearing machines. It provides accurate, reliable output in demanding industrial environments.
Applications
-
Shaft vibration and axial position monitoring
-
Radial and axial displacement on rotating equipment
-
Keyphasor and speed signal detection
-
Compatible with turbines, compressors, pumps, and motors
Product Advantages
-
Fully compliant with API 670 standard
-
ClickLoc connectors ensure secure connections without tools
-
FluidLoc cable option prevents oil migration
-
TipLoc and CableLoc technologies enhance mechanical robustness
-
High imm台y to RFI/EMI, allowing installation in fiberglass enclosures
-
No matching / probe, extension cable, and Proximitor sensor required
Technical Specifications
| Parameter | Value |
|---|---|
| モデル | 330101-00-65-10-11-00 |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Total Length | 1.0 meter |
| 重量 | 0.323 kg |
| Probe Cable Type | 75 Ω triaxial, FEP insulated |
| Material (Probe Case) | AISI 303 or 304 Stainless Steel |
| Thread Size | 3/8-24 UNF |
| Operating Temperature Range | –52°C to +177°C |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ± 5% |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Mounting Torque (Standard Probe) | 11.2 N·m (100 in·lbf) recommended |
| Minimum Shaft Diameter | 50.8 mm (2 in), recommended 76.2 mm (3 in) |
FAQs
Q1: What does this probe measure?
A1: It measures both static (position) and dynamic (vibration) displacement / conductive targets.
Q2: Is it compatible with older 3300 series components?
A2: Yes, it is backward-compatible with non-XL 3300 5 mm and 8 mm systems.
Q3: Does the probe require calibration with other system components?
A3: No, it supports full interchangeability—no matching or bench calibration needed.
Q4: Can the probe operate in high-temperature environments?
A4: Yes, it supports up to 177°C. Extended Temperature Range (ETR) models are available for up to 218°C.
Q5: What type / connector does it use?
A5: ClickLoc miniature coaxial connectors, requiring no tools for installation.
Q6: What is the typical installation torque?
A6: Recommended torque is 11.2 N·m (100 in·lbf) for standard forward-mount probes.
Q7: Is it suitable for hazardous environments?
A7: Yes, it holds multiple certifications including ATEX, CSA, and IECEx for hazardous area use.
Q8: What is the effect / humidity on the probe’s accuracy?
A8: Less than 3% change in scale factor under 93% relative humidity over 56 days.
Q9: Does it include a cable and sensor?
A9: No, this part number refers specifically to the probe. Extension cables and Proximitor sensors are sold separately.
Q10: What is the linear measurement range?
A10: 0.25 mm to 2.3 mm (10 mils to 90 mils).
Related モデルs (Same Series)
| モデル | 説明 | Length | Cable Type |
|---|---|---|---|
| 330101-00-65-10-11-00 | 8 mm Probe, 1.0 m, FluidLoc cable | 1.0 m | FluidLoc with protector |
| 330101-00-08-05-02-00 | 8 mm Probe, 0.5 m, standard cable | 0.5 m | Standard |
| 330101-00-20-10-02-05 | 8 mm Probe, 2.0 m, FluidLoc, armored | 2.0 m | FluidLoc, armored |
| 330102-00-20-10-02-00 | 8 mm Probe with armor, 2.0 m | 2.0 m | Standard |
| 330104-01-05-50-02-00 | 8 mm Metric Thread, with armor, 5.0 m | 5.0 m | Standard, armored |
| 330105-02-12-10-02-05 | Reverse mount 8 mm, FluidLoc, armored, 1.0 m | 1.0 m | FluidLoc, armored |
Popular Bently Nevada モデルs
| モデル | 説明 | Application | Length | 重量 |
|---|---|---|---|---|
| 330104-00-06-10-02-00 | 8 mm Metric Probe, 1.0 m | Standard mounting | 1.0 m | 0.323 kg |
| 330130-040-00-00 | Extension Cable, 4.0 m | For use with 3300 XL Probes | 4.0 m | ~0.136 kg |
| 330180-10-05 | 3300 XL Proximitor Sensor, panel mount, 1.0 m | Panel mounting | 1.0 m | 0.246 kg |
| 330105-02-12-05-02-05 | Reverse Mount Probe, 0.5 m, armored | Limited mounting space | 0.5 m | 0.3 kg |
| 330190-030-00-00 | ETR Extension Cable, 3.0 m | High-temp applications | 3.0 m | ~0.103 kg |
| 330103-00-05-10-02-00 | Metric Probe, M10 x 1, 1.0 m, no armor | Compact installations | 1.0 m | 0.323 kg |
