Product Overview

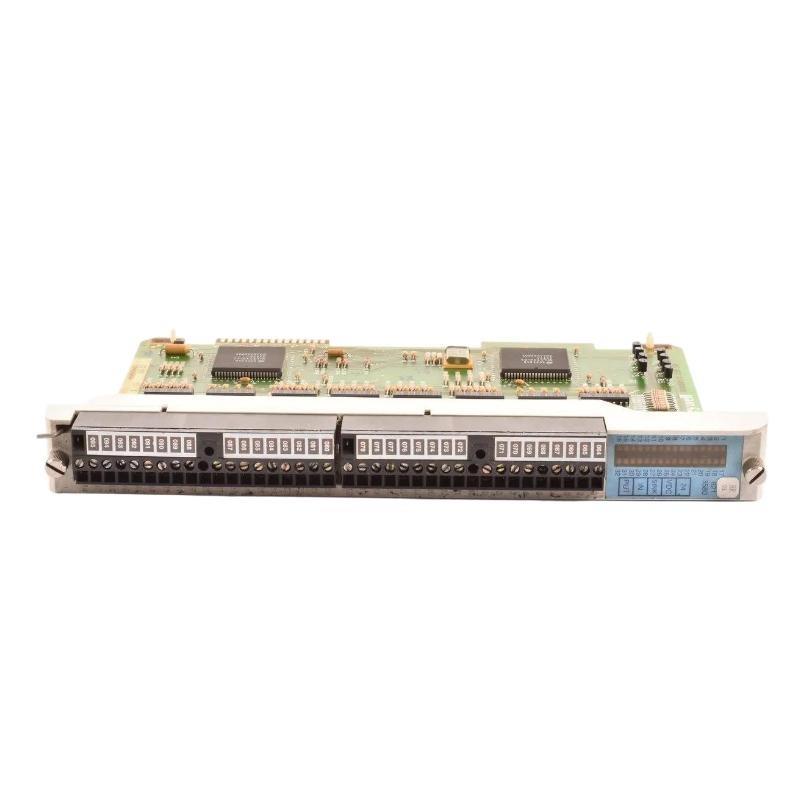

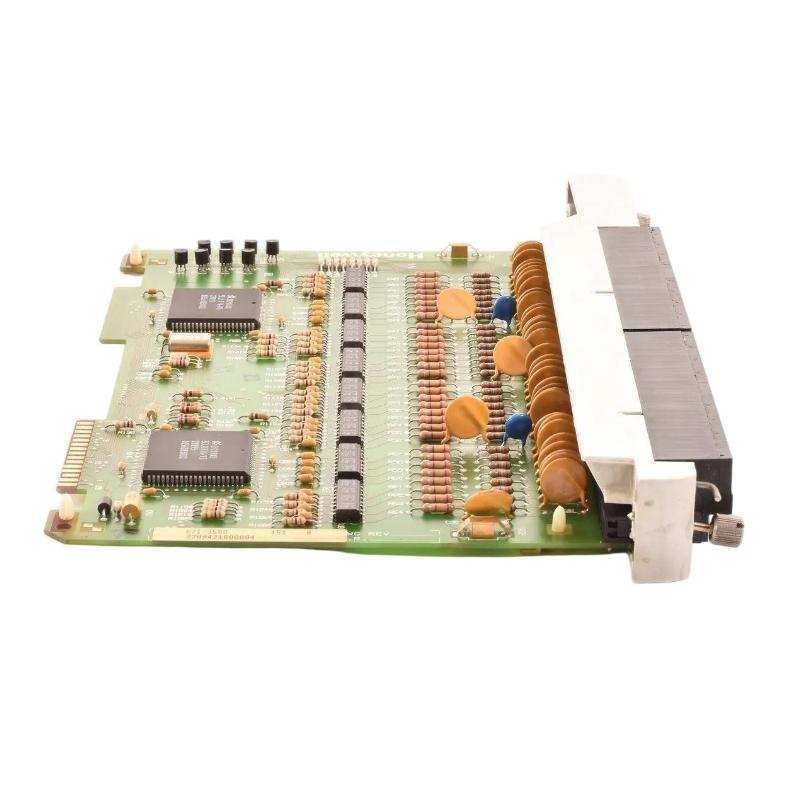

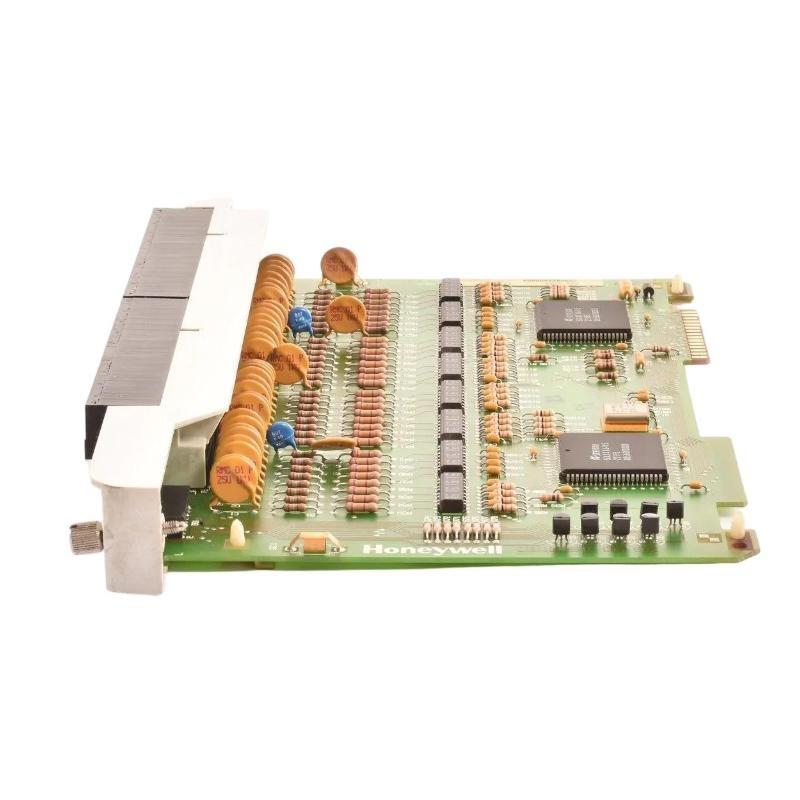

The Honeywell 621‑3580 Input Module is a high-density analog input module for Honeywell Distributed Control Systems (DCS). Featuring 32 individual 24 V DC sink inputs, this module is tailored to manage large numbers / field signals—ideal for industrial automation, manufacturing processes, and safety-critical monitoring.
Key Features
-
32 sink-type 24 V DC inputs for extensive signal acquisition
-
High-density design optimizes rack space
-
Built-in fault detection and channel diagnostics
-
Galvanic isolation safeguards against ground loops
-
Designed for DIN‑rail or rack mounting
-
Hot-swappable capability—no system shutdown for servicing
-
Rugged construction withstands industrial noise and temperature variations
Technical Specifications
| Item | Specification |
|---|---|
| メーカー | Honeywell |
| モデル Number | 621‑3580 |
| Module Type | 32‑channel digital input (sink 24 V DC) |
| Input Voltage | 24 V DC |
| Channels | 32 |
| Module Configuration | Sink input type |
| Isolation | Galvanic isolation per channel |
| Diagnostics | Channel-level fault detection |
| Mounting | DIN rail / rack |
| Operating Temperature | –40 °C to +85 °C |
| Dimensions | 120 × 80 × 50 mm |
| 重量 | 0.5 kg |
| Communication Protocol | Modbus RTU (typical) |
| Certifications | CE, UL (assumed) |
Industry Applications
-
Manufacturing Automation – Monitoring multiple sensors in production lines
-
Power & Energy – Tracking digital signals in substation and turbine control systems
-
Oil & Gas & Petrochemical – Safety alarms, valve signals, status indicators
-
Water & Wastewater – Supervisory signals from pumps, level switches
-
Process Industries – Comprehensive monitoring / boiler, reactor, filtration systems
Product Advantages
-
High Channel Density – 32 inputs in a compact form factor reduce installation footprint
-
Reliable Isolation & Diagnostics – Per-channel protection and early fault alerts enhance system robustness
-
Ease / Maintenance – Hot-swappable design eliminates downtime during service
-
Flexible Integration – DIN-rail and rack-compatible; Modbus enables seamless connectivity
-
Industrial Robustness – Wide temperature tolerance suits demanding environments
よくある質問 (FAQ)
-
How many inputs does the 621‑3580 support?
It provides 32 sink‑type digital input channels at 24 V DC. -
What is a sink input?
Sink inputs complete the circuit by sourcing current from the field device to the module’s internal 24 V supply. -
Does the module include diagnostics?
Yes, it /fers channel‑level fault detection (open circuit/short). -
What is the operating temperature range?
–40 °C to +85 °C. -
Can I service this without shutting down the system?
Yes, it supports hot‑swapping. -
What communication protocol does it use?
Modbus RTU is typical . -
What size is the module?
Approximately 120 × 80 × 50 mm. -
Is it isolated per channel?
Yes, with galvanic isolation for safe operation. -
Where is it typically used?
In systems requiring many high-speed, reliable digital inputs—like manufacturing and process plants. -
Is it compatible with standard Honeywell racks?
Yes, it fits the 620/621 series rack or DIN‑rail frames.
Related モデルs
| モデル Number | 説明 |
|---|---|
| 621‑3560 | 16‑channel sink input module |
| 621‑3580R | Redundant version / the 621‑3580 |
| 621‑1100RC | 16‑channel digital input module |
| 621‑2100RC | 16‑channel digital output module |
| 621‑2150R | 8‑channel analog output / relay module |
| 621‑0010‑AR | 8‑channel analog input module |
Popular Honeywell Modules
| モデル Number | 説明 |
|---|---|
| 621‑0010 | 8‑channel analog input module |
| 621‑1100RC | 16‑channel digital input module |
| 621‑2100R | 8‑channel relay/analog output module |
| 620‑0088 | 8‑channel analog input module (legacy series) |
| 620‑0086 | 8‑channel analog output driver module |
| 621‑0600 | Fieldbus I/O communication interface module |
