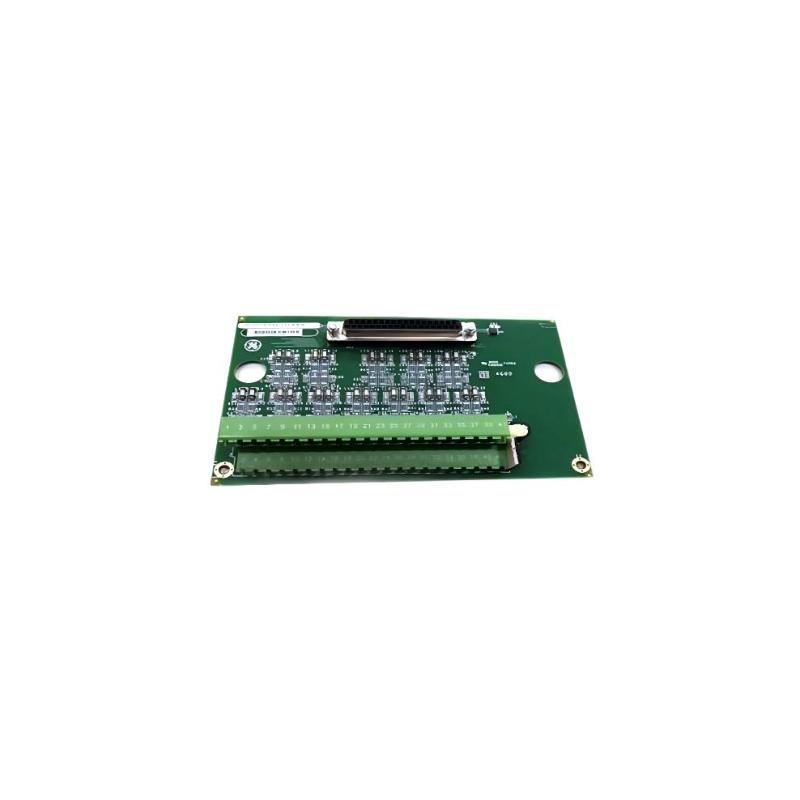

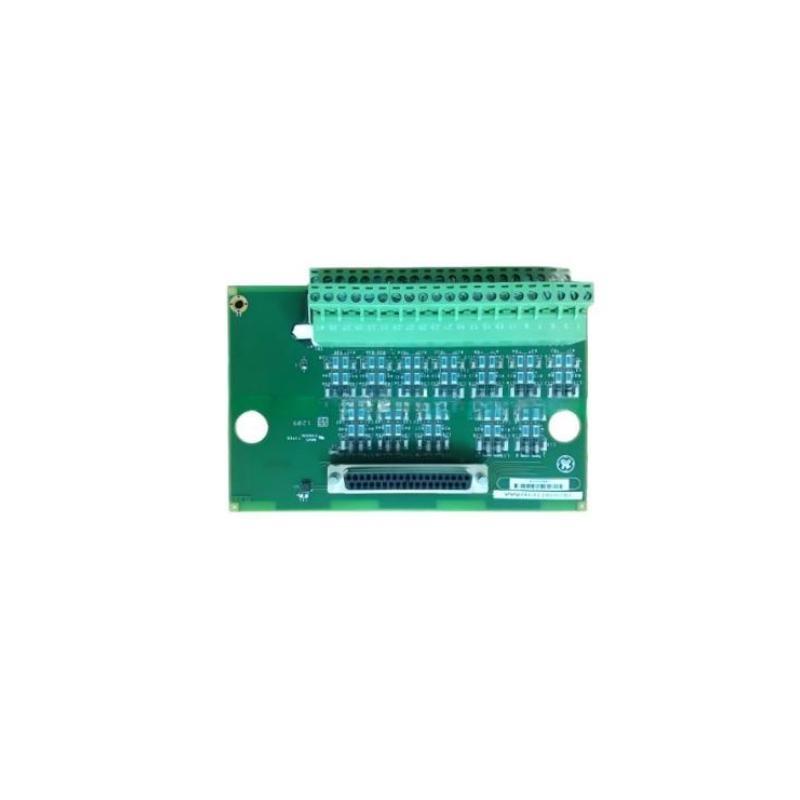

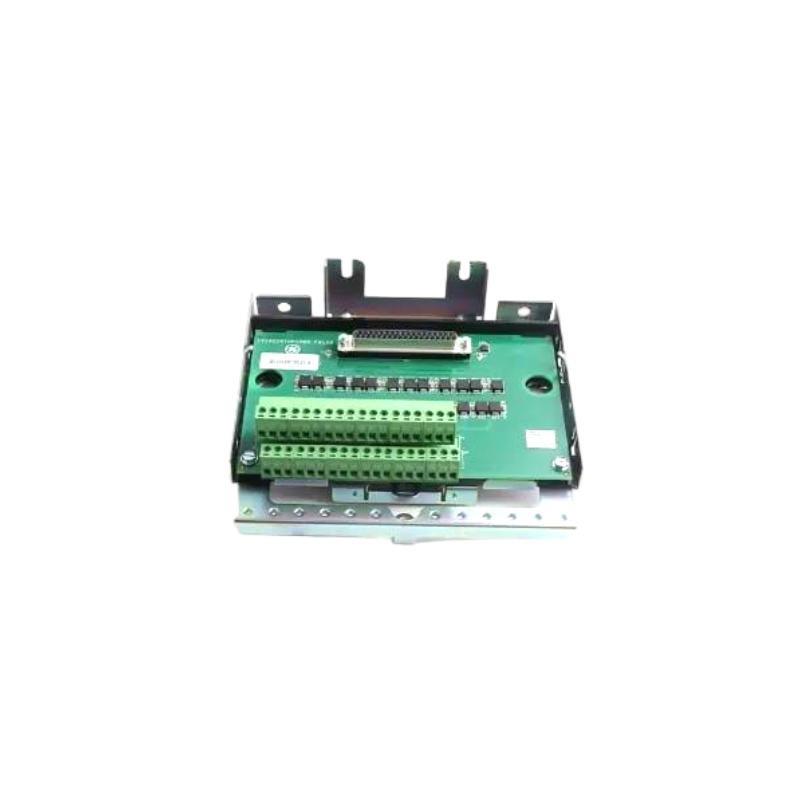

The GE IS200STTCH2A is a DIN rail mounted thermocouple terminal block designed for use in industrial control systems. It /fers a reliable solution for connecting thermocouple sensors to a control system for accurate temperature measurement and monitoring. This terminal block is commonly used in applications requiring high-precision temperature data, particularly in process control, manufacturing, and automation environments.
With its compact dimensions / 50 x 120 x 150 mm and weighing only 0.4 kg, the IS200STTCH2A is a highly efficient and space-saving component, making it an excellent choice for systems where space is limited. It is engineered to provide secure connections for thermocouple wires, ensuring that the temperature signals are transmitted accurately and reliably to the control system for analysis.
Built to withstand harsh industrial environments, this terminal block ensures long-term durability and stable performance under challenging conditions. It is ideal for high-accuracy temperature sensing and signal conditioning in systems like industrial ovens, kilns, furnaces, and various other temperature-critical applications.
製品仕様
| Parameter | Details |
|---|---|
| モデル | IS200STTCH2A |
| Type | DIN Rail Mounted Thermocouple Terminal Block |
| Dimensions (L x W x H) | 50 x 120 x 150 mm |
| 重量 | 0.4 kg |
| Input Type | Thermocouple |
| Input Voltage | 24 VDC |
| Connector Type | Screw Terminals (Phoenix お問い合わせ) |
| Operating Temperature | -40°C to +70°C |
| Power Consumption | 24V DC |
| Mounting | DIN Rail Mount |
| Environmental Protection | IP20 (internal use) |
| Temperature Range | -200°C to +1370°C |
Applications
The GE IS200STTCH2A DIN Rail Mounted Thermocouple Terminal Block is used in a wide range / industrial applications that require precise temperature measurement and monitoring. Some / the key applications include:
-
Process Control Systems: The terminal block is essential for accurately monitoring temperature in processes such as chemical manufacturing, food production, and pharmaceuticals. It ensures the temperature data is transmitted correctly to the control system, allowing for accurate process adjustments.
-
Industrial Furnaces and Ovens: In high-temperature environments like furnaces and kilns, the IS200STTCH2A helps monitor and control the heat levels by providing accurate data from thermocouples, ensuring optimal performance and energy efficiency.
-
Energy Generation Systems: The terminal block is used to monitor heat exchangers, boilers, and other temperature-critical equipment in power plants and energy generation facilities.
-
HVAC Systems: For controlling heating, ventilation, and air conditioning (HVAC) systems, the terminal block ensures accurate temperature readings, allowing the system to operate within the desired range for comfort and energy efficiency.
-
Temperature Monitoring in Manufacturing: The terminal block is used in manufacturing systems that require accurate temperature control, such as in plastic molding, metalworking, and automotive manufacturing.
-
Automated Control Systems: The terminal block helps automate temperature measurements in a variety / industries, from metal smelting to electrical equipment production, providing the necessary data for control and monitoring.
Product Advantages
-
Compact Design: With dimensions / 50 x 120 x 150 mm and a weight / only 0.4 kg, the IS200STTCH2A is an efficient space-saving component, ideal for installations in cramped control panels or equipment racks.
-
High Precision: This terminal block is designed to handle thermocouple signals with high accuracy, making it suitable for temperature-sensitive processes where precision is critical.
-
Durability: Built to last, it is engineered to withstand challenging environmental conditions, with a wide operating temperature range / -40°C to +70°C and an IP20 rating for internal use.
-
Easy Installation: The DIN rail mounting feature allows for quick and easy installation in control cabinets and equipment, saving time and effort during setup.
-
Secure Connections: Equipped with Phoenix お問い合わせ screw terminals, the terminal block ensures secure and stable connections for the thermocouple wires, minimizing the risk / signal loss or interference.
-
Versatile Compatibility: The terminal block supports a wide range / thermocouple types, making it versatile for different temperature measurement applications in various industries.
-
Robust Signal 状態ing: It provides excellent signal conditioning for thermocouples, ensuring that temperature data is transmitted reliably to the control system for accurate monitoring and control.
よくある質問 (FAQs)
Q1: What is the input type / the GE IS200STTCH2A terminal block?
A1: The terminal block is designed for use with thermocouple inputs, making it suitable for applications requiring temperature monitoring.
Q2: What are the dimensions / the GE IS200STTCH2A?
A2: The terminal block has dimensions / 50 x 120 x 150 mm, making it compact and easy to install in confined spaces.
Q3: How much does the GE IS200STTCH2A weigh?
A3: The terminal block weighs only 0.4 kg, which is light and easy to handle during installation.
Q4: How is the GE IS200STTCH2A mounted?
A4: It is DIN rail mounted, allowing for secure installation in control cabinets or panels.
Q5: What is the operating temperature range / the GE IS200STTCH2A terminal block?
A5: The terminal block can operate in temperatures ranging from -40°C to +70°C, suitable for most industrial environments.
Q6: What is the power requirement for the GE IS200STTCH2A?
A6: The terminal block operates with 24 VDC, a standard power supply for industrial control systems.
Q7: What is the environmental protection rating / the GE IS200STTCH2A?
A7: The terminal block has an IP20 rating, /fering protection from dust and water ingress for internal use.
Q8: What type / connectors does the GE IS200STTCH2A use?
A8: The terminal block uses Phoenix お問い合わせ screw terminals for secure wiring connections.
Q9: What thermocouple temperature range does the GE IS200STTCH2A support?
A9: It supports thermocouple temperature measurements ranging from -200°C to +1370°C.
Q10: Can the GE IS200STTCH2A terminal block be used for industrial furnaces?
A10: Yes, the terminal block is ideal for applications in industrial furnaces and other high-temperature environments, providing accurate temperature data for process control.
Related モデルs
| モデル | 説明 | Input Type | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| IS200STTCH2B | DIN Rail Thermocouple Terminal Block (Dual Channel) | Thermocouple | 50 x 120 x 150 | 0.45 |
| IS200STTCH2C | DIN Rail Thermocouple Input Terminal Block | Thermocouple | 50 x 120 x 150 | 0.4 |
| IS200STTCH3A | Multi-Channel Thermocouple Input Terminal Block | Thermocouple | 60 x 130 x 160 | 0.5 |
| IS200STTCH3B | Thermocouple Signal 状態ing Block | Thermocouple | 55 x 125 x 145 | 0.46 |
| IS200STTCH4A | Advanced Thermocouple Input Terminal | Thermocouple | 70 x 140 x 170 | 0.55 |
| IS200STTCH5A | Thermocouple Terminal Block with Signal Conversion | Thermocouple | 50 x 120 x 150 | 0.47 |
