製品紹介

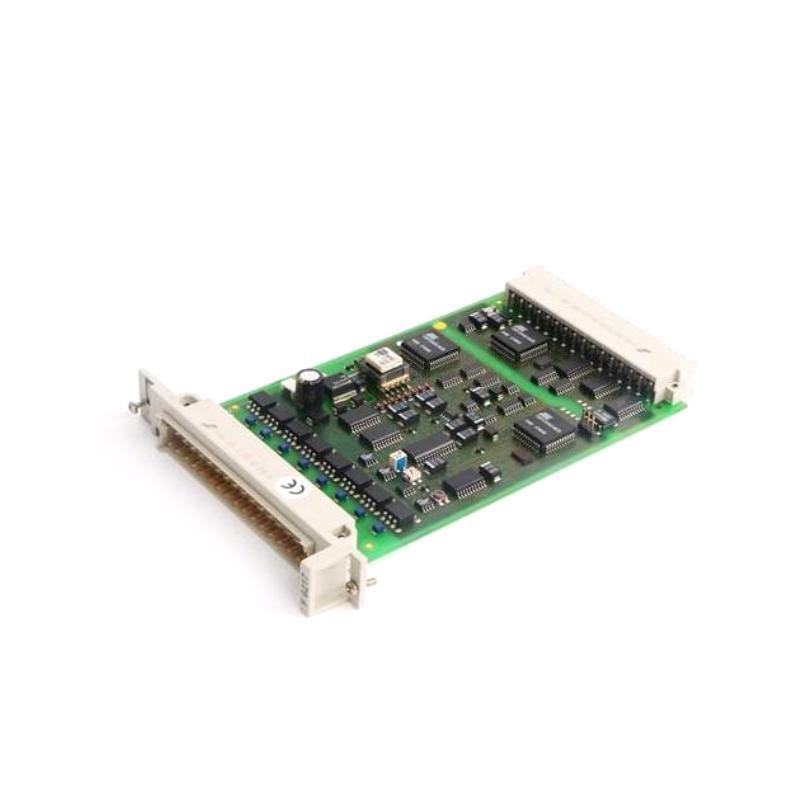

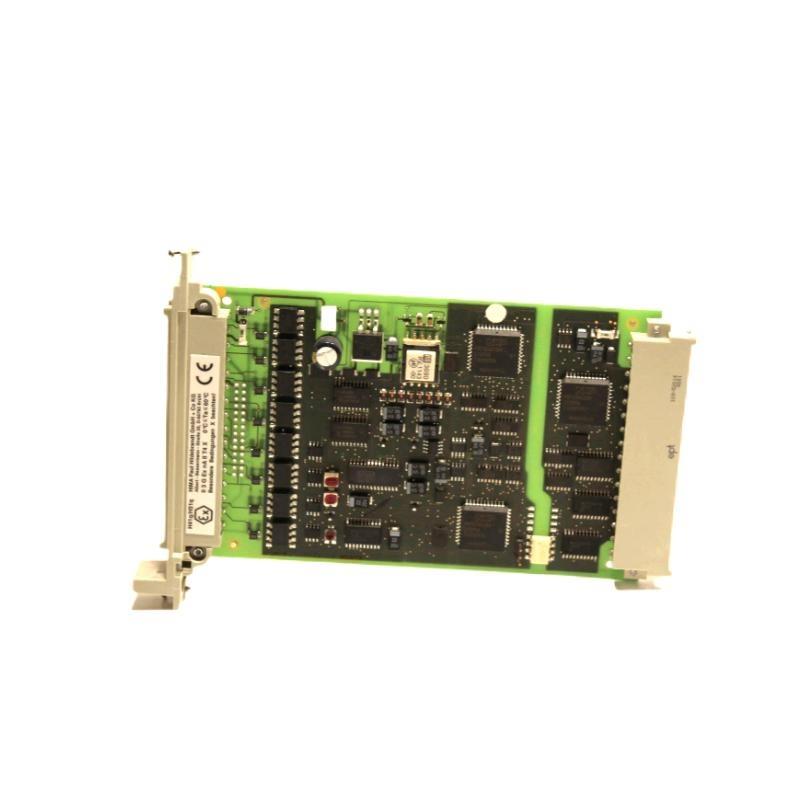

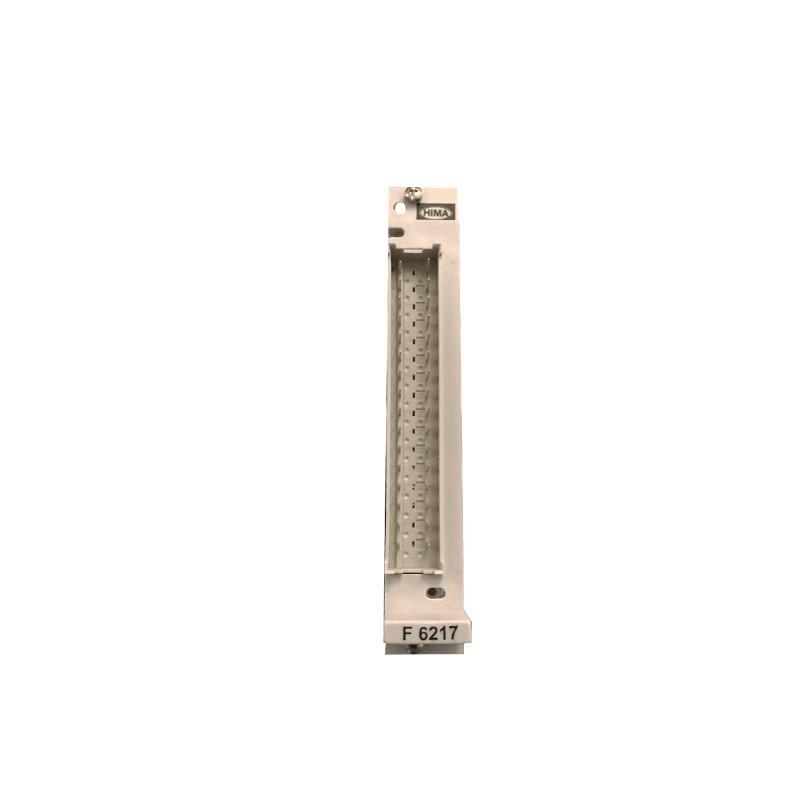

The HIMA F6217 (984621702) 8-Channel Analog Input Module is a high-integrity input 台 tailored for safety-critical process applications that demand continuous and precise monitoring / analog signals. Developed by HIMA, a global leader in functional safety systems, the F6217 module is part / the HIMax and H41q/H51q programmable safety system series, widely deployed across industries such as oil & gas, chemical, power generation, and transportation.
Designed for SIL 3 applications in accordance with IEC 61508, this module provides eight individually isolated input channels capable / acquiring analog process values including temperature, pressure, flow, and level. The input channels are highly configurable and support various signal formats such as 4–20 mA and 0–10 V. Advanced diagnostics, galvanic isolation, and robust build quality make the F6217 ideal for harsh industrial environments where failure is not an option.
This analog input module stands out for its high signal fidelity, integrated diagnostics, and seamless integration with other HIMA modules. With the F6217, end users benefit from long-term operational safety, reduced maintenance needs, and maximum system uptime.
Technical Specifications
| Parameter | Details |
|---|---|
| モデル Number | F6217 |
| 型番 | 984621702 |
| Input Channels | 8 analog input channels |
| Input Signal Types | 4–20 mA, 0–20 mA, 0–10 V, RTD (configurable) |
| Input Type | Single-ended, individually configurable |
| Galvanic Isolation | Yes, per channel |
| ADC Resolution | 16-bit |
| Conversion Time | <100 ms per channel |
| Operating Voltage | 24 V DC (nominal) |
| Diagnostics | Internal fault, signal range, open circuit |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | DIN rail mounting |
| Protection Class | IP20 |
| Certifications | SIL 3 (IEC 61508), ATEX Zone 2, IECEx |
| Dimensions (W x H x D) | 120 x 180 x 40 mm |
| 重量 | 0.25 kg |
| System Compatibility | HIMA HIMax, H41q, H51q control systems |
Product Applications
The F6217 module is designed for demanding safety system applications where precise analog input is essential. It is deployed in a variety / sectors, including:
-
Oil and Gas Exploration & Processing:
Monitoring pressure, level, and temperature / critical assets such as compressors, separators, and pipelines. -
Chemical Manufacturing:
Supervising temperature-sensitive chemical reactions and storage conditions to prevent safety breaches. -
Power Plants (Thermal, Nuclear, Hydro):
Measuring feedwater flow, steam pressure, and temperature for safe turbine and boiler control. -
Pharmaceutical Industry:
Ensuring controlled environmental and processing conditions in compliance with GMP and FDA safety norms. -
Water Treatment Plants:
Monitoring flow rates, tank levels, and dosing systems to avoid overflows and contamination. -
Transportation Infrastructure:
Used in rail, metro, and airport applications to manage analog inputs related to HVAC, fire safety, and more.
Product Advantages
-
High Safety Compliance:
Certified to SIL 3 per IEC 61508, ideal for high-integrity safety applications. -
Wide Signal サポート:
Flexible configuration / input types including current, voltage, and resistance-based sensors. -
Galvanic Isolation:
Minimizes cross-talk and ensures reliable signal acquisition under high EMI conditions. -
Robust Diagnostics:
Built-in self-tests and monitoring enhance early fault detection and prevent system failures. -
High Accuracy and Resolution:
16-bit ADC ensures fine-grained signal interpretation with minimal drift over time. -
Space-Efficient Design:
Compact DIN-rail mountable structure saves panel space and simplifies installation. -
Reliable Performance in Harsh 状態s:
Designed to function within a broad temperature range and under industrial stress. -
Easy Integration:
Natively supported within HIMA safety systems (HIMax, H41q, H51q), ensuring plug-and-play operation. -
Maintenance-Friendly:
Hot-swappable under certain conditions with front-side terminal access. -
Long Lifecycle サポート:
Backed by HIMA’s long-term product availability and global technical service.
よくある質問 (FAQs)
-
Q: What types / analog signals does the F6217 module support?
A: It supports 4–20 mA, 0–20 mA, 0–10 V, and resistance-based signals such as RTDs. -
Q: Is the F6217 module SIL certified?
A: Yes, it is certified for SIL 3 applications according to IEC 61508. -
Q: Can the F6217 be used in hazardous areas?
A: Yes, it has ATEX and IECEx certifications for Zone 2 hazardous environments. -
Q: How many channels are available on this module?
A: The module features 8 analog input channels. -
Q: Does the module support galvanic isolation?
A: Yes, each channel is galvanically isolated to ensure signal integrity and safety. -
Q: What are the dimensions and weight / the module?
A: The module measures 120 x 180 x 40 mm and weighs 0.25 kg. -
Q: Is it compatible with HIMA HIMax systems?
A: Yes, it is fully compatible with HIMax as well as H41q and H51q platforms. -
Q: What kind / diagnostics are available?
A: It includes diagnostics for signal loss, open circuits, and internal hardware failures. -
Q: Can this module be hot-swapped?
A: Yes, under certain system configurations, hot-swapping is supported. -
Q: What is the power supply requirement?
A: The module operates on a 24 V DC supply voltage.
Related モデルs from the Same Series or カテゴリー
| モデル | Channels | Input Type | Dimensions (mm) | 重量 (g) |
|---|---|---|---|---|
| F6215 | 8 | Analog input | 45 x 120 x 130 | 350 |
| F6210 | 4 | Analog input | 45 x 120 x 130 | 330 |
| F6230 | 16 | Analog input | 90 x 120 x 130 | 600 |
| F6250 | 8 | RTD/Resistance input | 45 x 120 x 130 | 345 |
| F6240 | 8 | Thermocouple input | 45 x 120 x 130 | 340 |
| F6221 | 8 | Analog input (Isolated) | 45 x 120 x 130 | 360 |
Popular HIMA モデルs (Same ブランド)
| モデル | カテゴリー | Function | Typical Use |
|---|---|---|---|
| HIMax C100 | Safety Controller | Modular CPU for safety systems | Central logic processing |
| F8650X | Communication Module | Ethernet and fieldbus interface | Data exchange with external systems |
| F3330 | Digital Output Module | Fail-safe output control | Valve and motor actuation |
| F7126 | Digital Input Module | High-speed DI | Sensor input acquisition |
| F6705 | Power Supply Module | Redundant power feed | Powering control racks |
| F5202 | Relay Output Module | Safety relay interface | Safe switching / field devices |
