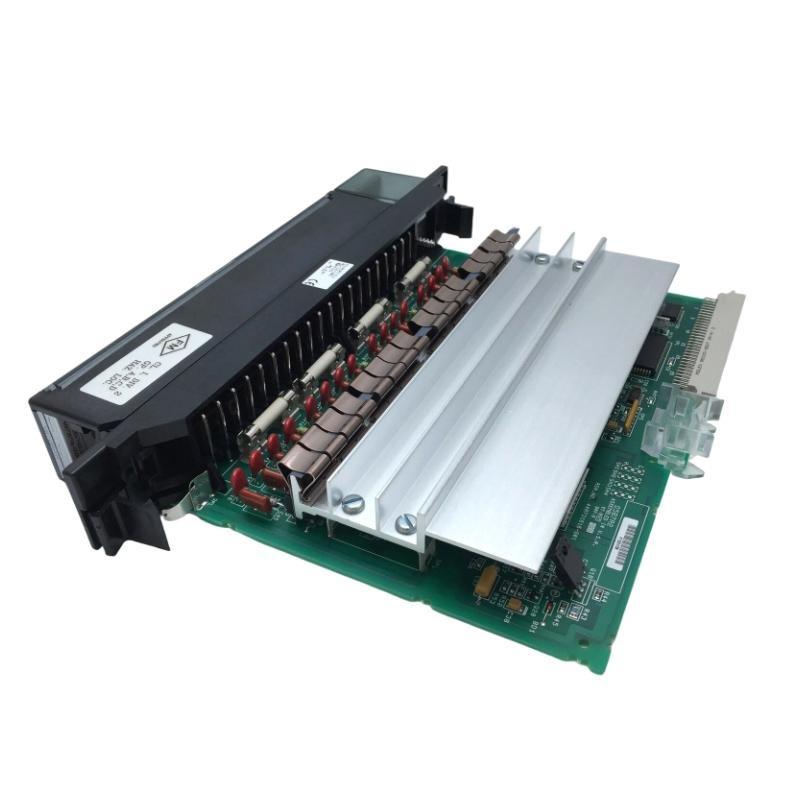

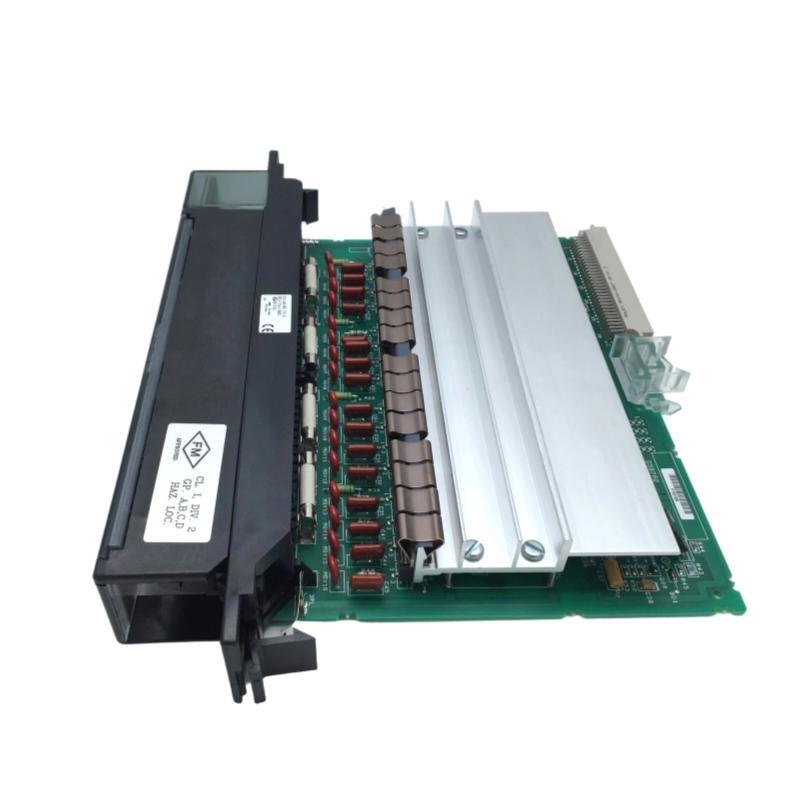

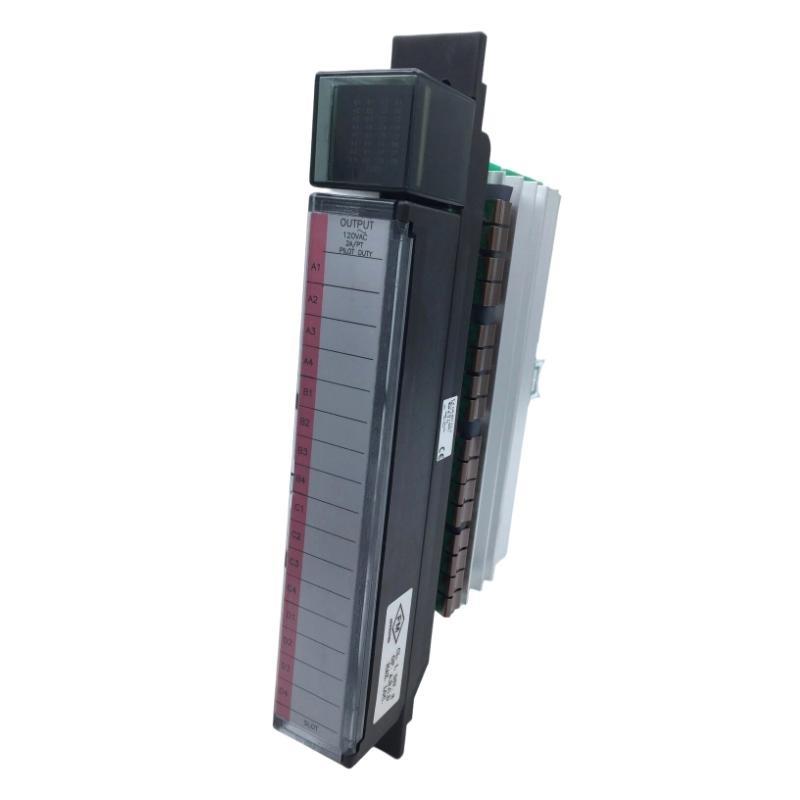

The GE IC697MDL252 Discrete Input Module is a high-quality digital input interface designed for use within the GE Fanuc Series 90-70 PLC system. This module provides 16 discrete input points, configured into four isolated groups / four points each, ensuring electrical separation for noise imm台y and signal integrity. It is specifically engineered to detect and process 48 VDC logic signals from field devices such as limit switches, proximity sensors, pushbuttons, and relay contacts.
Built for industrial-grade performance, the IC697MDL252 combines precise input filtering, rugged isolation, and reliable data transfer between field devices and the control processor. Its compact single-slot design allows easy installation and maintenance within Series 90-70 racks, making it ideal for automation environments that demand dependable signal acquisition and safety.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | IC697MDL252 |
| Product Type | Discrete Input Module |
| Series | GE Fanuc Series 90-70 |
| Number / Input Points | 16 |
| Input Group Configuration | 4 isolated groups / 4 points each |
| Nominal Input Voltage | 48 VDC |
| Input Voltage Range | 38 VDC to 56 VDC |
| Logic “1” Threshold | ≥ 33 VDC |
| Logic “0” Threshold | ≤ 10 VDC |
| Input Current (per point) | 7 mA (typical at 48 VDC) |
| Input Response Time | 2.5 ms (typical) |
| Input Isolation | 1500 V group-to-group and group-to-ground |
| Power Consumption | 0.7 W (typical) |
| Backplane Current | 65 mA at 5 VDC |
| Indicators | 16 LED indicators for input status |
| Mounting Type | Single-slot rack mount |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Vibration | 5–500 Hz, 1 G |
| Shock | 10 G for 11 ms duration |
| Dimensions (L×W×H) | 200 × 45 × 145 mm |
| 重量 | 1.36 kg |
Product Applications
The GE IC697MDL252 is utilized in industrial control and automation systems that require reliable detection / DC-level digital input signals. It interfaces with various field devices to monitor system status and process conditions, making it suitable for diverse control applications.
Common Application Areas Include:
-
Process Control Systems: Signal acquisition from DC-powered limit switches and relays.
-
Factory Automation: Status monitoring for sensors, actuators, and machine interlocks.
-
Material Handling: Control / conveyors, sorters, and packaging equipment.
-
Power Generation: Input monitoring from circuit breakers, switches, and relays.
-
Building and Facility Automation: Detection / door status, alarms, and HVAC system signals.
-
Transportation and Infrastructure: Integration / input data from signaling and control systems.
Product Advantages
-
High Voltage Compatibility: Optimized for 48 VDC industrial control systems.
-
Superior Signal Isolation: Four isolated input groups enhance electrical separation and system protection.
-
Noise Imm台y: 優良 resistance to electromagnetic interference and voltage transients.
-
Compact Design: Occupies a single slot, maximizing rack space efficiency.
-
Clear Status Indication: Each input channel includes an LED indicator for quick diagnostics.
-
Stable and Fast Response: Reliable 2.5 ms input response time for accurate signal capture.
-
Durable Construction: Built to operate in harsh industrial conditions with shock and vibration resistance.
-
Energy Efficient: Low power draw reduces system power demand.
-
Easy Maintenance: Simple front-panel diagnostics and modular replacement reduce downtime.
-
Wide Application Range: Suitable for both discrete process control and automation signal interfaces.
FAQ
-
What is the main purpose / the IC697MDL252 module?
It converts 48 VDC digital input signals from field devices into logic-level signals readable by the PLC’s CPU. -
How many input points are provided on this module?
The module has 16 discrete input points divided into four isolated groups / four. -
Why are the inputs grouped into isolated sections?
This design provides electrical isolation, protecting the PLC from faults or noise interference between circuits. -
What is the nominal input voltage rating for this model?
The IC697MDL252 is rated for 48 VDC nominal input voltage, with an operating range between 38 and 56 VDC. -
How does the module display input signal status?
Each input point is associated with a dedicated LED indicator on the front panel for real-time monitoring. -
Can this module be mixed with other types / I/O modules?
Yes, it can be installed alongside analog or output modules in the same Series 90-70 rack. -
Does the module provide input filtering?
Yes, it includes built-in input filtering to prevent transient noise and false signal detection. -
What is the typical response time / the input channels?
Each input has a typical ON/OFF response time / approximately 2.5 milliseconds. -
Is the IC697MDL252 compatible with redundant CPU configurations?
Yes, it supports integration into Series 90-70 systems using redundant CPUs for fault-tolerant applications. -
What type / field devices can be connected to this module?
It can be connected to DC-powered field devices such as pushbuttons, switches, limit sensors, and relay contacts.
Related モデルs (Same Series)
| モデル Number | 説明 |
|---|---|
| IC697MDL240 | 120 VAC Input Module, 16 points |
| IC697MDL241 | 24 VDC Positive Logic Input Module |
| IC697MDL250 | 24 VDC Isolated Input Module |
| IC697MDL251 | 24 VDC Input Module with group isolation |
| IC697MDL253 | 5 VDC Logic-Level Input Module |
| IC697MDL654 | 32-Point DC Input Module, High Density |
Popular モデルs from GE Fanuc Series 90-70
| モデル Number | 説明 |
|---|---|
| IC697CPU782 | Central Processor ユニット, 12K I/O, floating-point capability |
| IC697CPX772 | High-performance 32-bit CPU Module |
| IC697CPU789 | Enhanced CPU with large memory and fast scan rate |
| IC697GDC701 | DSP Co-Processor for advanced control tasks |
| IC697ALG230 | 8-Channel Analog Input Module |
| IC697MDL740 | 24 VDC Output Module, 16 points |
