製品紹介

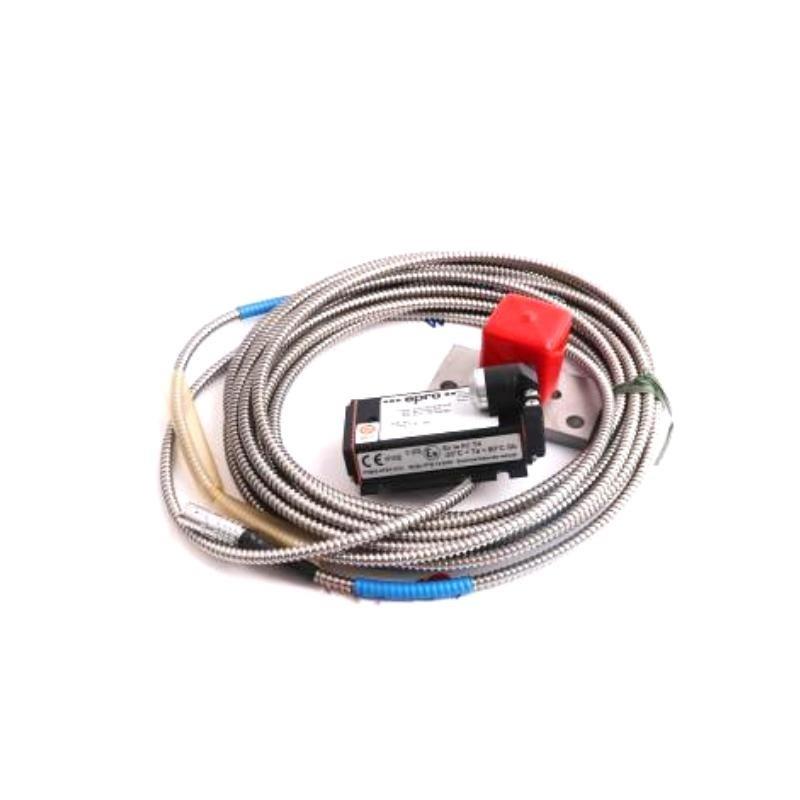

The Epro PR6424/104-121 16mm Eddy Current Sensor is a high-performance non-contact displacement sensor designed for precise measurements in various industrial applications. This sensor utilizes the eddy current principle, where an electromagnetic field interacts with the surface / a conductive target, enabling accurate measurement / displacement without the need for physical contact. It is ideal for high-speed dynamic applications, providing real-time data on small displacements and position changes in a wide range / industries.
The PR6424/104-121 sensor is highly valued in industries requiring precision, reliability, and durability. The compact design and robust construction make it perfect for integration into machinery, automation systems, and testing setups, ensuring continuous monitoring and improved performance in challenging environments. With its high-frequency capabilities, it excels in rotating machinery and vibration monitoring applications, making it indispensable in advanced industrial systems.
製品仕様
| Parameter | Details |
|---|---|
| モデル Number | PR6424/104-121 |
| Sensor Type | Eddy Current Sensor |
| Measurement Principle | Eddy Current |
| Sensor Head Diameter | 16 mm |
| 重量 | 0.2 kg |
| Measuring Range | 0 to 5 mm |
| Output Signal | 4-20mA, 0-10V |
| Frequency Range | Up to 50 kHz |
| Operating Temperature | -20°C to +85°C |
| Supply Voltage | 15-30V DC |
| Accuracy | ±0.1% / full scale |
| Resolution | 0.001 mm |
| Environmental Rating | IP67 (dust and water-resistant) |
Product Applications
The Epro PR6424/104-121 16mm Eddy Current Sensor is widely used in various applications that require accurate, non-contact displacement measurement. The following are some / the key applications:
-
Rotating Machinery Monitoring: This sensor is perfect for measuring displacement in rotating machinery such as motors, turbines, and pumps. It detects wear, misalignment, and vibration, helping to avoid unexpected failures by allowing for early maintenance intervention.
-
Vibration and 状態 Monitoring: Used in vibration monitoring systems, it provides real-time data on the health / machines, allowing operators to detect imbalances or misalignments before they lead to costly breakdowns.
-
Position and Displacement Measurement: This sensor is used in various automation systems for precise position measurement in industrial robots, conveyors, and assembly lines. It ensures accurate positioning for critical components.
-
Testing and Material Evaluation: The sensor is used in research and testing to measure minute displacements in materials under stress, providing data essential for material testing and quality control.
-
Automation and Manufacturing: In manufacturing environments, this sensor is crucial for ensuring accurate assembly and alignment / parts during production, especially in high-speed processes.
-
Machine Health Monitoring: Integrated into condition monitoring systems, the sensor helps provide early warnings / potential mechanical issues, reducing downtime and increasing overall system efficiency.
Product Advantages
-
Non-お問い合わせ Measurement: The PR6424/104-121 sensor provides non-contact displacement measurements, eliminating physical wear and tear on both the sensor and the target. This is especially useful in high-speed applications or harsh environments.
-
High Precision and Accuracy: With an accuracy / ±0.1% and 0.001 mm resolution, this sensor /fers precise and reliable measurements for applications requiring high sensitivity.
-
Wide Frequency Range: The sensor operates at frequencies up to 50 kHz, allowing it to capture high-speed displacements in dynamic systems, making it perfect for monitoring rotating machinery and vibration.
-
Compact and Robust Design: With a 16mm sensor head, the sensor is compact enough to be used in confined spaces, yet durable enough to handle demanding industrial environments. Its IP67 rating ensures protection against dust and water, making it suitable for rugged conditions.
-
Wide Operating Temperature Range: The sensor can operate in temperatures ranging from -20°C to +85°C, making it suitable for use in a wide range / industrial and environmental conditions.
-
Flexible Output Options: The 4-20mA and 0-10V output options allow the sensor to be easily integrated with a variety / control systems and data acquisition setups, providing flexibility for different applications.
-
Durability: The sensor is designed to withstand harsh environmental factors, ensuring long-lasting performance even in challenging conditions.
FAQ
Q1: How does the Epro PR6424/104-121 Eddy Current Sensor work?
It operates using the eddy current principle. The sensor generates an electromagnetic field that induces currents in the conductive target. Displacement / the target causes changes in the impedance, which is then measured by the sensor to determine position or displacement.
Q2: What is the measurement range / the PR6424/104-121 sensor?
The sensor can measure displacements in the range / 0 to 5 mm, providing high precision over this distance.
Q3: What output signals does this sensor provide?
The Epro PR6424/104-121 sensor /fers both 4-20mA and 0-10V output signals, allowing it to be integrated with a variety / systems for different measurement and monitoring needs.
Q4: What is the frequency response / this sensor?
The sensor operates up to 50 kHz, which makes it ideal for high-speed displacement measurements and dynamic applications such as vibration monitoring.
Q5: What is the accuracy / the PR6424/104-121 sensor?
The Epro PR6424/104-121 sensor /fers an accuracy / ±0.1% / full scale, ensuring reliable and precise measurements.
Q6: Is this sensor suitable for use in high-vibration environments?
Yes, the sensor is ideal for use in high-vibration environments. Its non-contact measurement eliminates wear and tear, making it suitable for rotating machinery and vibration monitoring.
Q7: Can the PR6424/104-121 sensor be used outdoors?
Yes, with its IP67 rating, the sensor is dustpro/ and water-resistant, making it suitable for outdoor or harsh industrial environments.
Q8: What is the resolution / the PR6424/104-121 sensor?
The sensor provides a high resolution / 0.001 mm, making it capable / measuring minute changes in displacement with great precision.
Q9: What is the operating temperature range / the sensor?
The sensor operates in a temperature range / -20°C to +85°C, which ensures reliable performance in various environmental conditions.
Q10: What is the required power supply for the PR6424/104-121 sensor?
The sensor requires a 15-30V DC power supply, which is common for industrial sensors / this type.
Recommended Related モデルs
| モデル | 説明 |
|---|---|
| PR6424/104-122 | Similar model with a larger measurement range (up to 10 mm). |
| PR6424/104-123 | Higher frequency version for dynamic applications (up to 100 kHz). |
| PR6424/104-124 | Compact version with a smaller sensor head for tighter installations. |
| PR6424/104-125 | Designed for high-temperature environments (up to 100°C). |
| PR6424/104-126 | Pressure-resistant model for use in high-pressure environments. |
| PR6424/104-127 | Aerospace-grade sensor with enhanced sensitivity and accuracy. |
Popular Epro モデルs
| モデル | 説明 |
|---|---|
| PR6423/104-100 | High-precision sensor for monitoring rotating machinery. |
| PR6420/104-150 | Compact displacement sensor for automated systems. |
| PR6416/100-250 | Sensor for linear displacement in industrial testing. |
| PR6400/200-300 | Versatile displacement sensor for general industrial applications. |
| PR6500/100-150 | Durable sensor for use in high-vibration and extreme conditions. |
| PR6300/200-250 | Sensor for research with high-precision measurements in laboratory setups. |
