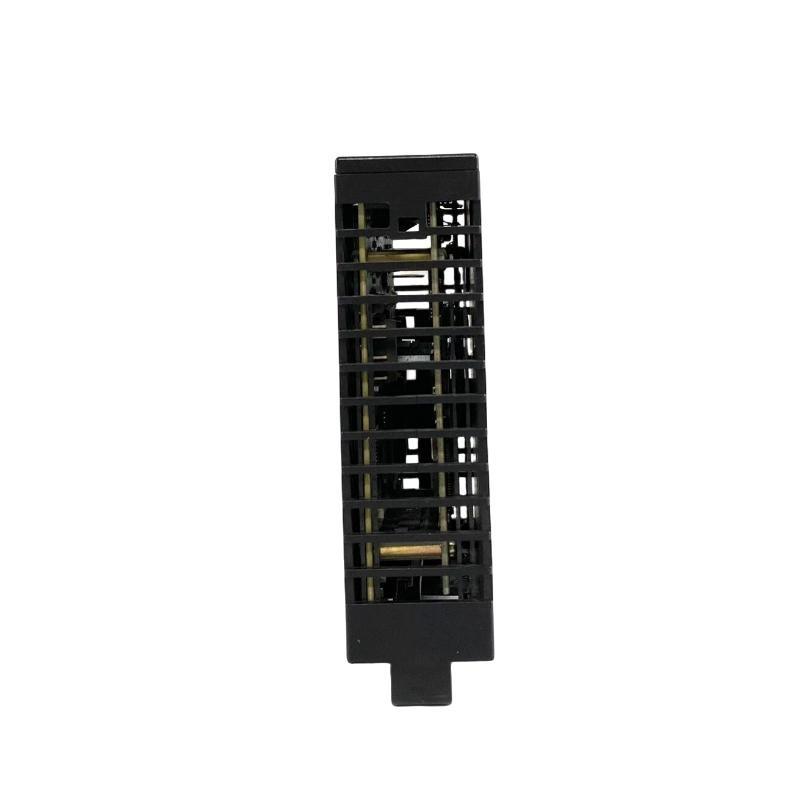

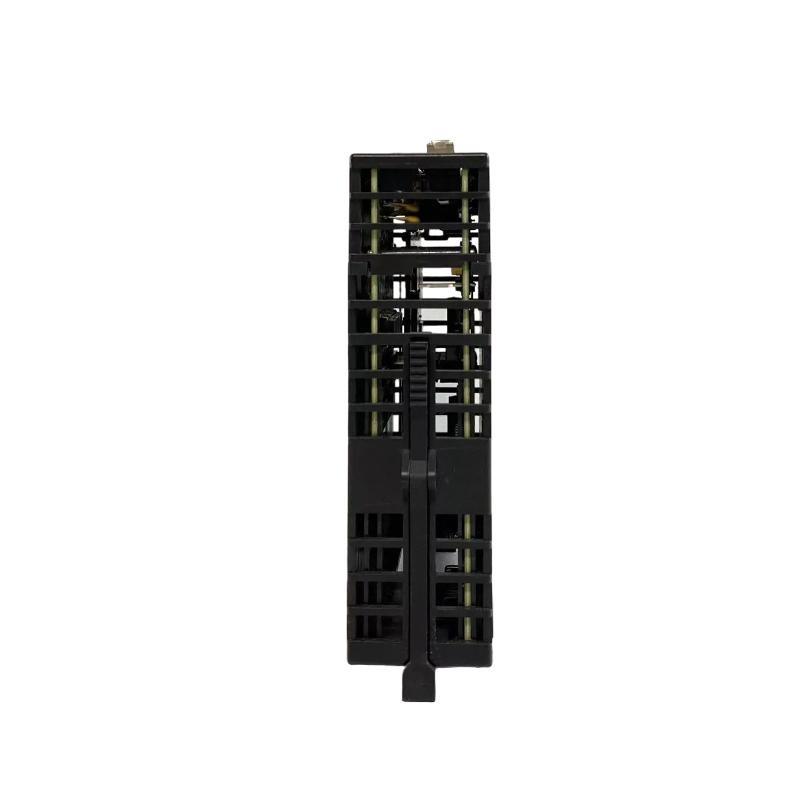

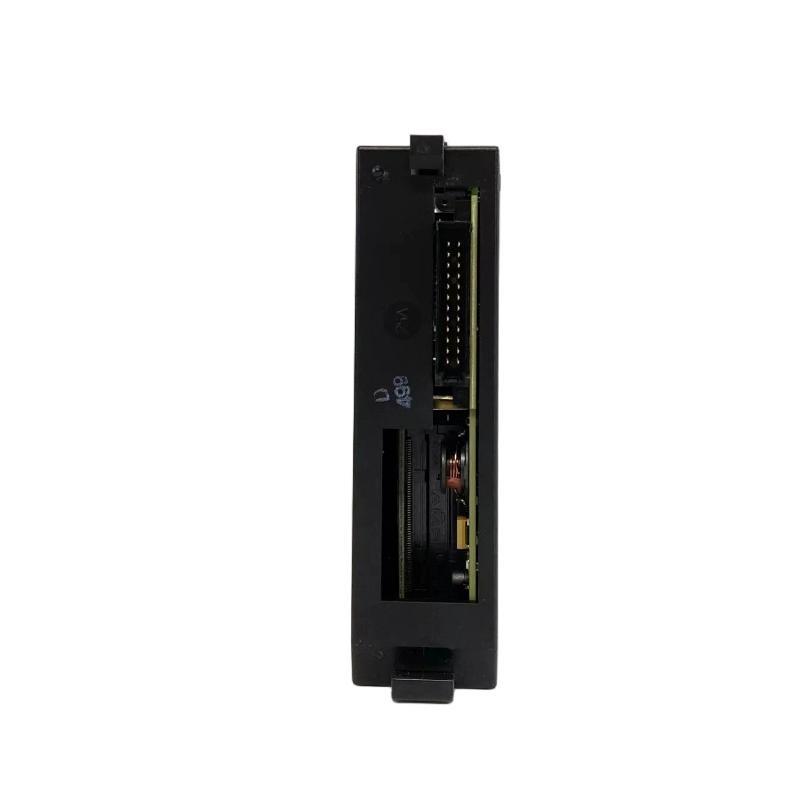

GE IC693DSM324 Axis Motion Control Module

製品紹介

The GE IC693DSM324 Four-Axis Motion Control Module is a robust and advanced motion control solution designed to handle complex, multi-axis motion control applications. This module is part / the GE Fanuc Series 90-30 PLC system, /fering high-performance, real-time motion control for automation tasks requiring four independent axes / motion.

The IC693DSM324 allows precise coordination / multiple servo motors and provides advanced control features such as linear and circular interpolation, speed and torque control, and trajectory planning. It is capable / managing various motion pr/iles, from simple point-to-point movements to intricate synchronized operations involving multiple axes. By /fering a dedicated motion control solution, the IC693DSM324 simplifies system integration and provides an excellent platform for precise and scalable motion control.

This module is ideally suited for industries that require high-speed, synchronized motion, such as robotics, CNC machinery, automated assembly, packaging, and material handling systems. It provides significant flexibility in configuring motion control systems, ensuring seamless integration with existing systems, and high precision in execution.

製品仕様

Applications

The GE IC693DSM324 Four-Axis Motion Control Module is suitable for a broad range / industrial applications that require high-precision, synchronized motion control across multiple axes. Some / its key applications include:

• Robotics: For controlling multiple robotic arms in automation systems, performing tasks like pick-and-place, assembly, or welding.

• CNC Machines: Used in milling, turning, and multi-axis machining for fine-tuned movements across multiple axes.

• Automated Assembly Lines: Enables precise movements for product assembly, ensuring high-speed and high-quality production.

• Material Handling Systems: Used in conveyors, sorters, and palletizing systems where multiple axes need to work in harmony.

• Packaging Machines: Controls movements for packaging systems, such as bottling and labeling, ensuring consistent and fast operation.

• Textile Machinery: Synchronizes the movements / different components in fabric production or textile printing systems.

• Semiconductor Manufacturing: For positioning and controlling equipment involved in the production and assembly / semiconductor devices.

Advantages

• Precise Multi-Axis Control: Can control up to four independent servo axes, making it ideal for complex, multi-axis motion control applications.

• Flexible Motion Pr/iles: サポートs linear, circular, trapezoidal, and S-curve motion pr/iles, which are ideal for a wide range / motion control needs.

• High-Speed Operation: With a maximum pulse frequency / 500 kHz per axis, this module is ideal for high-speed motion control applications.

• Real-Time Diagnostics: Provides LED indicators for axis status, errors, and communication, which helps in quickly identifying and troubleshooting issues.

• Ease / Integration: Seamlessly integrates into the GE Series 90-30 PLC systems, making it simple to add advanced motion control capabilities to existing setups.

• Compact and Durable Design: Built to fit into the GE Series 90-30 PLC rack with a compact size and high durability, suitable for tough industrial environments.

• Scalable System: By controlling up to four axes, the IC693DSM324 allows easy scalability for more complex motion control systems.

• S/tware Compatibility: Works with GE Pr/icy Machine Edition and VersaPro, allowing users to easily configure and program the system.

• Cost-Effective Solution: By integrating motion control directly into the PLC system, it eliminates the need for separate motion control systems or additional hardware.

• Energy Efficient: Consumes low power (0.35 A @ 5 V DC), making it an energy-efficient solution for industrial applications.

よくある質問 (FAQ)

1. How many axes can the IC693DSM324 control?
   The IC693DSM324 can control up to four independent axes / motion.

2. What types / motors are supported by this module?
   The module supports servo motors with pulse/direction control signals.

3. What feedback devices are compatible with the IC693DSM324?
   It supports incremental encoders and resolvers for feedback.

4. What motion pr/iles can be executed by this module?
   The module can execute linear, circular, trapezoidal, and S-curve motion pr/iles.

5. What is the maximum pulse frequency for each axis?
   The maximum pulse frequency is 500 kHz per axis.

6. Is the IC693DSM324 compatible with the GE Series 90-30 PLC system?
   Yes, it integrates directly into the GE Series 90-30 PLC system via the backplane bus.

7. Can I use this module for high-speed applications?
   Yes, with a pulse frequency / up to 500 kHz per axis, this module is suitable for high-speed motion control.

8. What diagnostic indicators are included with the IC693DSM324?
   The module has LED indicators for axis status, error states, and communication status.

9. What s/tware is used to configure the IC693DSM324?
   The module is configured using GE Pr/icy Machine Edition or VersaPro.

10. What are the power requirements for the IC693DSM324?
    The module requires 5 V DC from the backplane, with a current draw / 0.35 A.
