製品紹介

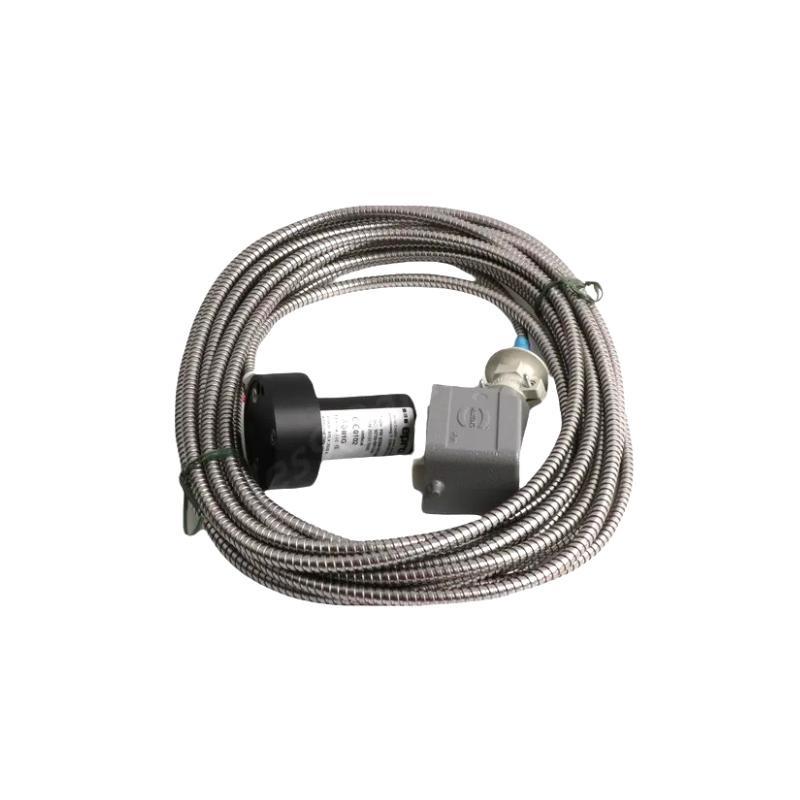

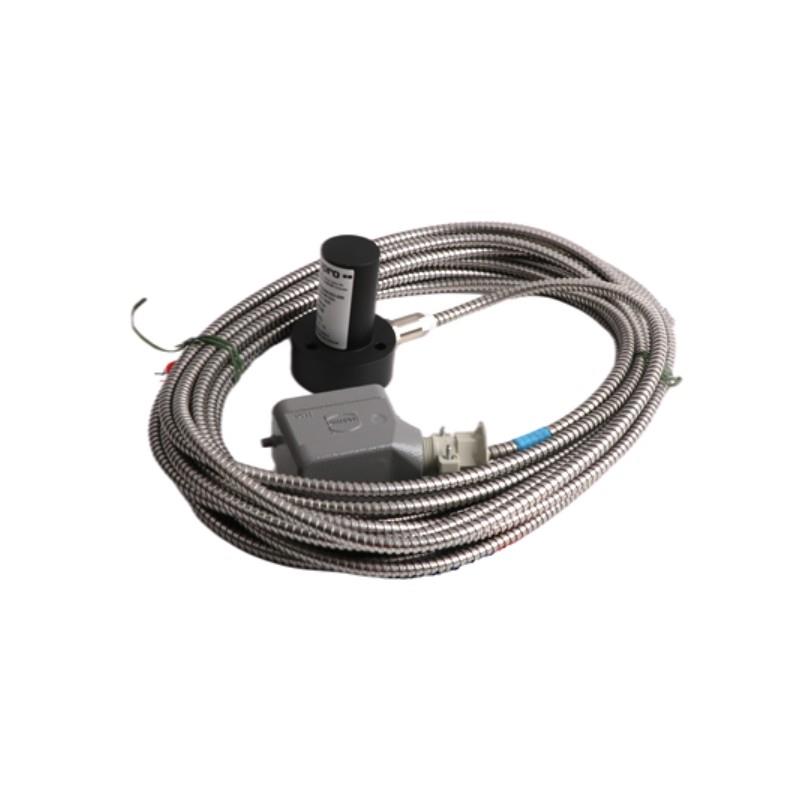

The Epro PR9268/617-100-N is a high-precision electrodynamic velocity sensor designed for monitoring the absolute vibration velocity / machine casings and structural components in industrial rotating equipment. Based on electrodynamic principle, this robust sensor transforms mechanical vibration into an electrical signal proportional to vibration velocity, /fering excellent linearity and wide frequency response.
As part / Epro’s trusted PR9268 series, the PR9268/617-100-N is ideal for use in condition monitoring, vibration protection systems, and predictive maintenance programs. It supports high-accuracy vibration measurement across a broad frequency spectrum, ensuring early detection / imbalance, misalignment, looseness, and other mechanical faults in turbines, compressors, pumps, motors, and fans.
With a compact, rugged construction and high imm台y to electromagnetic interference, the sensor is optimized for harsh industrial environments, including applications in power plants, petrochemical facilities, steel production, and /fshore platforms.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | PR9268/617-100-N |
| Product Type | Electrodynamic Velocity Sensor |
| Measurement Principle | Electrodynamic velocity sensing |
| Sensitivity | 20 mV/mm/s ±5% |
| Measurement Range | ±50 mm/s RMS (typical) |
| Frequency Response (±3 dB) | 10 Hz to 1000 Hz |
| Natural Frequency | 4.5 Hz (internal) |
| Linearity | ±1% / full scale |
| Transverse Sensitivity | <5% |
| Output Type | Dynamic voltage output (mV/mm/s) |
| Operating Voltage | Passive sensor, no power required |
| Load Resistance | ≥10 kΩ |
| Case Isolation | >100 MΩ |
| Connector Type | MIL-C-5015 or cable gland |
| Cable Length | Up to 100 meters |
| Operating Temperature Range | -30°C to +120°C |
| Storage Temperature Range | -40°C to +150°C |
| Vibration Limit | 500 m/s² peak |
| Shock Limit | 1000 m/s² |
| Environmental Protection | IP65 or higher |
| Housing Material | Stainless steel |
| Mounting Thread | M8 x 1.25 or custom |
| Dimensions (H x Ø) | 78 × 58 mm |
| 重量 | 1.05 kg |
| Compliance | CE, ATEX certified for hazardous areas |
Applications
The Epro PR9268/617-100-N velocity sensor is widely used in various industrial sectors, including:
-
Steam and Gas Turbines: Absolute casing vibration measurement.
-
Centrifugal and Reciprocating Compressors: Identifying structural looseness and imbalance.
-
Industrial Pumps: Monitoring casing vibration for early fault detection.
-
Electric Motors and Generators: Assessing mechanical health and performance.
-
Fans and Blowers: Vibration diagnostics for imbalance and misalignment.
-
Gearboxes: Detecting wear and mechanical degradation.
-
Steel Mills and Rolling Equipment: Continuous vibration monitoring under harsh conditions.
-
Offshore and Marine Platforms: Vibration measurement in extreme environments.
Advantages
-
High Sensitivity and Accuracy: 20 mV/mm/s output ensures precise velocity measurements.
-
Broad Frequency Response: Effective for both low and mid-frequency vibration monitoring.
-
Passive Operation: No external power required simplifies installation.
-
Compact, Rugged Design: Stainless steel housing suitable for harsh industrial environments.
-
ATEX Certified: Safe for use in hazardous and explosive areas.
-
優良 Signal Quality: High imm台y to electromagnetic interference (EMI).
-
Wide Operating Temperature Range: Reliable performance from -30°C to +120°C.
-
Flexible Mounting: Standard M8 thread or customized options available.
-
Versatile Applications: Suitable for diverse industries and machinery.
-
Low Maintenance: Proven reliability and long service life.
よくある質問 (FAQ)
-
What is the function / the PR9268/617-100-N sensor?
It measures absolute vibration velocity / machine casings and structural components. -
What is the typical sensitivity / this sensor?
20 mV/mm/s ±5%. -
Is this sensor active or passive?
It is a passive sensor—no external power is required. -
What is the usable frequency range?
10 Hz to 1000 Hz (±3 dB). -
Can it be used in hazardous environments?
Yes, it is ATEX certified and approved for use in hazardous areas. -
What are the typical applications?
Used in turbines, compressors, motors, pumps, fans, gearboxes, and more. -
What is the maximum operating temperature?
Up to +120°C in continuous operation. -
How is it typically installed?
Mounted via an M8 x 1.25 thread or customized mounting options. -
What is the typical output signal?
Dynamic voltage output in mV/mm/s. -
Does it require special signal conditioning?
Compatible with standard vibration monitoring systems and modules such as Epro MMS series or Bently Nevada monitors.
Related モデルs (Same Series / Related)
| モデル Number | Product Type | Key Features |
|---|---|---|
| PR9268/617-000-N | Velocity Sensor | Standard model, different mounting options |
| PR9268/617-050-N | Velocity Sensor | Medium sensitivity version |
| PR9268/617-200-N | Velocity Sensor | High sensitivity version |
| PR9268/617-400-N | Velocity Sensor | Extended temperature range |
| PR9268/617-800-N | Velocity Sensor | High EMI imm台y for heavy industrial |
| PR9268/627-100-N | Velocity Sensor with Integral Cable | Fixed cable version for harsh environments |
Popular Epro モデルs (Same ブランド)
| モデル Number | Product Type | Key Features |
|---|---|---|
| PR6423/010-010 | Proximity Probe | Precision shaft vibration measurement |
| PR6424/014-040 | High-Temperature Proximity Probe | For extreme temperatures |
| MMS 6140 | Relative Rotor Vibration Monitor | Advanced vibration monitoring |
| MMS 6120 | Absolute Bearing Vibration Monitor | Bearing vibration diagnostics |
| MMS 6210 | Speed Monitoring Module | Machine overspeed protection |
| CON021 | Universal Signal 状態er | For PR6422/PR6423/PR9268 sensors |
