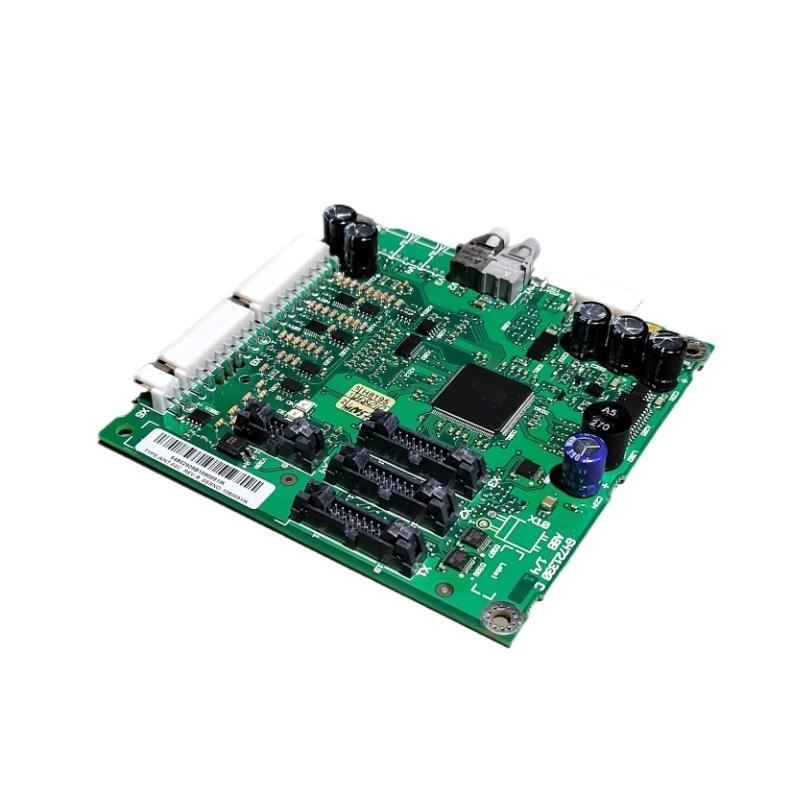

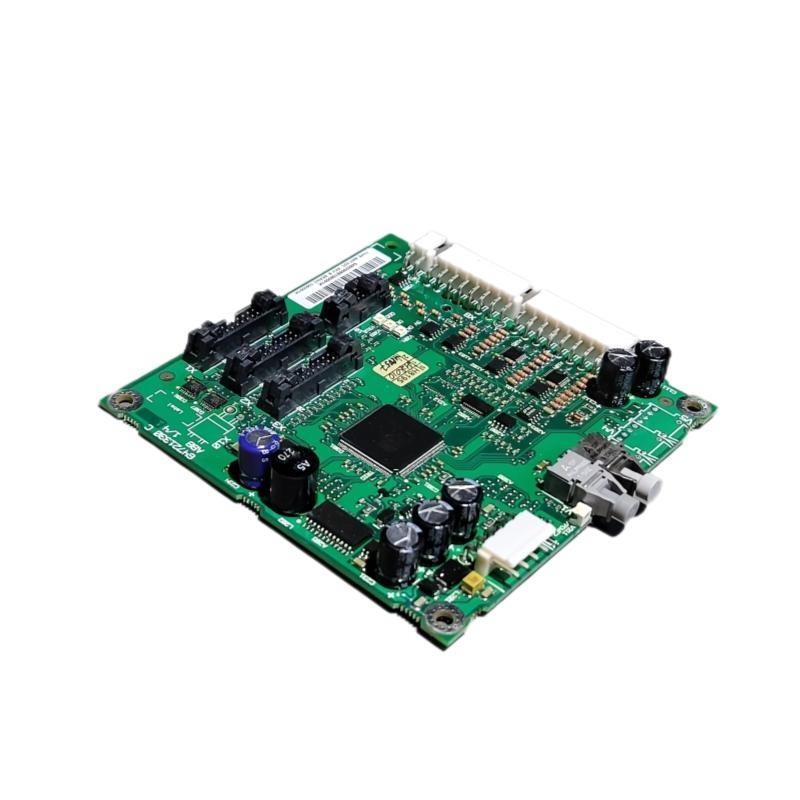

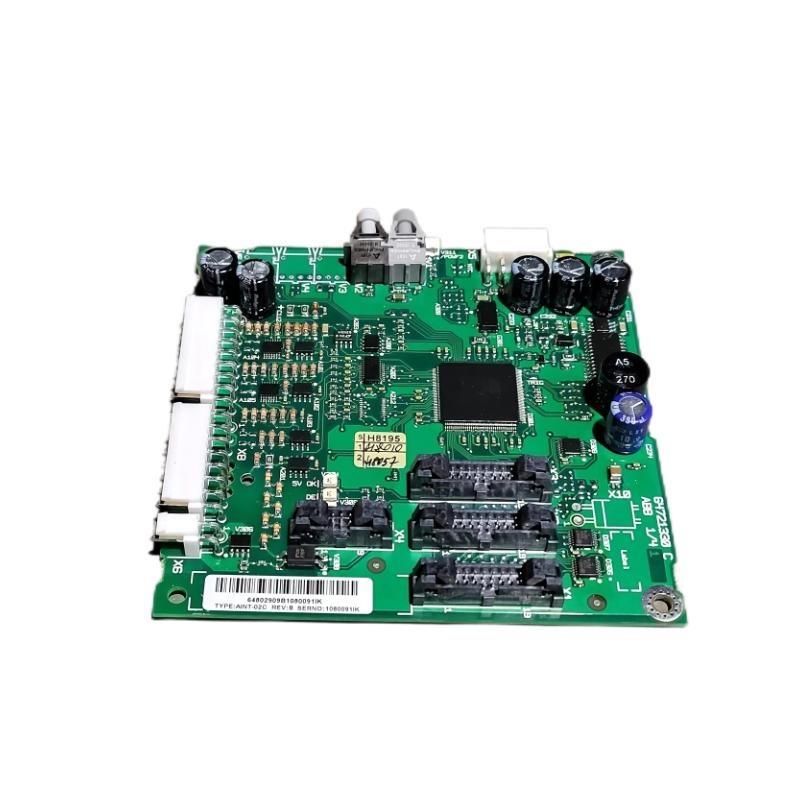

The ABB AINT-02C 68257867 SP Kit Main Interface is a crucial component within ABB’s automation systems, serving as the primary interface between the main control 台 and various subsystems. Designed for seamless integration, it ensures reliable communication and efficient operation across different modules, particularly within ABB’s inverter and drive systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | AINT-02C SP Kit Main Interface |
| 型番 | 68257867 |
| メーカー | ABB |
| Function | Main Circuit Interface Board |
| Compatibility | ABB Inverter Systems |
| Input Type | Analog (Current and Voltage) |
| Input Range | 0-20 mA, 4-20 mA, ±10 V |
| Resolution | 12 bits |
| Accuracy | ±0.1% / full scale |
| Input Impedance | 100 Ω (current), 1 MΩ (voltage) |
| Isolation | Channel-to-channel and to ground |
| Power Supply Voltage | 24 VDC (nominal) |
| Power Consumption | ≤ 10 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Mounting Type | DIN Rail or Panel Mount |
| Certifications | CE, UL, cUL |
| Dimensions (HxWxD) | 140 × 110 × 60 mm |
| 重量 | 0.1 kg |
Applications
The AINT-02C module is versatile and finds applications across various industries:
-
Power Generation: Integrates within turbine control and energy distribution systems.
-
Industrial Automation: Facilitates communication in manufacturing and processing plants.
-
Oil & Gas: サポートs control systems in exploration and refining operations.
-
Water Treatment: Manages processes in purification and distribution facilities.
-
Chemical Processing: Ensures accurate control in complex chemical production lines.
-
Pulp & Paper: Enhances automation in paper manufacturing processes.
Advantages
-
Seamless Integration: Designed specifically for ABB systems, ensuring compatibility and ease / installation.
-
High Precision: Offers accurate analog input readings with 12-bit resolution and ±0.1% accuracy.
-
Robust Design: Built to withstand industrial environments with wide temperature and humidity ranges.
-
Efficient Power Usage: Low power consumption contributes to energy savings.
-
Flexible Mounting: サポートs both DIN rail and panel mounting options for versatile installation.
-
Comprehensive Isolation: Ensures safety and signal integrity through channel-to-channel and ground isolation.
よくある質問 (FAQ)
-
What is the primary function / the AINT-02C module?
It serves as the main circuit interface board, facilitating communication between the control 台 and other modules within ABB inverter systems. -
Which ABB systems are compatible with the AINT-02C?
The module is designed for integration with ABB inverter systems, particularly within the ACS800 series. -
What types / signals does the AINT-02C handle?
It processes analog input signals, including current (0-20 mA, 4-20 mA) and voltage (±10 V). -
How accurate are the input readings / the AINT-02C?
The module /fers a resolution / 12 bits with an accuracy / ±0.1% / the full scale. -
What are the power requirements for the AINT-02C?
It operates on a 24 VDC nominal power supply with a consumption / ≤ 10 W. -
Can the AINT-02C be mounted in different ways?
Yes, it supports both DIN rail and panel mounting, providing flexibility in installation. -
Is the AINT-02C suitable for harsh environments?
Absolutely, it operates within a temperature range / -20°C to +60°C and can be stored between -40°C to +85°C, with humidity tolerance up to 95% RH non-condensing. -
Does the module provide isolation between channels?
Yes, it features channel-to-channel and channel-to-ground isolation to maintain signal integrity and safety. -
What certifications does the AINT-02C hold?
It is certified with CE, UL, and cUL standards, ensuring compliance with international safety and quality norms. -
Can the AINT-02C be hot-swapped during operation?
No, the AINT-02C is not designed for hot-swapping. Power must be removed from the drive system before removal or replacement to avoid damage to the board or risk to personnel.
