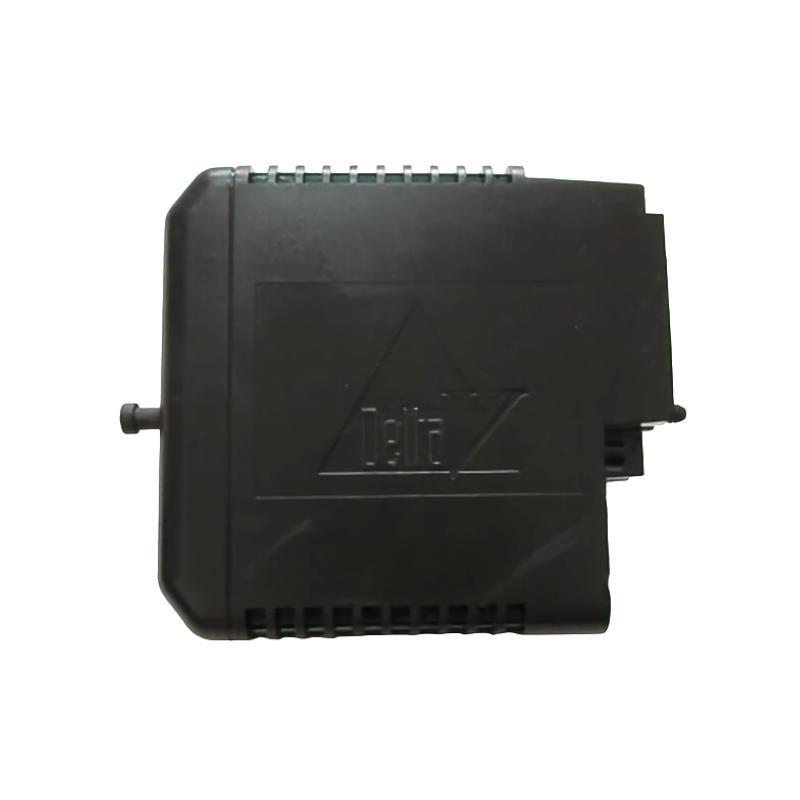

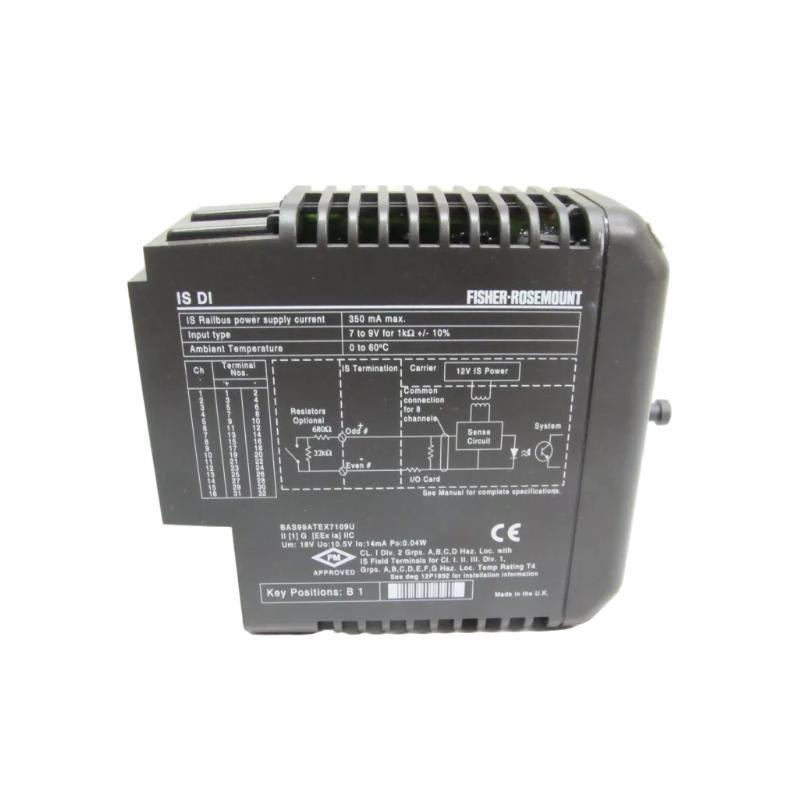

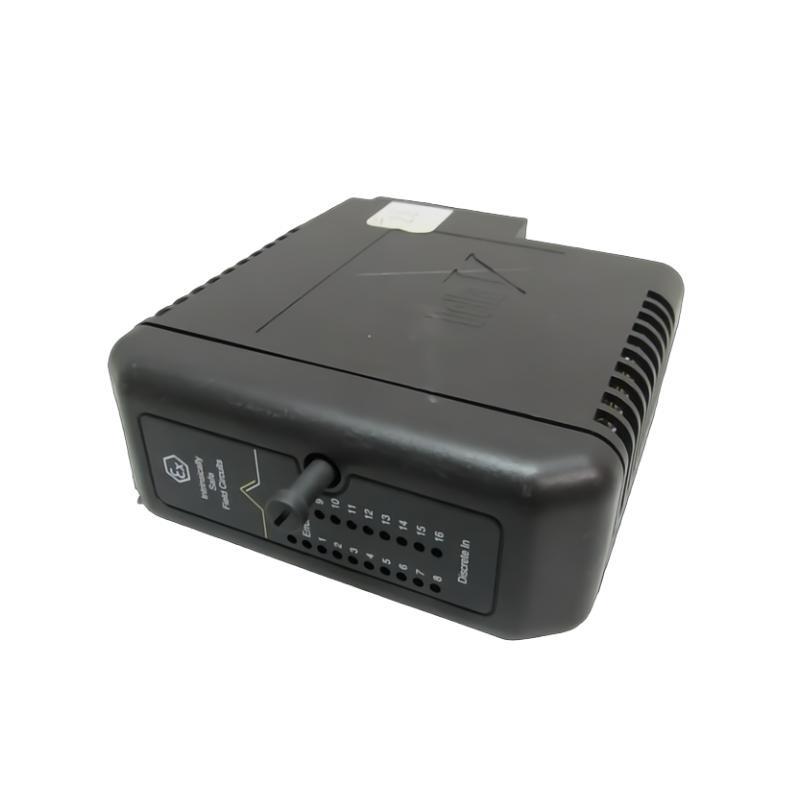

Emerson’s VE4010B1 KJ3101X1-BB1 12P1866X042 IS DI module is an intrinsically safe digital input module designed for integration with Emerson’s DeltaV and Ovation distributed control systems (DCS). This module is designed to acquire digital signals from field devices in hazardous environments, ensuring safe and reliable data acquisition that complies with intrinsic safety standards.
The VE4010B1 module features multiple input channels, providing high-density digital signal integration for a wide range / industrial applications. It is optimized for hazardous areas where explosion risks exist, such as oil and gas, petrochemical, and power generation facilities. Its rugged design /fers electrical isolation, high noise imm台y, and seamless communication with control systems, making it an ideal choice for mission-critical operations.
The KJ3101X1-BB1 supports fast input response times, ensuring that critical events and process changes are detected and transmitted accurately to the DCS. Its modular, rack-mounted construction simplifies installation, maintenance, and hot-swapping, reducing downtime and improving overall system availability.
製品仕様
| Parameter | Value |
|---|---|
| モデル | IS Digital Input Module |
| 型番 | VE4010B1 / KJ3101X1-BB1 (12P1866X042) |
| ブランド | Emerson |
| System Compatibility | Emerson DeltaV and Ovation DCS |
| Function | Captures intrinsically safe digital signals from field devices |
| Input Type | Dry contact or voltage-driven digital input |
| Number / Channels | Multiple (dependent on configuration) |
| Input Voltage Range | 12–24 VDC (typical) |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Response Time | Fast response for critical process applications |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% – 95% non-condensing |
| Power Supply | Provided via DCS backplane |
| Mounting Type | Rack-mounted module |
| Dimensions | 200 x 130 x 45 mm |
| 重量 | 0.7 kg |
| Safety Certification | Intrinsic Safety (IS) compliant |
| Compliance | CE, UL, RoHS, IEC industrial standards |
Applications
-
Hazardous Area Automation: Safely collects digital input signals from field devices in explosive environments.
-
Distributed Control Systems: Integrates with Emerson DeltaV and Ovation DCS for seamless digital signal processing.
-
Oil & Gas Industry: Provides reliable input acquisition for upstream and downstream control systems.
-
Chemical and Petrochemical Plants: Ensures safe signal handling in volatile process areas.
-
Power Generation: Monitors digital signals from turbine auxiliary systems and safety devices.
-
Industrial Safety Systems: Captures critical inputs for emergency shutdown and safety interlock systems.
Product Advantages
-
Intrinsic Safety: Fully compliant with IS standards for hazardous area installations.
-
Fast Response Time: Ensures timely detection / digital events for critical control applications.
-
High Noise Imm台y: Maintains signal integrity in electrically harsh industrial environments.
-
Robust Electrical Isolation: Protects the control system and field devices from electrical faults.
-
Seamless Integration: Fully compatible with Emerson DeltaV and Ovation platforms.
-
Hot-Swappable: Allows replacement without shutting down the system, minimizing downtime.
-
Compact Modular Design: 保存s cabinet space while providing high-density input channel integration.
FAQ
-
What is the primary function / the VE4010B1 KJ3101X1-BB1 IS DI Module?
It captures intrinsically safe digital signals from field devices in hazardous areas and transmits them to the DCS. -
Is this module compatible with Emerson’s DeltaV system?
Yes, it is fully compatible with DeltaV and Ovation distributed control systems. -
What types / digital inputs are supported?
It supports dry contacts and voltage-driven digital signals. -
Is this module Intrinsically Safe?
Yes, it is certified Intrinsically Safe (IS) for use in hazardous areas. -
How many channels does this module support?
Depending on the configuration, it supports multiple digital input channels. -
Does this module provide channel isolation?
Yes, it provides channel-to-channel isolation and channel-to-ground isolation for enhanced safety. -
Can it operate in an electrically noisy environment?
Yes, it has high noise imm台y and can operate stably under harsh industrial conditions. -
Is the VE4010B1 suitable for emergency shutdown systems?
Yes, it is designed for mission-critical safety and emergency shutdown applications. -
Is the module hot-swappable?
Yes, it can be replaced without shutting down the control system. -
What types / field devices can it connect to?
It can connect to digital sensors, switches, and other discrete input devices in hazardous areas.
Related models from the same series
| モデル | Function | Main Features |
|---|---|---|
| VE4011S1B1 KJ3102X1-BB1 | IS digital output module | Intrinsically safe digital outputs for hazardous areas |
| VE4003S2B1 KJ3002X1-BB1 | Analog output module | High-precision analog output control |
| VE4012S2B1 KJ3102X1-BA1 | Analog input modules | High-resolution analog signal acquisition |
| VE4006P2B1 KJ2201X1-BA1 | Power Module | Power distribution in stable IS circuits |
| VE4021S1B1 KJ3222X1-BA1 | Communication module | Intrinsically Safe Field Communications |
| VE4007P2B1 KJ2002X1-BA1 | IS power module | Dedicated power supply that complies with IS standards |
Popular Emerson モデルs
| モデル | Function | Main Features | Application Focus |
|---|---|---|---|
| KJ4001X1-CB1 12P0625X052 | Input/output terminal blocks | Stable analog/digital I/O wiring | DeltaV and Ovation DCS systems |
| KJ3003X1-EA1 12P0921X022 | Serial interface terminal block | RS-232/RS-485 serial communication | Field device and PLC integration |
| KJ3102X032 12P1863X032 | Analog input modules | High-precision analog acquisition | Process monitoring and control |
| KJ2002X1-BA1 | Power Module | Reliable DCS power distribution | DeltaV and Ovation Platforms |
| KJ4002X1-BA2 | Digital output terminal block | High reliability relay output wiring | Industrial Automation and Safety |
| KJ3222X1-BA1 | Ethernet communication module | High-speed network integration | DeltaV Control Network Infrastructure |
