Product Overview

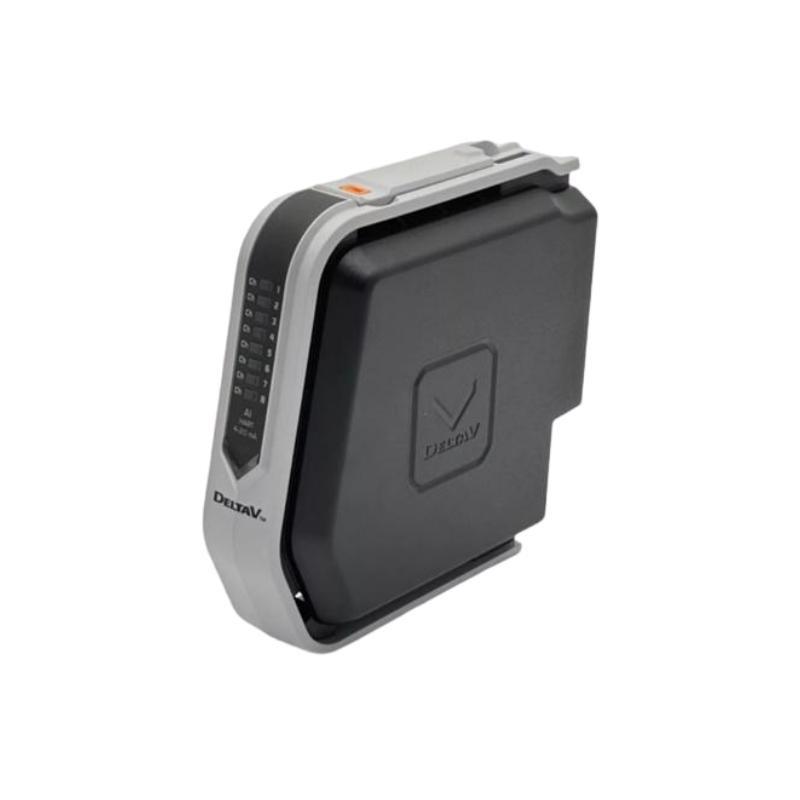

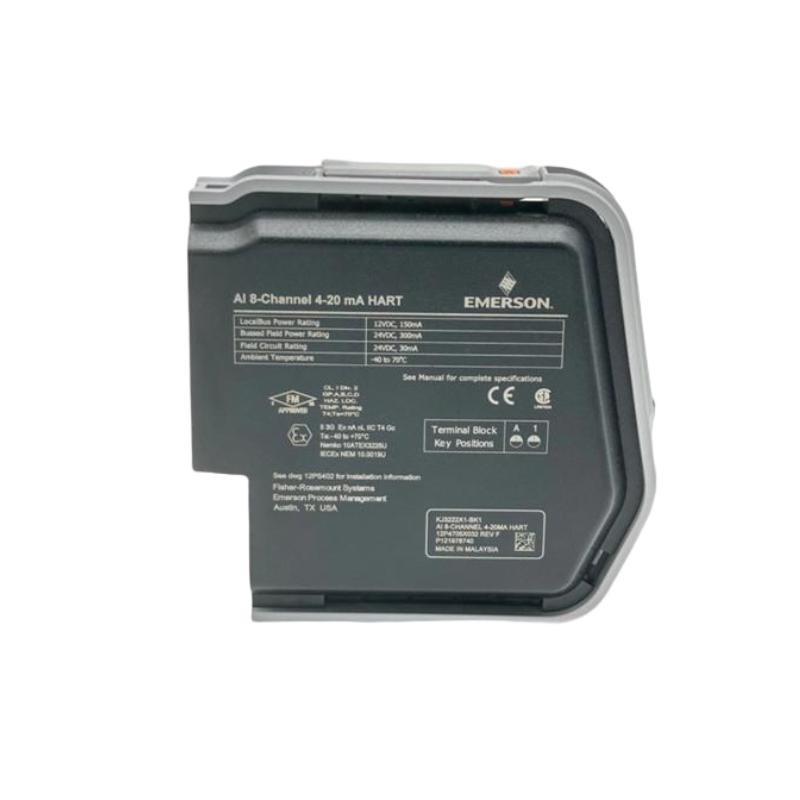

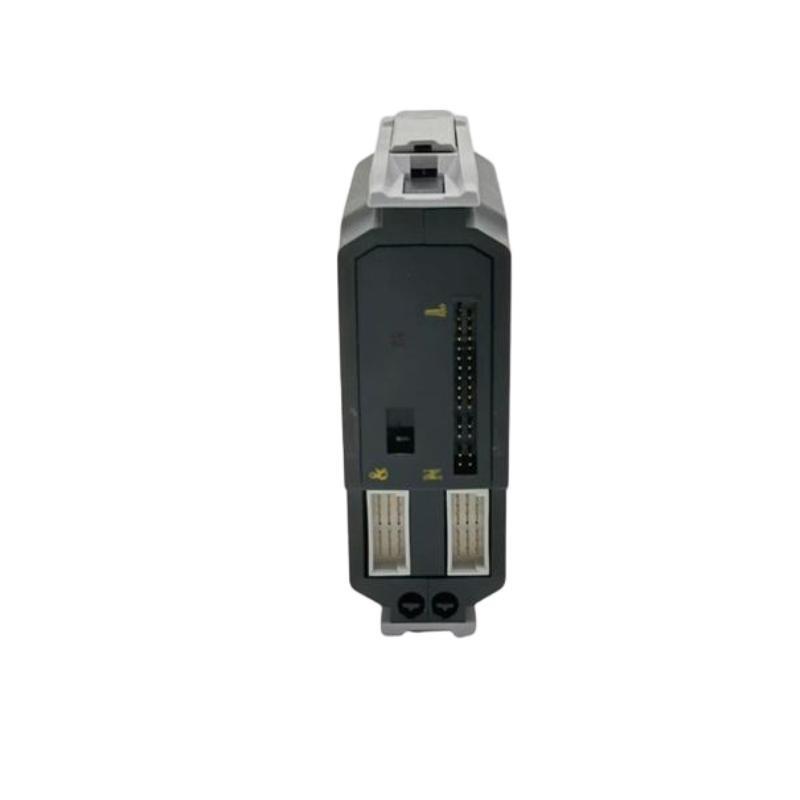

The Emerson SE4003S2B1 KJ3222X1-BK1 8-channel 4-20mA HART card is a state-/-the-art analog input module designed for industrial automation and process control applications. It /fers advanced functionality with support for both 4-20mA signals and the HART protocol, enabling efficient communication with HART-enabled field devices.
This module allows you to integrate and monitor up to 8 analog signals from sensors, transmitters, and other measuring instruments. Its flexibility makes it suitable for use in industries like oil and gas, chemical processing, power generation, and more. By combining high accuracy with easy-to-use communication features, this card is ideal for applications that require precise monitoring and control.
Technical Specifications
The Emerson SE4003S2B1 KJ3222X1-BK1 8-channel 4-20mA HART Card includes the following specifications:
| Specification | Details |
|---|---|
| モデル | SE4003S2B1 KJ3222X1-BK1 |
| Dimensions (L x W x H) | 102 x 114 x 46 mm |
| 重量 | 0.399 kg |
| Number / Channels | 8 Analog input channels |
| Input Signal Type | 4-20mA, HART communication enabled |
| Signal Type | Current (4-20mA) and digital communication (HART) |
| Power Supply | 24V DC |
| Input Impedance | 250Ω (4-20mA) |
| Accuracy | ±0.1% / full scale |
| Temperature Range | -20°C to +60°C |
| Signal 状態ing | Analog-to-digital conversion with HART support |
| Communication Protocol | HART, Modbus |
| Mounting | DIN rail mounting |
Product Applications
The Emerson SE4003S2B1 KJ3222X1-BK1 8-channel 4-20mA HART card is ideal for a wide variety / applications that require analog signal monitoring combined with HART communication:
-
Industrial Automation: For controlling and monitoring sensors such as temperature, pressure, flow, and level transmitters.
-
Oil and Gas: Integrated into upstream and downstream operations for real-time monitoring / various process parameters.
-
Power Generation: Used in power plants to control and monitor critical systems like turbines, boilers, and generators.
-
Chemical and Pharmaceutical: Ideal for real-time monitoring in production lines, ensuring that each stage / the process is closely controlled.
-
Water and Wastewater: For environmental monitoring and ensuring regulatory compliance in water treatment facilities.
-
HVAC Systems: Used in industrial HVAC systems for controlling and monitoring temperature and humidity levels.
Product Advantages
-
Versatile Signal Compatibility: サポートs both 4-20mA signals and HART protocol for comprehensive communication with field devices.
-
8 Analog Channels: The module can monitor up to 8 analog inputs simultaneously, making it suitable for complex systems.
-
High Accuracy: With an accuracy / ±0.1% / full scale, this module ensures precise and reliable measurements, even in critical applications.
-
Easy Integration: サポートs HART and Modbus communication protocols, ensuring seamless integration into existing control systems.
-
Temperature Resilience: The module operates reliably across a wide temperature range (-20°C to +60°C), making it suitable for harsh industrial environments.
-
DIN Rail Mountable: Its compact size and DIN rail mounting feature ensure easy installation in industrial control cabinets.
-
Reliable Signal Conversion: The module’s advanced signal conditioning ensures minimal signal degradation and high-quality output.
-
Cost-Effective: Offers an affordable and reliable solution for monitoring analog inputs and integrating HART communication.
FAQ
1. What types / signals can the SE4003S2B1 KJ3222X1-BK1 card handle?
This card supports both 4-20mA analog signals and HART communication, enabling it to work with a wide range / field devices.
2. How many input channels are available on the SE4003S2B1 KJ3222X1-BK1?
The card supports 8 analog input channels, allowing it to monitor multiple parameters simultaneously.
3. What is the power supply requirement for this module?
The SE4003S2B1 KJ3222X1-BK1 requires a 24V DC power supply.
4. What is the accuracy / this card?
This module /fers ±0.1% accuracy / full scale, ensuring high precision for critical applications.
5. What communication protocols does the module support?
The card supports HART and Modbus communication protocols for flexible integration into industrial systems.
6. Can the module be used in hazardous environments?
The module is designed for industrial use and should be evaluated for hazardous area applications based on the specific safety certifications required.
7. What is the temperature range for this card?
The SE4003S2B1 KJ3222X1-BK1 operates within a temperature range / -20°C to +60°C, making it suitable for a variety / industrial environments.
8. Can the card be mounted in a control panel?
Yes, the module is designed to be mounted on a DIN rail, making installation in control panels straightforward.
9. Does the module support digital communication?
Yes, the card supports HART communication, allowing for digital interaction with connected field devices.
10. How does this card improve signal quality in industrial systems?
The SE4003S2B1 KJ3222X1-BK1 features advanced analog-to-digital conversion and signal conditioning, ensuring high-quality data transmission with minimal signal degradation.
Related モデルs
| モデル Number | 説明 |
|---|---|
| SE4003S2B6 | High-density 16-channel analog input module |
| SE4002S2B5 | 8-channel analog input card with enhanced accuracy |
| SE4004S2T1B1 | High-performance analog input card with extended range |
| SE4005S2B3 | 16-channel analog input card for large systems |
| SE4001S2B1 | Compact analog input module for small applications |
| SE4003S2B4 | Enhanced analog input card with HART support |
Popular Emerson モデルs
| モデル Number | 説明 |
|---|---|
| KJ3221X1-BK1 | Analog input/output card for process systems |
| SE4006S1T2B2 | Modular I/O card for versatile applications |
| SE4004S2T2B1 | High-density input module for process automation |
| SE4003S2T1B5 | 12-channel analog input module with flexible configurations |
| SE4007S1T2B1 | Multi-purpose input/output card for industrial use |
| KJ3203X1-BK1 | Digital I/O card for high-performance control systems |
