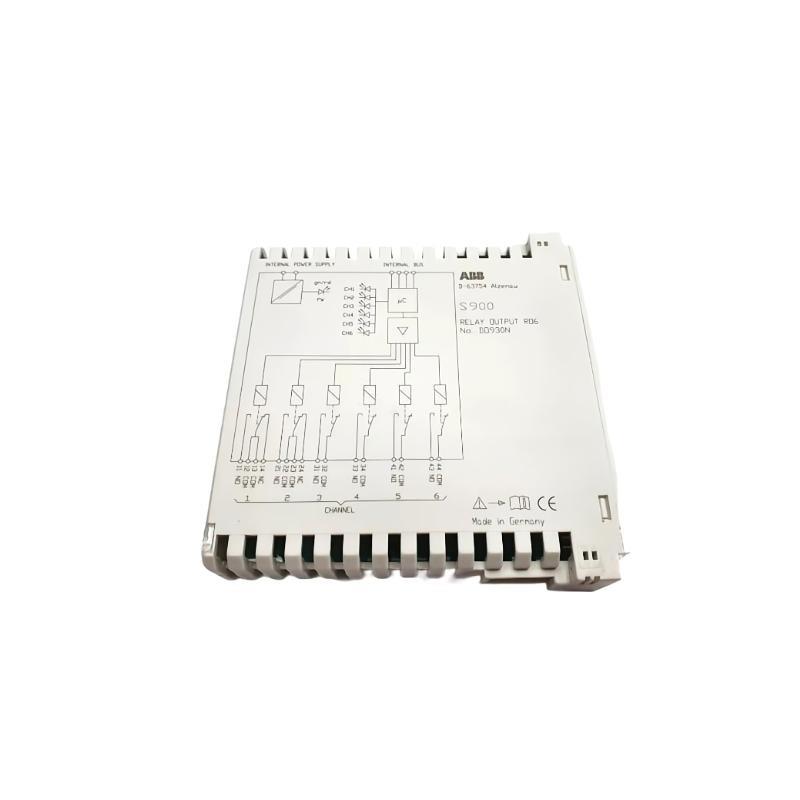

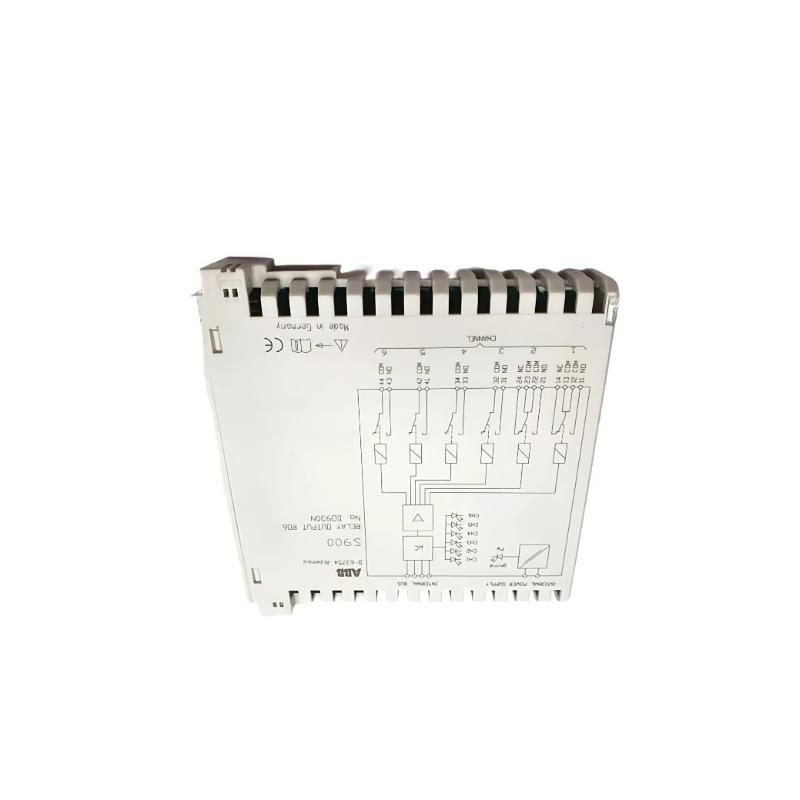

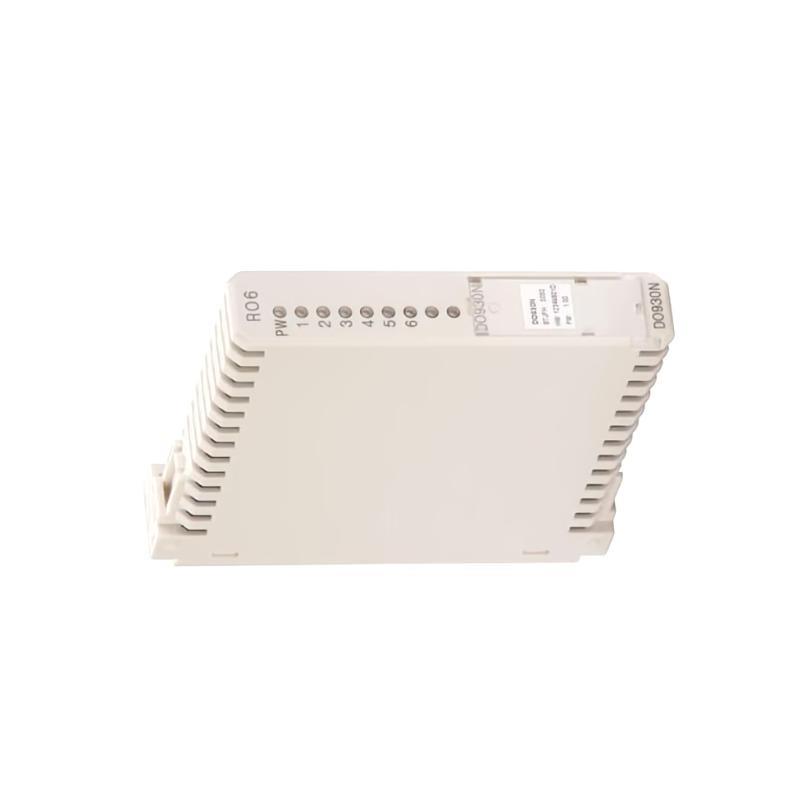

製品紹介
The ABB DO930 is a high-performance digital output module designed for industrial automation and process control applications. As part / ABB’s System 800xA, the DO930 module /fers reliable and efficient control / digital outputs, making it suitable for a wide range / industrial environments.
This module provides 32 digital output channels, each capable / handling 24 VDC signals with a maximum current / 0.5 A per channel. The outputs are grouped into two isolated groups / 16 channels, enhancing safety and reducing the risk / cross-channel interference. The DO930 is equipped with short-circuit protection and complies with RoHS standards, ensuring both safety and environmental compliance.
With its compact design and robust construction, the DO930 module is ideal for applications that require high-density digital output control, such as manufacturing lines, process industries, and other automation systems.
製品仕様
| Parameter | Details |
|---|---|
| モデル Number | DO930 |
| メーカー | ABB |
| Product Type | Digital Output Module |
| System Compatibility | ABB System 800xA |
| Number / Channels | 32 |
| Output Voltage | 24 VDC |
| Maximum Output Current | 0.5 A per channel |
| Isolation | Two groups / 16 channels, each group isolated |
| Short-Circuit Protection | Yes |
| Compliance | RoHS |
| Dimensions (H x W x D) | 20 × 104 × 104 mm |
| 重量 | 0.17 kg |
| Mounting Type | DIN Rail |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Certifications | CE, UL |
Applications
The ABB DO930 Digital Output Module is versatile and can be employed in various industrial applications, including:
-
Manufacturing Lines: Controlling actuators, solenoids, and other digital devices in assembly lines.
-
Process Industries: Managing digital outputs in chemical, pharmaceutical, and food processing plants.
-
Energy Sector: Operating control signals in power generation and distribution systems.
-
Water Treatment Facilities: Managing pumps, valves, and other equipment in water and wastewater treatment plants.
-
Building Automation: Controlling lighting, HVAC systems, and security devices.
-
Transportation Systems: Managing signaling and control systems in railways and other transportation infrastructures.
Advantages
-
High Channel Density: Offers 32 digital output channels, allowing for compact and efficient control solutions.
-
Robust Isolation: Two isolated groups / 16 channels each enhance safety and reduce interference.
-
Short-Circuit Protection: Built-in protection mechanisms prevent damage due to short circuits.
-
環境コンプライアンス: Meets RoHS standards, ensuring environmentally friendly operation.
-
Wide Operating Range: Suitable for various industrial environments with a broad temperature and humidity range.
-
Compact Design: Small footprint allows for easy integration into existing systems.
-
Reliable Performance: Designed for consistent and dependable operation in demanding applications.
-
Easy Integration: Seamlessly integrates with ABB’s System 800xA and other compatible systems.
FAQ – よくある質問
-
What is the primary function / the ABB DO930 module?
The DO930 is a digital output module used to control 32 digital outputs in industrial automation systems. -
What voltage and current specifications does each channel support?
Each channel supports 24 VDC with a maximum current / 0.5 A. -
How are the output channels organized?
The 32 channels are divided into two isolated groups / 16 channels each. -
Does the module have short-circuit protection?
Yes, the DO930 includes built-in short-circuit protection for each channel. -
What are the dimensions and weight / the DO930 module?
The module measures 20 × 104 × 104 mm, weighing 0.17 kg. -
What is the operating temperature range for the DO930?
The module operates within a temperature range / -25°C to +70°C. -
Is the DO930 compliant with environmental standards?
Yes, it complies with RoHS standards, ensuring environmentally friendly operation. -
Can the DO930 be used in hazardous environments?
The module is designed for standard industrial environments; for hazardous areas, consult ABB’s range / intrinsically safe modules. -
What mounting options are available for the DO930?
The module is designed for DIN rail mounting, facilitating easy installation. -
Is the DO930 compatible with other ABB systems?
Yes, it integrates seamlessly with ABB’s System 800xA and other compatible automation systems.
Related モデルs (Same Series or Functional Group)
| モデル | 説明 | Key Features | System Compatibility |
|---|---|---|---|
| DO810 | 16-channel 24VDC Digital Output Module | High-density outputs, compact design | System 800xA |
| DO820 | 16-channel 24VDC Digital Output Module | Enhanced diagnostics, robust performance | System 800xA |
| DO828 | 8-channel 24VDC Digital Output Module | High current capacity, MODBUS RTU interface | System 800xA |
| DO880 | Extended Digital Output Module, SIL3 Certified | High integrity, safety-critical applications | System 800xA |
| DO910 | 4-channel Digital Output Module | Compact size, suitable for small applications | S900 I/O |
| DO930N | Relay Output Module with 4 NO and 2 CO contacts | High switching power, configurable contacts | S900 I/O |
Popular ABB モデルs (Same ブランド)
| モデル | 説明 | Application | System Compatibility |
|---|---|---|---|
| AI810 | 8-channel 4-20mA Analog Input Module | Precise analog signal acquisition | System 800xA |
| AO810 | 8-channel 4-20mA Analog Output Module | Accurate analog signal output | System 800xA |
| DI810 | 16-channel 24VDC Digital Input Module | Reliable digital input processing | System 800xA |
| CI854A | PROFIBUS DP Communication Interface | Seamless communication with field devices | System 800xA |
| PM864 | AC 800M Controller | High-performance control applications | System 800xA |
| TU810V1 | Compact Termination ユニット | Simplified wiring and installation | System 800xA |
