製品紹介:

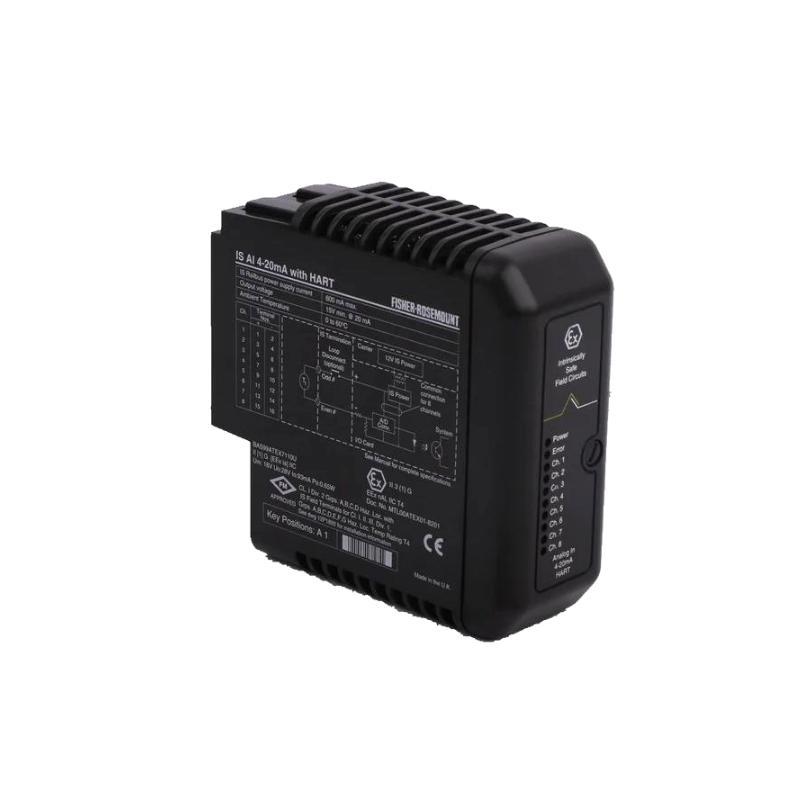

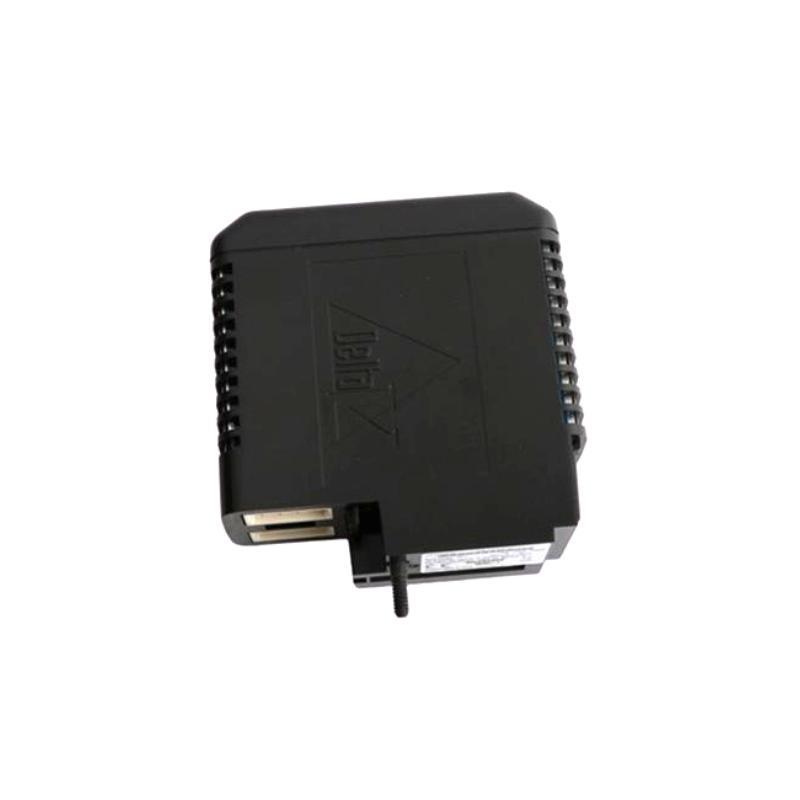

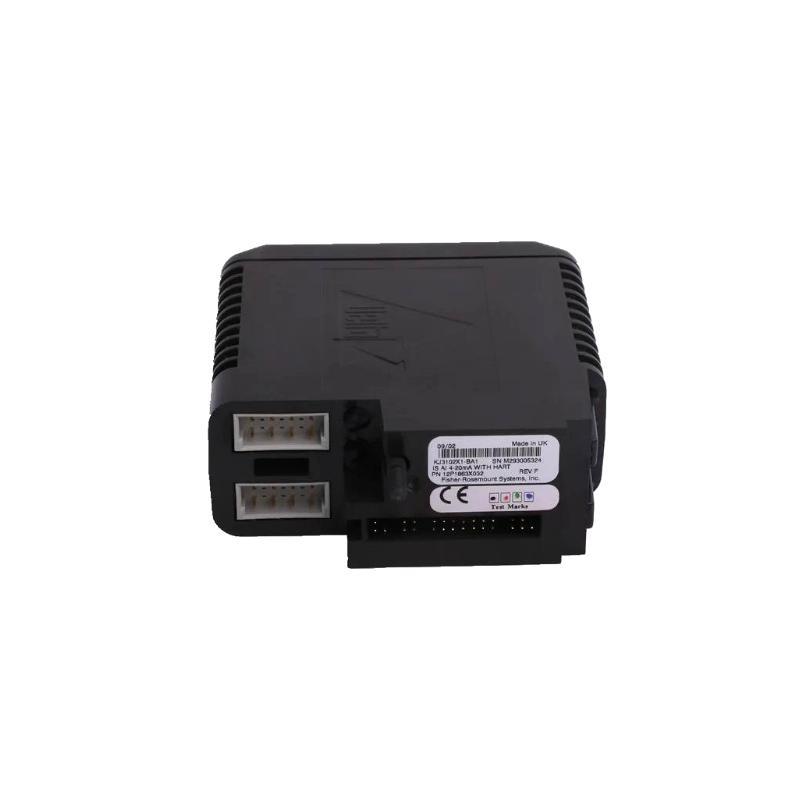

The Emerson KJ3102X1-BA1 Analog Input Module is a robust and high-performance component within Emerson’s DeltaV™ distributed control system (DCS). Specifically engineered to handle analog process signals, this module facilitates precise and reliable acquisition / current loop inputs, typically 4–20 mA, and also supports HART (Highway Addressable Remote Transducer) communication protocol for enhanced field device interaction.
製品仕様:
| Parameter | Details |
|---|---|
| Product Name | KJ3102X1-BA1 Analog Input Module |
| メーカー | Emerson |
| Product Type | Analog Input Module |
| Input Signal | 4–20 mA with HART communication |
| Number / Channels | 8 channels |
| Power Supply | 24 V DC |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 5% to 95% non-condensing |
| Shock Resistance | 10 g (11 ms, ½ sine wave) |
| Vibration Resistance | 1 mm peak-to-peak (2 to 13.2 Hz), 0.7 g (13.2 to 150 Hz) |
| Dimensions (L x W x H) | 44 × 102 × 108 mm |
| 重量 | 0.22 kg |
| Certifications | CE |
Applications:
The KJ3102X1-BA1 is well-suited for a variety / industrial applications, including:
-
Process Control: Monitoring and controlling analog signals in various industrial processes.
-
Data Acquisition: Collecting and processing data from sensors and field devices.
-
Industrial Automation: Integrating into automated systems for manufacturing and production.
-
Energy Management: Monitoring energy consumption and optimizing usage.
-
Environmental Monitoring: Measuring environmental parameters like temperature and humidity.
Product Advantages:
-
High Precision: Offers accurate analog signal processing for reliable measurements.
-
HART Communication: サポートs HART protocol for enhanced device communication.
-
Robust Design: Built to withstand harsh industrial environments.
-
Compact Size: Space-saving design suitable for various installations.
-
Easy Integration: Seamlessly integrates with Emerson’s DeltaV system.
よくある質問 (FAQ):
-
What is the primary function / the KJ3102X1-BA1?
It serves as an analog input module, processing 4–20 mA signals with HART communication for industrial automation systems. -
How many input channels does it support?
The module supports 8 analog input channels. -
What type / signals does it process?
It processes 4–20 mA analog signals and supports HART communication. -
What are the operating temperature limits?
The module operates within a temperature range / -40°C to +70°C. -
Is it compatible with the DeltaV system?
Yes, it is designed for seamless integration with Emerson’s DeltaV distributed control system. -
What are its dimensions and weight?
Dimensions are 44 × 102 × 108 mm, and it weighs 0.22 kg. -
What certifications does it have?
The module is CE certified. -
What is the power supply requirement?
It requires a 24 V DC power supply. -
Does it support HART communication?
Yes, it supports HART protocol for enhanced device communication. -
Can it be used in harsh industrial environments?
Yes, its robust design allows it to operate reliably in challenging industrial conditions.
Recommended Related モデルs:
| モデル | 説明 | Key Features |
|---|---|---|
| KJ3222X1-BA1 | Analog Input Module with HART support | 8 channels, 24 V DC, HART communication |
| KJ3225X1-BA1 | DeltaV Analog Input Module | 8 channels, supports RTDs and ohms-based sensors |
| KJ3221X1-BA1 | Analog Input Module for Industrial Control Systems | 16 channels, -10V to +10V input range |
| KJ3002X1-BA1 | Analog Input Module for DeltaV systems | 8 channels, 4–20 mA, HART compatibility |
| KJ3243X1-BA1 | Pr/ibus DP Control Module | サポートs Pr/ibus DP communication |
| KJ4001X1-BA2 | Digital Input Module | 16 channels, 24 V DC input |
Popular Emerson モデルs:
| モデル | 説明 | Application Area |
|---|---|---|
| M-series Controllers | High-performance controllers for DeltaV systems | Advanced industrial automation |
| Ovation Controllers | Controllers for power and water industries | Power generation and water treatment |
| AMS Device Manager | Asset management s/tware | Predictive maintenance and asset optimization |
| CSI 6500 Machinery Health Monitor | Vibration monitoring system | Machinery protection and condition monitoring |
| ROC800-Series Remote Operations Controller | Remote monitoring and control | Oil and gas field automation |
| DeltaV SIS | Safety Instrumented System for DeltaV | Process safety and emergency shutdown systems |
