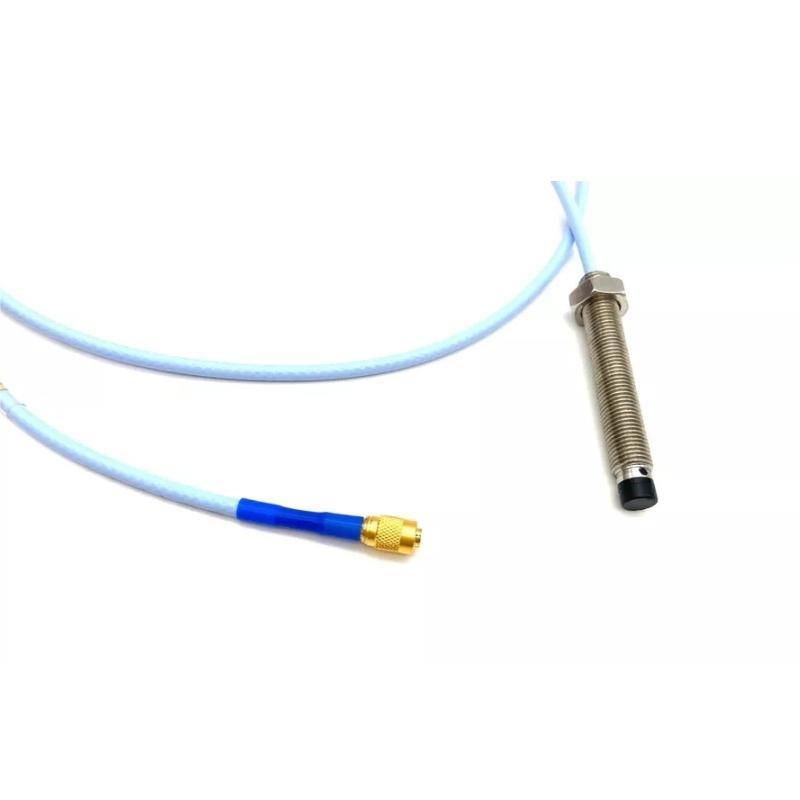

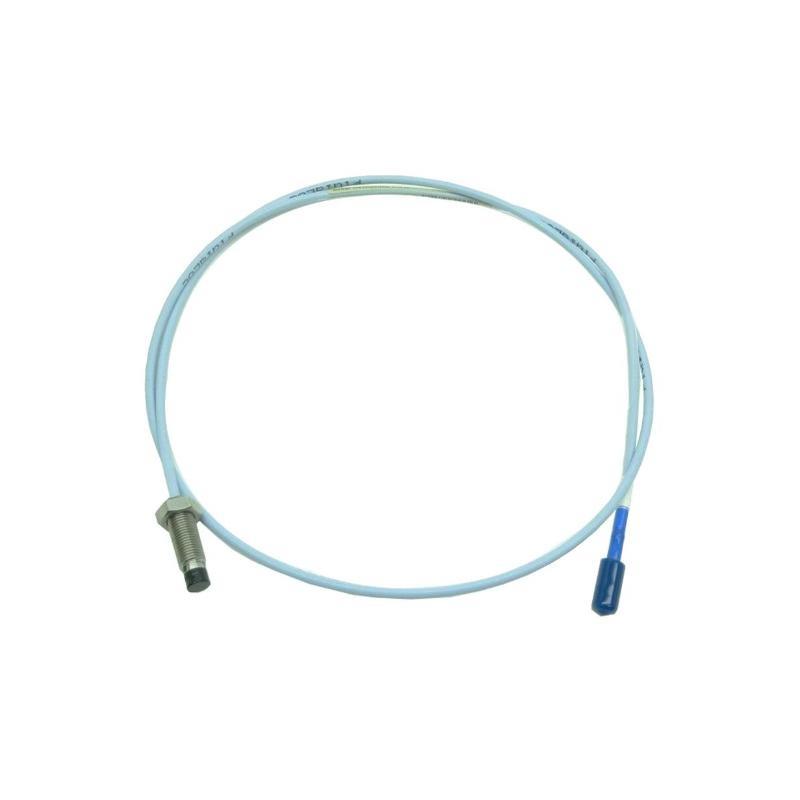

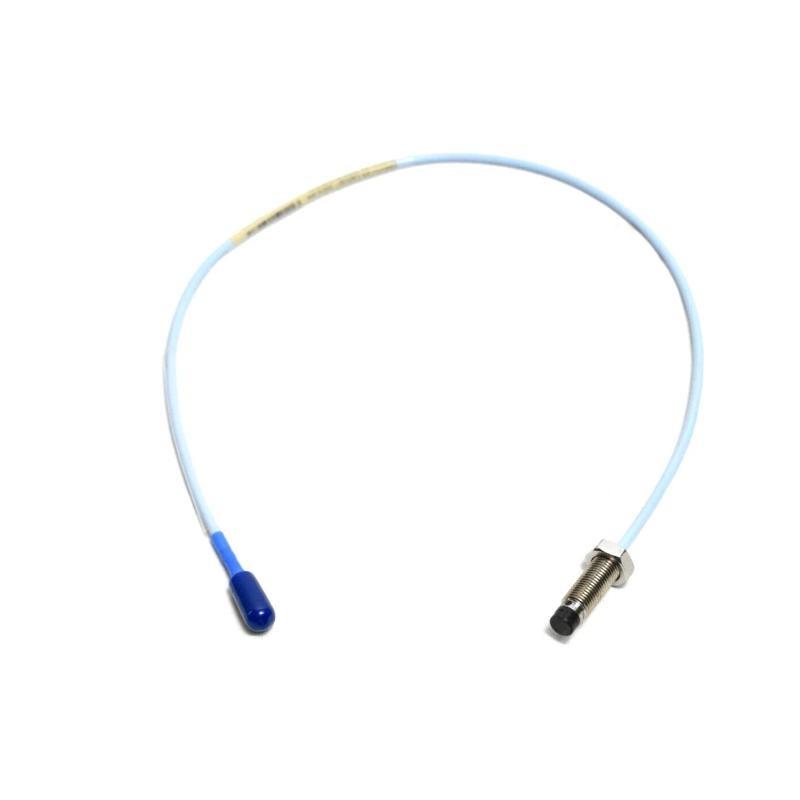

The Bently Nevada 330101-05-20-10-02-05 is a 3300 XL 8 mm Proximity Probe, designed for precise vibration and position measurements. As part / the 3300 XL Proximity Transducer System, it works with a matching extension cable and Proximitor sensor. This probe supports API 670 compliance, /fers robust mechanical durability, and delivers accurate measurements in demanding industrial environments such as turbines, compressors, and motors.
Applications
-
Shaft vibration monitoring
-
Radial and axial position sensing
-
Keyphasor speed and phase measurements
-
Overspeed protection (with precautions)
-
状態 monitoring for rotating machinery
-
Use in high-density DIN rail and panel mount configurations
Advantages
-
API 670 compliant: Ensures industry-standard reliability and accuracy
-
Interchangeable design: Probe, cable, and Proximitor are fully swappable
-
ClickLoc connectors: Secure and tool-free with built-in torque feedback
-
Robust materials: PPS tip, stainless steel housing, and FEP cable insulation
-
High temperature range: Operates up to 177°C standard or 218°C with ETR probe
-
FluidLoc cable option: Prevents oil leakage along cable
-
SpringLoc terminals: No tool required for wiring, reducing installation time
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル | 330101-05-20-10-02-05 |
| Probe Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 303/304 Stainless Steel |
| Cable Length | 1.0 meter (3.3 feet) |
| Cable Type | Standard FEP with ClickLoc connector |
| Linear Range | 2.0 mm (80 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Recommended Gap | 1.27 mm (50 mils) @ -9 VDC |
| Operating Temp (Standard Probe) | -52°C to +177°C (-62°F to +350°F) |
| Operating Temp (ETR Version) | Up to +218°C (probe tip), +260°C (cable) |
| Pressure Seal | Viton O-ring |
| Total Length | 1.0 meter |
| 重量 | 0.323 kg |
FAQ
Q1: What is the primary function / this proximity probe?
A1: It measures shaft vibration and position using non-contact eddy current technology.
Q2: Is it compliant with API 670?
A2: Yes, it fully complies with API 670 mechanical configuration and performance.
Q3: Can I use it with other Bently Nevada systems?
A3: Yes, it’s backward compatible with 3300-series 5 mm and 8 mm systems.
Q4: What type / connector is used?
A4: ClickLoc gold-plated connectors, designed to prevent loosening and require no tools.
Q5: Can it operate at high temperatures?
A5: The standard probe can operate up to 177°C; the ETR version can reach 218°C (tip).
Q6: Does it require calibration when replacing components?
A6: No, it supports full interchangeability without recalibration.
Q7: What is the cable pull strength?
A7: 330 N (75 lbf) between the probe body and cable.
Q8: What’s the recommended minimum shaft diameter?
A8: At least 76.2 mm (3 inches) is recommended to minimize signal cross-talk.
Q9: Is the probe pressure sealed?
A9: Yes, it includes a Viton O-ring seal, though pressure testing is optional.
Q10: What’s the output scale factor?
A10: 7.87 V/mm (200 mV/mil) over the linear range.
Related モデルs (Same Series)
| モデル Number | Thread Type | Length | Cable Type | 重量 |
|---|---|---|---|---|
| 330101-05-20-10-02-05 | 3/8-24 UNF | 1.0 m | Standard Cable | 0.323 kg |
| 330102-05-20-10-02-05 | 3/8-24 UNF | 1.0 m | Armored Cable | 0.35 kg |
| 330103-05-20-10-02-05 | M10 x 1 | 1.0 m | Standard Cable | 0.323 kg |
| 330104-05-20-10-02-05 | M10 x 1 | 1.0 m | Armored Cable | 0.35 kg |
| 330191-05-20-10-02-05 | 3/8-24 UNF | 1.0 m | ETR Cable | 0.34 kg |
| 330193-05-20-10-02-05 | M10 x 1 | 1.0 m | ETR Cable | 0.34 kg |
Popular モデルs from the Same ブランド
| モデル Number | 説明 | Application | 重量 |
|---|---|---|---|
| 330104-00-06-10-02-00 | 8 mm Probe, M10 x 1, 0.6 m | Vibration Measurement | 0.31 kg |
| 330180-50-05 | 5 m Proximitor Sensor, panel mount | Interface for Proximity Probes | 0.246 kg |
| 330130-030-00-00 | 3 m Extension Cable, standard | Signal Extension | 0.102 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor Module | Shaft Vibration and Position Monitor | 0.45 kg |
| 3500/22M-01-01 | Transient Data Interface Module | Data collection for rotating machines | 0.48 kg |
| 3500/05-01-01-00-00-01 | 19-inch Rack (3500 system) | Modular System Frame | 3.2 kg |
