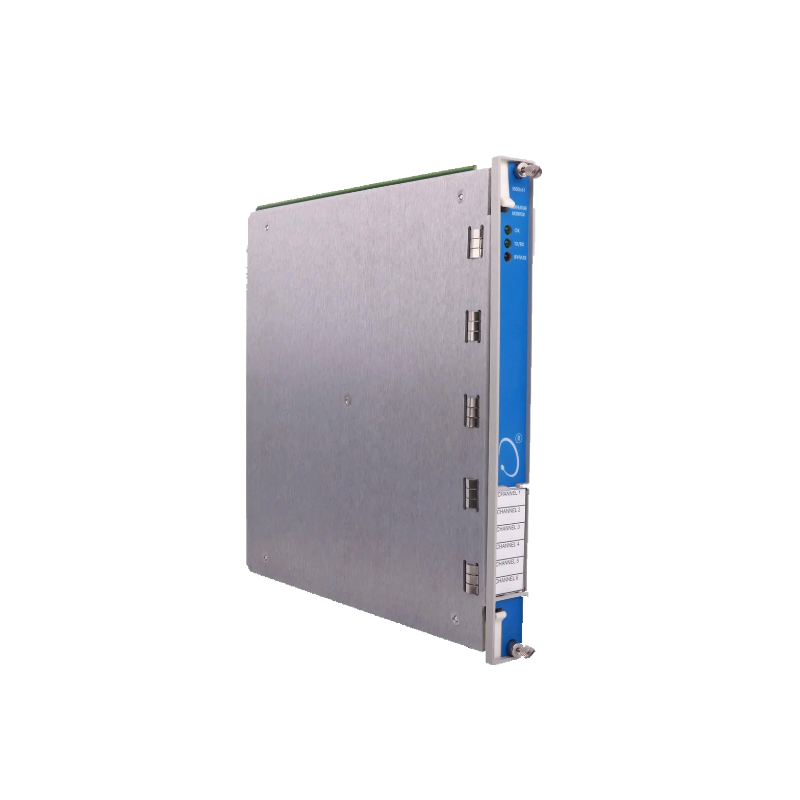

Product Overview
| Specification | Details |
|---|---|
| Product Number | 176449-02 |
| Module Type | Proximitor/Seismic Monitor |
| Channels | 4 |
| Input Types | Proximity and seismic transducers |
| Functions | Radial Vibration, Thrust Position, Differential Expansion, Eccentricity, Acceleration, Velocity, Shaft Absolute, Circular Acceptance Region |
| Power Consumption | 7.7 W |
| Input Impedance | 10 kΩ (standard I/O) |
| Dimensions (D x W x H) | 241.3 x 24.4 x 241.8 mm |
| 重量 | 0.91 kg |
| Compliance | CE, CSA, ATEX, IECEx |
| Operating Temperature Range | -30°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | 0% to 95% non-condensing |
| Mounting | 3500 rack system |
Product Applications
The Bently Nevada 3500/42M 176449-02 Proximitor Seismic Monitor is utilized across various industries for critical machinery protection and condition monitoring. Key applications include:
-
Rotating Machinery Monitoring: Ensures the operational integrity / turbines, compressors, pumps, and motors by continuously measuring vibration and position parameters.
-
Seismic Event Detection: Monitors structural vibrations to detect seismic events, safeguarding equipment from potential damage.
-
Thrust Position Measurement: Tracks axial displacement in machinery to prevent contact between stationary and rotating components.
-
Differential Expansion Monitoring: Measures the relative expansion between rotors and casings in turbines, preventing mechanical interference.
-
Eccentricity Measurement: Assesses shaft bow or misalignment to maintain optimal machinery performance.
Product Advantages
The 3500/42M Proximitor Seismic Monitor /fers several benefits that enhance machinery protection and operational efficiency:
-
Comprehensive Monitoring: サポートs multiple measurement types, including vibration, position, and acceleration, providing a holistic view / machinery health.
-
User-Programmable Alarms: Allows customization / alarm thresholds for each channel, enabling tailored responses to specific operational requirements.
-
High Reliability: Designed for continuous operation in demanding industrial environments, ensuring consistent machinery protection.
-
Scalability: Easily integrates into existing 3500 rack systems, facilitating expansion as monitoring needs grow.
-
Regulatory Compliance: Meets international standards such as CE, CSA, ATEX, and IECEx, ensuring adherence to global safety and performance requirements.
Recent News
Recent developments related to the Bently Nevada 3500/42M 176449-02 Proximitor Seismic Monitor include:
-
Bently Nevada Enhances 3500 Series with Advanced Monitoring Capabilities: A recent update highlights the integration / advanced diagnostics in the 3500 series, improving machinery health assessment.
-
New Firmware Release for 3500/42M Monitor: The latest firmware update introduces enhanced data processing algorithms, increasing the accuracy / vibration and position measurements.
-
Industry Adoption / 3500/42M in Renewable Energy Sector: The renewable energy industry has adopted the 3500/42M monitor for wind turbine condition monitoring, ensuring efficient and reliable operations.
よくある質問 (FAQs)
-
What transducers are compatible with the 3500/42M monitor?
- The monitor is compatible with Bently Nevada proximity and seismic transducers, including Proximitor sensors, accelerometers, and velocity sensors.
-
Can the alarm thresholds be customized?
- Yes, each channel’s alarm setpoints are user-programmable to accommodate specific operational requirements.
-
Is the 3500/42M monitor suitable for hazardous environments?
- Yes, it complies with certifications such as ATEX and IECEx, making it suitable for use in hazardous locations.
-
How does the monitor integrate with existing control systems?
- The 3500/42M monitor integrates seamlessly with Bently Nevada’s 3500 rack systems and can communicate with plant control systems via standard protocols.
-
What diagnostic features does the monitor /fer?
- It includes self-testing and fault detection capabilities to ensure continuous and reliable operation.
-
Is field calibration possible for the 3500/42M monitor?
- Yes, the monitor supports field calibration procedures to maintain measurement accuracy over time.
-
What is the power consumption / the monitor?
- The 3500/42M monitor has a power consumption / 7.7 W.
-
Can the monitor’s firmware be upgraded?
- Yes, the firmware is field-upgradable, allowing for enhancements and new features to be added as they become available.
-
What are the operating temperature limits for the monitor?
- The monitor operates effectively within a temperature range / -30°C to +65°C.
-
Does the monitor support remote monitoring?
- Yes, it supports remote monitoring capabilities through network interfaces, enabling /f-site data access and analysis.
Related モデルs
Here are 10 related models within the same series or with similar functionalities:
| モデル Number | 説明 |
|---|---|
| 3500/40M | Proximitor Monitor |
| 3500/44M | Aeroderivative GT Vibration Monitor |
| 3500/45 | Position Monitor |
| 3500/46M | Hydro Monitor |
| 3500/50 | Tachometer Module |
| 3500/60 | Temperature Monitor |
| 3500/64M | Dynamic Pressure Monitor |
| 3500/65 | Velocity Monitor |
| 3500/70M | Recip Rod Position Monitor |
| 3500/72M | Recip Impulse Velocity Monitor |
10 popular models from Bently Nevada:
| モデル Number | 説明 |
|---|---|
| 3300/16 | Dual Vibration Monitor |
| 3300/20 | Dual Thrust Position Monitor |
| 3300/25 | Keyphasor Module |
| 3300/35 | Temperature Monitor |
| 3300/40 | Proximitor Monitor |
| 3300/50 | Tachometer Module |
| 3300/60 | Process Variable Monitor |
| 3300/65 | Velocity Monitor |
| 3300/70 | Recip Rod Position Monitor |
| 3300/80 | Recip Cylinder Pressure Monitor |
