製品紹介

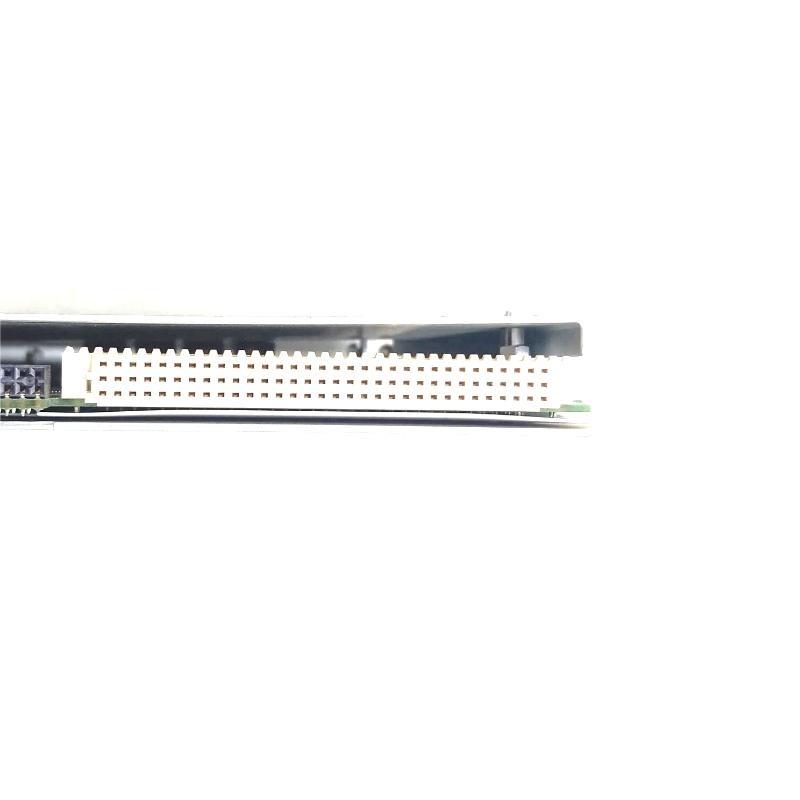

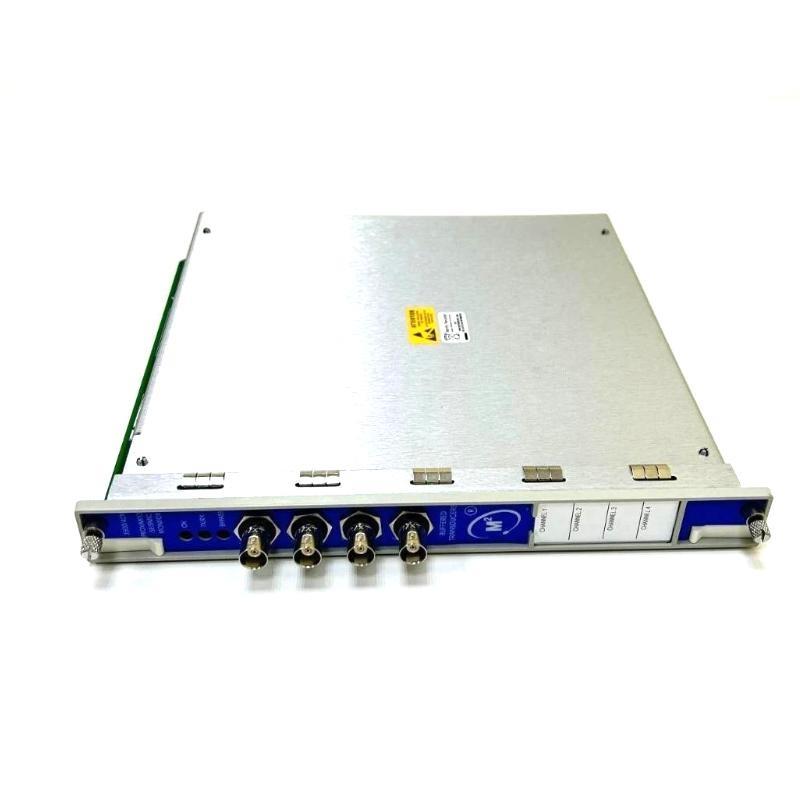

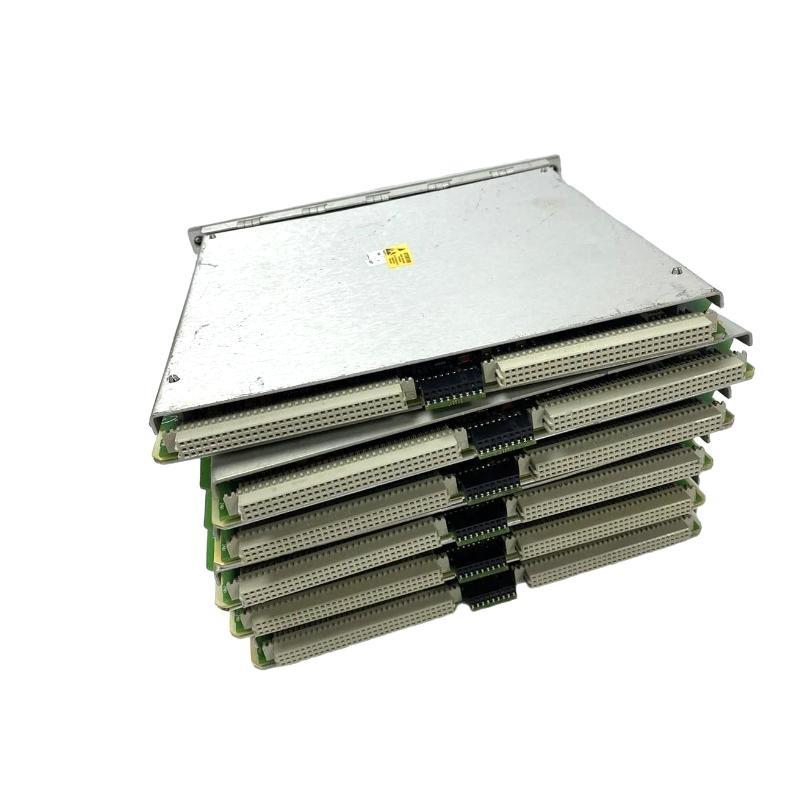

The Bently Nevada 3500/42-04-01 is a high-performance Proximitor Seismic Monitor designed for continuous monitoring / vibration and position in rotating machinery. It integrates advanced proximity probe technology with seismic detection to provide precise, real-time data for machinery protection and predictive maintenance systems. This monitor is an essential component in critical industrial applications such as turbines, compressors, and large motors, /fering enhanced reliability and diagnostic capabilities.
Product Parameters
| Parameter | Specification |
|---|---|
| モデル | 3500/42-04-01 |
| Monitor Type | Proximitor / Seismic |
| Channels | 4 independent channels |
| Input Types | Proximity probes, seismic transducers |
| Power Supply | From 3500 rack system |
| Signal Processing | Dynamic vibration, position, and speed |
| Communication | Via 3500 rack to System 1 s/tware |
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| 重量 | 0.91 kg |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | CE, CSA, ATEX certified |
Product Applications
-
Turbomachinery monitoring – Continuous observation / shaft vibration and position for turbines, compressors, and pumps.
-
Seismic vibration monitoring – Detecting casing or structure vibration to identify faults early.
-
状態-based maintenance – Providing real-time data to reduce unplanned outages.
-
Machine protection – Integrating with trip logic for emergency shutdown when vibration exceeds limits.
-
Industrial sectors – Power generation, petrochemical, marine, and paper industries.
Product Advantages
-
Dual function capability – Handles both proximity and seismic measurements in one module.
-
High accuracy – Ensures precise vibration and displacement readings.
-
Modular integration – Easily fits into Bently Nevada 3500 rack systems.
-
Advanced diagnostics – サポートs System 1 condition monitoring s/tware.
-
High reliability – Designed for continuous industrial operation under harsh conditions.
-
Certification compliance – Meets global standards for safety and performance.
FAQ
-
What is the main function / the 3500/42-04-01?
To monitor vibration and position in rotating machinery for protection and diagnostics. -
What types / sensors can be connected?
Proximity probes and seismic transducers. -
Can it monitor multiple machines simultaneously?
Yes, it has 4 independent channels for different measurement points. -
Is it compatible with older Bently Nevada probes?
Yes, it supports backward compatibility with standard probes. -
Does it require separate power supply?
No, it is powered through the 3500 rack. -
What industries use this device most?
Power plants, oil & gas, petrochemical, and heavy manufacturing. -
How is the data accessed?
Through the 3500 rack interface and System 1 s/tware. -
What is the operating temperature range?
-30°C to +65°C. -
Is it suitable for hazardous areas?
Yes, it has ATEX and CSA certifications. -
Does it provide real-time monitoring?
Yes, it supports continuous, real-time data acquisition.
Related モデルs in the Same Series
| モデル Number | Type | Channels | Input Type | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|---|
| 3500/42-01-01 | Proximitor Monitor | 4 | Proximity probes | 241.3 × 24.4 × 241.8 | 0.91 |
| 3500/42-02-01 | Seismic Monitor | 4 | Seismic transducers | 241.3 × 24.4 × 241.8 | 0.91 |
| 3500/42-05-01 | Proximitor/Seismic Combo | 4 | Mixed | 241.3 × 24.4 × 241.8 | 0.91 |
| 3500/40M | Proximitor Monitor | 4 | Proximity probes | 241.3 × 24.4 × 241.8 | 0.91 |
| 3500/44 | Aeroderivative Gas Turbine | 4 | Proximity probes | 241.3 × 24.4 × 241.8 | 0.91 |
| 3500/50 | Tachometer Module | 2 | Speed sensors | 241.3 × 24.4 × 241.8 | 0.91 |
その他 Popular Bently Nevada モデルs
| モデル Number | Type | Channels | Input Type | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|---|
| 3500/22M | Transient Data Interface | N/A | Rack communication | 241.3 × 24.4 × 241.8 | 0.91 |
| 3500/32M | Relay Module | 4 relays | Digital control | 241.3 × 24.4 × 241.8 | 0.91 |
| 3500/25 | Keyphasor Module | 2 | Keyphasor probes | 241.3 × 24.4 × 241.8 | 0.91 |
| 3500/93 | System Display | N/A | Display interface | 241.3 × 24.4 × 241.8 | 0.91 |
| 3300 XL | Proximity Probe System | N/A | Proximity probes | Varies | Varies |
| ADRE 408 | Vibration Data Acquisition | 8 | Multi-sensor | Portable | Varies |
