製品紹介

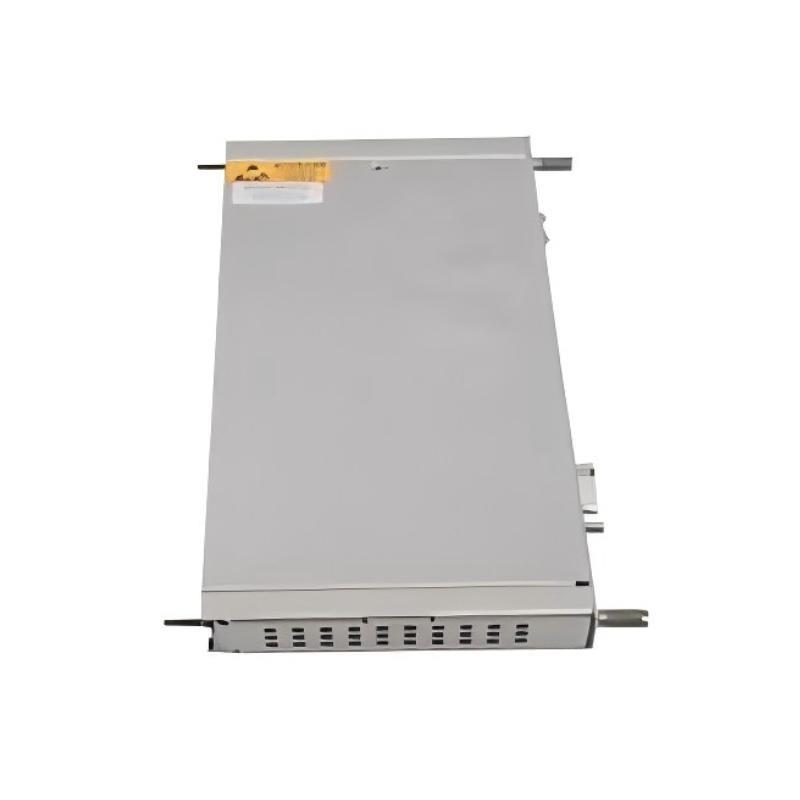

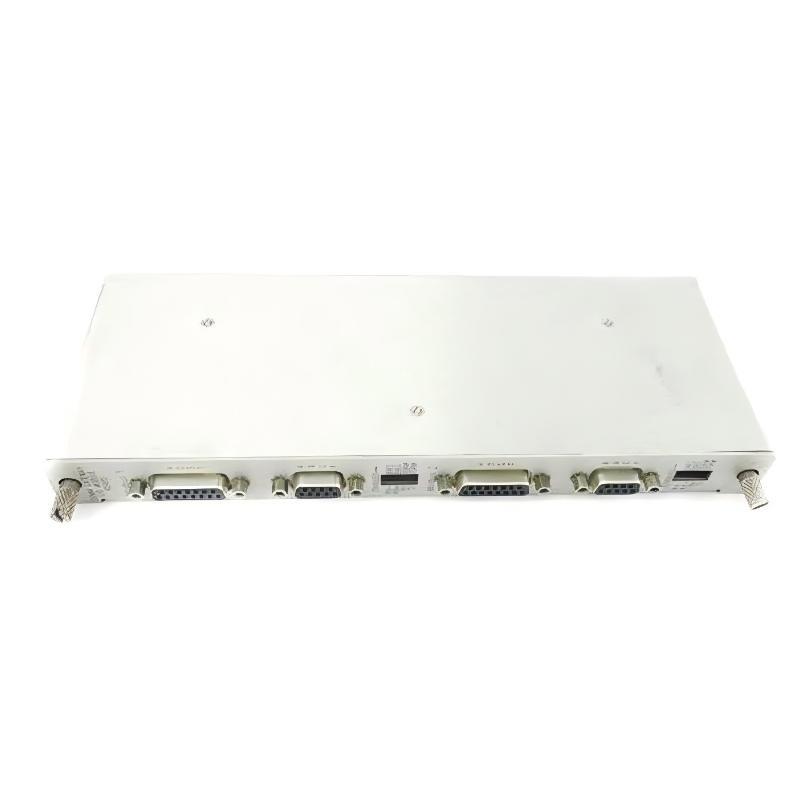

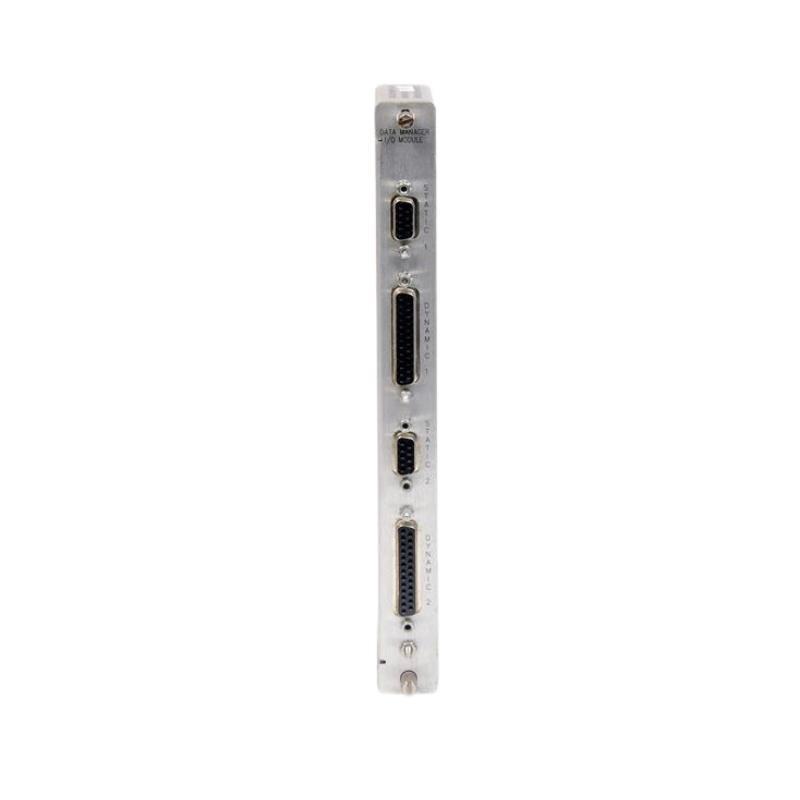

The Bently Nevada 3500/20-01-01-00 125760-01 Rack Interface Module is a vital part / the renowned 3500 Series machinery protection system. This module serves as the communication gateway between the rack and the system’s various monitoring modules, enabling efficient data exchange and system coordination. Its design emphasizes reliability, ease / installation, and seamless integration into existing 3500 Series racks.
Engineered for use in critical industrial environments, the 125760-01 module is built to support continuous machinery monitoring and protection by facilitating accurate and timely data transmission. Its robust construction and intelligent design make it a trusted choice for sectors including power generation, oil and gas, and heavy manufacturing.
製品仕様
| Parameter | 説明 |
|---|---|
| モデル Number | 3500/20-01-01-00 |
| 型番 | 125760-01 |
| Module Type | Rack Interface Module |
| Power Supply | 24 VDC nominal |
| Communication Protocol | Proprietary Bently Nevada Protocol |
| Mounting | 3500 Series Standard Rack Mount |
| Dimensions (HxWxD) | 241.3 x 24.4 x 99.1 mm |
| 重量 | 0.45 kg |
| Operating Temperature | -40 °C to +85 °C |
| Humidity | Up to 95% non-condensing |
| Status Indicators | LEDs for power, communication, fault |
| Certifications | CE, UL Listed |
Product Applications
The 3500/20-01-01-00 Rack Interface Module is broadly utilized in demanding industrial settings where machinery monitoring is critical:
-
Power Plants: Maintains data flow for vibration and temperature sensors, helping avoid unplanned outages.
-
Oil & Gas Facilities: Protects rotating machinery by ensuring consistent monitoring communication.
-
Heavy Manufacturing: サポートs condition-based maintenance strategies through reliable system integration.
-
Pulp & Paper Industry: Facilitates real-time monitoring to maximize equipment uptime and operational efficiency.
-
Mining Operations: Assists in early fault detection in large rotating machinery for safer, more efficient operations.
-
Aerospace & Defense: Used in mission-critical environments requiring dependable machinery protection systems.
Product Advantages
The 3500/20-01-01-00 Rack Interface Module /fers the following benefits:
-
Reliable Data Communication: Designed to minimize data loss and transmission errors within the 3500 system.
-
Durability: Engineered to operate reliably across a wide range / temperatures and humidity conditions.
-
User-Friendly Installation: Simplifies system setup with standard rack mounting and clear status indicators.
-
System Scalability: Enables easy expansion / monitoring capabilities as operational needs grow.
-
Compatibility: Fully interoperable with all Bently Nevada 3500 Series components.
-
Diagnostic Capabilities: Visual LED indicators assist with quick fault identification and troubleshooting.
-
Reduced Maintenance Costs: Improves system uptime by supporting proactive maintenance strategies.
-
Industry-Standard Certifications: Provides confidence in safety and quality compliance.
よくある質問 (FAQ)
-
What is the role / the 3500/20-01-01-00 Rack Interface Module?
It acts as the communication hub for the 3500 rack, facilitating data transfer between modules. -
Is this module compatible with all 3500 Series racks?
Yes, it is designed specifically for the 3500 Series standard racks. -
What power source does it require?
The module operates on a nominal 24 VDC power supply. -
What environmental conditions can this module withstand?
It supports operation between -40 °C and +85 °C, with humidity up to 95% non-condensing. -
How can I tell if the module is functioning correctly?
Built-in LEDs indicate power status, communication activity, and any faults. -
Can this module be used for system expansion?
Yes, it supports additional modules and system growth without disruption. -
Are there any certifications confirming its quality?
The module is CE and UL certified. -
What maintenance is required?
Typically, only periodic visual inspections and ensuring secure rack connections. -
How does it handle communication errors?
The module is designed to minimize errors and alert operators via status LEDs. -
Is technical support available for installation and troubleshooting?
Yes.
Related モデルs from the Same Series or Closely Related
| モデル Number | 説明 | Key Feature |
|---|---|---|
| 3500/20-01-01-00 (125744-02) | Rack Interface Module | Core interface for 3500 rack |
| 3500/22-01-02-00 (125760-02) | Communication Module | Advanced system communication |
| 3500/45-01-01-00 (125761-01) | Analog Input Module | High precision signal input |
| 3500/30-01-01-00 (125762-01) | Digital Output Module | Reliable switching outputs |
| 3500/10-01-01-00 (125744-01) | Power Supply Module | Stable power supply 台 |
| 3500/50-01-01-00 (125765-01) | Vibration Monitoring Module | Enhanced vibration detection |
Popular モデルs from Bently Nevada ブランド
| モデル Number | 説明 | Application |
|---|---|---|
| 3500/22-01-00-00 (125750-01) | Communication Module | System-wide communication |
| 3300 XL Proximity Sensor | Shaft Position and Vibration Sensor | Critical rotating machinery monitoring |
| 3500/60-01-00-00 (125780-01) | Tachometer Module | Speed and RPM measurement |
| 3500/10-01-00-00 (125744-00) | Power Supply Module | Reliable power source |
| 3300 XL Vibration Sensor | Vibration Monitoring Sensor | Real-time vibration data |
| 3500/70-01-00-00 (125785-01) | Alarm Annunciator Module | Audible and visual alarms |
