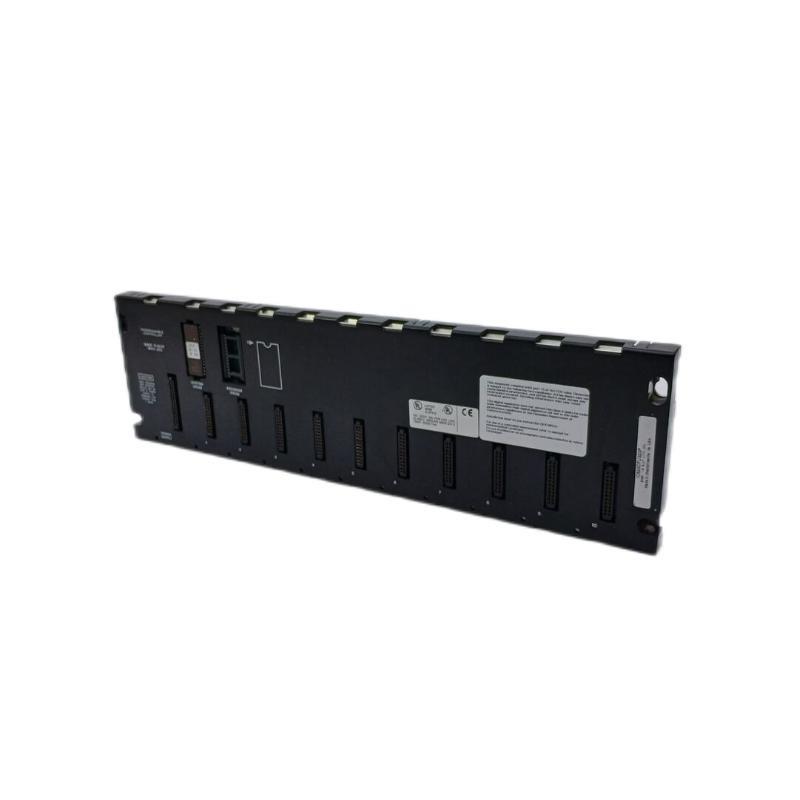

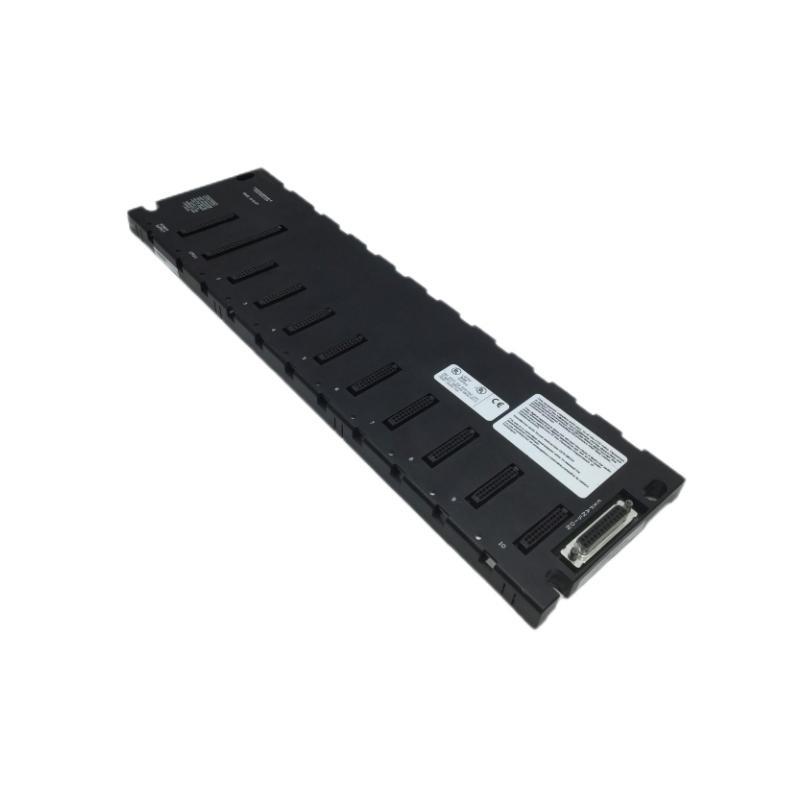

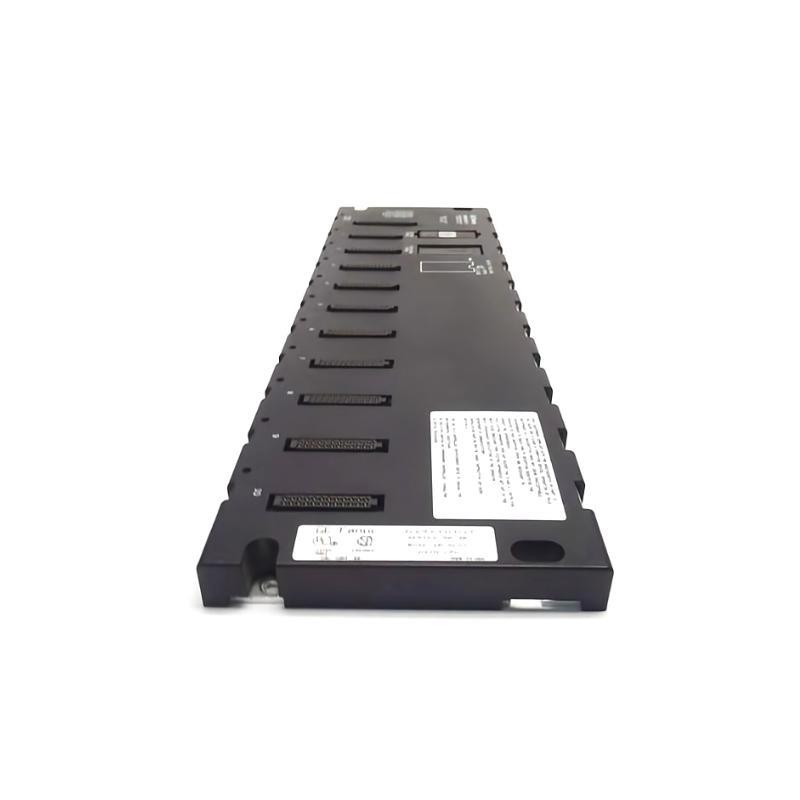

The GE IC693CPU321 10-Slot Baseplate is a fundamental hardware component designed for GE Fanuc’s Series 90-30 Programmable Logic Controller (PLC) systems. This baseplate serves as the physical backbone where the CPU, power supplies, input/output modules, and communication interfaces are mounted.
Offering 10 available slots, the IC693CPU321 provides a flexible platform for building and expanding industrial control systems with multiple modules in a compact and organized manner. It supports high-density module installation to accommodate complex automation requirements across various industrial sectors.
Constructed with rugged materials suitable for demanding industrial environments, this baseplate ensures secure electrical connections and mechanical stability. It also facilitates efficient wiring and module replacement, contributing to minimized system downtime and streamlined maintenance.
製品仕様
| Parameter | Specification |
|---|---|
| Number / Slots | 10 Slots |
| Compatible Modules | GE Series 90-30 CPU, I/O, communication modules |
| Mounting Type | DIN rail or panel mount |
| Backplane Connector Type | 96-pin edge connectors |
| Power Supply Voltage | 5 V DC (provided via power supply module) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (L × W × H) | 118 x 33 x 90 mm |
| 重量 | 0.92 kg |
| Certifications | UL recognized, CE marked |
Applications
The IC693CPU321 10-Slot Baseplate is widely utilized in industrial automation applications where robust, expandable, and reliable PLC hardware infrastructure is essential. Common application areas include:
-
Manufacturing Automation: Facilitates control / production lines, robotic systems, and automated machinery.
-
Process Control: Used in industries like chemical, oil & gas, and pharmaceuticals to manage process parameters via connected I/O modules.
-
Water & Wastewater Treatment: サポートs monitoring and control / pumps, valves, and treatment processes.
-
Power Generation and Distribution: Provides a platform for control and monitoring / electrical equipment and protective devices.
-
Material Handling: Enables control / conveyor systems, sorters, and automated storage systems.
-
Building Automation: Used for HVAC control, lighting systems, and security systems.
Advantages and Key Features
-
Expandable Design: Ten module slots provide ample space for system expansion and flexibility in configuring custom control solutions.
-
Reliable Electrical Connectivity: Designed with high-quality edge connectors ensuring stable signal and power transmission.
-
Industrial-Grade Durability: Constructed to withstand vibrations, temperature variations, and industrial contaminants.
-
Simplified Installation: サポートs standard DIN rail or panel mounting for easy integration into control cabinets.
-
Efficient Maintenance: Modular design enables quick replacement / modules or the baseplate itself without complex rewiring.
-
Compatibility: Works seamlessly with a wide range / GE Series 90-30 modules, including CPUs, I/O, and communication interfaces.
-
Optimized Space Utilization: Compact form factor maximizes cabinet space efficiency.
-
Industry Standards Compliance: Certified for safety and reliability under UL and CE standards.
よくある質問 (FAQ)
-
What is the purpose / the IC693CPU321 baseplate?
It serves as the mounting and connection platform for GE Series 90-30 PLC modules. -
How many slots does this baseplate provide?
It /fers 10 slots for CPU, I/O, and communication modules. -
Is the baseplate compatible with other GE PLC series?
It is designed specifically for the Series 90-30 system and may not fit other series without adapters. -
What are the physical dimensions / the baseplate?
118 x 33 x 90 mm. -
Can it be mounted on a DIN rail?
Yes, the baseplate supports DIN rail or panel mounting. -
What is the operating temperature range?
The range is 0°C to 60°C. -
How much does the baseplate weigh?
0.92 kg. -
Does it provide power to the installed modules?
No, power is supplied by a separate power supply module connected to the baseplate. -
Can the baseplate be replaced without system shutdown?
Typically, replacing the baseplate requires system shutdown to avoid module disconnection issues. -
Are there any certifications for this product?
Yes, it holds UL recognition and CE marking for safety and compliance.
Recommended Similar or Related GE モデルs
| モデル | 説明 | Notes |
|---|---|---|
| IC693CHS013 | 5-Slot Baseplate | Smaller slot count for compact systems |
| IC693CPU321 | CPU Module compatible with 10-Slot Baseplate | Central processing 台 for Series 90-30 |
| IC693DSM302 | Discrete Input Module | Digital input module for Series 90-30 |
| IC693DSM314 | Discrete Output Module | Digital output module |
| IC693ALG221 | Analog Input Module | Analog signal acquisition |
| IC693ALG222 | Analog Output Module | Analog output control |
Popular GE Series 90-30 PLC Modules
| モデル | 説明 | Typical Use |
|---|---|---|
| IC693CPU321 | CPU Module for 10-Slot Baseplate | Core processor |
| IC693DSM302 | 16-Point Discrete Input Module | Digital input processing |
| IC693DSM314 | 16-Point Discrete Output Module | Control / digital outputs |
| IC693ALG221 | 8-Channel Analog Input Module | Analog input monitoring |
| IC693ALG222 | 4-Channel Analog Output Module | Analog output control |
| IC693PWR321 | Power Supply Module | Provides power to baseplate |
