製品紹介

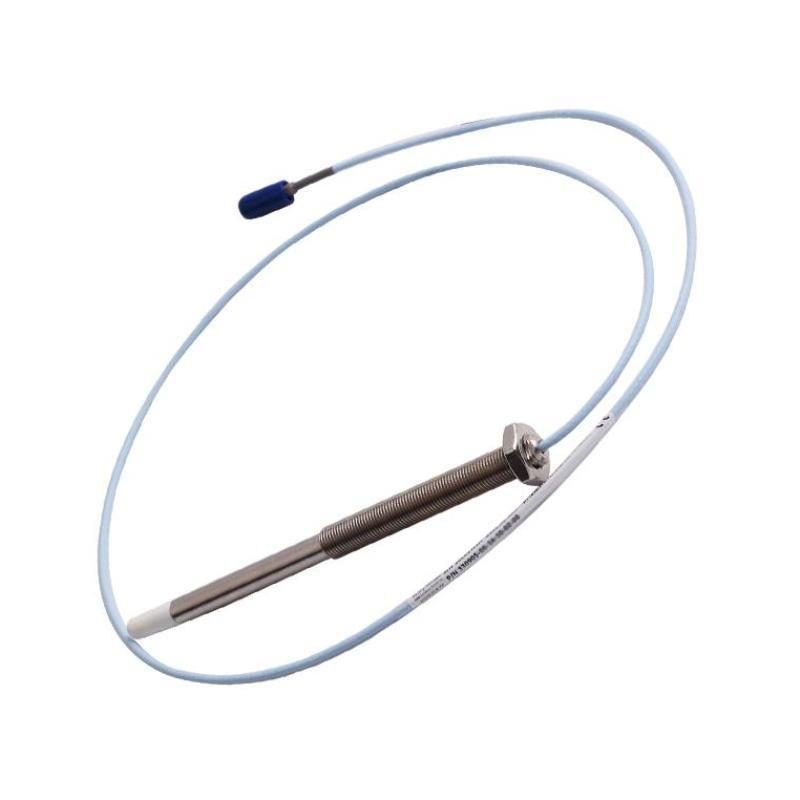

The Bently Nevada 330905-00-25-05-01-CN 3300 NSv Proximity Probe is a high-performance, non-contact eddy-current displacement sensor designed for continuous machinery monitoring. Engineered for reliability in harsh industrial environments, it provides accurate measurements / shaft vibration and position, making it ideal for turbines, compressors, and generators. Its robust construction ensures minimal signal degradation and high resistance to environmental factors such as temperature fluctuations, moisture, and vibration.
製品仕様
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy-Current Proximity Probe |
| モデル Number | 330905-00-25-05-01-CN |
| Probe Tip Diameter | 5 mm |
| Cable Type | Coaxial, shielded |
| Cable Length | Customizable (standard 3 m) |
| Total Length | 0.5 m |
| 重量 | 0.15 kg |
| Operating Temperature | -40°C to 120°C |
| Tip Material | Hardened Stainless Steel |
| Connector Type | M12 or BNC (depending on configuration) |
| Measurement Range | 0.25 mm typical |
| Output Type | AC signal compatible with 3300 XL system |
| Sensitivity | Standard Bently Nevada calibration |
Product Applications
-
Monitoring shaft vibration in turbines, compressors, and generators.
-
Machinery protection in power plants, oil & gas, and petrochemical facilities.
-
状態 monitoring in rotating equipment to detect imbalance, misalignment, or bearing wear.
-
High-speed machinery performance diagnostics.
-
Integration with Bently Nevada 3300 XL monitoring systems for real-time feedback.
Product Advantages
-
High Accuracy: Provides precise displacement and vibration readings for critical machinery.
-
Robust Design: Resistant to extreme temperatures, moisture, and industrial contaminants.
-
Non-お問い合わせ Measurement: Eliminates mechanical wear and reduces maintenance.
-
Compatibility: Fully compatible with 3300 XL series monitoring systems for seamless integration.
-
Durable Materials: Hardened stainless steel tip and shielded cables extend operational lifespan.
-
Ease / Installation: Standardized mounting and connector options simplify setup and replacement.
FAQ
-
Q: What is the operating voltage range for the 3300 NSv probe?
A: The probe operates with the 3300 XL system, typically requiring an excitation voltage / 2–5 V RMS. -
Q: Can the probe measure both static and dynamic shaft positions?
A: Yes, the eddy-current sensor provides accurate displacement readings for both static and dynamic conditions. -
Q: How does the probe handle high-frequency vibration?
A: The 3300 NSv has a high-frequency response up to several kHz, suitable for most rotating machinery monitoring. -
Q: Is the probe compatible with other monitoring systems?
A: While optimized for 3300 XL systems, it can interface with other systems that support AC displacement inputs. -
Q: How resistant is the probe to electromagnetic interference (EMI)?
A: The probe uses shielded coaxial cables, providing excellent EMI resistance in industrial environments. -
Q: What is the maximum gap the probe can measure?
A: The typical measurement range is 0.25 mm; extended ranges are available depending on calibration. -
Q: Can the probe be used in high-temperature steam turbine applications?
A: Yes, it can operate continuously up to 120°C, with high-temperature cable options available for extreme conditions. -
Q: Does the probe require calibration before use?
A: The probe is factory-calibrated, but system-level calibration is recommended after installation. -
Q: How does the probe perform in wet or humid environments?
A: The probe is sealed against moisture and suitable for humid environments with proper cable routing. -
Q: Can multiple probes be installed on a single machine?
A: Yes, multiple probes can be used for comprehensive vibration monitoring and shaft position measurement.
Recommended Same-Series or Related モデルs
| モデル Number | 説明 |
|---|---|
| 330905-00-25-05-02-CN | 3300 NSv Proximity Probe, 6 mm tip |
| 330905-00-25-05-03-CN | 3300 NSv Proximity Probe, extended cable version |
| 330905-00-25-05-04-CN | 3300 NSv Proximity Probe, high-temperature version |
| 330905-00-25-05-05-CN | 3300 NSv Proximity Probe, shielded for EMI environments |
| 330905-00-25-05-06-CN | 3300 NSv Proximity Probe, extended measurement range |
| 330905-00-25-05-07-CN | 3300 NSv Proximity Probe, reinforced tip for harsh environments |
Popular Bently Nevada モデルs
| モデル Number | 説明 |
|---|---|
| 3300 XL | Shaft vibration monitoring system |
| 330104-00-00 | 3300 XL Monitor Module |
| 330224-00-00 | Proximity Sensor Cable |
| 330330-00-00 | Velomitor Probe |
| 330905-00-25-05 | Standard NSv Proximity Probe |
| 3500/05 | Vibration Monitor System |
| 3500/22 | Transient Data Capture Module |
| 3500/25 | High-Speed Sensor Module |
