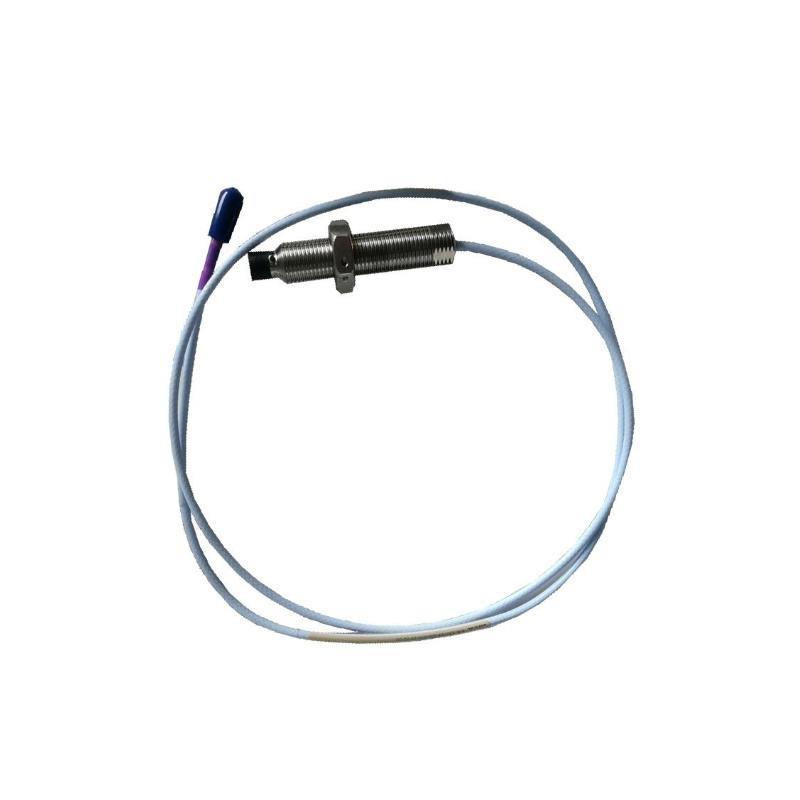

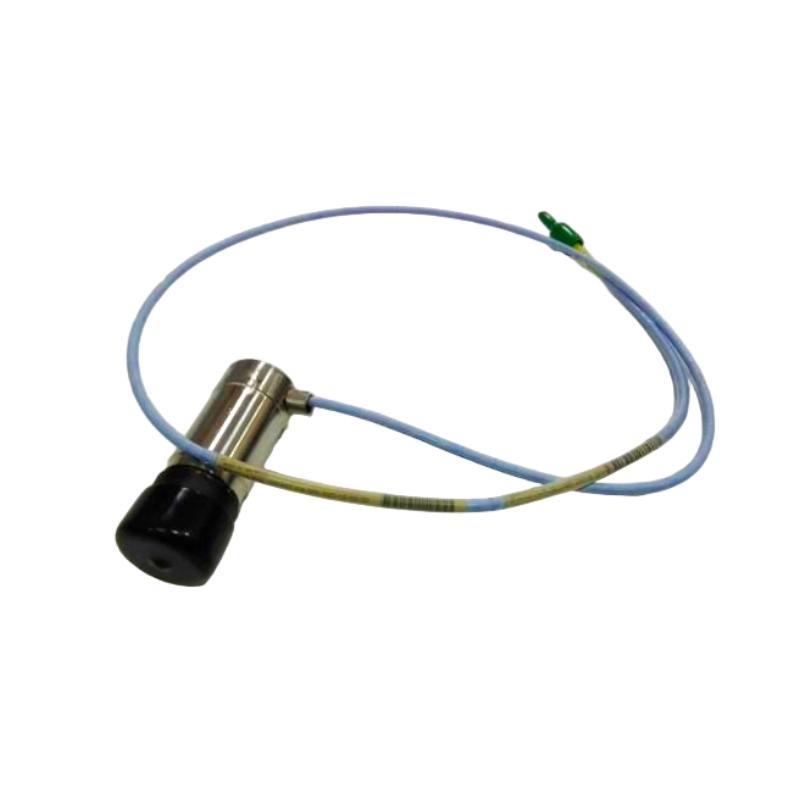

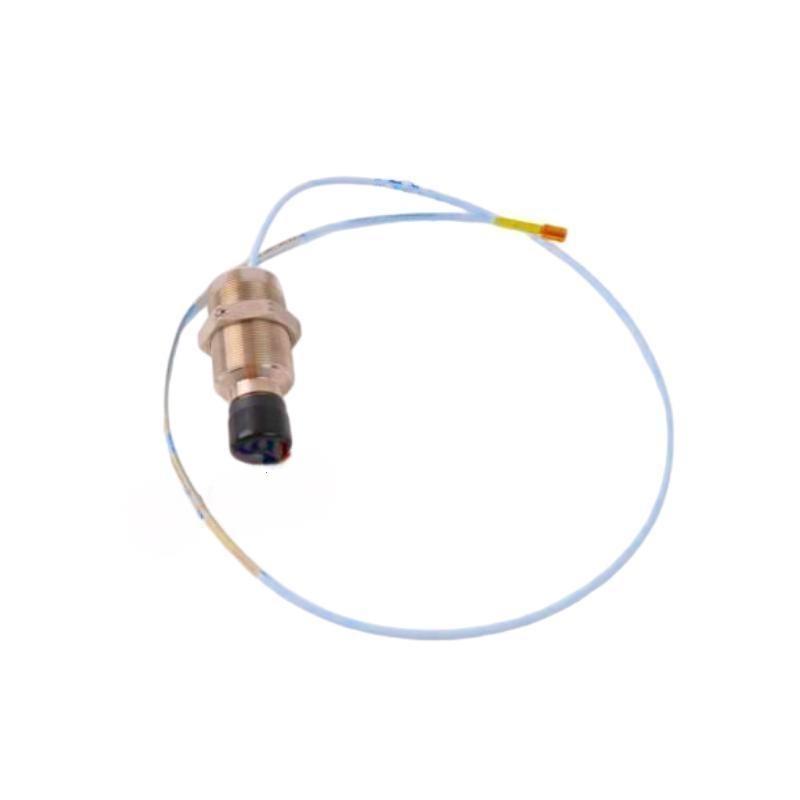

The Bently Nevada 330851-02-000-070-10-00-05 is a 3300 XL Series 25 mm Proximity Probe designed for high-precision machinery monitoring. This proximity probe is part / the 3300 XL family, which is widely recognized for providing highly reliable measurements / shaft displacement and vibration in rotating machinery. It ensures early detection / potential mechanical issues, allowing preventive maintenance and avoiding costly downtime
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 25 mm Proximity Probe |
| Tip Style | Standard Flat Tip |
| Total Length | 1 m |
| 重量 | 0.23 kg |
| Cable Type | Shielded Twisted Pair |
| Connector Type | 10-pin Micro-Circular |
| Measurement Range | 0–25 mm |
| Gap Setting | 25 mm nominal |
| Operating Temperature | -40°C to 120°C |
| Excitation Voltage | 8–12 V DC |
| Sensitivity | 50 mV/mil (typical) |
| Output Type | AC Differential Voltage |
| Mounting | Threaded or Clamp Mount |
Product Applications
-
Monitoring turbines, generators, and motors in power plants.
-
Vibration and shaft displacement measurement in compressors and pumps.
-
Critical rotating machinery monitoring in oil, gas, and petrochemical facilities.
-
High-speed rotating equipment requiring accurate gap measurement for condition monitoring.
-
Integration with Bently Nevada 3500 and 3300 XL monitoring systems.
Product Advantages
-
High Accuracy: Provides precise measurements for critical machinery.
-
Extended Gap Range: 25 mm sensing range allows monitoring / larger shafts or clearance gaps.
-
Robust Design: Withstands harsh industrial environments with wide temperature and vibration tolerances.
-
Reliable Output: Stable AC differential voltage output ensures consistent performance with monitoring systems.
-
Ease / Installation: Compatible with standard mounts and cables for rapid integration.
-
Maintenance Friendly: Designed for minimal calibration and long-term stability.
FAQ
-
Q: What is the maximum measurable shaft displacement for this probe?
A: The probe can measure shaft displacement up to 25 mm nominal with accuracy maintained across the range. -
Q: Which Bently Nevada monitoring systems are compatible with this probe?
A: The 330851-02-000-070-10-00-05 probe is compatible with 3300 XL Series and 3500 Series monitoring systems. -
Q: Can this probe operate in high-temperature environments?
A: Yes, it operates reliably between -40°C and 120°C. -
Q: What type / output signal does this probe provide?
A: It provides an AC differential voltage output proportional to the shaft displacement. -
Q: What excitation voltage is required for proper operation?
A: The probe requires an 8–12 V DC excitation voltage. -
Q: Is the probe cable shielded?
A: Yes, it uses a shielded twisted pair cable to minimize electrical noise interference. -
Q: What mounting options are available for this probe?
A: The probe supports threaded or clamp mount installation, depending on machinery configuration. -
Q: Does the probe require frequent calibration?
A: No, the 3300 XL design ensures long-term stability with minimal calibration required. -
Q: Can this probe measure vibration as well as displacement?
A: Yes, when integrated with Bently Nevada monitoring systems, it can analyze vibration patterns in addition to shaft displacement. -
Q: How sensitive is the probe output?
A: Typical sensitivity is around 50 mV/mil, providing precise measurement for critical applications.
Recommended 3300 XL or Related モデルs
| モデル Number | 説明 | Measurement Range | Notes |
|---|---|---|---|
| 330851-02-000-060-10-01-00 | 3300 XL 25 mm Proximity Probe | 25 mm | Standard tip, shorter cable |
| 330851-02-000-100-10-00-00 | 3300 XL 50 mm Proximity Probe | 50 mm | Longer range, extended monitoring |
| 330851-02-000-070-10-01-00 | 3300 XL 25 mm Probe with angled tip | 25 mm | Angled tip for tight spaces |
| 330851-02-000-040-10-00-00 | 3300 XL 12.5 mm Probe | 12.5 mm | Compact size, high accuracy |
| 330851-02-000-090-10-00-00 | 3300 XL 40 mm Probe | 40 mm | Extended gap measurement |
| 330851-02-000-050-10-01-00 | 3300 XL 18 mm Probe | 18 mm | Medium range, standard tip |
Popular Bently Nevada モデルs
| モデル Number | 説明 | Measurement Type | Notes |
|---|---|---|---|
| 3300 XL 330851-02-000-060-10-01-00 | Proximity Probe | Shaft displacement | Standard range |
| 3300 XL 330851-02-000-070-10-00-05 | Proximity Probe | Shaft displacement | 25 mm, extended tip |
| 3500/33M | Monitoring System | Multi-channel vibration & displacement | For turbines and generators |
| 3300 XL 330851-02-000-100-10-00-00 | Proximity Probe | Shaft displacement | 50 mm range |
| 3300 XL 330851-02-000-040-10-00-00 | Proximity Probe | Shaft displacement | 12.5 mm compact |
| 3300 XL 330851-02-000-090-10-00-00 | Proximity Probe | Shaft displacement | 40 mm range |
