製品紹介

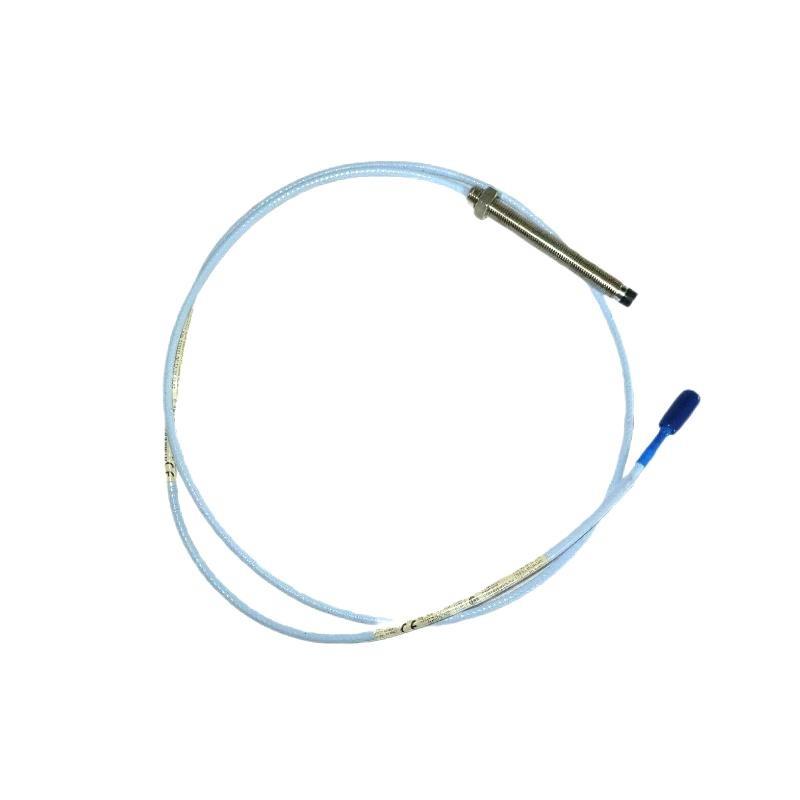

The Bently Nevada 330174-00-06-20-02-00 3300 5mm Proximity Probe is a high-precision, non-contact measurement device designed for monitoring the position and vibration / rotating machinery. Part / the Bently Nevada 3300 Series, this probe provides reliable, accurate, and fast measurement in critical industrial applications.
Using eddy current technology, this probe detects shaft displacement and vibration, allowing continuous monitoring / rotating machinery health. It is engineered to operate in extreme environments with high vibration, temperature variations, and challenging industrial conditions. This probe is commonly employed in turbines, compressors, generators, and other high-speed rotating equipment to ensure optimal operational safety and efficiency.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | 330174-00-06-20-02-00 |
| Series | 3300 Proximity Probe |
| Probe Diameter | 5 mm |
| Measurement Principle | Eddy Current |
| Measurement Range | 0–5 mm (standard) |
| Linearity | ≤ ±1% / full scale |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | -40°C to +120°C |
| Storage Temperature | -55°C to +125°C |
| Relative Humidity | 0–95%, non-condensing |
| Protection Class | IP67 |
| Material | Stainless steel probe housing |
| Mounting | Threaded or clamp mounting |
| Total Length | 2.0 meters |
| 重量 | 0.646 kg |
| Shock Resistance | 50 g, 11 ms |
| Vibration Resistance | 20 g, 10–2000 Hz |
Applications
The Bently Nevada 330174-00-06-20-02-00 5mm Proximity Probe is widely used in industrial and safety-critical systems:
-
Rotating Machinery Monitoring – Continuously monitors shaft displacement and vibration in turbines, compressors, and generators.
-
状態-Based Maintenance – Detects misalignment, imbalance, or bearing wear for predictive maintenance.
-
Power Generation – Measures rotor position in hydro, gas, and steam turbines.
-
Petrochemical and Refinery Equipment – Monitors high-speed pumps, motors, and compressors.
-
Research and Development – Provides high-precision data for experimental machinery testing.
-
Industrial Automation – Integrated into monitoring systems for real-time diagnostics / rotating equipment.
Advantages
The Bently Nevada 330174-00-06-20-02-00 Probe /fers numerous operational and technical benefits:
-
High Accuracy – Provides precise shaft displacement and vibration measurement.
-
Non-お問い合わせ Sensing – Eliminates mechanical wear and interference with moving parts.
-
Fast Response – Detects rapid shaft movements and high-frequency vibrations.
-
Robust Construction – Resistant to shock, vibration, and harsh industrial environments.
-
Wide Temperature Range – Operates effectively from -40°C to +120°C.
-
IP67 Protection – Ensures reliable operation in dusty or wet environments.
-
Flexible Mounting – サポートs threaded or clamp installation for versatile setups.
-
Industry Standard Compatibility – Works seamlessly with Bently Nevada 3300 Series monitoring systems.
FAQ
-
What measurement principle does the 330174-00-06-20-02-00 probe use?
It operates on eddy current technology, providing non-contact measurement / shaft displacement and vibration. -
What is the standard measurement range / this probe?
The probe measures 0–5 mm, suitable for standard rotating machinery applications. -
What is the frequency response / this probe?
It supports DC to 10 kHz, capturing both slow displacement changes and high-frequency shaft vibrations. -
Can the probe operate in high-temperature environments?
Yes, it is rated for -40°C to +120°C, making it suitable for industrial machinery and turbine applications. -
What mounting options are available for this probe?
The probe can be installed using threaded or clamp mounting depending on the machinery setup. -
Is the probe resistant to shock and vibration?
Yes, it is rated for 50 g shock and 20 g vibration, ensuring stability in harsh industrial conditions. -
Does the probe provide continuous measurement for predictive maintenance?
Yes, it continuously monitors shaft displacement and vibration, supporting condition-based maintenance strategies. -
What is the protection rating / the probe?
It has an IP67 rating, protecting against dust and moisture for reliable operation in industrial environments. -
What type / output signal does the 3300 probe provide?
It provides voltage or current output compatible with Bently Nevada 3300 Series monitoring systems. -
Can this probe be used for high-speed rotating machinery?
Yes, it is designed to accurately monitor high-speed turbines, compressors, and generators, providing reliable real-time data.
Related or Same-Series モデルs
| モデル Number | 説明 |
|---|---|
| 330174-00-06-20-01-00 | 3300 Series 5mm Proximity Probe alternate range |
| 330174-00-06-20-03-00 | 3300 Series 5mm Probe with reinforced housing |
| 330174-00-06-20-04-00 | 3300 Series 5mm High-temperature Probe |
| 330174-00-06-20-05-00 | 3300 Series 5mm Probe optimized for turbines |
| 330174-00-06-20-06-00 | 3300 Series 5mm Probe with extended frequency response |
| 330174-00-06-20-07-00 | 3300 Series 5mm Probe for specialized industrial machinery |
