Product Overview

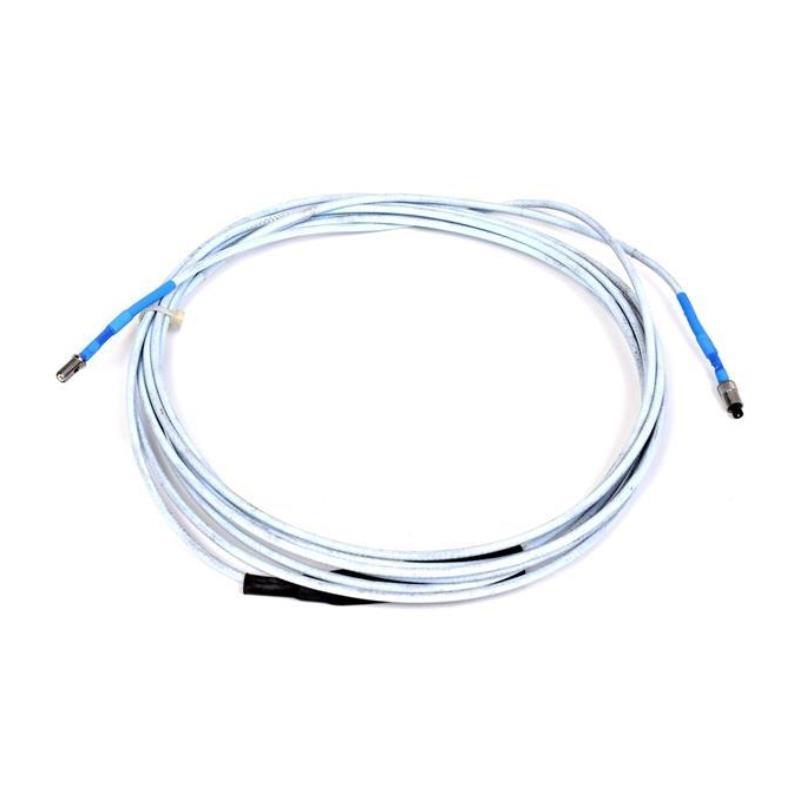

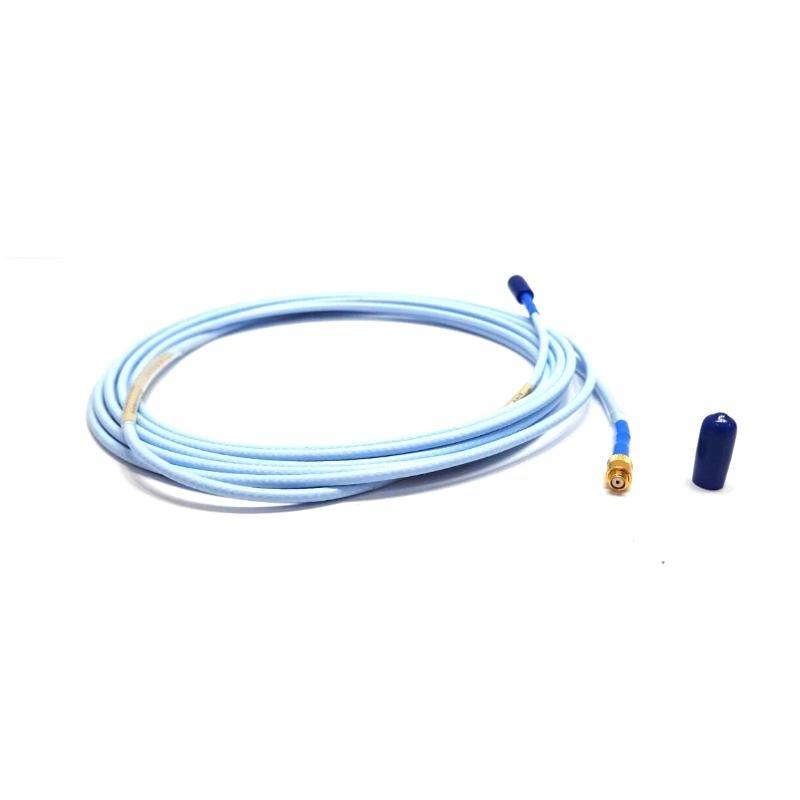

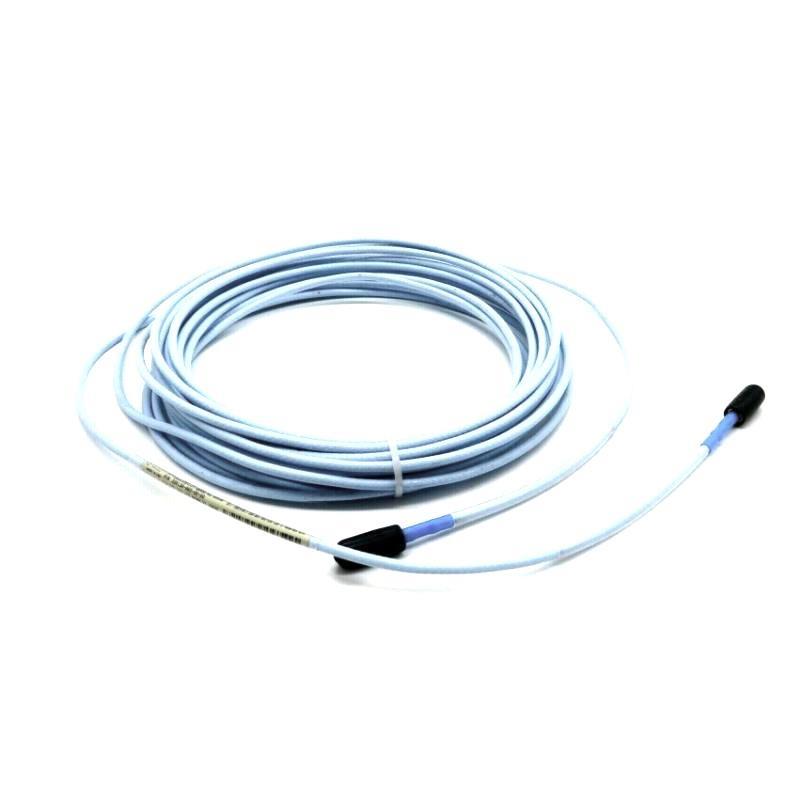

The Bently Nevada 330130-075-10-05 is a 7.5-meter standard extension cable designed for use in the 3300 XL 8 mm Proximity Transducer System. It forms a critical part / the system by linking the proximity probe to the Proximitor Sensor, facilitating accurate transmission / position and vibration data in rotating machinery.
Technical Specifications
| Parameter | 説明 |
|---|---|
| モデル | 330130-075-10-05 |
| Product Type | Standard Extension Cable |
| System Compatibility | 3300 XL 8 mm Proximity Transducer System |
| Cable Length | 7.5 meters |
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | Miniature ClickLoc, gold-plated |
| Resistance (RCORE) | 1.65 ± 0.25 Ω |
| Jacket Resistance (RJACKET) | 0.49 ± 0.10 Ω |
| Capacitance | 69.9 pF/m (typical) |
| Bend Radius (Minimum) | 25.4 mm |
| Temperature Range | -52°C to +177°C (Standard) |
| 重量 | 0.78 kg |
Applications
-
Radial vibration monitoring on fluid-film bearing machines
-
Shaft position measurement
-
Keyphasor and speed reference systems
-
Power generation and industrial turbines
-
Compressors and rotating equipment condition monitoring
Product Advantages
-
High Reliability: Ensures accurate signal transmission under harsh industrial conditions
-
ClickLoc Connectors: Secure, tool-free installation with “click” confirmation
-
Interchangeable: Fully compatible with 3300 XL system components
-
Robust Construction: 330 N tensile strength; secure CableLoc design
-
Oil Protection (Optional): FluidLoc version available to block fluid ingress
-
Easy Routing: Compact and flexible design with small bend radius
よくある質問 (FAQ)
Q1: What is the function / the 330130-075-10-05 cable?
A1: It connects the proximity probe to the Proximitor Sensor, ensuring signal integrity.
Q2: Is this cable compatible with non-XL systems?
A2: It is physically and electrically compatible with non-XL 3300 8 mm and 5 mm systems.
Q3: Can it withstand high temperatures?
A3: Yes, the standard version supports up to +177°C; the ETR version supports up to +260°C.
Q4: What are ClickLoc connectors?
A4: They are gold-plated, tool-free connectors with a locking mechanism that “clicks” when properly secured.
Q5: Does it support long-distance signal transmission?
A5: Yes, it maintains signal integrity up to 305 meters with proper field wiring.
Q6: Is oil leakage prevention available?
A6: Yes, optional FluidLoc cables are available for sealing against oil ingress.
Q7: Can I use this cable in hazardous areas?
A7: Yes, it has CSA, ATEX, and IECEx approvals for safe use in hazardous environments.
Q8: How is the cable protected against environmental damage?
A8: Optional connector protectors and armor versions provide enhanced durability.
Q9: Can I install this cable in tight spaces?
A9: Yes, its small bend radius allows flexible routing in constrained environments.
Q10: Is field calibration required after cable replacement?
A10: No, the system is designed for full interchangeability without recalibration.
Related モデルs in the Same Series
| モデル Number | 説明 | Length | 重量 |
|---|---|---|---|
| 330130-070-00-00 | Standard Extension Cable | 7.0 m | 0.73 kg |
| 330130-060-00-00 | Standard Extension Cable | 6.0 m | 0.64 kg |
| 330130-085-00-00 | Standard Extension Cable | 8.5 m | 0.82 kg |
| 330130-045-00-00 | Standard Extension Cable | 4.5 m | 0.52 kg |
| 330130-035-00-00 | Standard Extension Cable | 3.5 m | 0.45 kg |
| 330130-075-11-00 | FluidLoc Armored Extension Cable | 7.5 m | 1.15 kg |
Popular Bently Nevada モデルs
| モデル Number | 説明 | Application | 重量 |
|---|---|---|---|
| 330104-00-06-10-11-00 | 8 mm Proximity Probe | Vibration/position sensing | 0.33 kg |
| 330180-91-00 | Proximitor Sensor, 9 m, DIN mount | Signal conditioning | 0.25 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Seismic vibration monitoring | 0.42 kg |
| 3500/22M-01-01-00 | Transient Data Interface (TDI) Module | Dynamic data capture | 0.38 kg |
| 3500/15-05-01-00 | Power Supply Module | Rack power supply | 0.75 kg |
| 330106-05-30-10-02-00 | 8 mm Reverse Mount Probe | Compact mounting | 0.34 kg |
